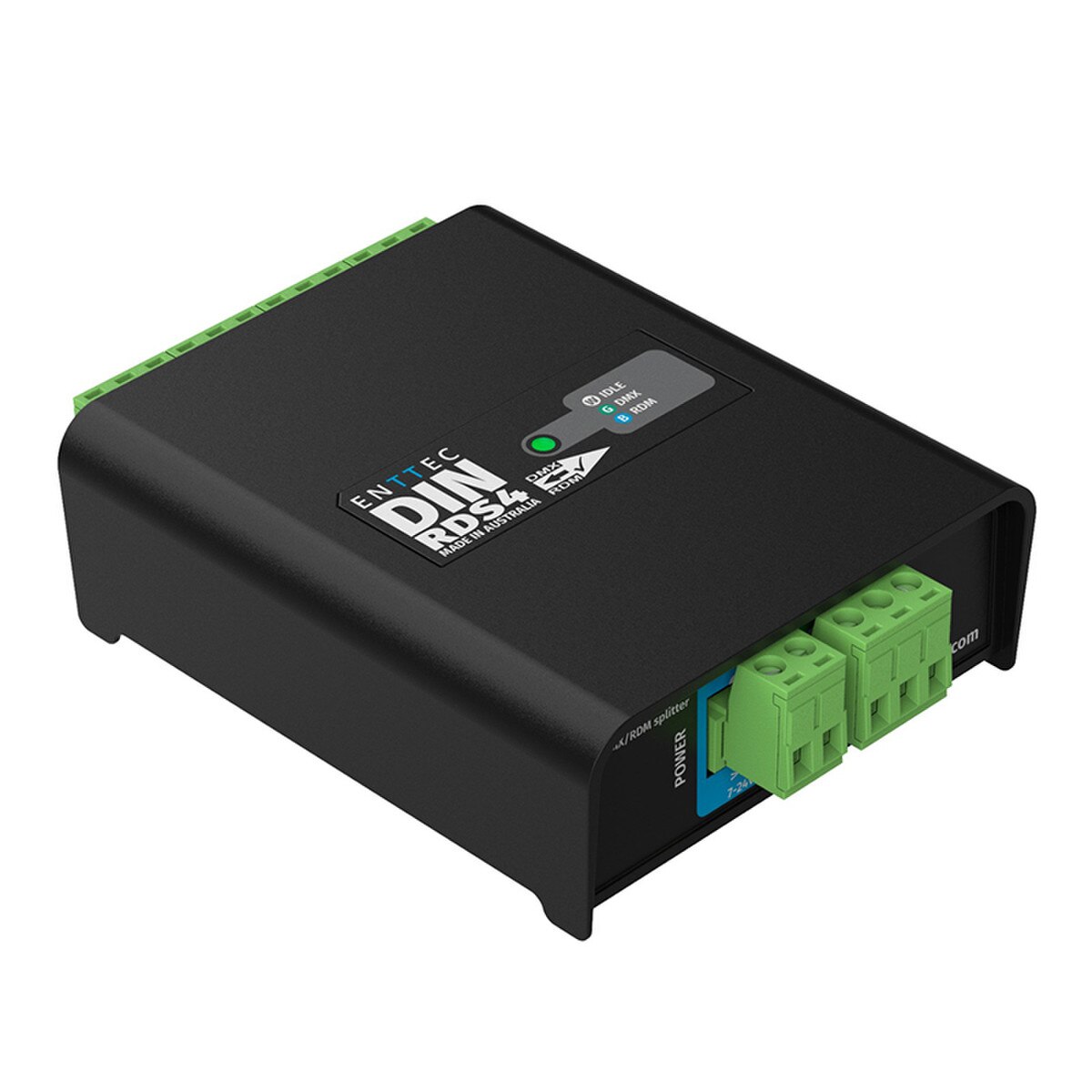

Enttec DIN RDS4 Mk2

At A Glance:

• DIN RDS4 is the new installation grade 4-port DMX/RDM splitter in a compact, 4-module DIN-rail form factor.

ENTTEC’s DIN RDS4 is a robust, reliable installation grade 4 port DMX & RDM Isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.

Use the DIN RDS4 to turn one DMX feed into 4, eliminating the need to create long, complex DMX chains. Each port is the beginning of a new chain. Multiple RDS4’s can be chained together to create as many outputs as you need.

1500V isolation between the DMX input, outputs and between any individual port protects your DMX source from power surges on the DMX line alongside blocking stray voltage from crossing to other DMX chains.

The DIN RDS4 is packed with installer friendly features including a flexible 7-24VDC power input range, removable terminal plugs for simple wiring, and no configuration needed. All housed within a compact, electrically insulated form factor with flexible mounting options.

Features:

• 1 DMX/RDM input & 4 DMX/RDM outputs.
• Pluggable screw terminal connectors.

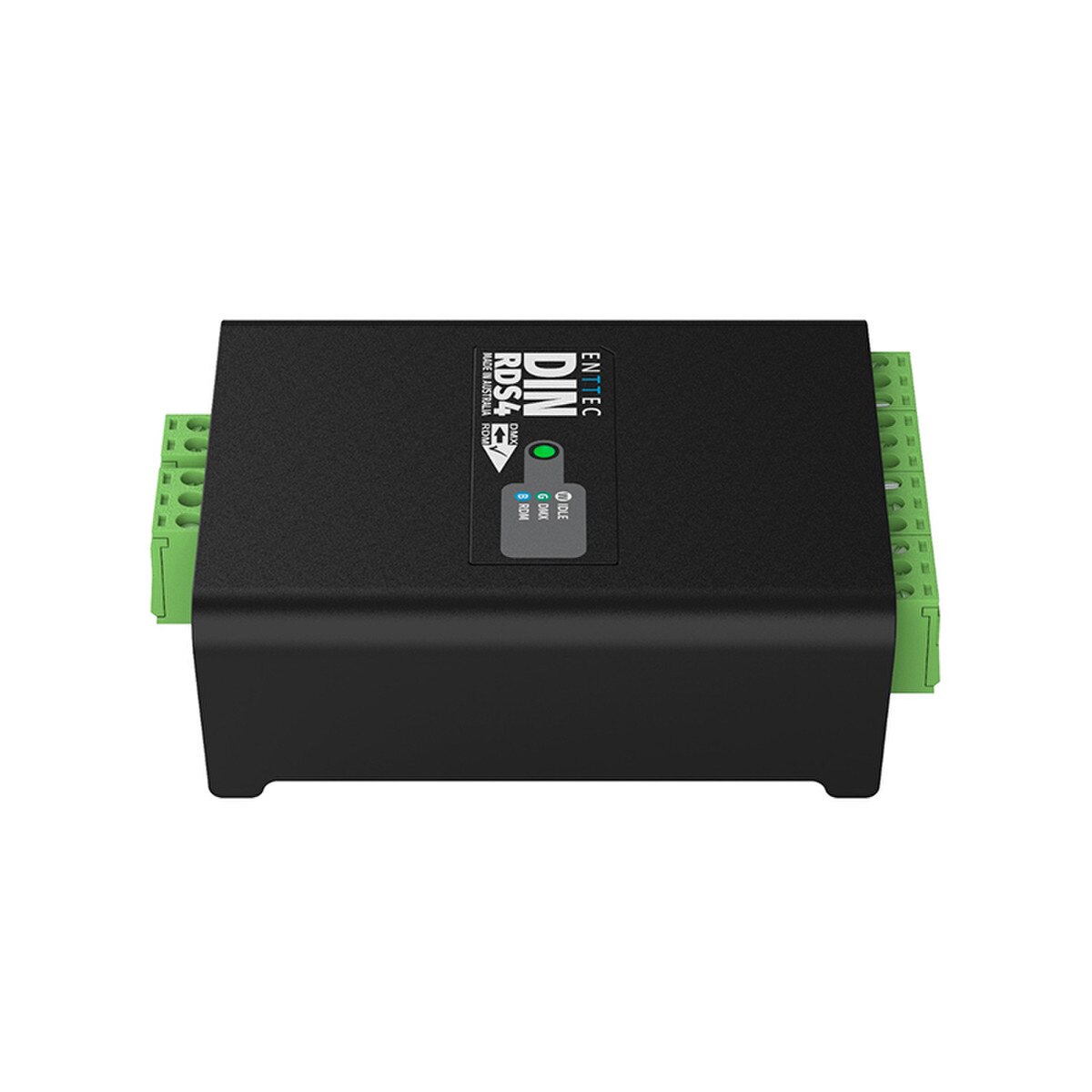

• Forward facing LED status indicator to view current DMX/RDM traffic.
• Support for DMX512-A and ANSI E1.20 RDM.
• Output refresh rate mimics the input.
• Electrically insulated case material.

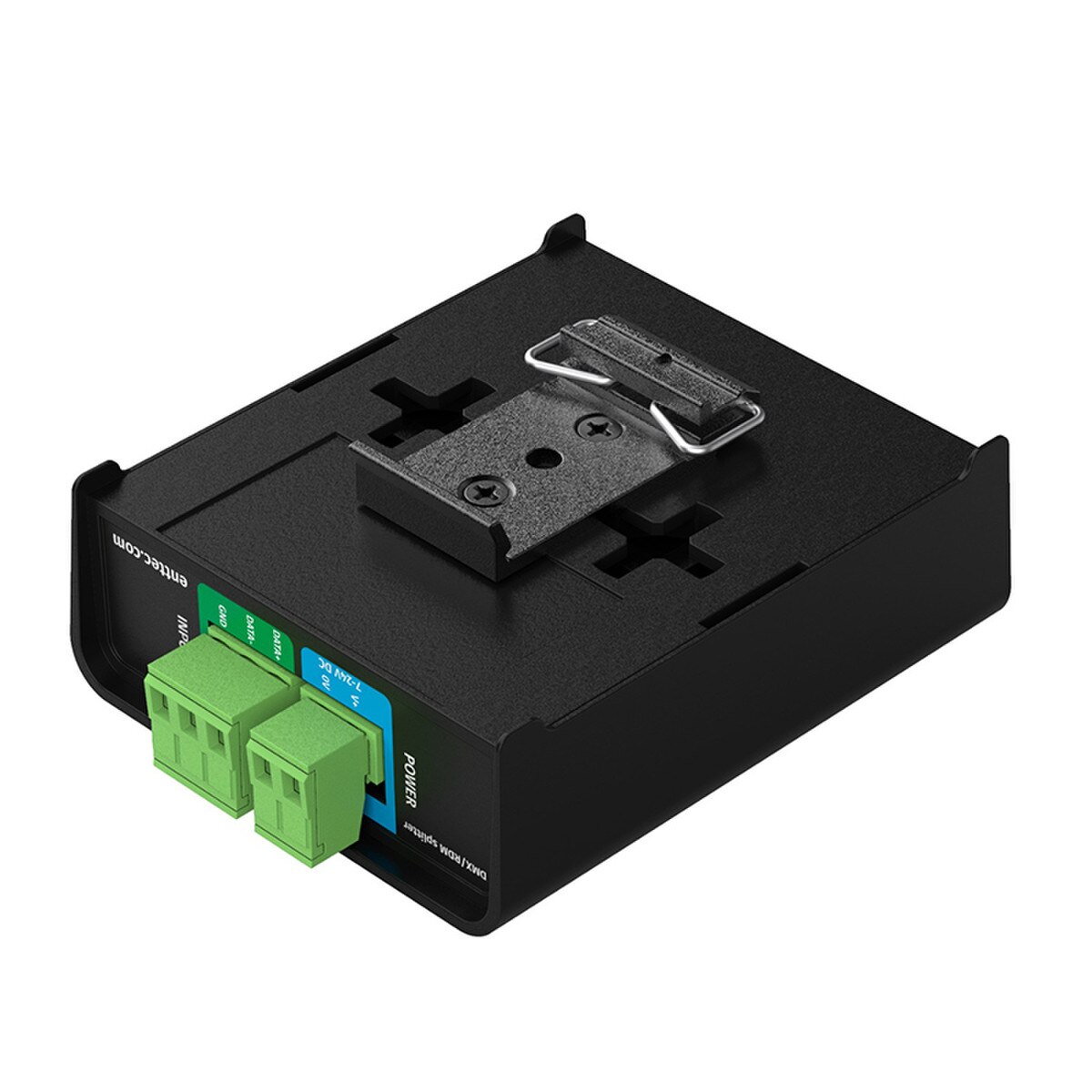

• Surface or TS35 DIN rail mount.
• No configuration required.
• 7V-24V DC power input.
• 1500V Opto-isolation between each DMX port to protect against stray voltages on the DMX line.
• Operating temp: -20°C to 50°C.

Specification:

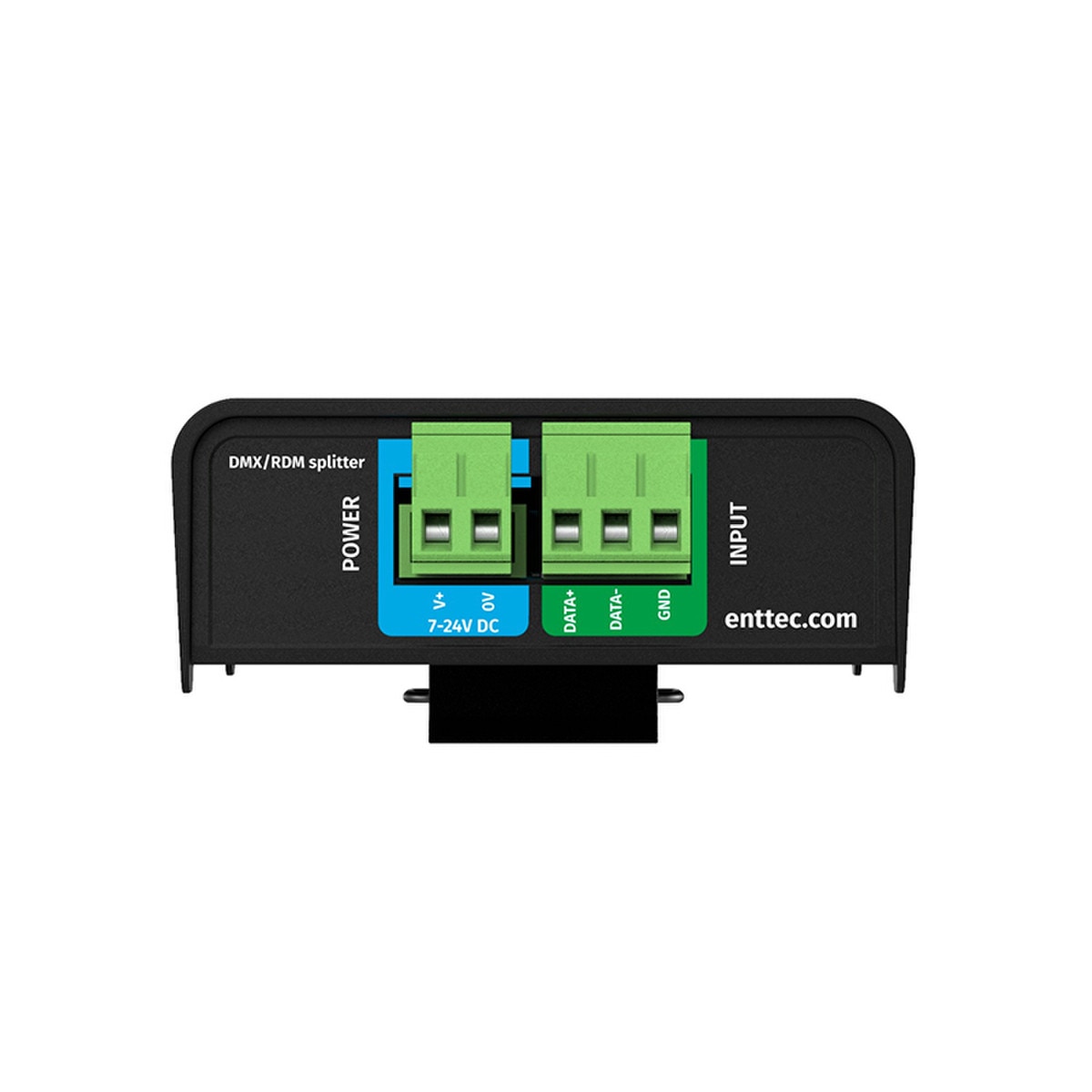

Connectors:

• 1 x DMX Input (3 Pin Phoenix)
• 4 x DMX Output (3 Pin Phoenix)
• 1 x Power Input (2 Pin Phoenix)

IP Rating:

• IP20

LED indicators:

• Yes

Supported protocols:

• USITT DMX512-A
• ANSI E1.20 RDM

Bi-Directional:

• No

Max. Output Channels:

• 1 universe (512ch)

Max. Output Refresh Rate:

• 43FPS

Firmware Updates:

• No

Input Voltage:

• 7.5V to 24V DC

Max. Power Draw:

• 5W

Max. Heat Dissipation:

• 5W

Environmental Operating Temperature:

• -20°C to 50°C
• -4°F to 122°F

Environmental Operating Humidity:

• 5- 95% (non-condensing)

Body material:

• ABS plastic

Mounting Options:

• Surface mount
• TS35 DIN Rail mount

Unit Dimensions:

• 100.5 x 72.25 x 34 mm

Unit Weight:

• 0.10kg / 0.22lbs

Shipping Dimensions:

• 140 x 140 x 40 mm

Shipping Weight:

• 0.16kg / 0.35lbs

Warranty:

• 3 year return to base manufacturer warranty

Box Contents:

• DIN RDS4
• TS35 DIN clip & screws

Safety:

• Do not expose the device to rain or moisture. This unit is intended for indoor use only.
• Do not remove the cover, there are no user serviceable parts inside.
• Never connect DMX GND to an electrical ‘earth’ connection.
• Before handling or specifying the DIN RDS4 on your project, refer to its User Guide for wiring diagrams, installation guidance & safety notes.
