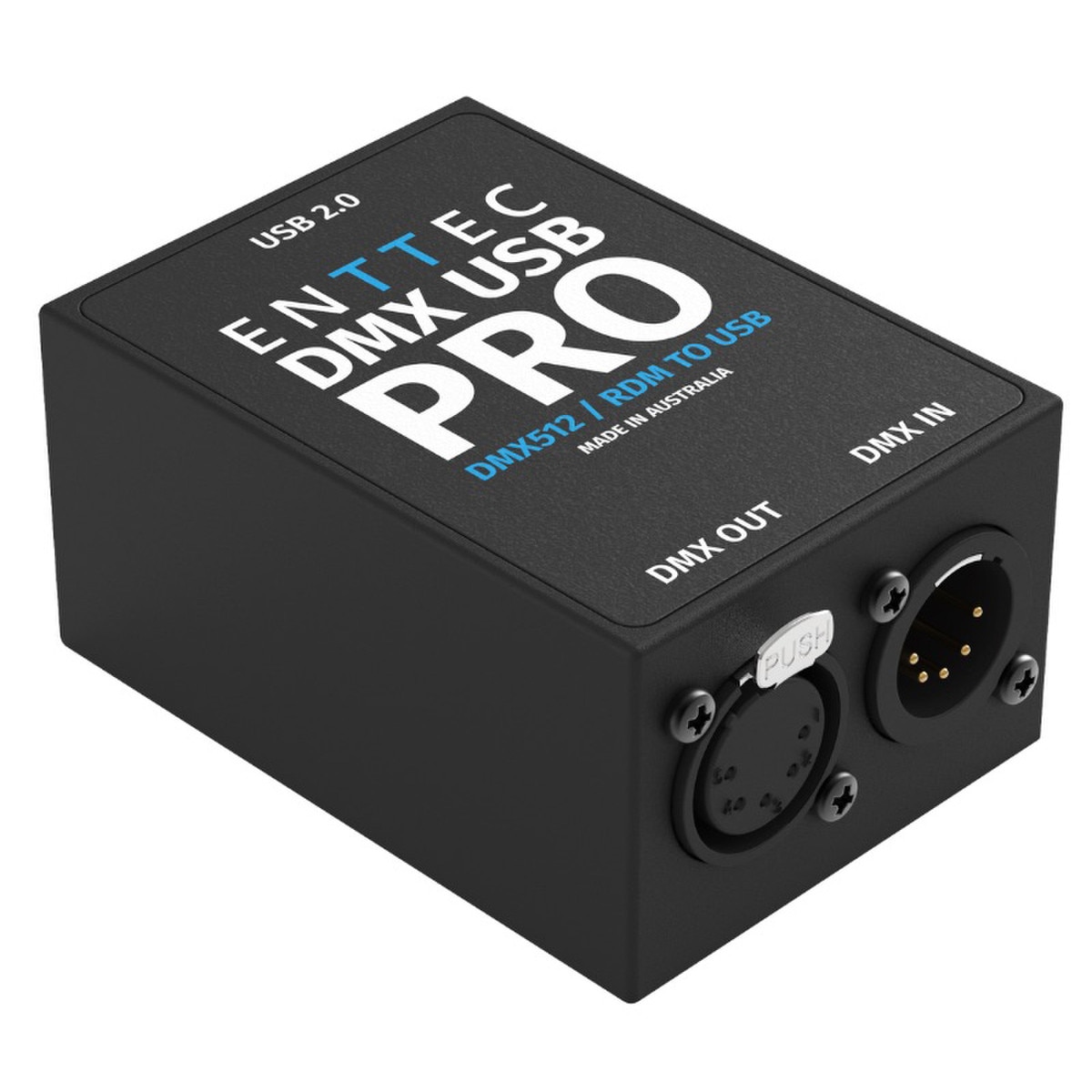

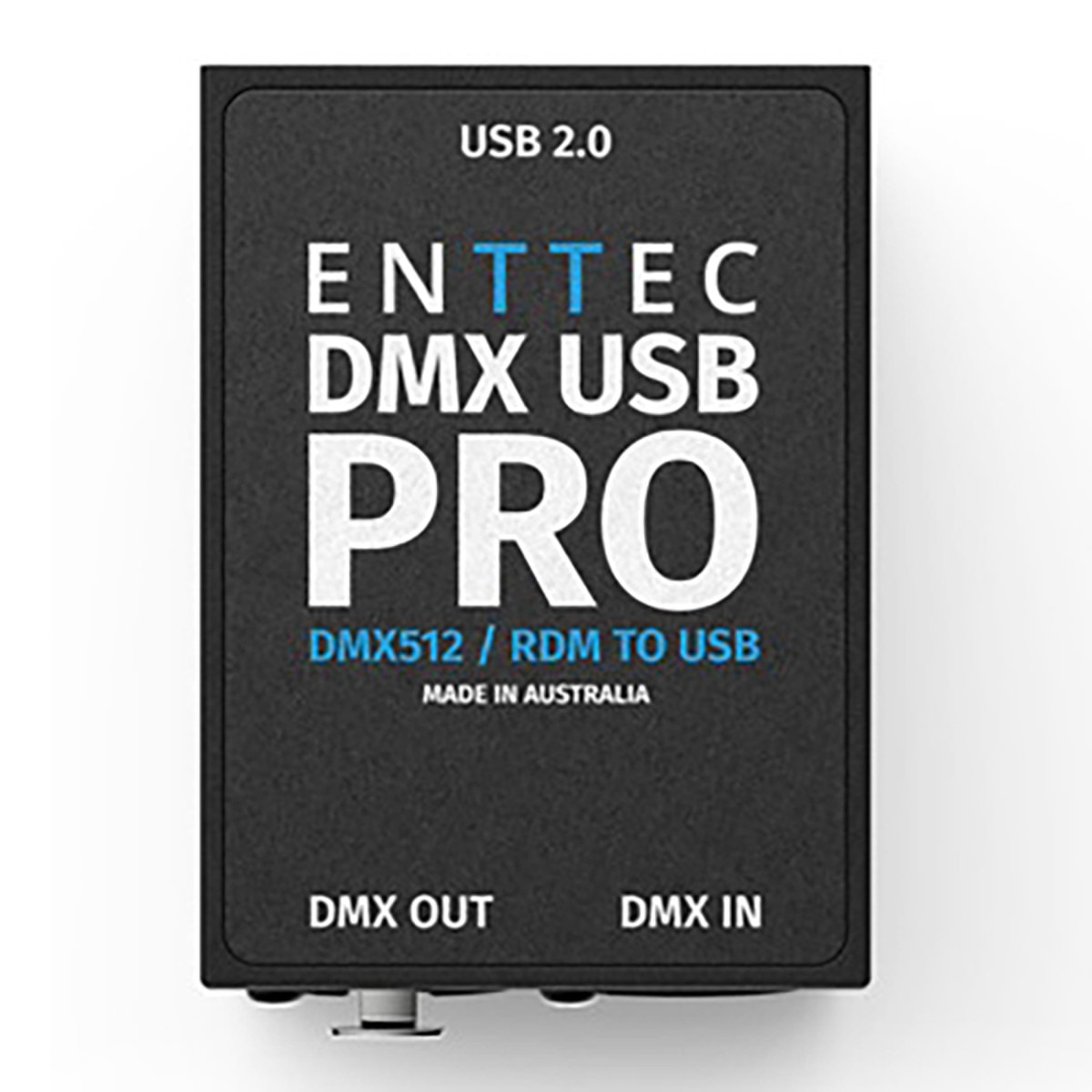

Enttec DMX USB Pro
Details
At A Glance:
The DMX USB Pro is the industry standard DMX USB converter for DMX/RDM. Control your lights from PC or MacOS software.
The DMX USB PRO connects to a computer using a robust USB Type-B 2.0 connector and allows compatible software to either input or output DMX / RDM on MacOS, Windows or Linux computers.
The DMX USB PRO has industry standard XLR5 connectors and 1500V full isolation on both data and power lines to protect your computer from any stray voltages on the DMX line. Furthermore, it features an internal frame buffer for consistent DMX generation when outputting, meaning timing it isn’t dependent on your PC’s processor.
The DMX USB PRO is supported by a broad array of third-party software and allows users to integrate it into their own software projects using the DMX USB PRO’s developer API.
Use ENTTEC’s free EMU software to test, update and configure your DMX USB PRO. You can change the firmware to your exact requirements (RDM or NonRDM).
Features:
- Full 512 DMX channel (1 universe) of input or output.
- Fully compliant with USITT DMX512-A.
- Output refresh rate configurable from 1 to 40 FPS (Frames Per Second).
- Configurable MAB and Break time using ENTTEC’s EMU Software to accommodate non-standard equipment.
- Supported on Windows, MacOS & Linux.
- 1500V full isolation (data & power lines to protect your computer from surges).
- RDM enabled (ANSI E1.20 compliant).
- Drivers for Windows, MacOS and Linux (drivers released and maintained by FTDI).
- Compatible with various open-source and professional lighting control programs.
- Developer API available to integrate into your own software.
Specification:
Connectors:
- 1 x DMX Output (Female XLR5)
- 1 x DMX Input (Male XLR5)
- 1 x USB 2.0 Type-B
IP Rating:
- IP20
LED Indicators:
- Yes
Supported Protocols:
- USITT DMX512-A
- ANSI E1.20 RDM1
Standalone Playback:
- No
MIDI:
- No
Maximum Output Channels:
- 1 universe (512ch)
Max. Output Refresh Rate:
- 40FPS
Configuration Software:
- EMU
Firmware Updates:
- EMU
Input Voltage:
- 5V DC (via USB)
Input Current:
- 300mA
Power Draw:
- 1.5W
Environmental Operating Temperature:
- 0°-50°C
- 32°-122°F
Environmental Operating Humidity:
- 5- 95% (non-condensing)
Body Material:
- ABS plastic
Mounting Options:
- N/A
Unit Weight:
- 80 g / 0.18lbs
Shipping Dimensions:
- 23 7x 165 x 71 mm
Shipping Weight:
- 0.30kg / 0.66lbs
Warranty:
- 3-year return to base manufacturer warranty
Box Contents:
- DMX USB PRO
- USB Type A -> USB 2.0 Type B cable
- EMU Promo Code - 3 months 2
DMX Connector Pin Out:
- Pin 1: 0V
- Pin 2: Data –
- Pin 3: Data +
- Pin 4: NC
- Pin 5: NC
Any suitable 3 to 5pin DMX adaptor can be used to connect to 3pin DMX cables or fixture. Please note the pinout, before connecting to any non-standard DMX connector.
Safety:
- Do not expose the device to rain or moisture. This unit is intended for indoor use only.
- Do not remove the cover, there are no user serviceable parts inside.
- Never connect DMX GND to an electrical ‘earth’ connection.
- For additional flexibility and increased protection, ENTTEC recommends the use of a DMX splitter.
