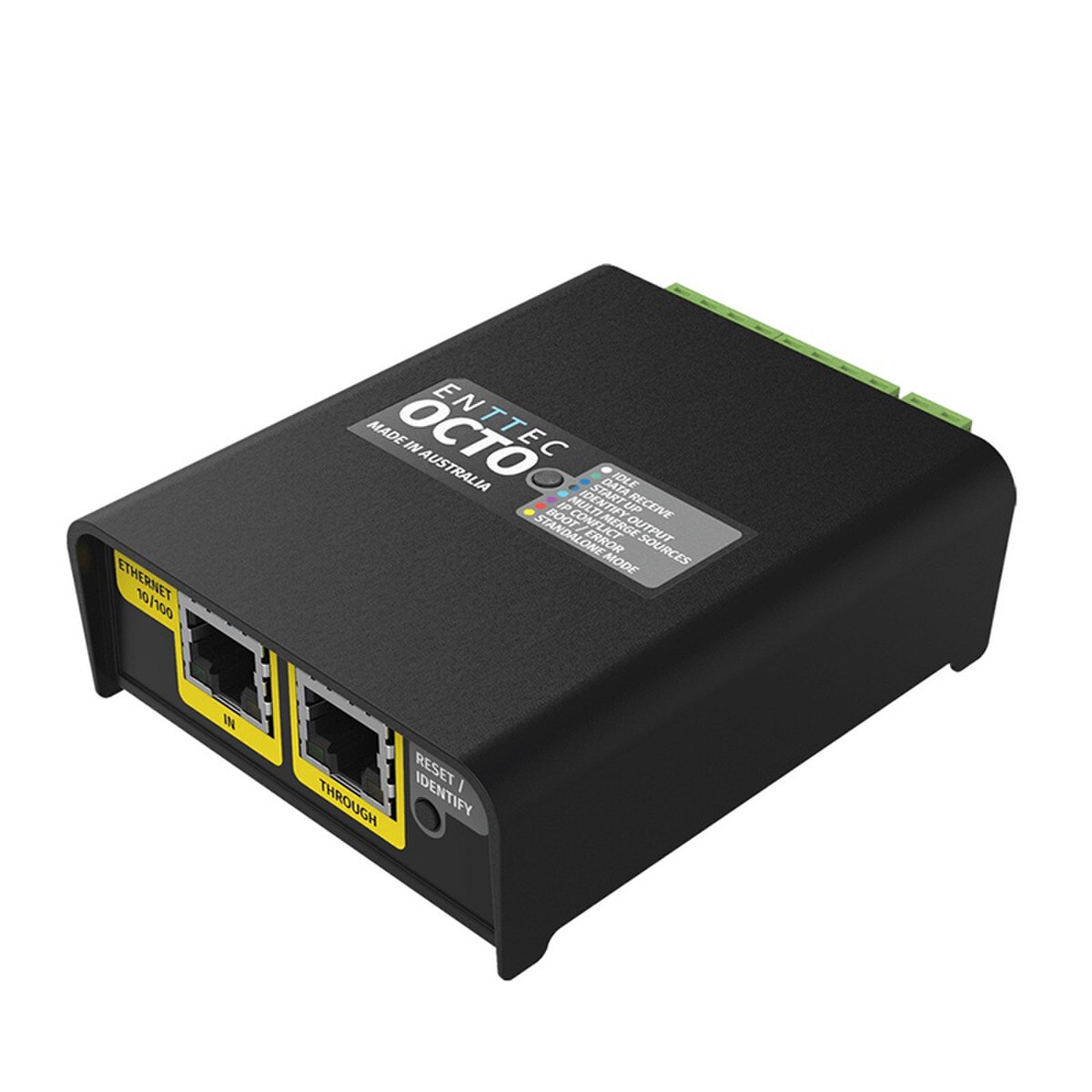

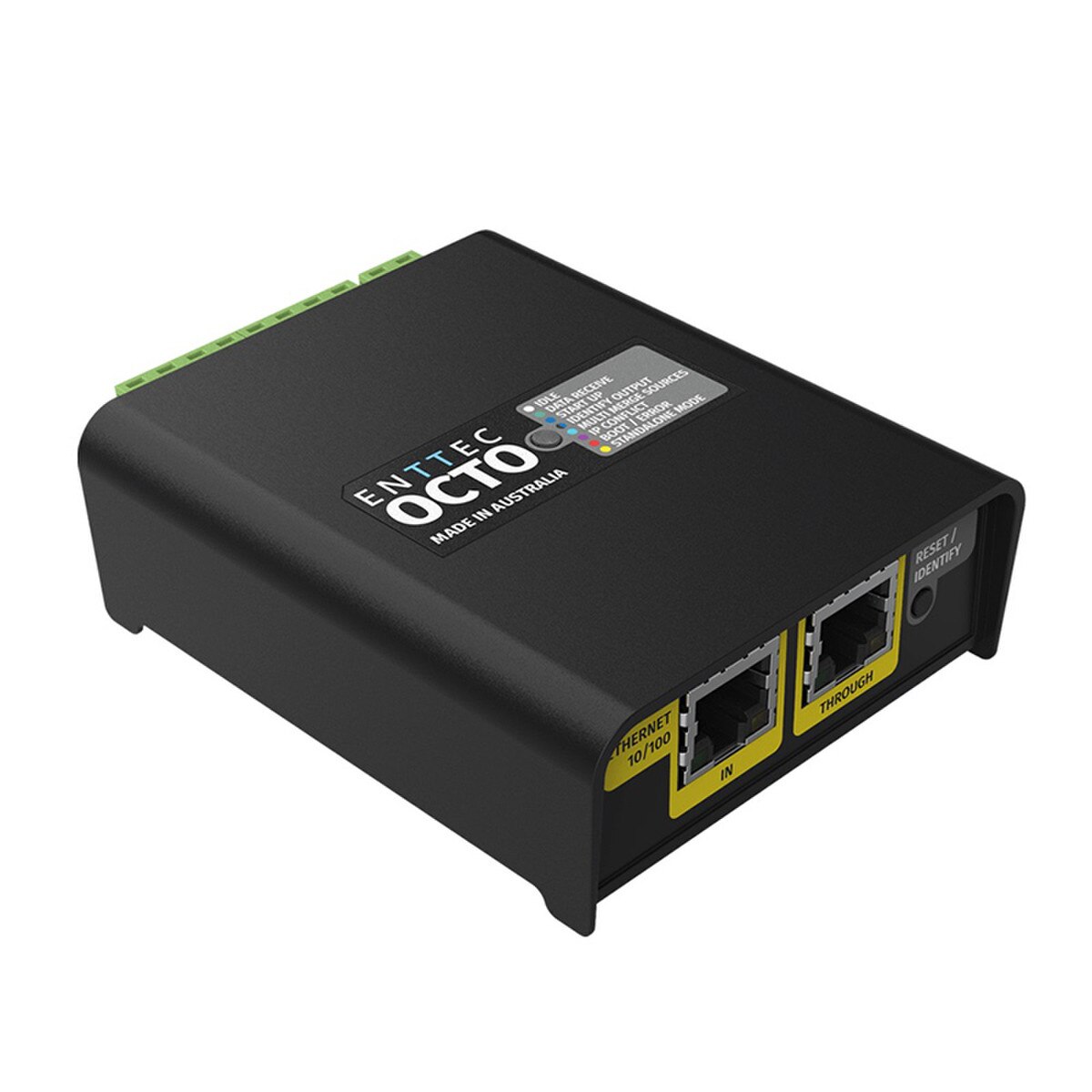

Enttec OCTO (Includes a FREE 8 Universe ELM License)

At A Glance:

• 8-universe eDMX to SPI pixel controller with standalone FX mode and an added overdrive feature capable of transmitting up to 16 universes of SPI data in a compact 4-module DIN-rail form factor.

Take your projects to the next level with the ENTTEC OCTO MK2. This robust SPI LED controller efficiently converts up to 16 universes of DMX over Ethernet to pixel data (8U per output), with auto activation of Overdrive mode when configured to output more than 4U per port.

Make LED strip and pixel dot system deployment a breeze with the OCTO MK2. With network chaining and direct power from the LED pixel source, fast installation has never been easier.

The user-friendly OCTO MK2 comes equipped with convenient features such as an identity button for wiring checks and a wide input voltage range (4-60VDC) all packed into a slim 4 DIN form factor.

The OCTO MK2 supports over 20 pre-listed pixel output protocols and supports immediate custom pixel protocol creation (criteria apply, see user manual).

With the inbuilt Fx engine, the OCTO MK2 allows you to create and edit gradient effects with real-time preview effortlessly. The device's web interface offers a seamless editing experience and can be configured to run standalone upon power-up, eliminating the need for a DMX source.

Features:

• Dual pixel outputs with Data and Clock support.
• Supports up to 16 universes of Art-Net, sACN, ESP and KiNet.
• Multiple pixel output protocols supported.
• Ability to create custom pixel output protocols (criteria apply, see user manual).
• Expandable network with daisy-chaining through Ethernet connections.
• DHCP or Static IP address support.
• Grouping functionality to reduce input channel count.

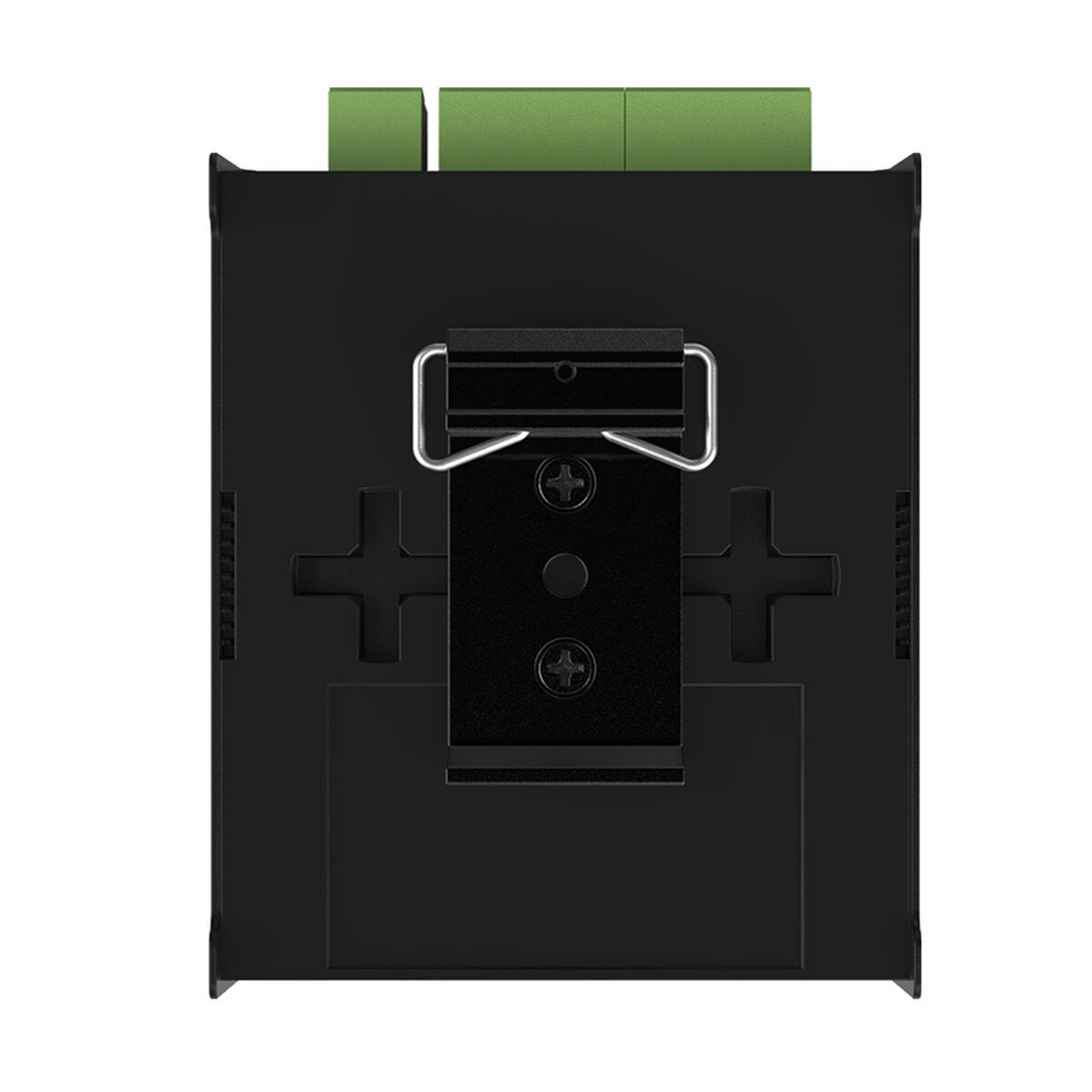

• Surface or TS35 DIN rail mounting options.
• Identify/Reset button for quick wiring verification without a network connection.
• Intuitive device configuration and updates through the built-in web interface.
• Inbuilt Fx engine allowing gradient effect in standalone operation without a DMX source.

Specification:

Connectors:

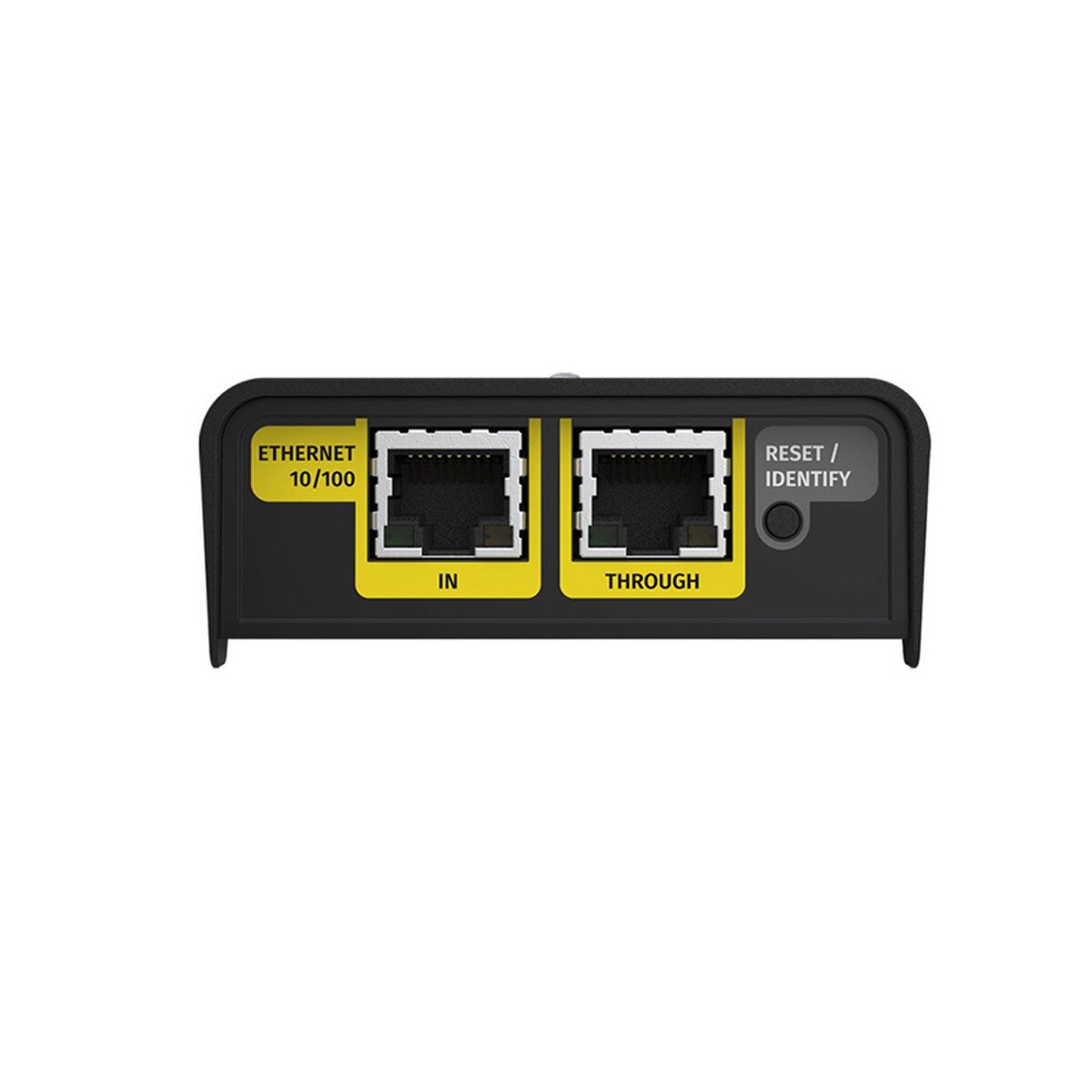

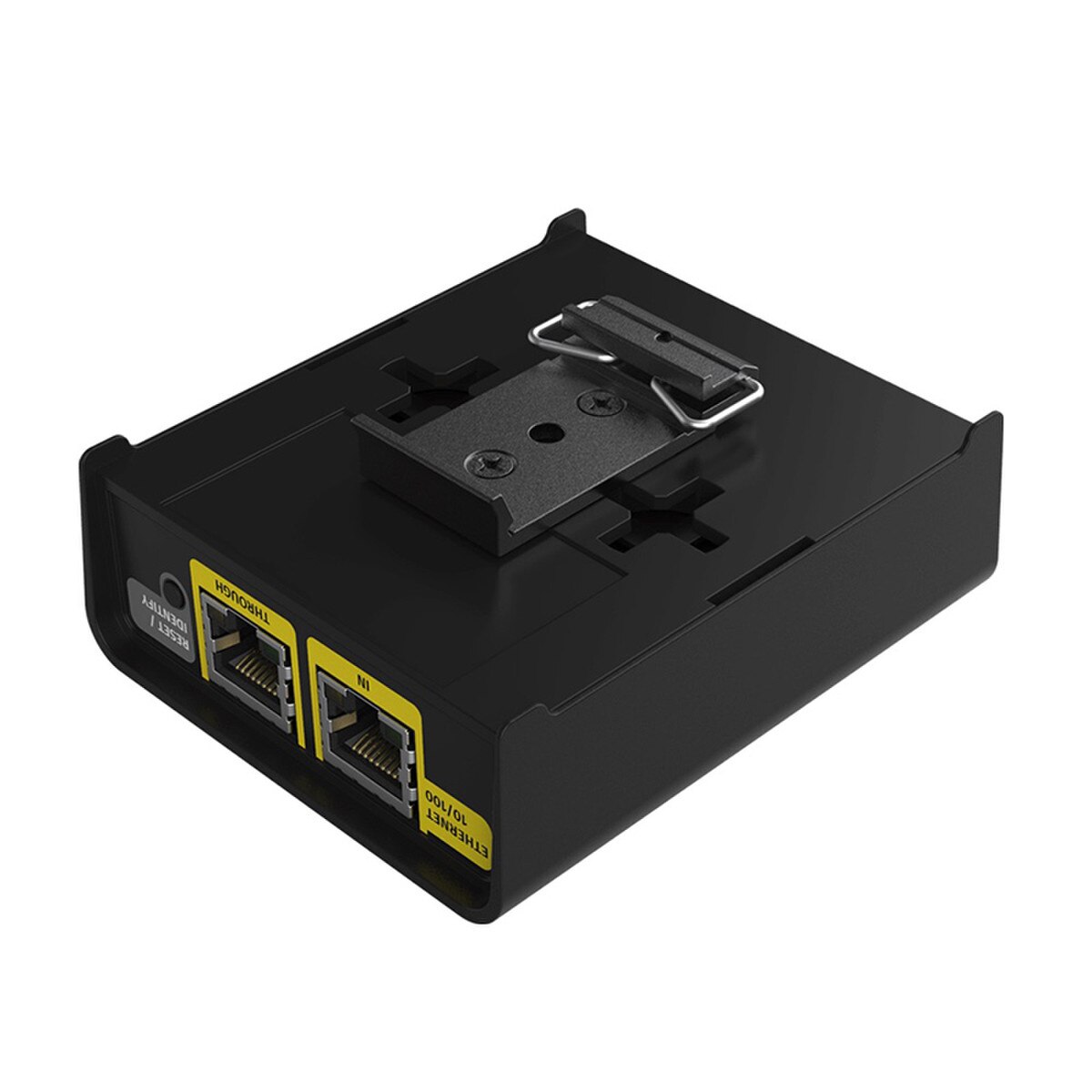

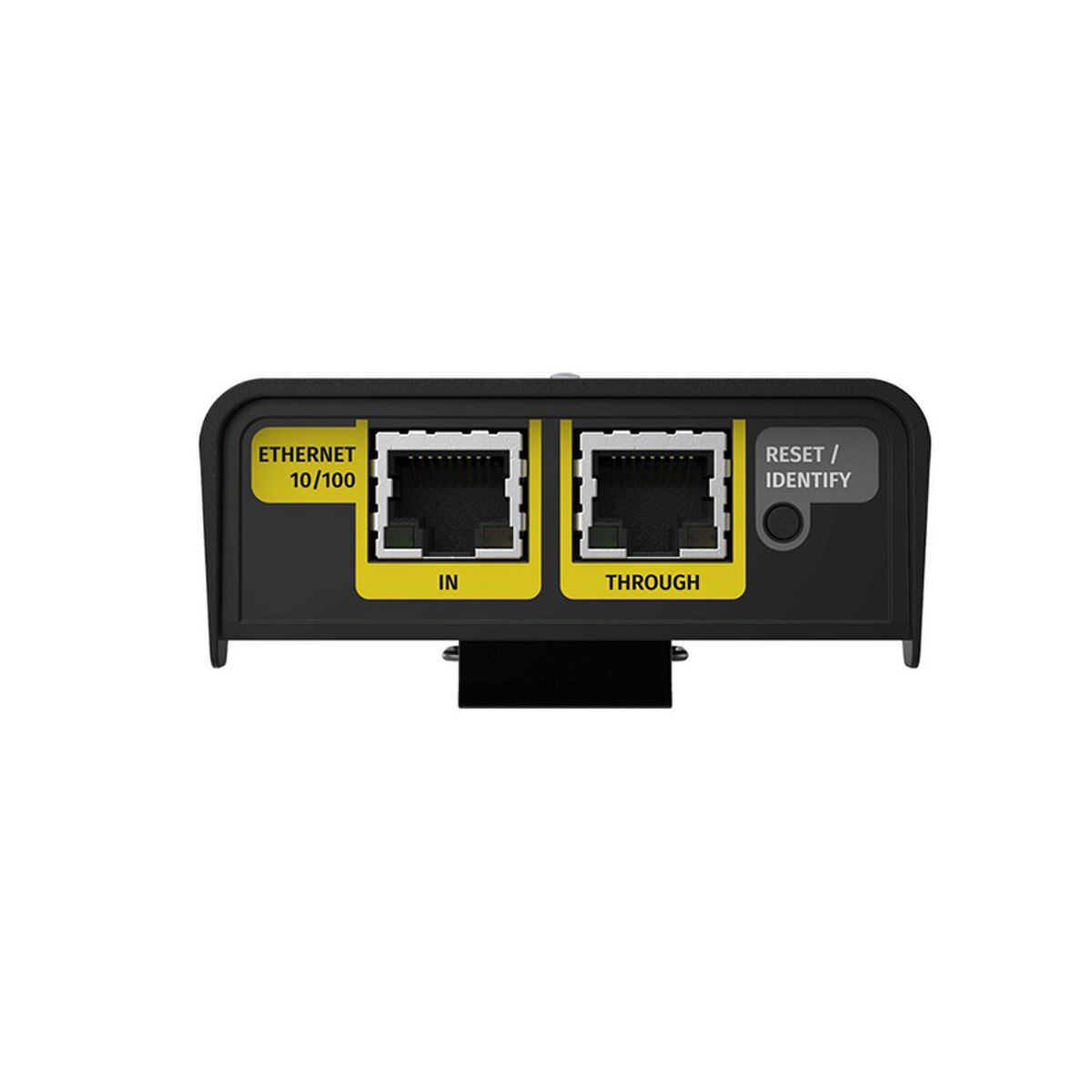

• 2 x Network (RJ45)

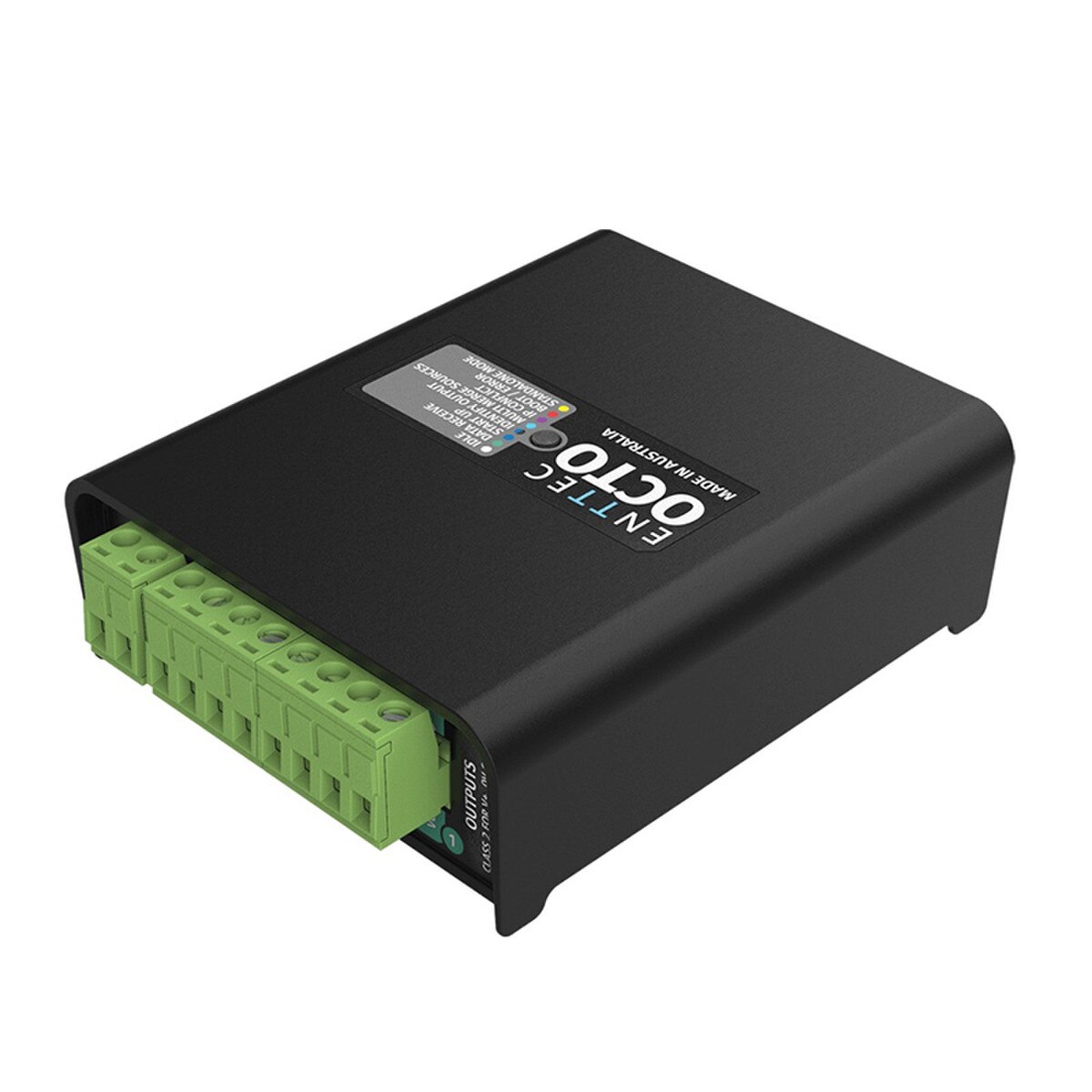

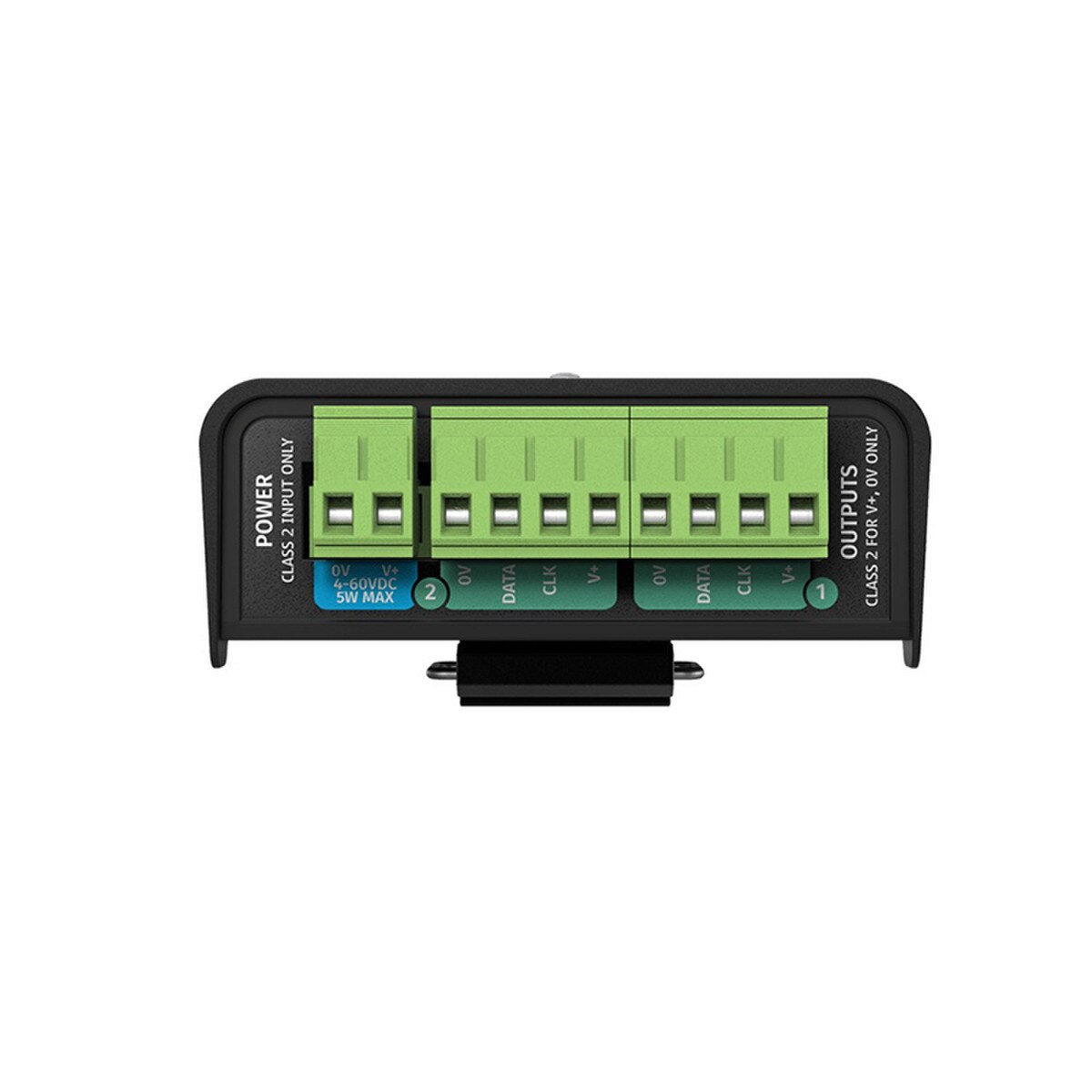

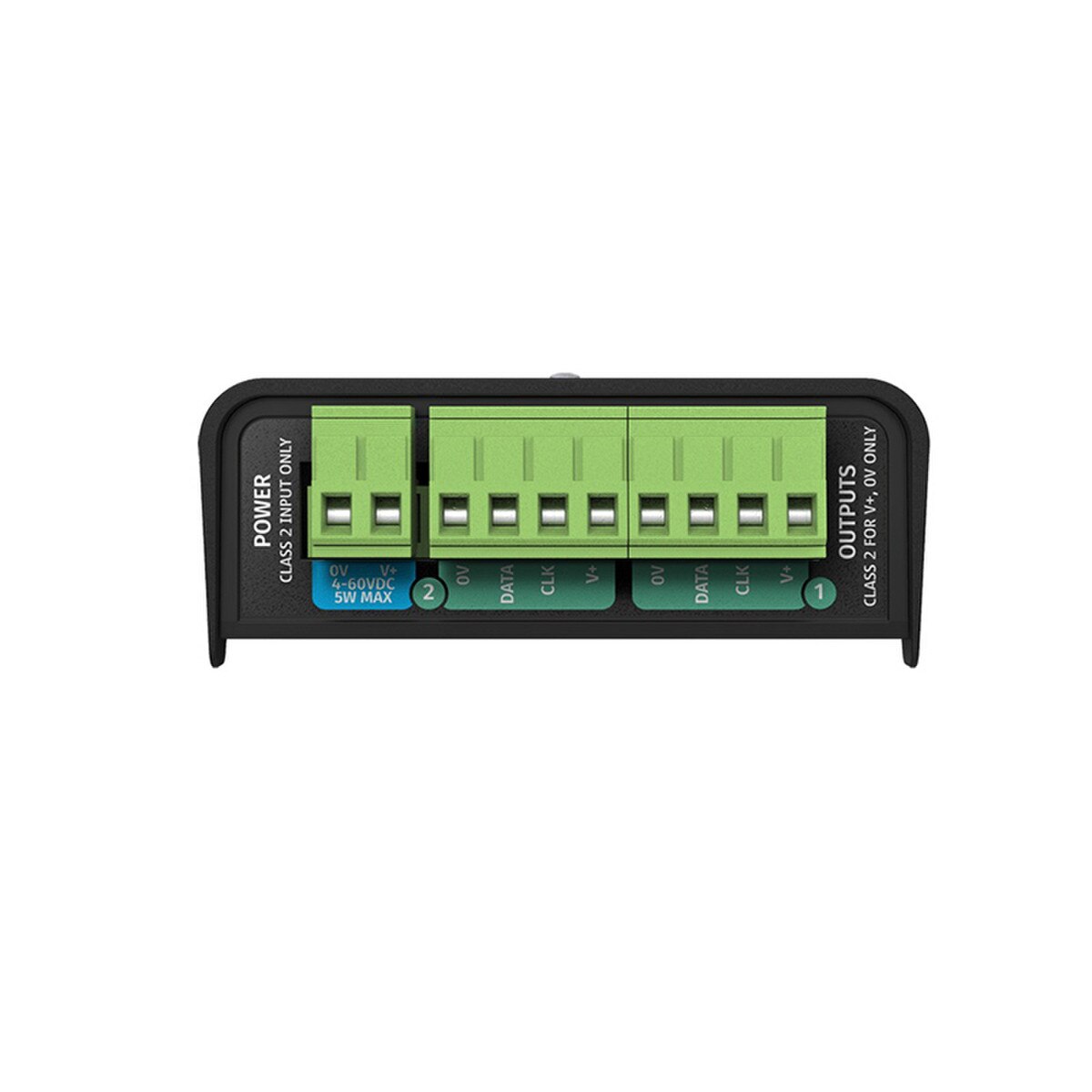

• 2 x SPI Output (4-Pin Phoenix)

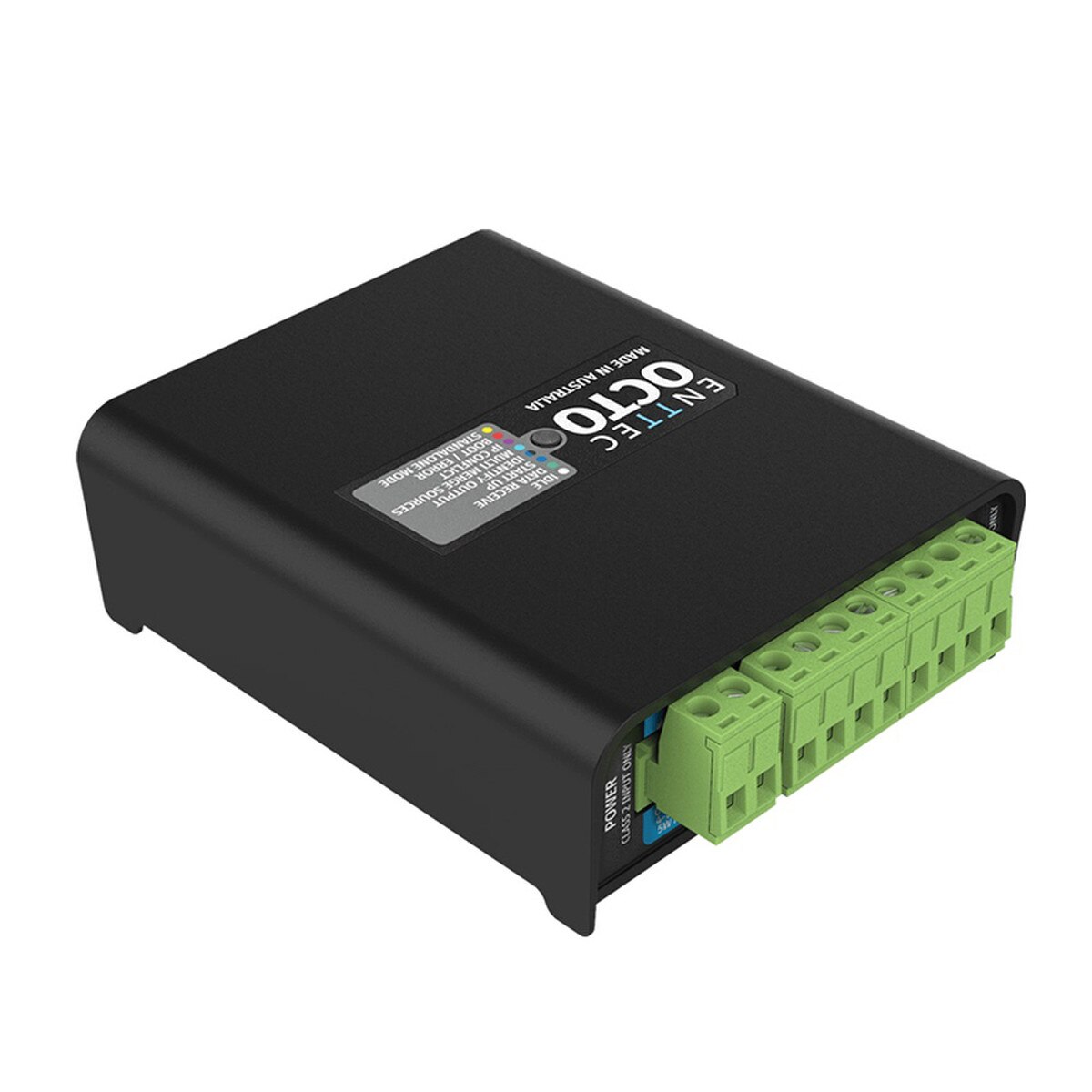

• 1 x Power (2-Pin Phoenix)

IP Rating:

• IP20

LED Indicators:

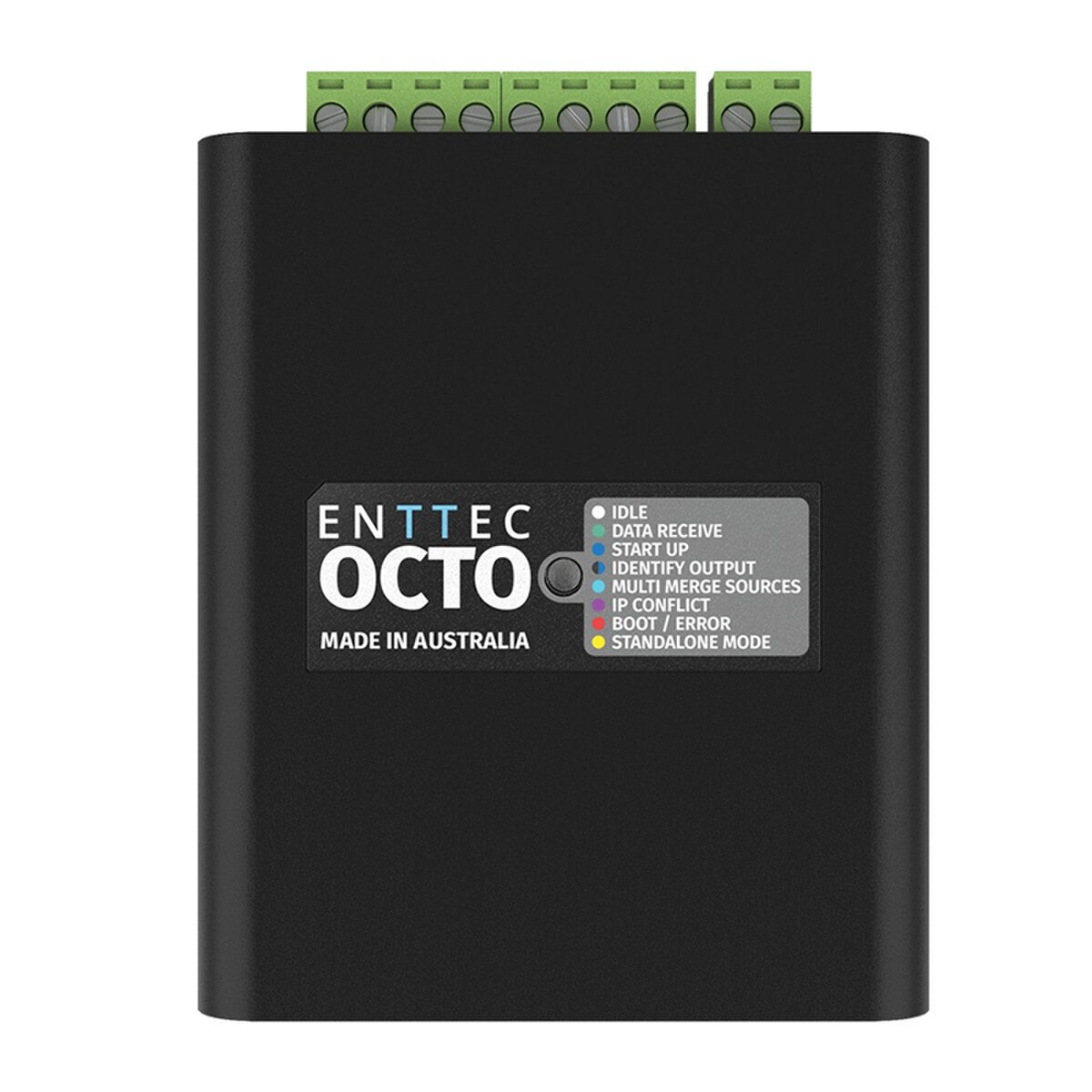

• Forward-facing LED indicator
• Network link/activity (integrated into RJ45 ports)

eDMX Input Protocol:

• Art-Net - sACN
• ESP - KiNet

Data Output Type:

• SPI (NZR)

Max. eDMX -> Pixel Conversion Per Device:

• 16 Universes (8,192 channels)

Max. Pixels Controllable Per Device:

• RGB 1360 (680 per port)
• RGBW 1024 (512 per port)

Network Speed:

• 10/100Base-T

Network Discovery:

• ENTTEC’s EMU software

Network Configuration:

• Static (Default 192.168.0.10) / DHCP

Recommended Network Device Quantity Per Chain:

• Chains of up to 8 devices give optimum synchronization between outputs

Firmware Updates:

• V4.0 onwards

Input Voltage:

• 4-60V DC

Max. Power Draw:

• 5W

Max. Heat Dissipation:

• 4.5 W

Max. Output Voltage:

• 5V

Max. Output Current:

• 50mA

Cooling Method:

• Convection

Operating Temperature:

• -20°C to 50°C /-4°F to 122°F

Operating Humidity:

• 5 to 95% (non-condensing)

Body Material:

• ABS plastic

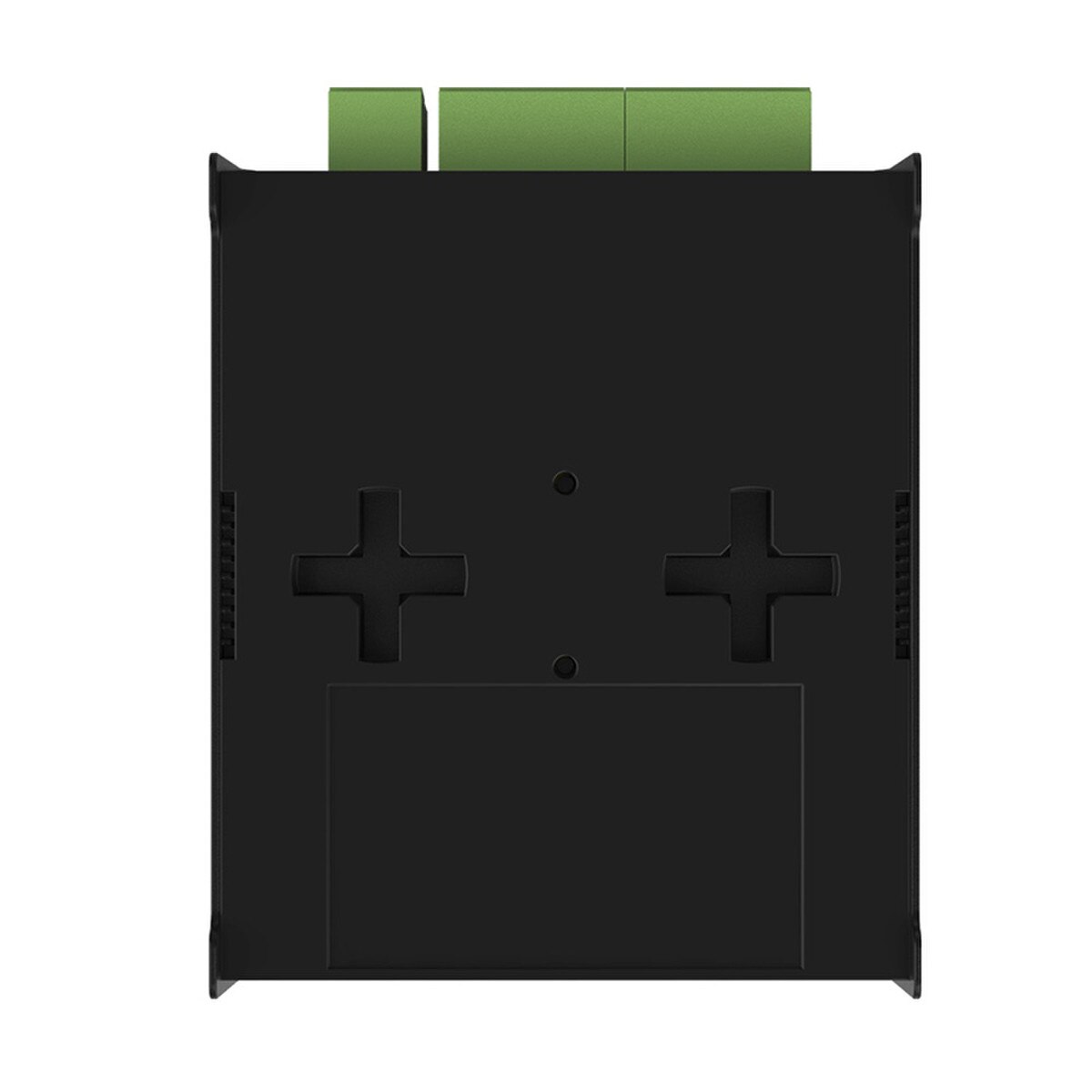

Mounting Options:

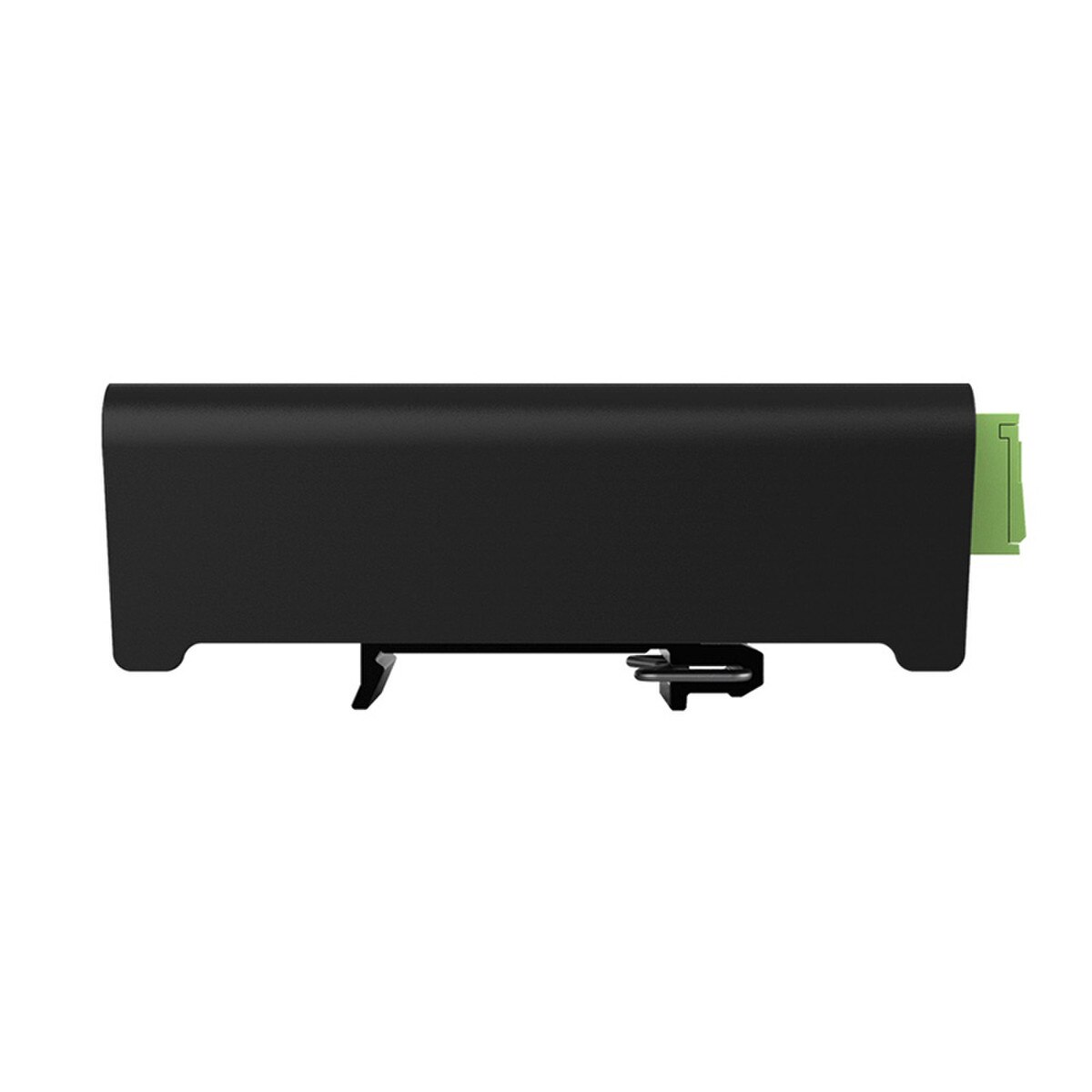

• Surface & TS35 DIN Rail mount

Unit Dimensions:

• 100.5 x 72.25 x 34 mm

Unit Weight:

• 0.11kg / 0.24lbs

Shipping Dimensions:

• 160 x 140 x 40 mm

Shipping Weight:

• 0.18kg / 0.39lbs

Warranty:

• 3-year return to the base manufacturer warranty

Box Contents:

• OCTO MK2
• 2 x WAGO connectors
• 1 x Din mounting clip & screws
• 1 x ELM Promo Code - 8 Universes (Promo Code sticker on the device) 2

Safety:

• Please refer to the OCTO MK2 User Guide for wiring diagrams & Installation guidance.
• Always refer to this product’s safety notes before handling or specifying it on your project.

Enttec 71521 Datasheet.pdf
Enttec 71521 User Manual.pdf
Enttec 71521 API.pdf
Enttec 71521 Dimension Drawing.pdf
Enttec 71521 Custom Protocol Creation Guide.pdf
