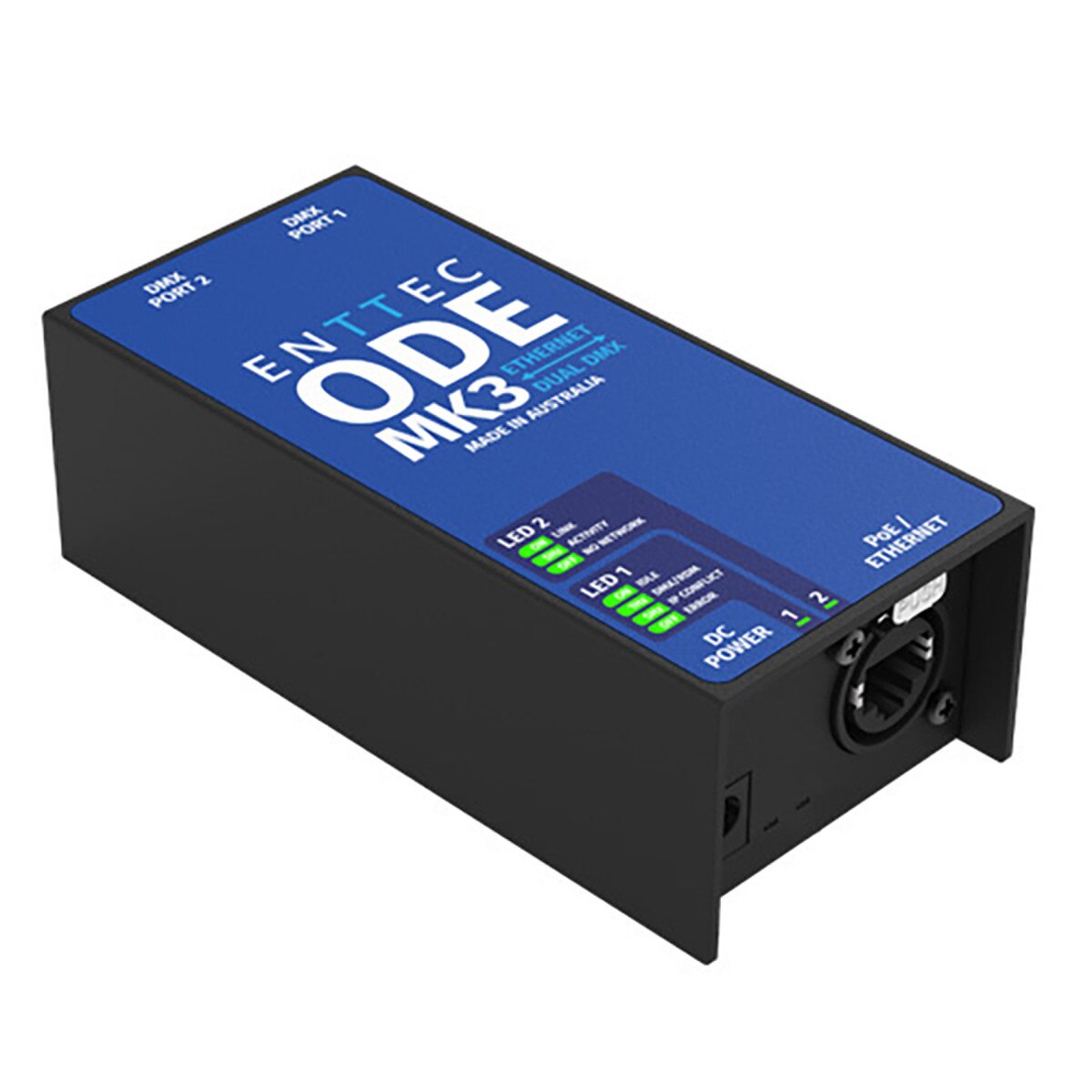

Enttec ODE Mk3

At A Glance:

• With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.

The ODE MK3 is a solid-state RDM compatible DMX node designed for the highest level of portability, simplicity, and practicality. A perfect solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa without the need for adaptors.

With 2 Universes of bi-directional eDMX <–> DMX/RDM support female XLR5s and a PoE (Power over Ethernet) RJ45, ODE MK3 is simple and easy to connect physical DMX devices to your network infrastructure.

Connectors with EtherCon lockable feature in addition make the wiring secured with a peace of mind.

The configuration as well as the firmware updates of the ODE MK3 are managed through the localhost web interface to simplify commissioning from any computer on your network.

Features:

• Two-Universe bi-directional DMX / E1.20 RDM female XLR5s.
• One PoE (Power over Ethernet) RJ45 port supporting IEEE 802.3af (10/100 Mbps) and one optional DC 12-24v power input.
• Secure ‘EtherCon’ connectors
• Support RDM over Art-Net & RDM (E1.20).
• Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> ESP (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
• HTP/LTP Merging support for up to 2 DMX sources.
• Configurable DMX output refresh rate.
• Intuitive device configuration and updates through the inbuilt web interface.
• ‘Current Port Buffer’ allows live DMX values to be viewed.

Specification:

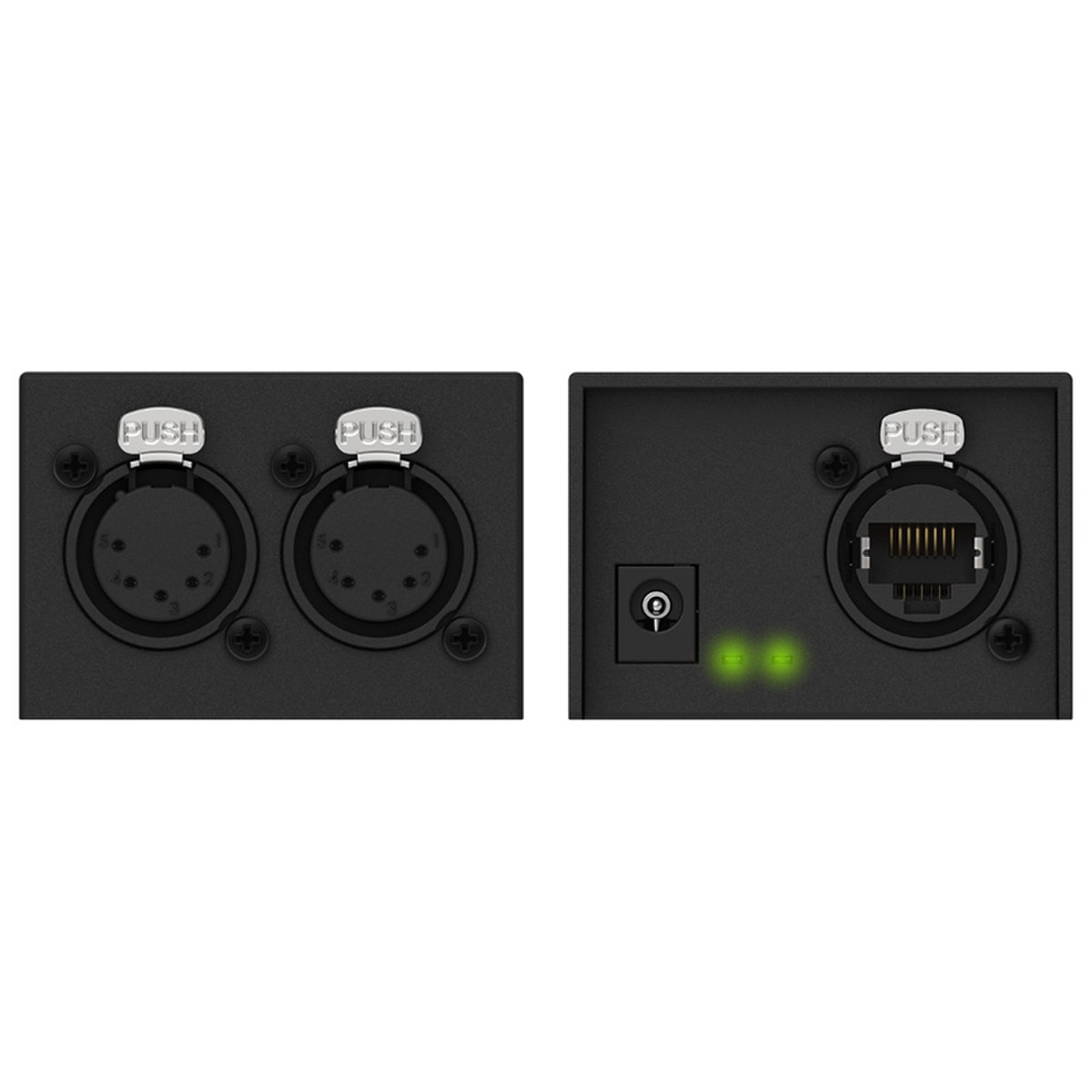

Connectors:

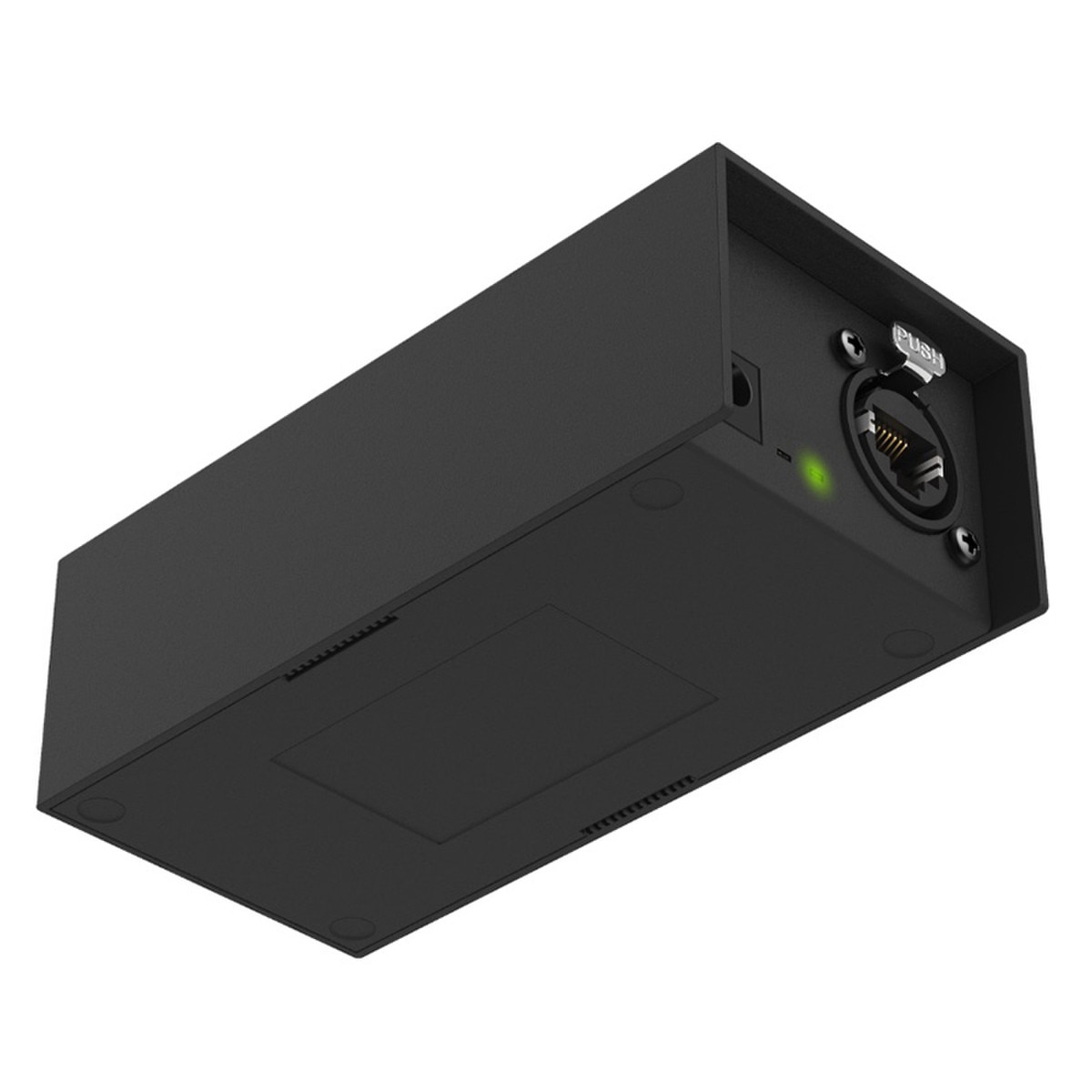

• 1 x EtherCon Port (RJ45)
• 2 x Bi-directional DMX (Female XLR5)
• 1 x Power Input (DC Jack)

IP Rating:

• IP20

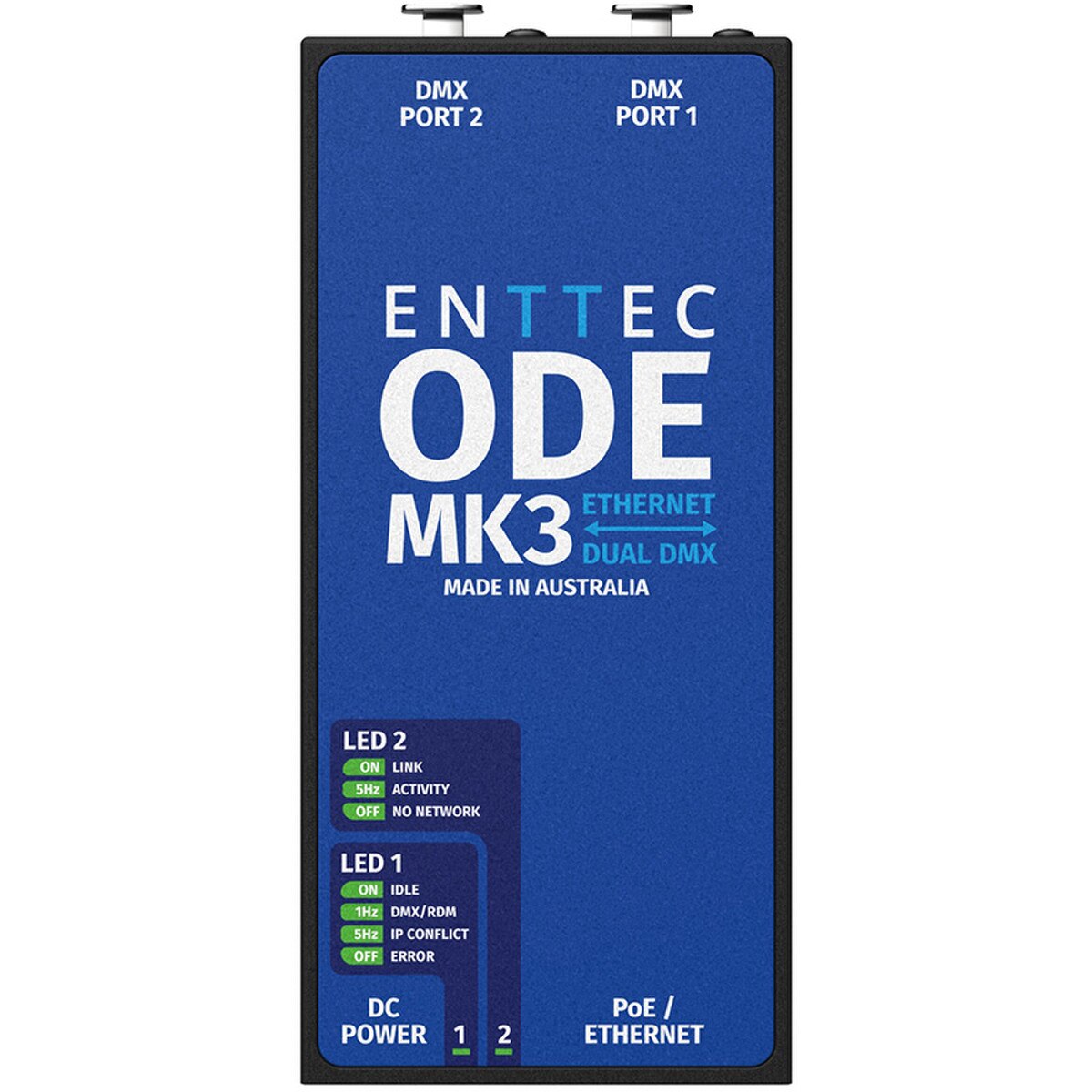

LED Indicators:

• Status indicator
• Network Link / Activity indicators

eDMX Protocols:

• Art-Net - Art-RDM
• sACN - ESP

DMX Protocols:

• USITT DMX512-A
• ANSI E1.20 RDM

DMX & RDM Timings:

• Break time - 300ms
• Mark after Break (MAB) - 15ms

Max. Channels:

• 2 Universes (1024ch)

Max. Refresh Rate:

• 44FPS

Art-Net Merging:

• 2 Sources

Configuration Software:

• Web Browser

Firmware Updates:

• Web Browser

Input Voltage:

• 12V to 24V DC

Max. Current Draw:

• 580mA

Max. Power Draw:

• 7W

Power over Ethernet (PoE):

• IEEE 802.3af

Environmental Operating Temperature:

• 0°-50°C
• 32°-122°F

Environmental Operating Humidity:

• 5- 95% (non-condensing)

Body Material:

• ABS Plastic

Unit Dimensions:

• 129 x 58 x 40 mm

Unit Weight:

• 0.10kg / 0.22lbs

Shipping Dimensions:

• 235 x159 x 69 mm

Shipping Weight:

• 0.45kg / 0.99lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• ODE MK3
• Ethernet Cable
• Power supply with AU/EU/UK/US adapters
• EMU Promo Code (6 months)

DMX Connector 5pin DMX IN/OUT:

• Pin 1: GND (0V)
• Pin 2: Data –
• Pin 3: Data +
• Pin 4: NC
• Pin 5: NC

Safety:

• Do not expose the device to rain or moisture. This unit is intended for indoor use only.
• Do not remove the cover, there are no user serviceable parts inside.
• Never connect DMX GND to an electrical ‘earth’ connection.
• For additional flexibility and increased protection ENTTEC recommends the use of a DMX splitter.
