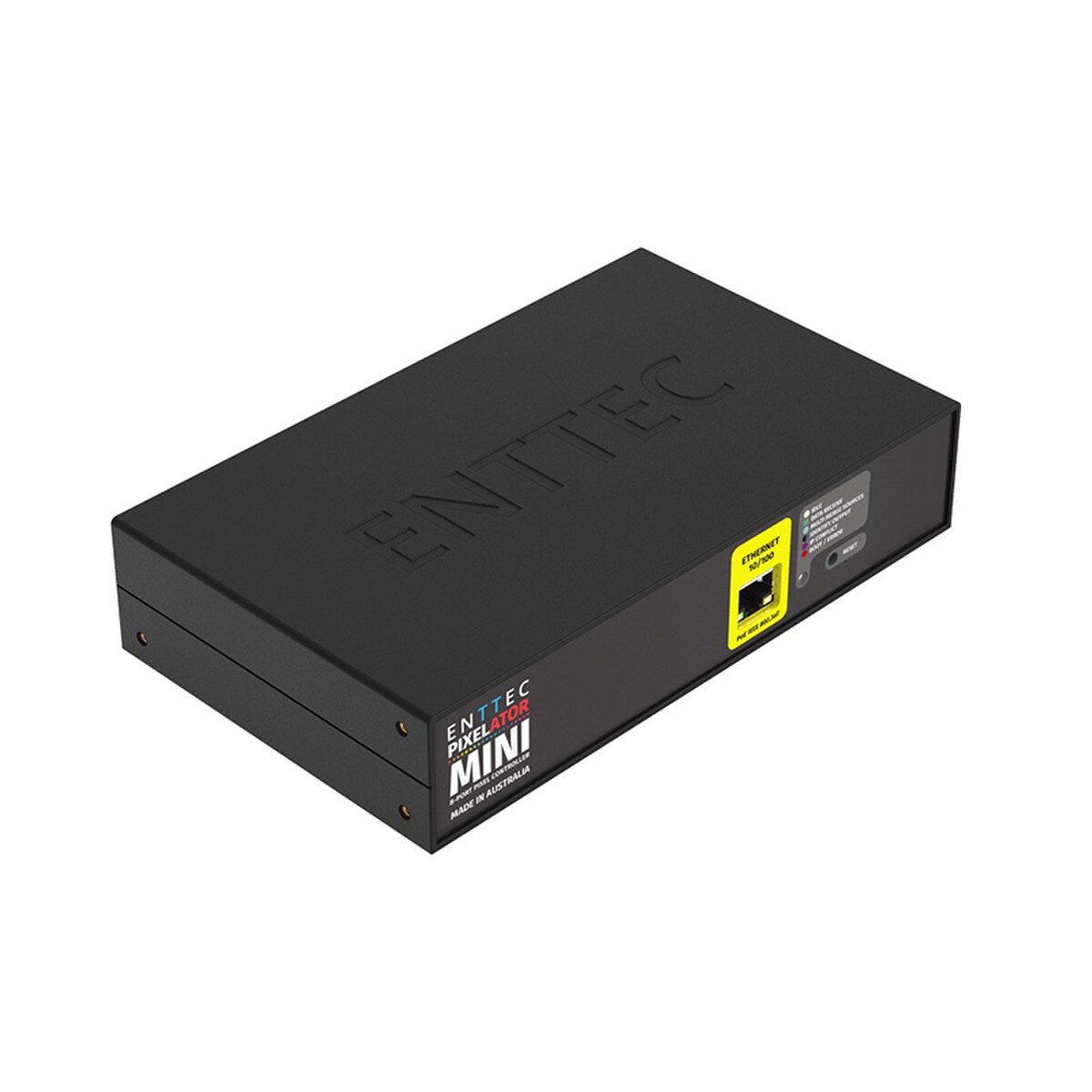

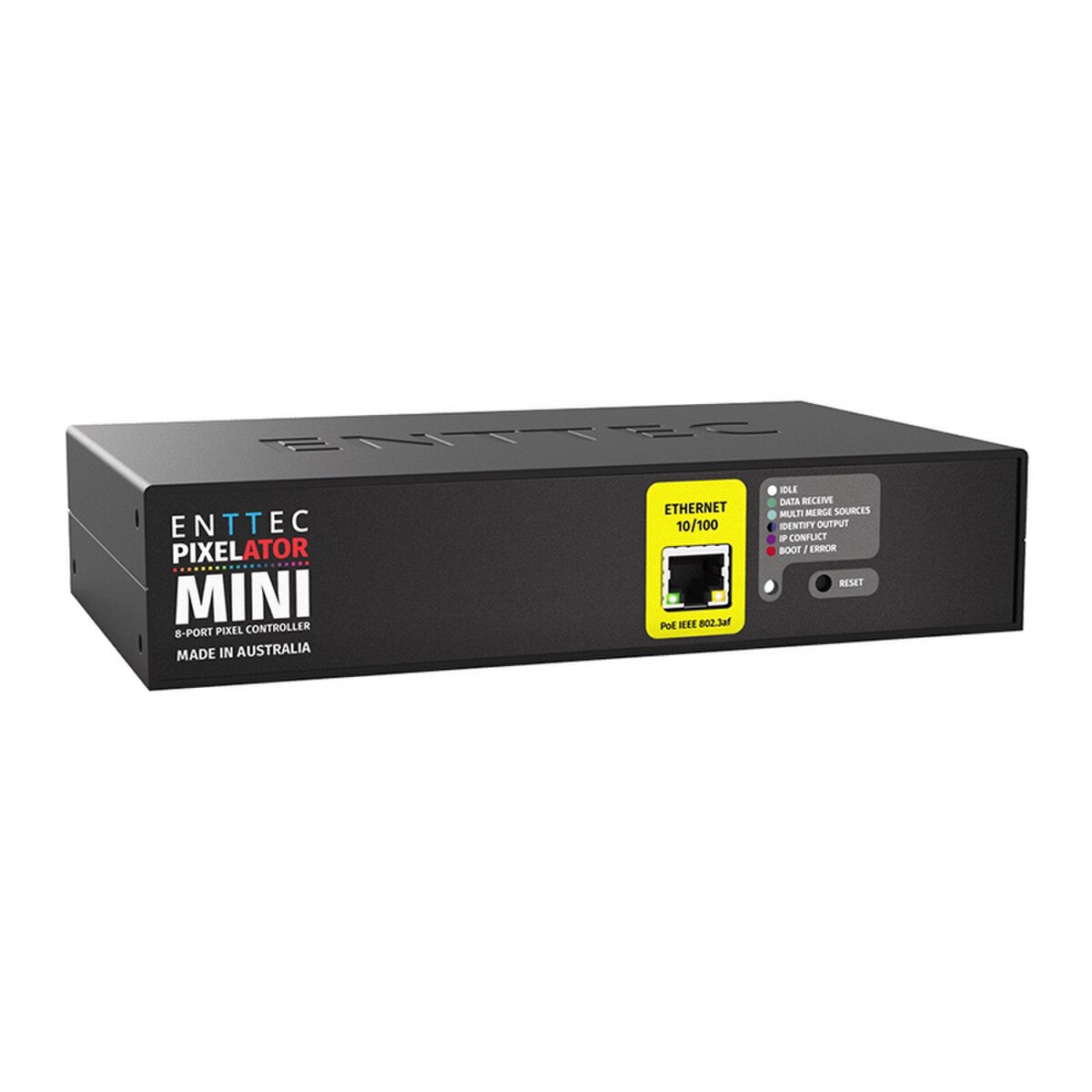

Enttec PIXELATOR MINI (Includes a FREE 16 Universe ELM License)

At A Glance:

• A smart, cost-effective lighting control solution, the PIXELATOR MINI is a compact rack, surface & DIN-rail mountable, eDMX to LED pixel protocol converter capable of outputting up to 32 universes of data.

ENTTEC's PIXELATOR MINI serves as the central hub in the PLINK control system, offering an impressive 8-port Ethernet pixel converter. This versatile device efficiently transforms 16 Universes (32U in overdrive mode) of Art-Net, sACN, and ESP into the SPI protocol in the PLINK System, ensuring robust data integrity over distances of up to 300m.

Connect a PLINK INJECTOR to each port, which converts PLINK control data to SPI protocols, seamlessly transmitting signals up to 3m to pixel fixtures. This satellite system, coupled with the compact and dependable PLINK INJECTOR is a perfect solution for large and extensive projects.

The PIXELATOR MINI supports more than 20 prelisted LED protocols and allows for creating custom protocols (criteria apply). All firmware updates and intuitive configuration management are conveniently accessible through its local host web interface.

Depending on your project, you can partner the PIXELATOR MINI with an indoor or outdoor PLINK INJECTOR compatible with your installed pixels. Alternatively, pair it with our CVC4 AUTO-ADDRESSING CONSTANT VOLTAGE LED DIMMERS - to create large LED control systems with minimum configuration.

Features:

• Converts eDMX (e.g. Art-Net, sACN, and ESP) to SPI in PLINK System for pixel control over long distances.

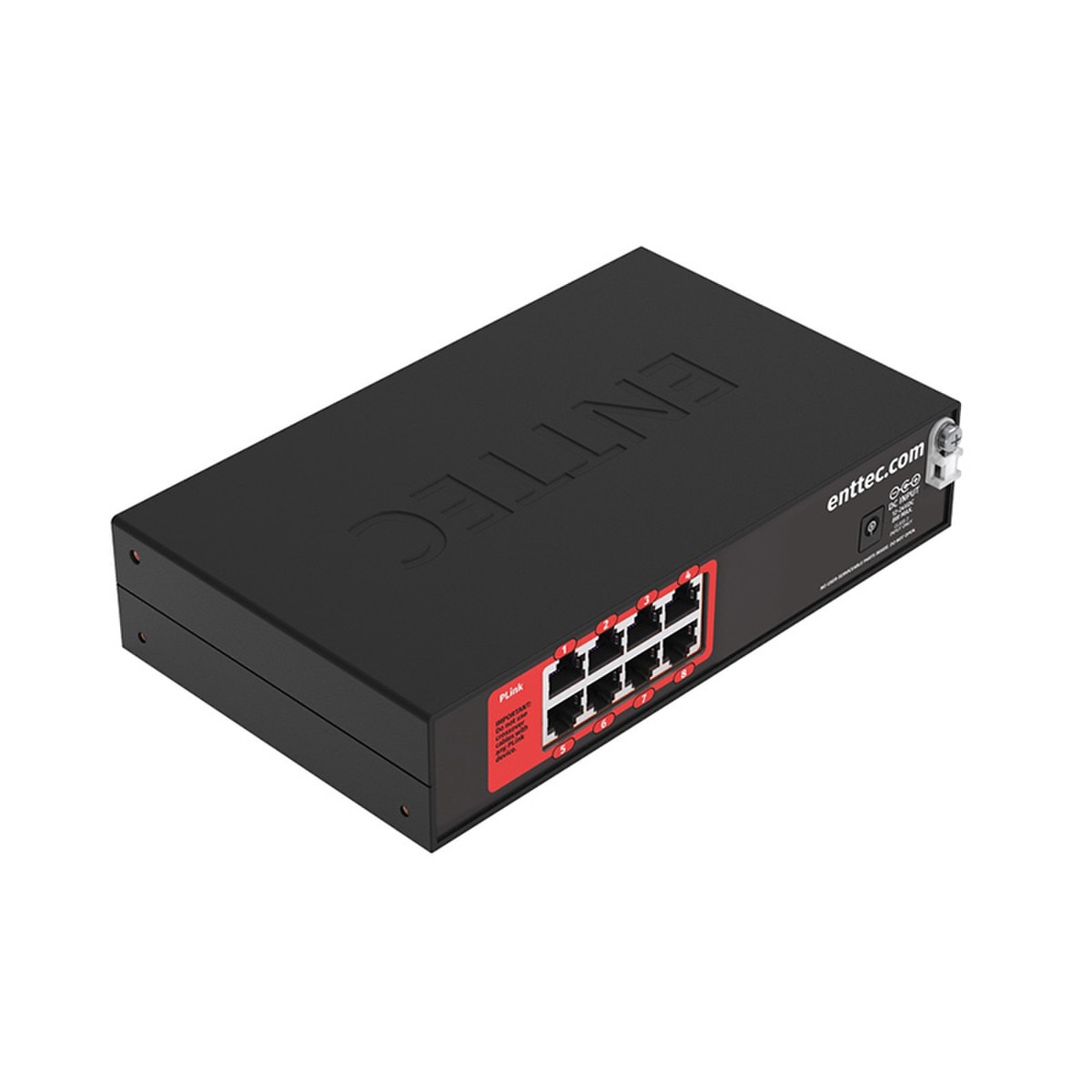

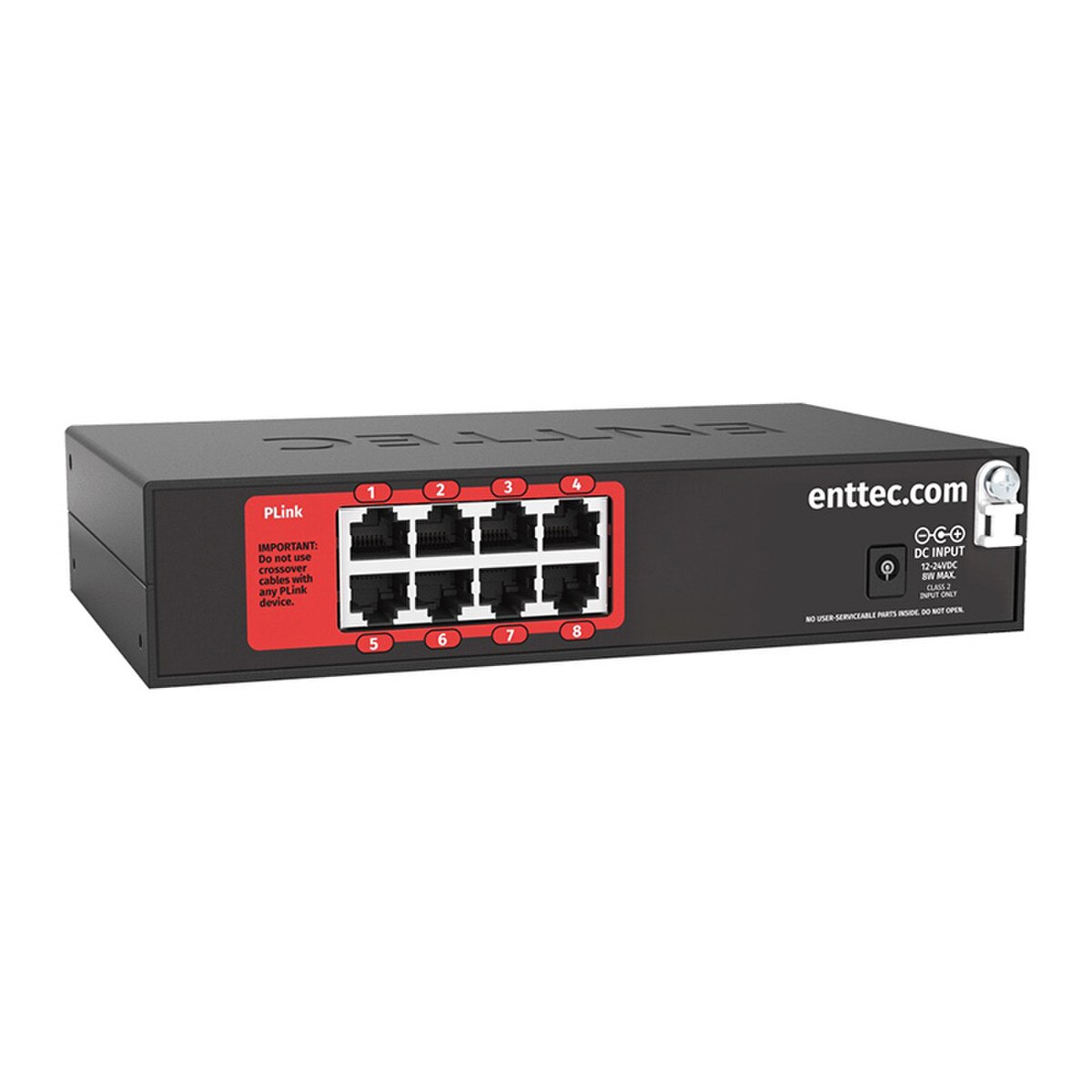

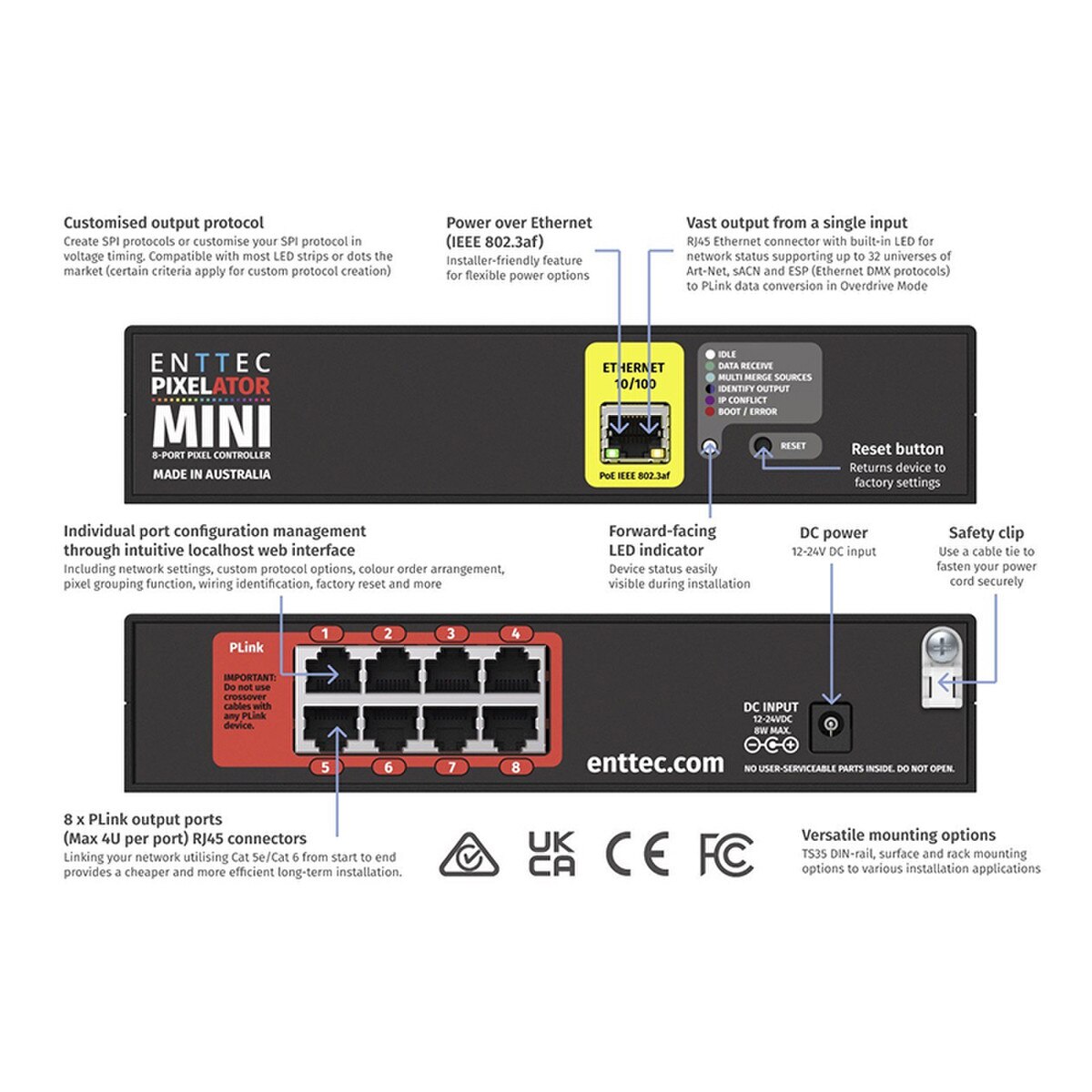

• 1 x RJ45 Ethernet input (10/100 Mbps) to 8* RJ45 output ports each providing PLINK data output over Cat5e/Cat6 cable.
• Up to 32 Universes (4U per port) pixel control in overdrive mode.
• Active IEEE 802.3AF Active PoE or 12-24v DC power input.
• All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise propagation through control infrastructure.
• Compatible with ENTTEC PLINK INJECTOR range.
• Compatible with ENTTEC CVC4 RGBW autoaddressable LED dimmer.
• Allows users to create and customise SPI pixel protocols (criteria apply, see see ‘Custom Protocol Creation Guide’ document).
• Pixel arrangement including pixel order, pixel grouping for each PLINK output is individually configurable.

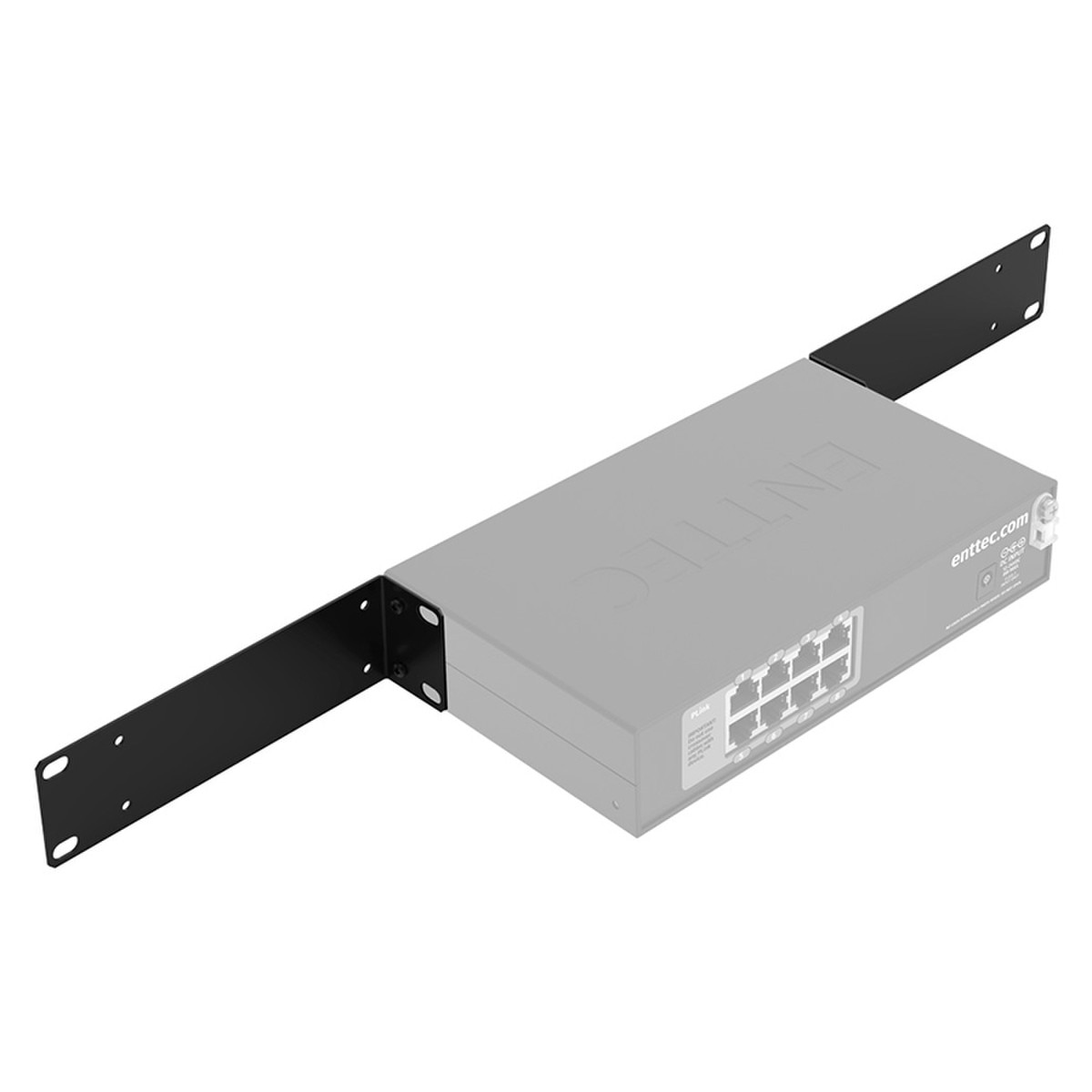

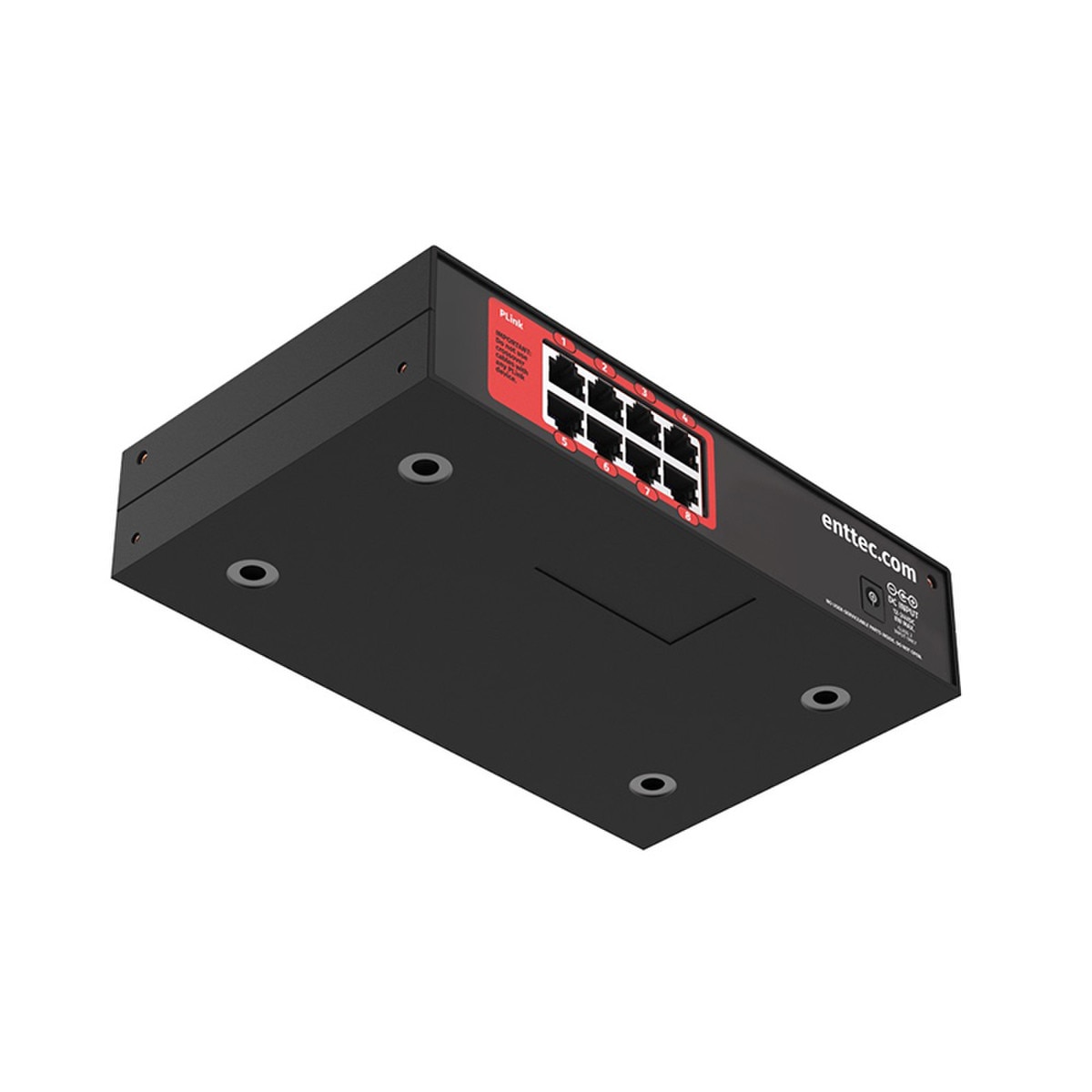

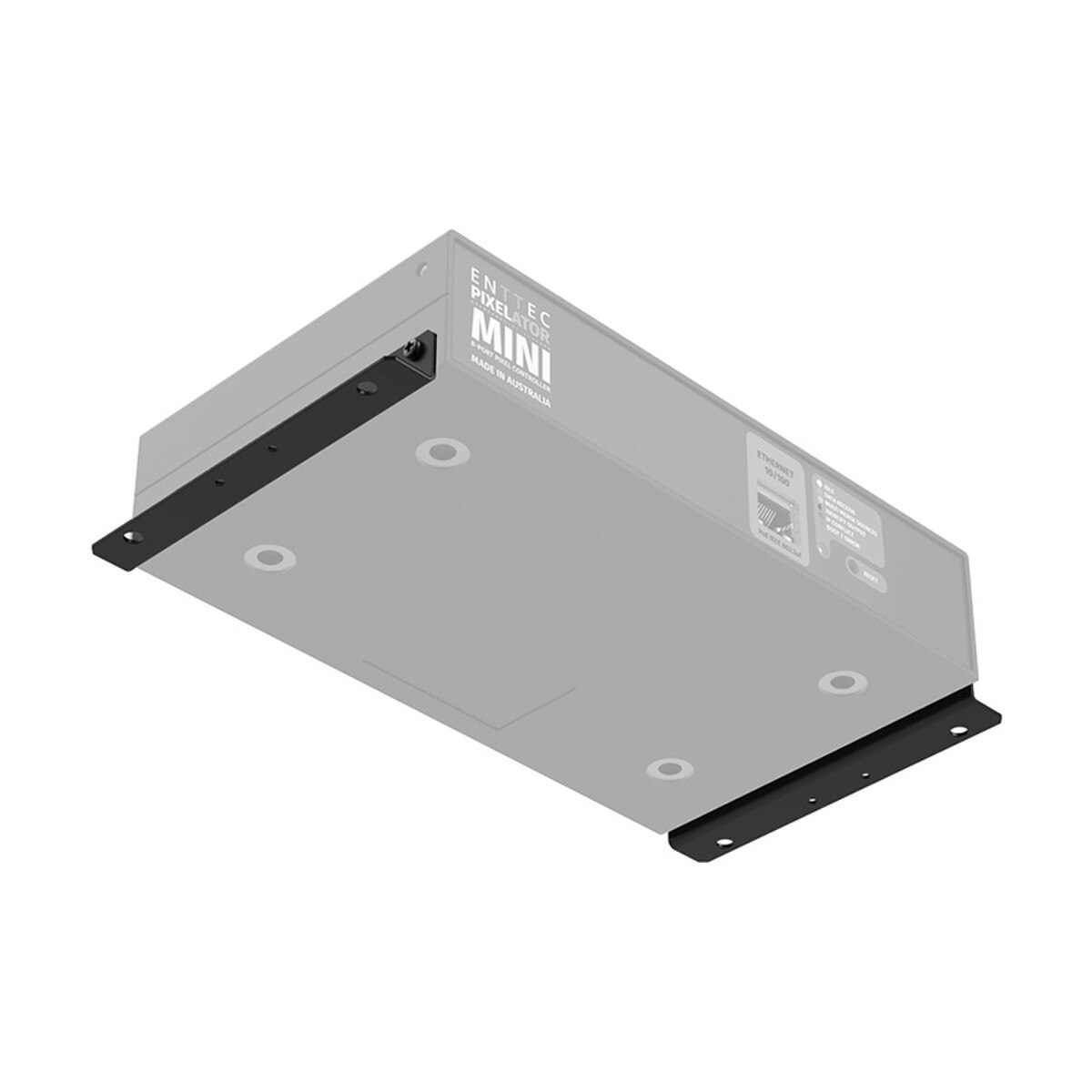

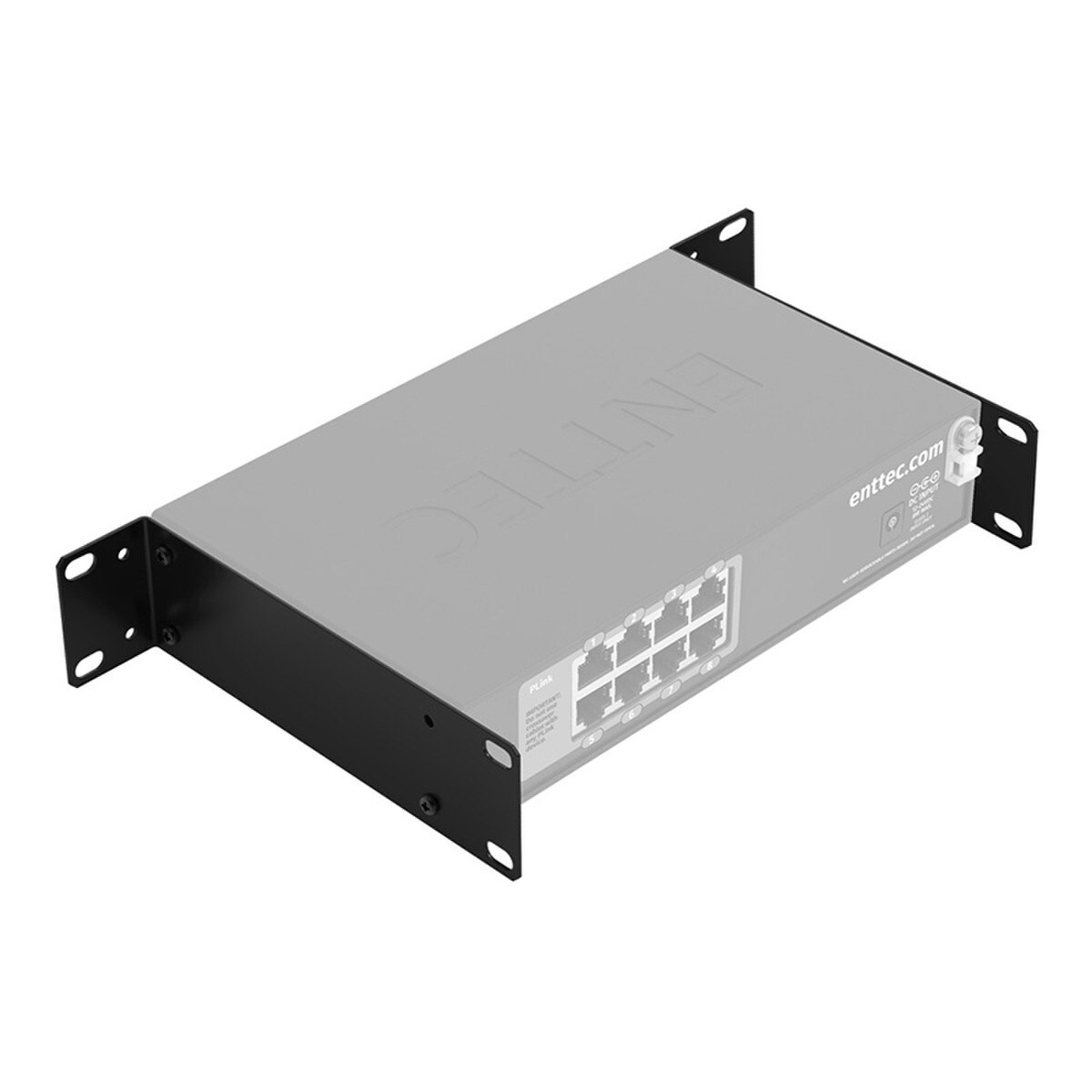

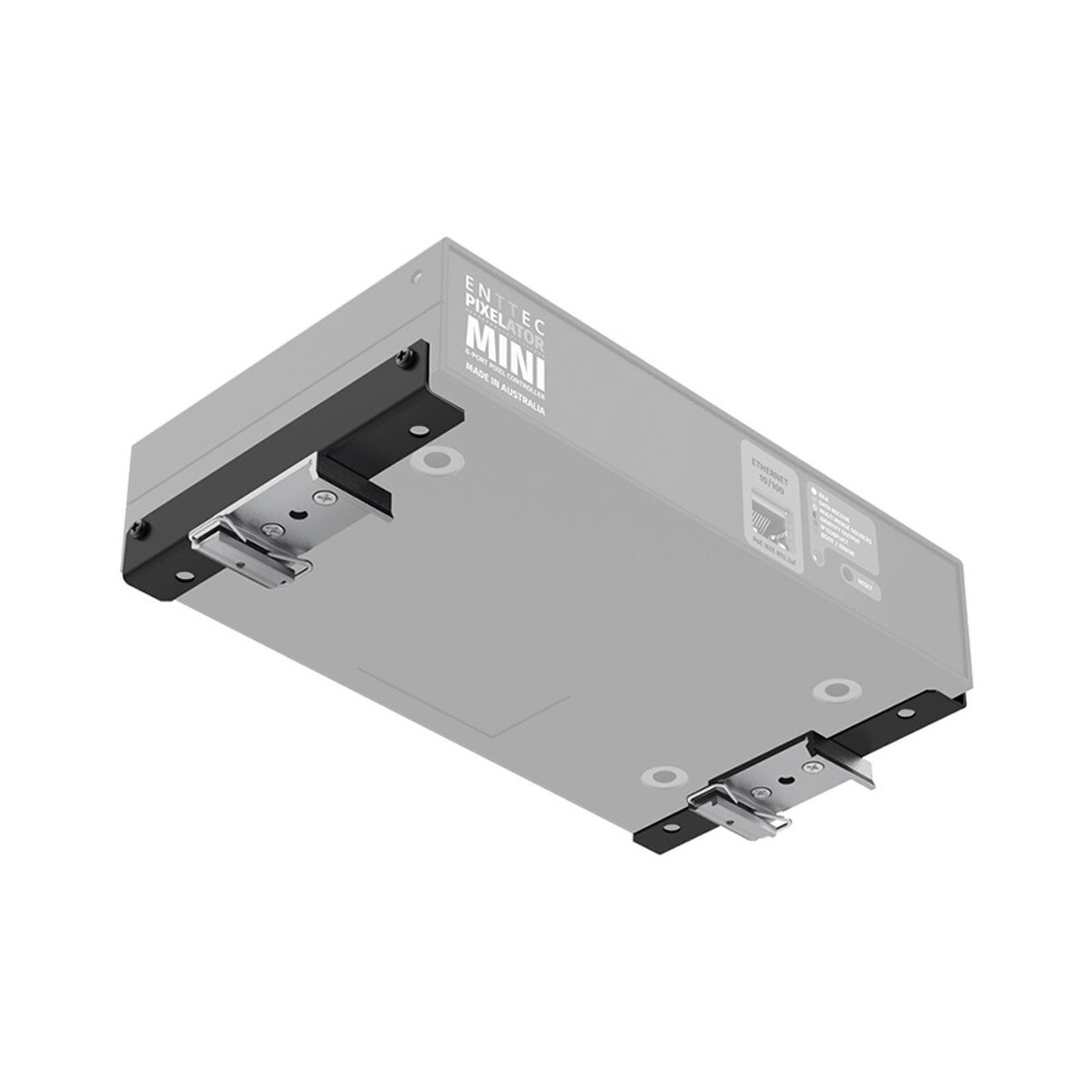

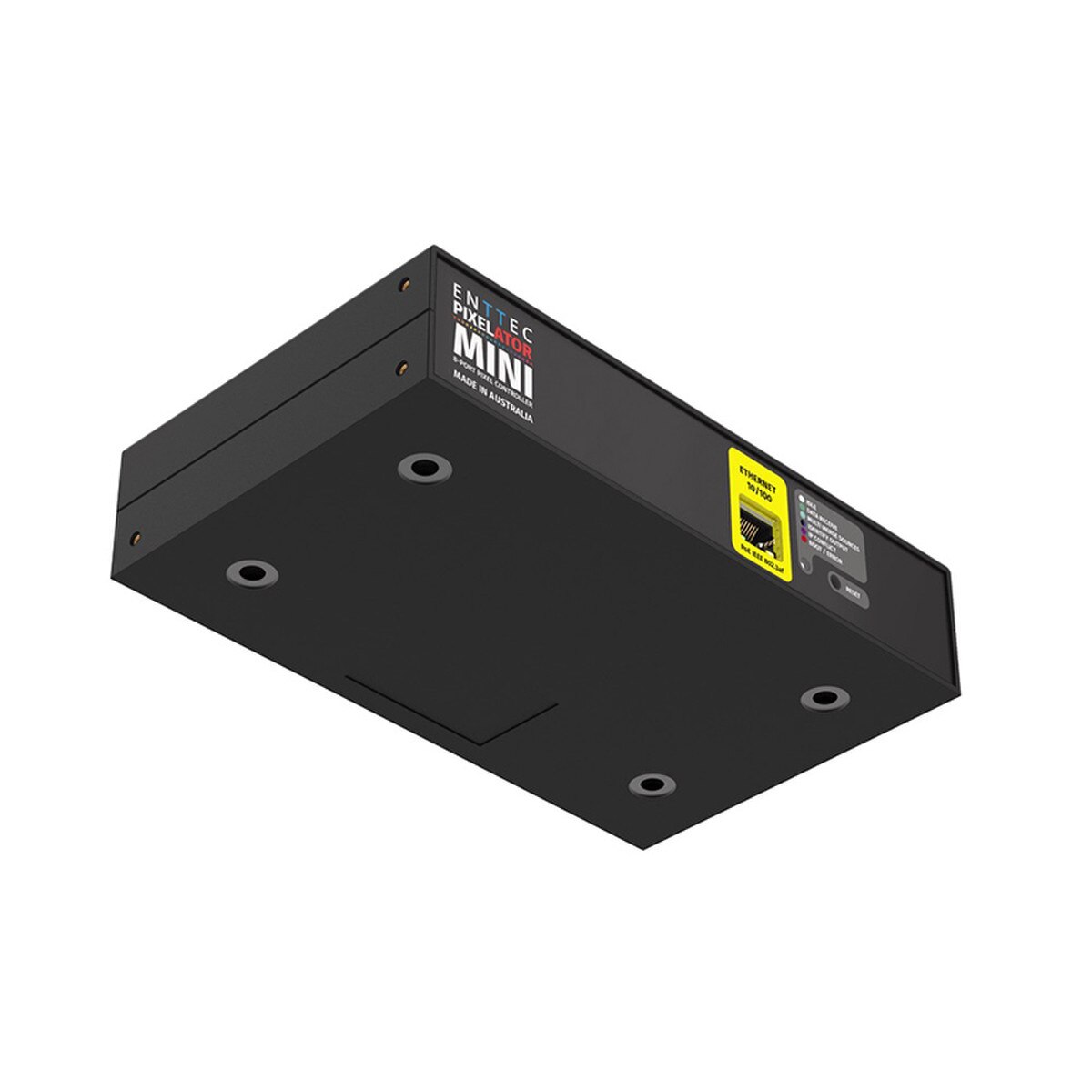

• Multiple mounting options: 1U Half Width Rack, 19” Rack, Surface mount, TS-35 DIN mount.

Specification:

Connectors:

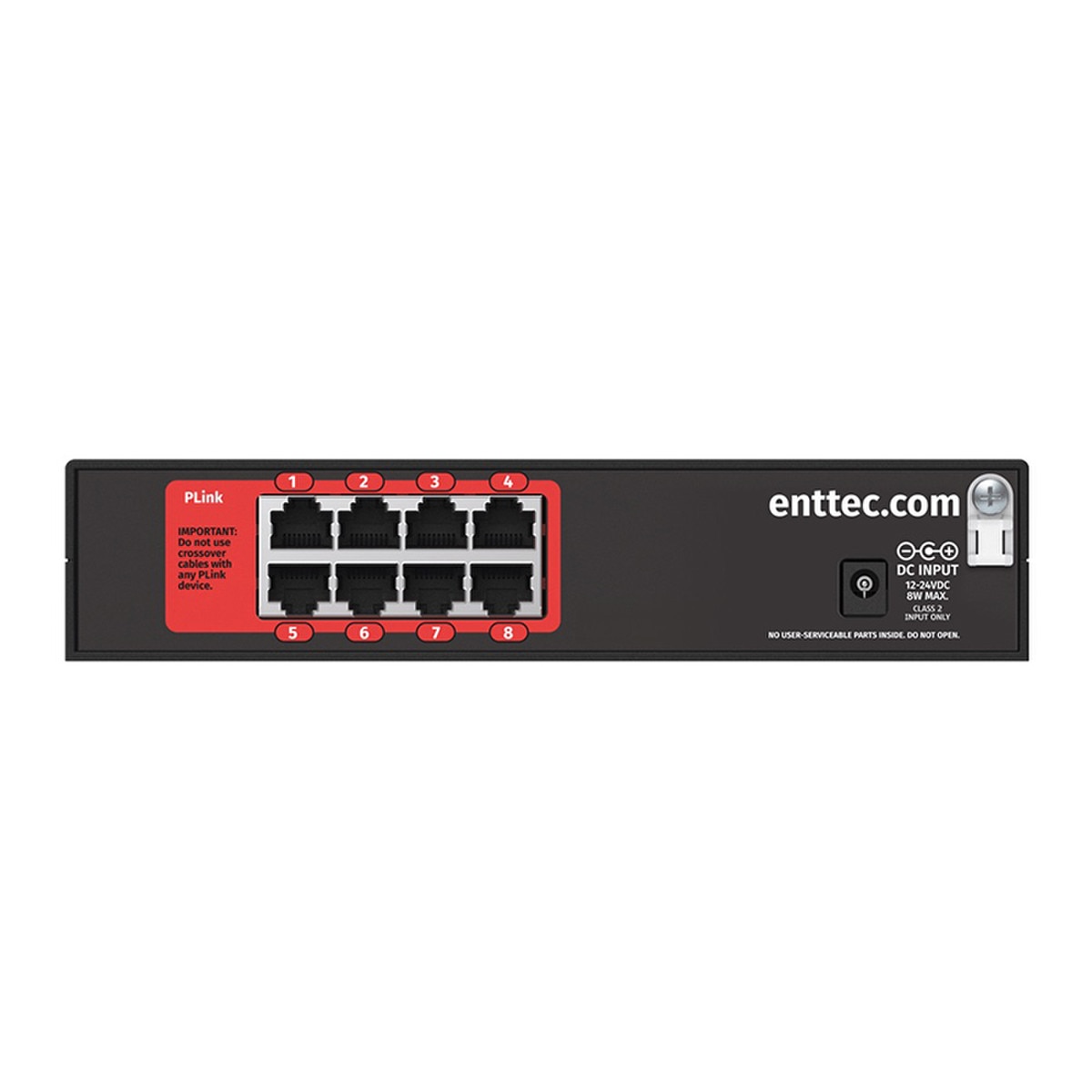

• 8 x PLINK output (RJ45)
• 1 x Power input (DC)
• 1 x Ethernet (RJ45)

ESD Protection:

• Resettable fuse & TVS suppression per port.

Surge Protection:

• Yes (all ports)

IP Rating:

• IP20

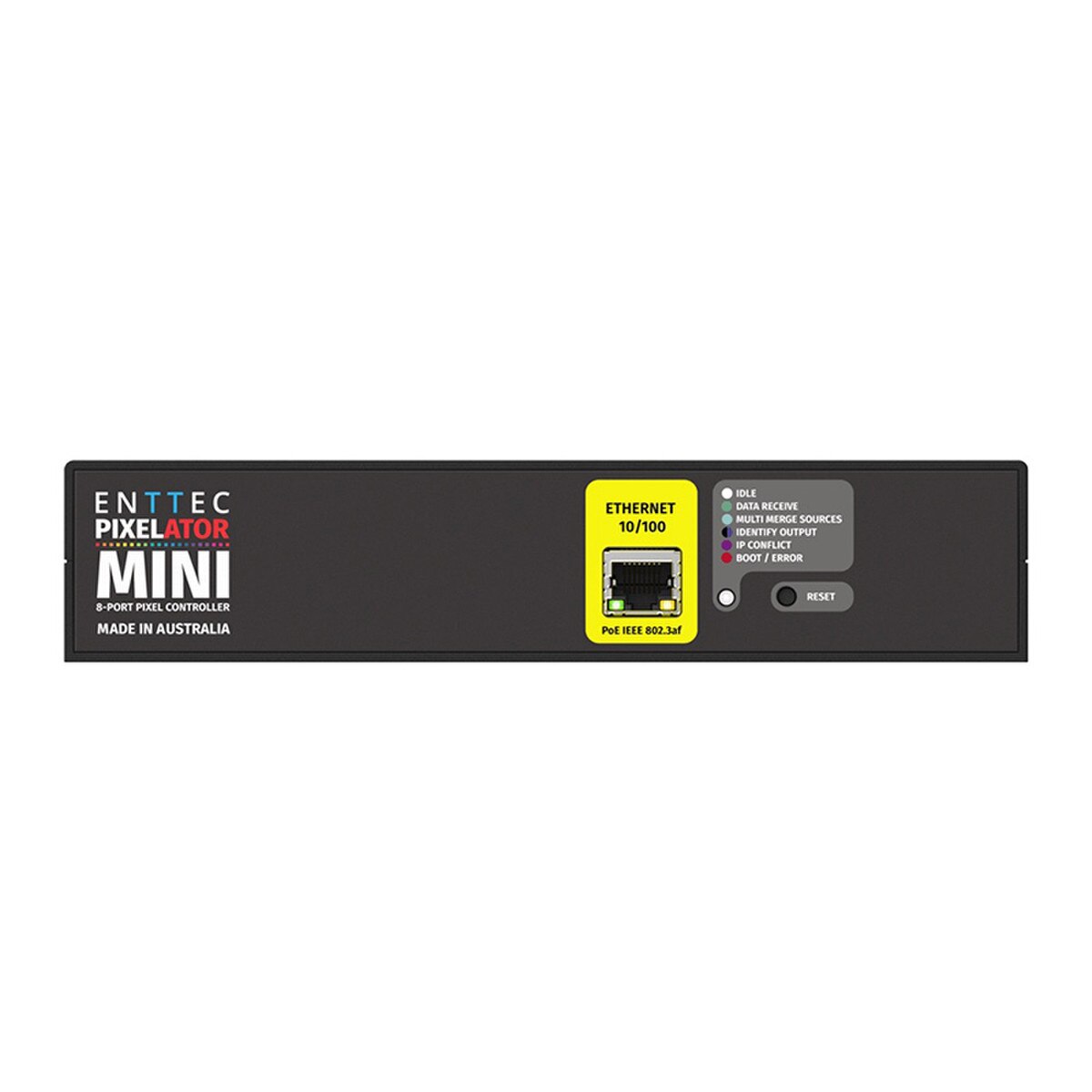

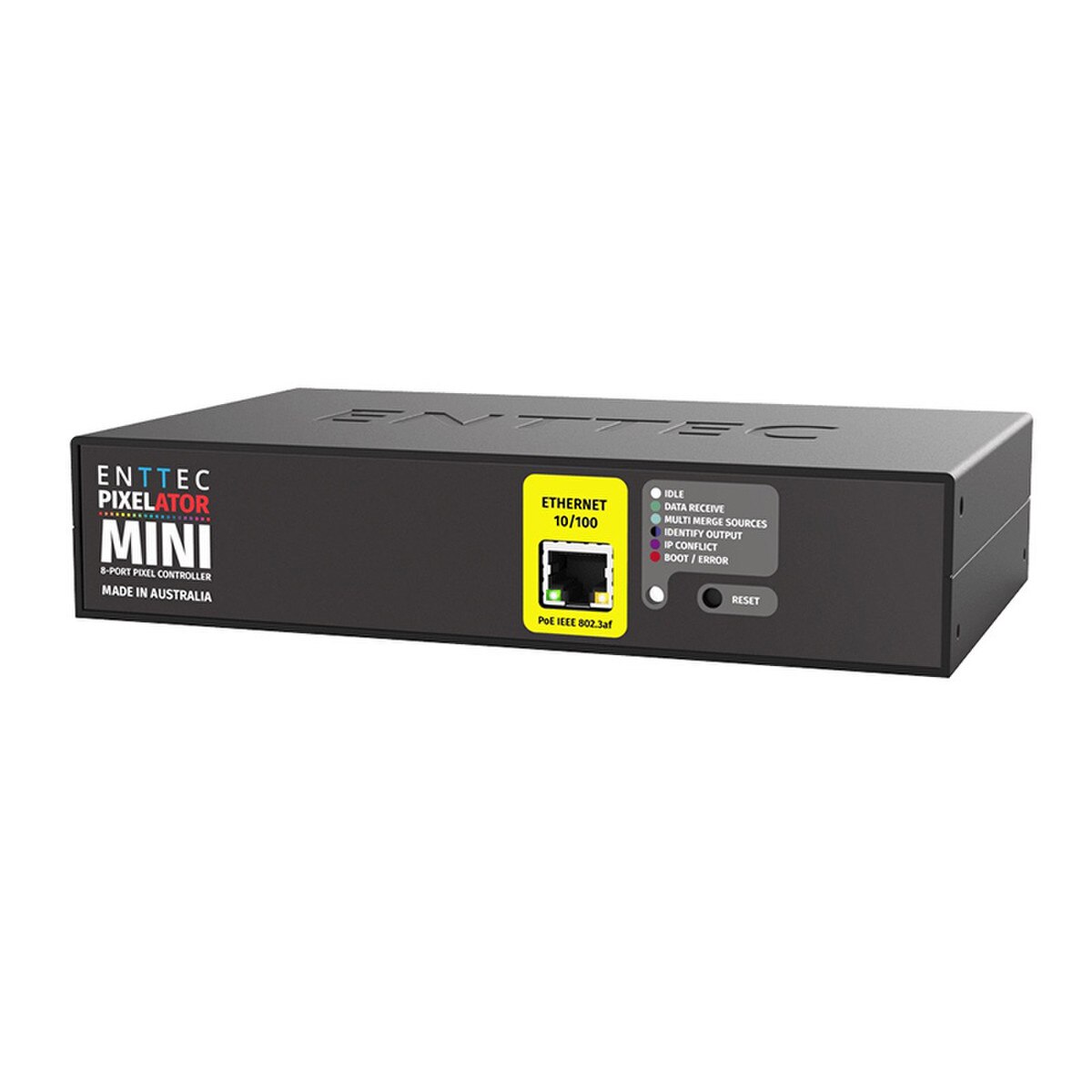

LED Status Indicator:

• Forward-facing LED indicator
• Network link/Activity (integrated into RJ45 port)

Input Protocols:

• Art-Net - sACN
• ESP

Output Protocol:

• SPI in PLINK System

Max. Output Universe:

• 32 Universes

Network Speed:

• 10/100Base-T

Network Configuration:

• Static / DHCP

Configuration & Update:

• Web Interface

Input Voltage:

• 12-24V DC / PoE IEEE802.3AF

Max. Power Draw:

• 8 Watts

Cooling Method:

• Convection

Environmental Operating Temperature:

• -20°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 5- 95% (non-condensing)

Body Material:

• ABS + anodized aluminium

Rack Ear Material:

• Powder-coated aluminium.

Unit Weight:

• 0.44kg /0.97lbs

Shipping Dimensions:

• 390 x 210 x 110 mm

Shipping Weight:

• 0.79kg / 1.74lbs

Warranty:

• 3-year return to base manufacturer warranty

RJ45 Pinout for PLINK Output:

• Pin 1: Data +
• Pin 2: Data –
• Pin 7/8: Ground

Box Contents:

• PIXELATOR MINI (70067)
• 1 x 2m Cat5 cable (79102)
• 1 x 12V PSU adaptor with international plugs.
• Rack mounting bracket, Surface/Din mounting bracket, Din Clip & screws.
• 1 x ELM Promo Code – 16U (Promo Code sticker on device)

Safety:

• This unit is intended for indoor use only. Do not expose to rain or moisture, doing this will void the warranty.
• Make all the connections before you power it.
• Do not remove the cover, there are no user serviceable parts inside.
• Never plug this unit into a dimmer.
• Fit this unit in an area that will allow sufficient ventilation.
• Label any PLINK output cable and DO NOT connect to non-PLINK devices (i.e. Ethernet Switches). Connecting incompatible systems could result in permanent damage to equipment.
