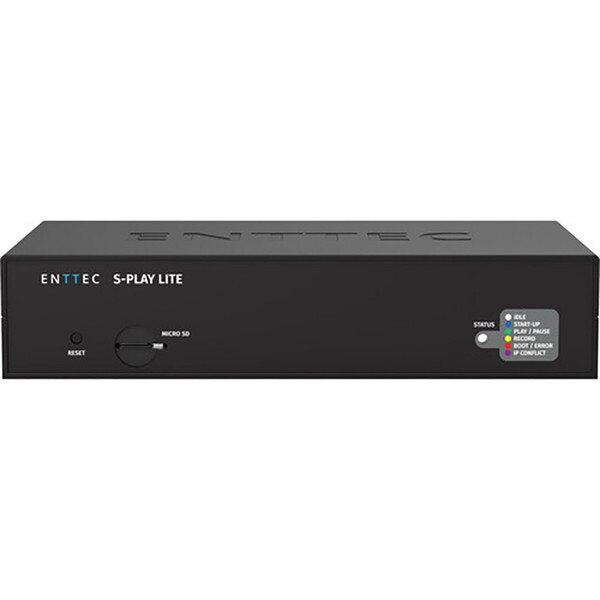

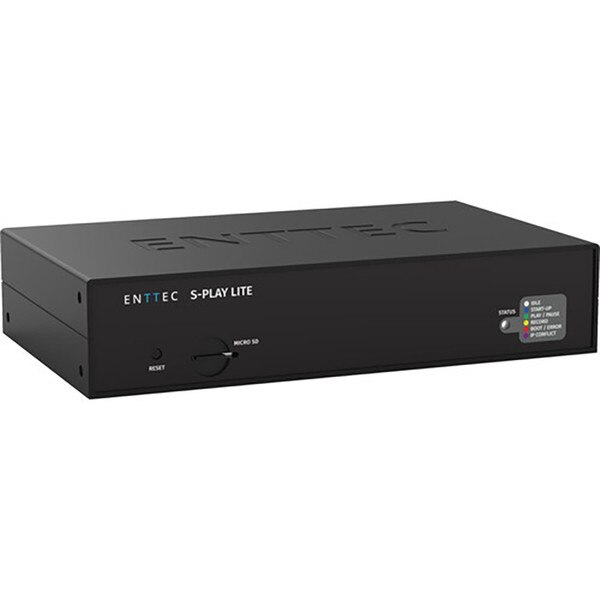

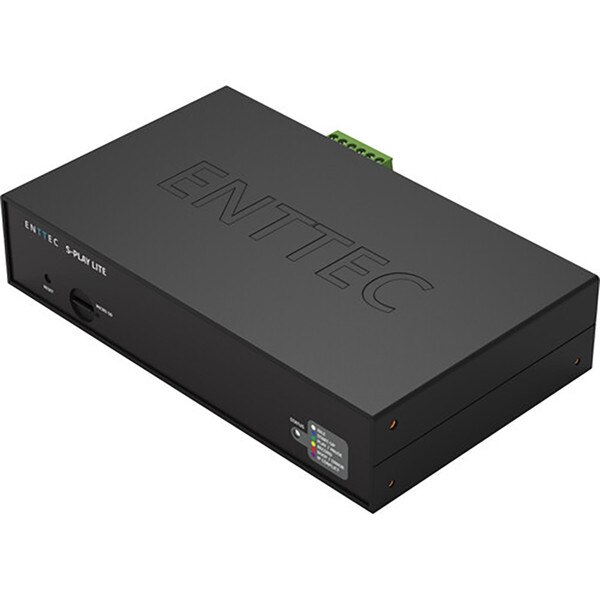

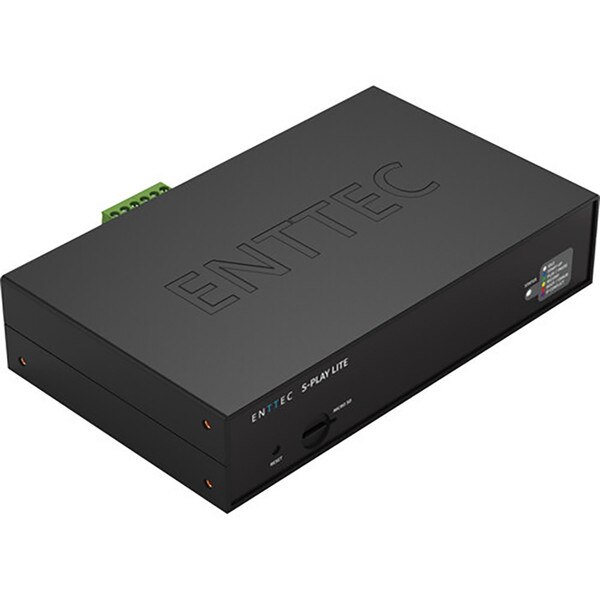

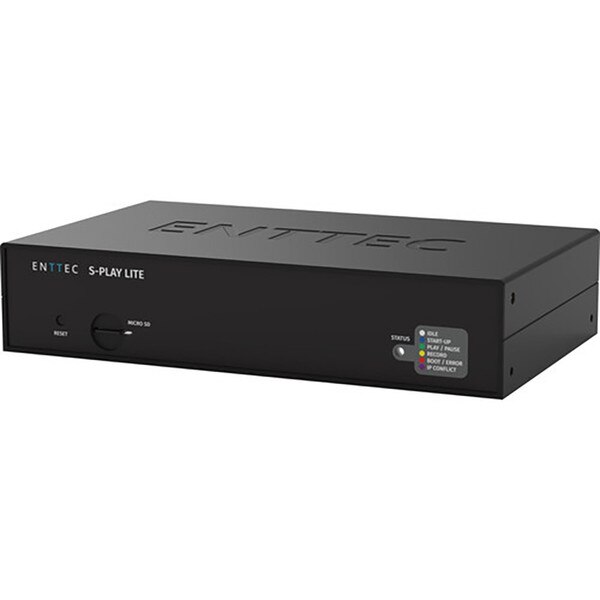

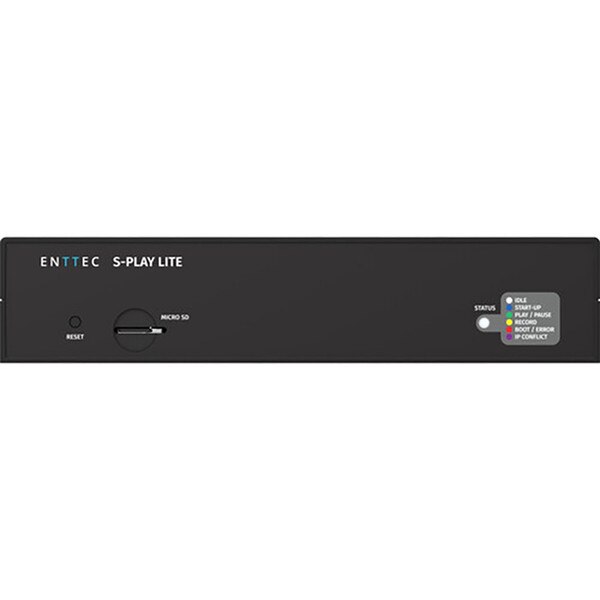

Enttec S-PLAY LITE

At A Glance:

• 16-universe, all-in-one DMX recorder + smart light show controller.
• Engineered for projects that require precise automation, the S-PLAY LITE smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.
• Create, Record, Edit and Play up to 16 Universe light shows, seamlessly integrate with 3rd party system with versatile mounting solutions.

ENTTEC’s S-PLAY LITE serves as a robust show recorder and playback controller, expertly integrating 3rd party system and external hardware for smart light show management.

Featuring an extensive array of 100 light Cues, users can record 16 eDMX Universes of ArtNet and sACN or 2 DMX Universes via 2 XLR DMX ports. Whether crafting simple Static scenes, recording Dynamic Cues, or easily creating gradient Effect Cues with the built-in pixel effect generator, the creative possibilities are vast.

The S-PLAY LITE facilitates flexible integration of external devices into installations, supporting Triggers or automating Events through various protocols such as RS232, Art-Net, DMX, contact closures, sACN, UDP, or OSC.

Its intuitive drag-and-drop interface within the timeline editor empowers users to design up to 100 Playlists, utilizing created Cues, Events, and Triggers as building blocks.

Schedules can be set for playlists to run at specific times with unique groupings and priorities. Additionally, users can effortlessly design up to 5 user friendly custom interfaces, simplifying navigation for end-users without complex configurations.

Features:

• Supports recording and playback of up to 16 Universes of Art-Net and sACN.
• Equipped with two XLR DMX ports for versatile recording and playback.
• Conveniently records cues from DMX sources with a built-in DMX value monitor.
• Enables the creation of gradient Effect Cues using the in-built effect generator.
• Features an intuitive web interface for effortless configuration.
• Allows users to craft up to 100 Playlists, comprising Static, Dynamic, and Effect Cues.
• Sends up to 150 automated Events through RS232, Art-Net, sACN, DMX, Relays, UDP & OSC.
• Supports up to 150 Remote triggers via RS232, ArtNet, sACN, DMX, Digital Inputs, UDP & OSC.
• Internal memory supports over 20 hours of 16 universe recording at 40FPS (expandable with an external Micro SD card).
• Enables the creation of custom user-facing web interfaces.
• Allows for scheduling of playlists.

Specification:

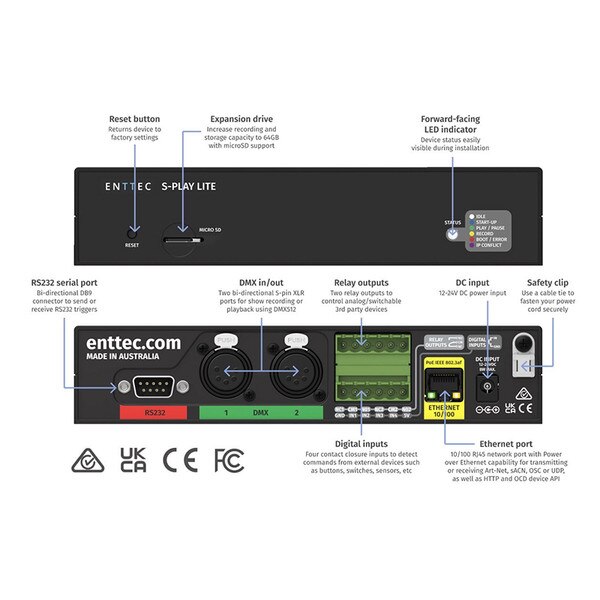

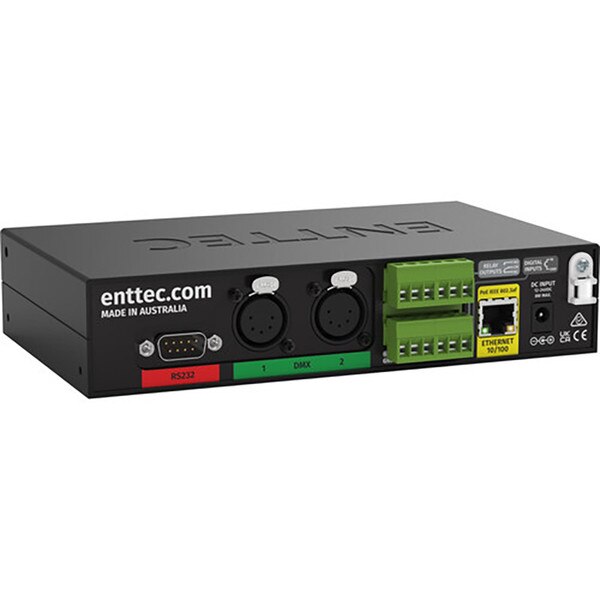

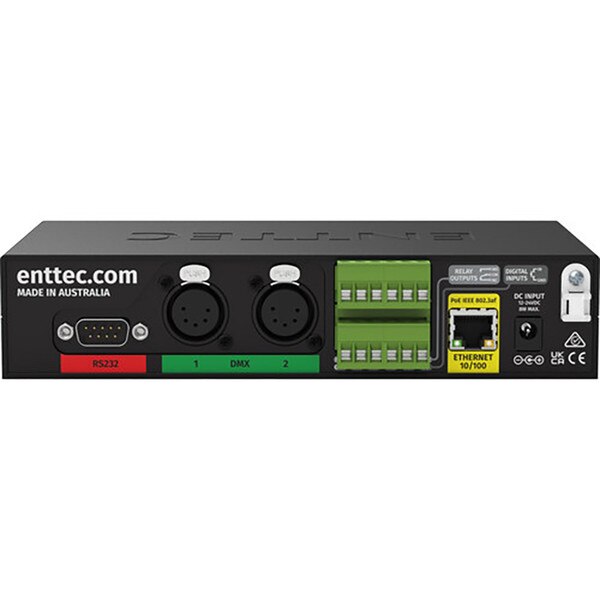

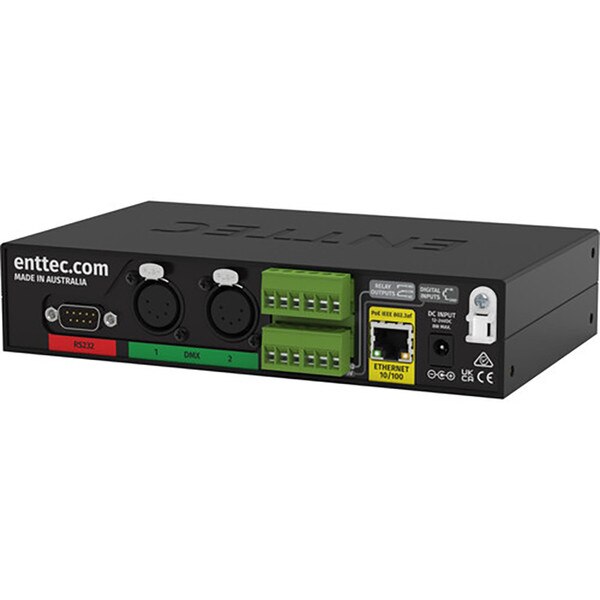

Connectors:

• 1 x DC Jack (Power)
• 2 x Female XLR5 (DMX512)
• 1 x RJ45 (Ethernet)
• 1 x Male DB9 (RS232)
• 4 x Digital Input
• 2 x Relay Output (Max limit 2A, 60W)
• 1 x Micro SD

IP Rating:

• IP20

Number of Universes & Input / Output Protocol:

• 2U: USITT DMX512-A
• 16U: Art-Net/sACN

DMX Refresh Rate (FPS):

• Art-Net & sACN - 1 to 60
• USITT DMX512-A - 1 to 40

Input Voltage:

• 12V DC to 24V DC

PoE:

• IEEE 802.3af

Max. Power Draw:

• 8W

Internal Show Storage Capacity:

• 8GB (~20 hours of 16 universes at 40fps)

Expandable Storage:

• Yes (Micro SD)

Cooling Method:

• Convection

Environmental Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 0 to 95% (non-condensing)

Body Material:

• ABS Plastic & Anodized Aluminium

Unit Dimensions:

• 200 x 120 x 42 mm

Unit Weight:

• 0.47kg / 1.04lbs

Shipping Dimensions:

• 335 x 265 x 78 mm

Shipping Weight:

• 1.10kg / 2.42lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• S-PLAY LITE
• 2m cat5 cable
• Rack, Surface/Din mount ears + Din Clips + screws
• 12V PSU & international plugs

Safety:

• Do not expose this device to rain or moisture, doing so will void the warranty.
• Make all the connections before you connect power.
• Do not remove the cover, there are no user serviceable components inside.
• Never plug this unit in to a dimmer pack.
• Ensure proper shield connections.
• Mount this unit in an area that will allow air flow - allow 150mm (6”) space.
• Never connect 0V to electrical Earth.
