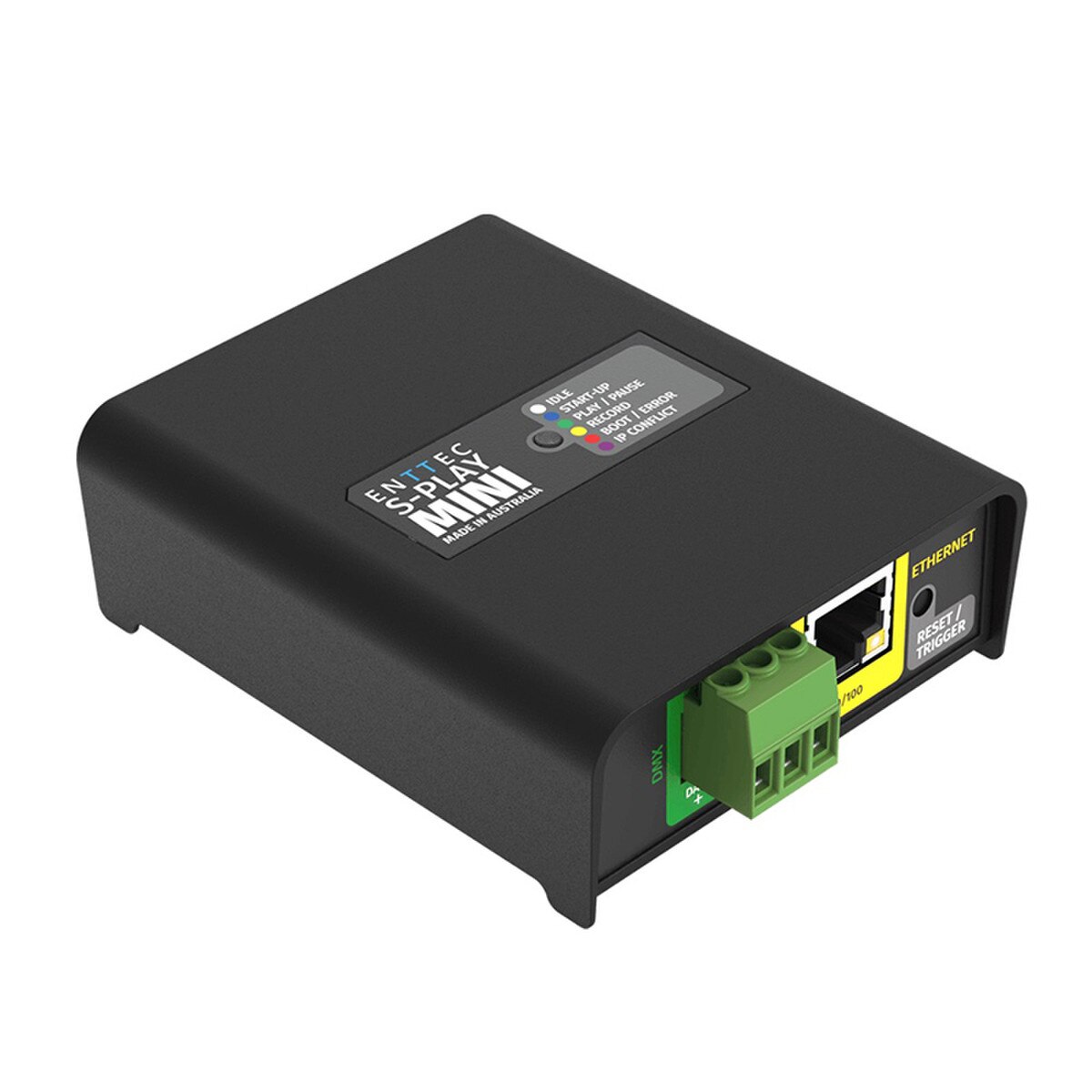

Enttec S-PLAY MINI

At A Glance:

• 2-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non lighting events, and much more.
• Create, Record, Edit and Play up to 2 Universes light shows integrating with 3rd party hardware and system in a compact 4 module DIN rail mount form factor.

ENTTEC’s S-PLAY MINI is a robust and compact show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve sophisticated lighting control with ease.

S-PLAY MINI generates a maximum of 16 light Static/Dynamic/Effect Cues by recording 2 universes of Art-Net/sACN sources or 1 complete universe via DMX port live recording. Alternatively, you have the option to use the built-in pixel effect generator offering an easy-to-use tool for creating a gradient Effect Cue in just a matter of minutes.

The S-PLAY MINI allows flexibility to fully integrate external devices into the installation that receive Triggers or automate Events through contact closures, Art-Net, sACN, DMX, UDP or OSC.

Drag and drop within S-PLAY MINI’s timelines system, users are allowed to design up to 8 Playlists using created Cues, Events and Triggers as building blocks intuitively. Control the number of play counts, priority, fade times and master intensities to fine tune your playlists.

Playback on power up with preferred loop times or choose to trigger the playlists with Custom Interface or external Triggers in a different fashion to allow up to 8 Playlists playback simultaneously overlapping and blending with each other with different groups and priorities.

Features:

• Supports recording & playback up to 2 Universes of eDMX (Art-Net and sACN) or 1 full universe physical DMX.
• Records cues from Art-Net, sACN, DMX sources with the added convenience of a DMX value monitor.
• Creates gradient Effect Cues using the on-board effect generator.
• In-built web-based design engine for recording Cues, editing Events and Triggers, and managing Playlist playback, all through a user-friendly interface.
• Flexibility to create up to 8 Playlists, comprising a maximum of 16 Cues, including Static, Dynamic, and Effect Cues.
• Sends up to 16 automated Events from options: Art-Net, sACN, DMX, Relays, UDP & OSC.
• Supports up to 16 Triggers from options: Art-Net, sACN, DMX, Digital Inputs, UDP, OSC and Trigger button on the device.
• Creates user-friendly Custom Interface.
• Playlists is set to automatically start on power up and playback according to your desired loop times.

Specification:

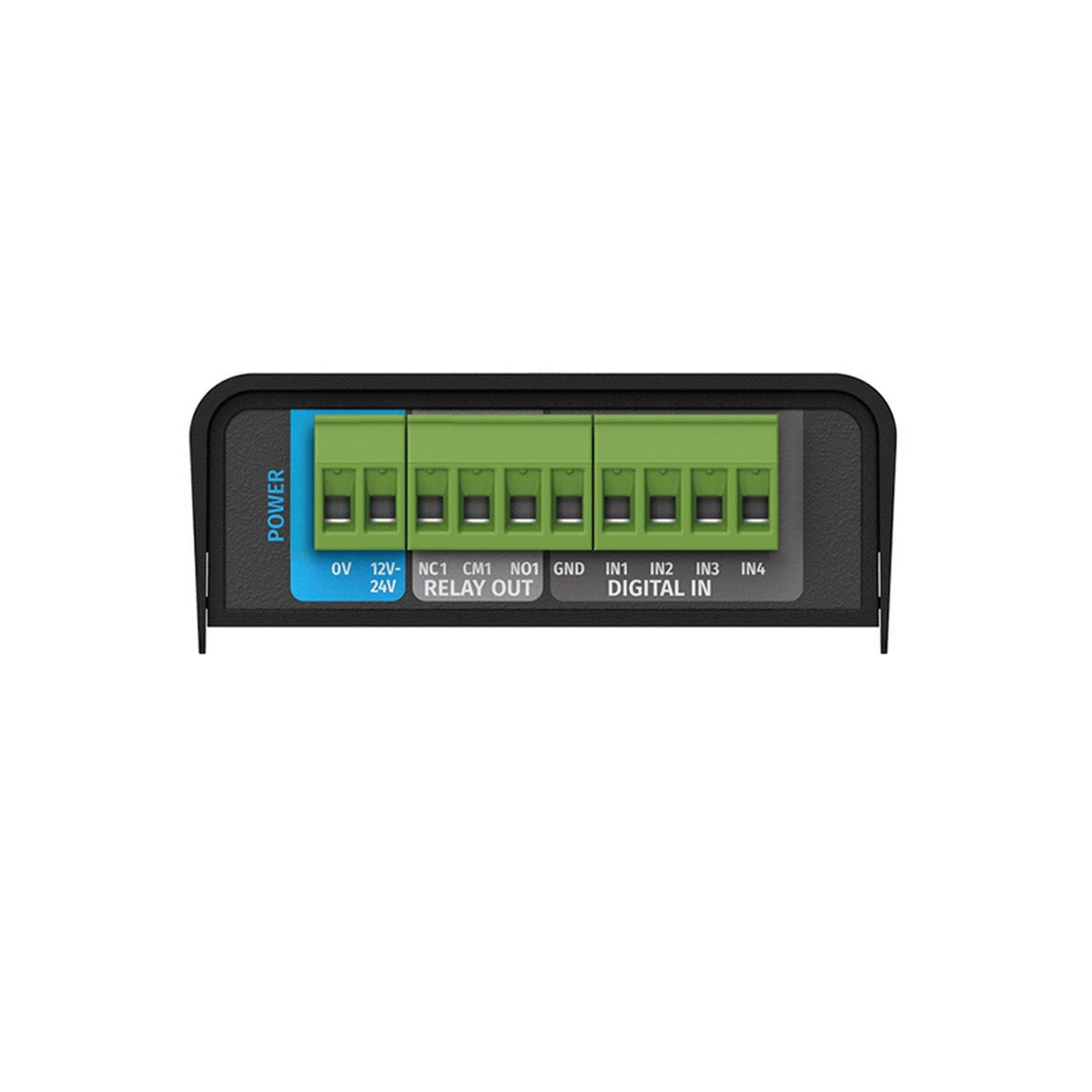

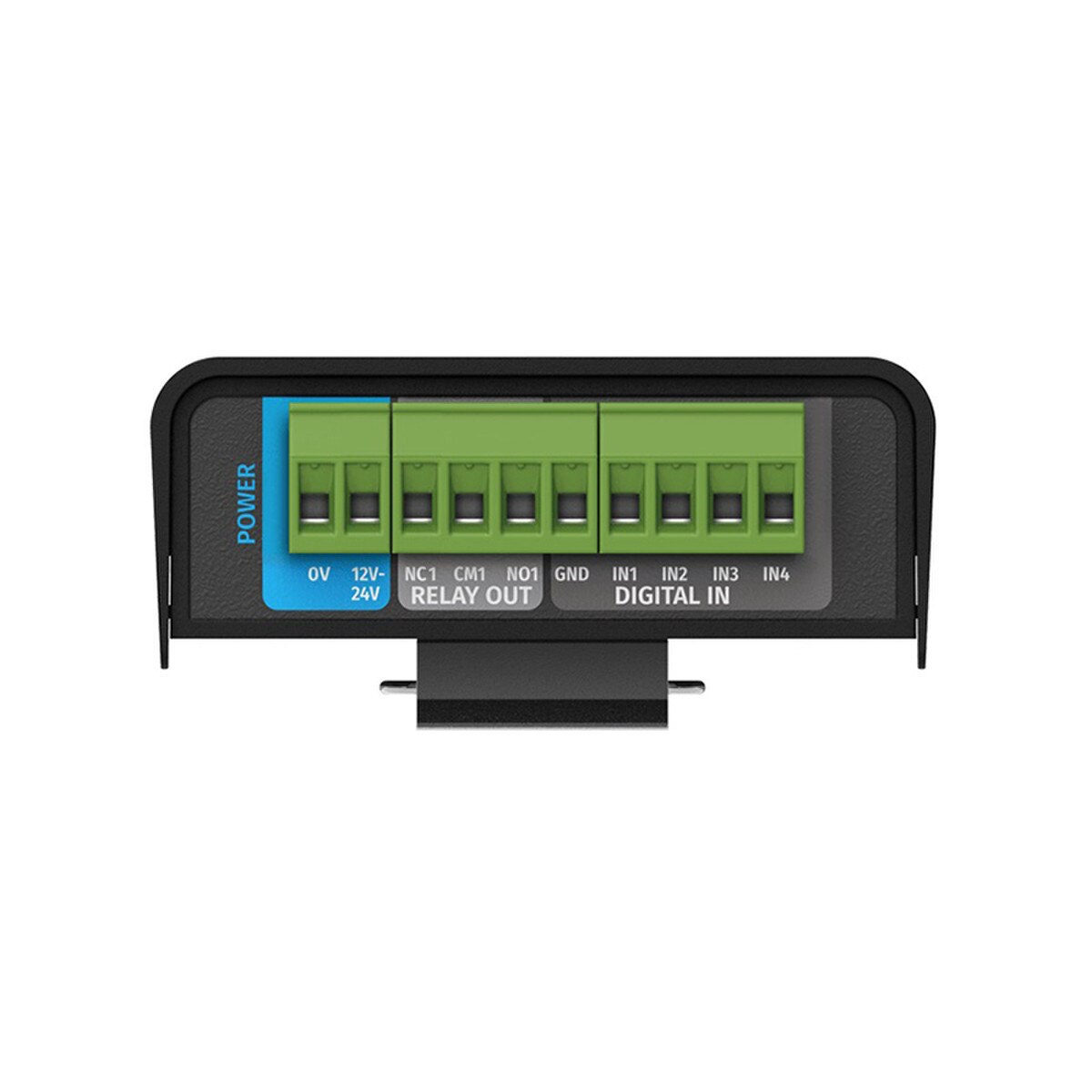

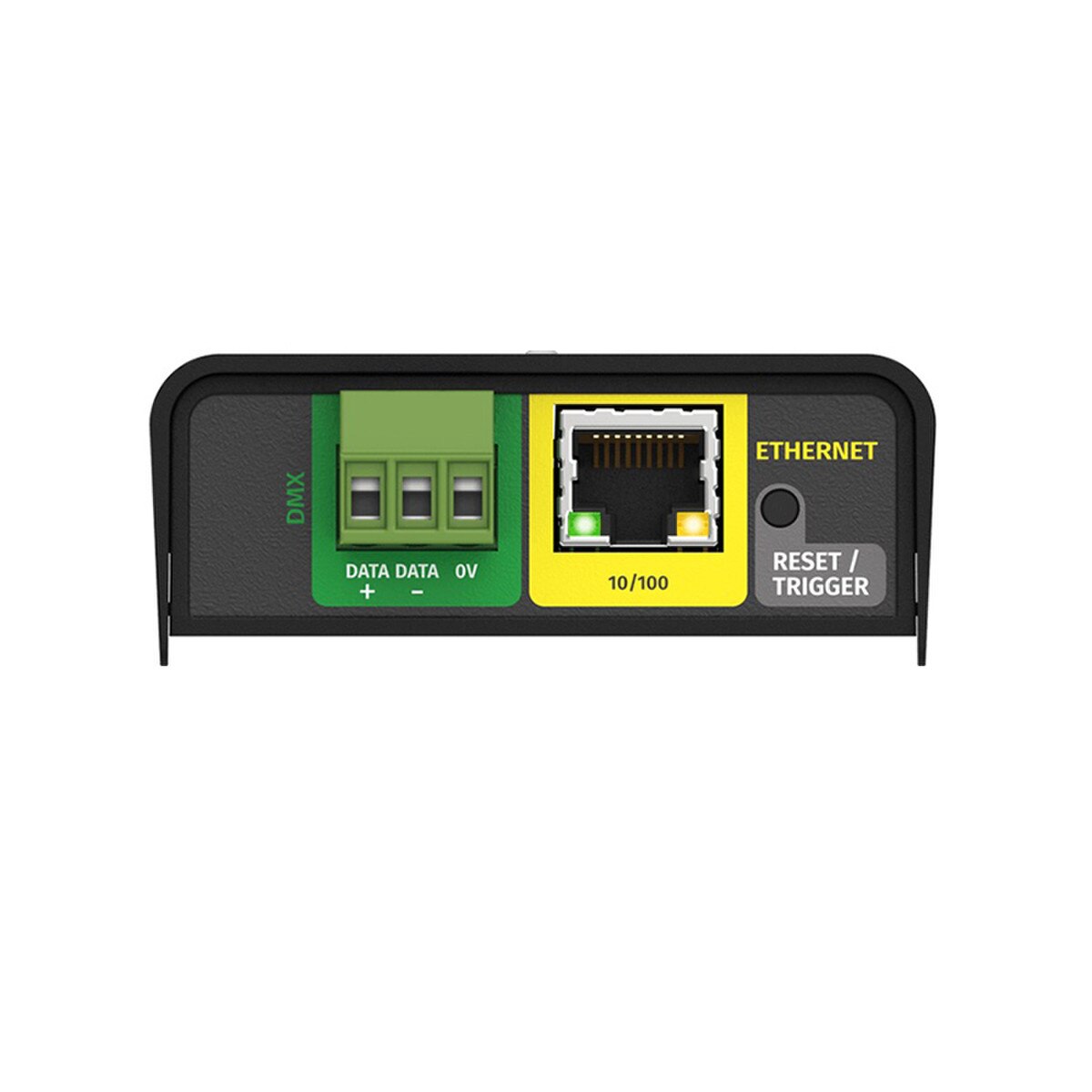

Connectors:

• 1 x Power Input (2-Pin Phoenix)
• 1 x Ethernet (RJ45)
• 1 x Relay (3-Pin Phoenix)
• 1 x Digital Input (5-Pin Phoenix)
• 1 x Bi-directional DMX Port (3-Pin Phoenix)

IP Rating:

• IP20

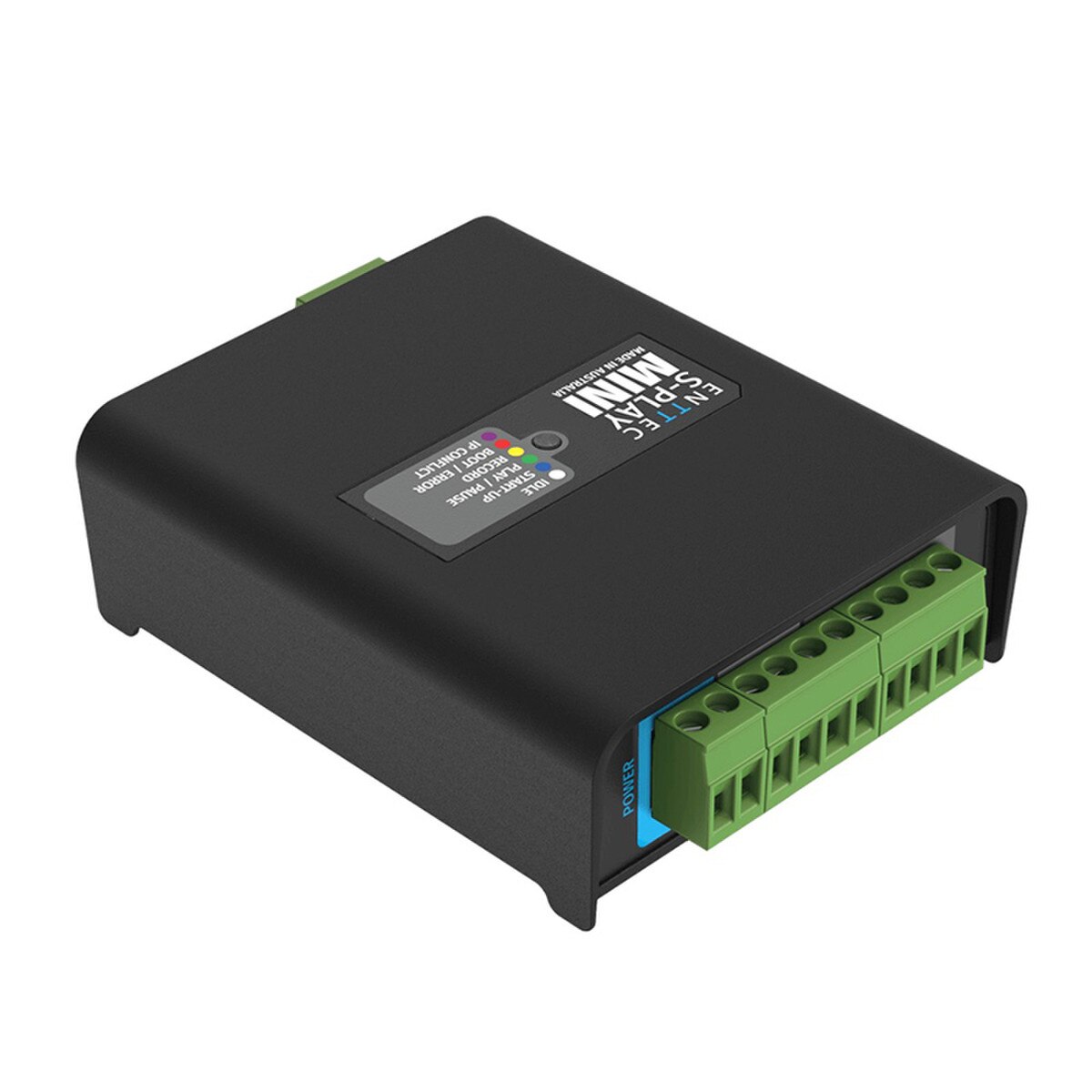

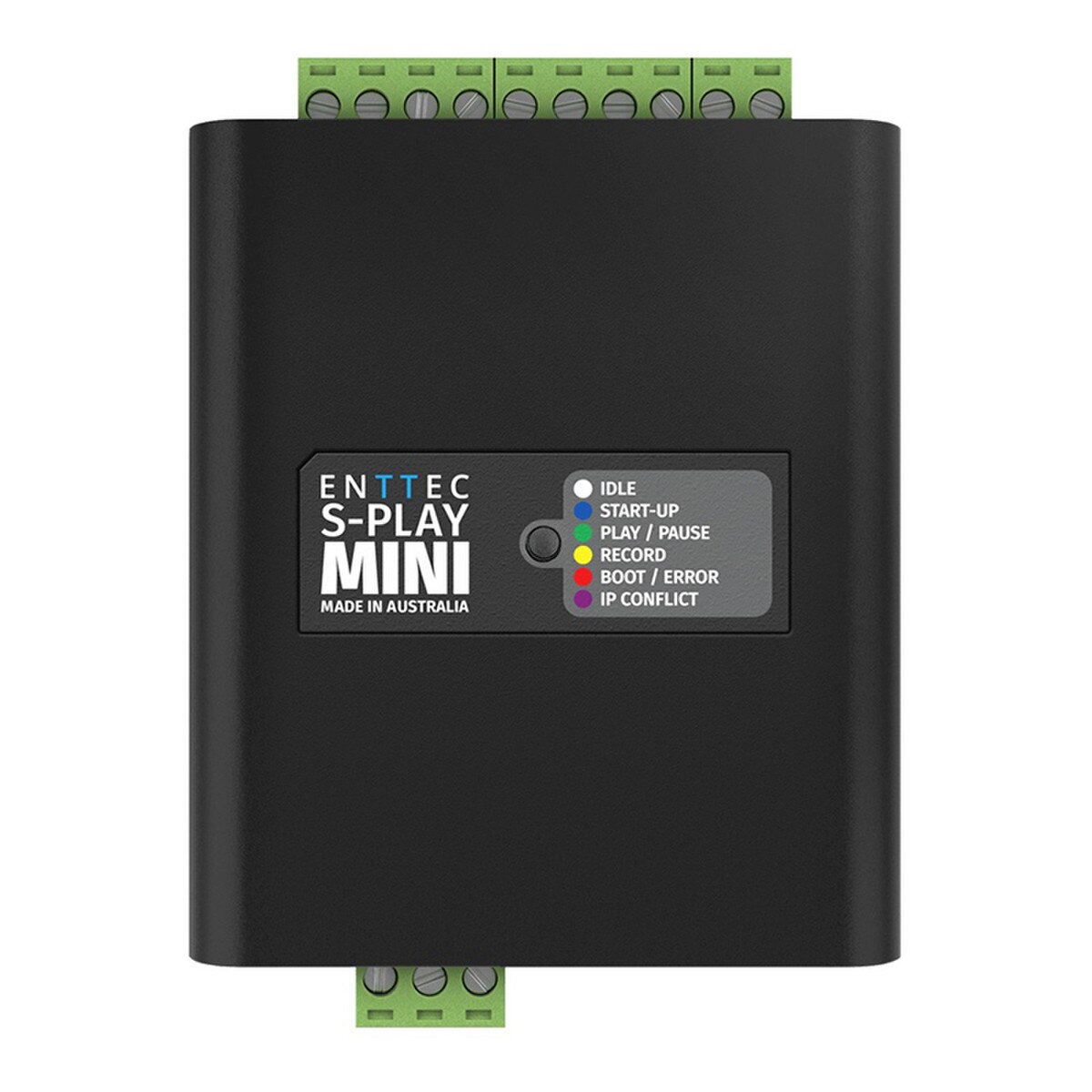

LED Indicators:

• Forward facing LED indicator
• Network link / activity (integrated into RJ45 ports)

Number of Universes & Input / Output Protocol:

• 1U: USITT DMX512-A
• 2U: Art-Net & sACN

Max Refresh Rate (FPS):

• 40 FPS

Input Voltage:

• 12-24V DC

Max. Power Draw:

• 3W

Internal Storage:

• 1GB

Expandable Storage:

• No

Cooling Method:

• Convection

Environmental Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 0 to 95% (non-condensing)

Body Material:

• ABS Plastic

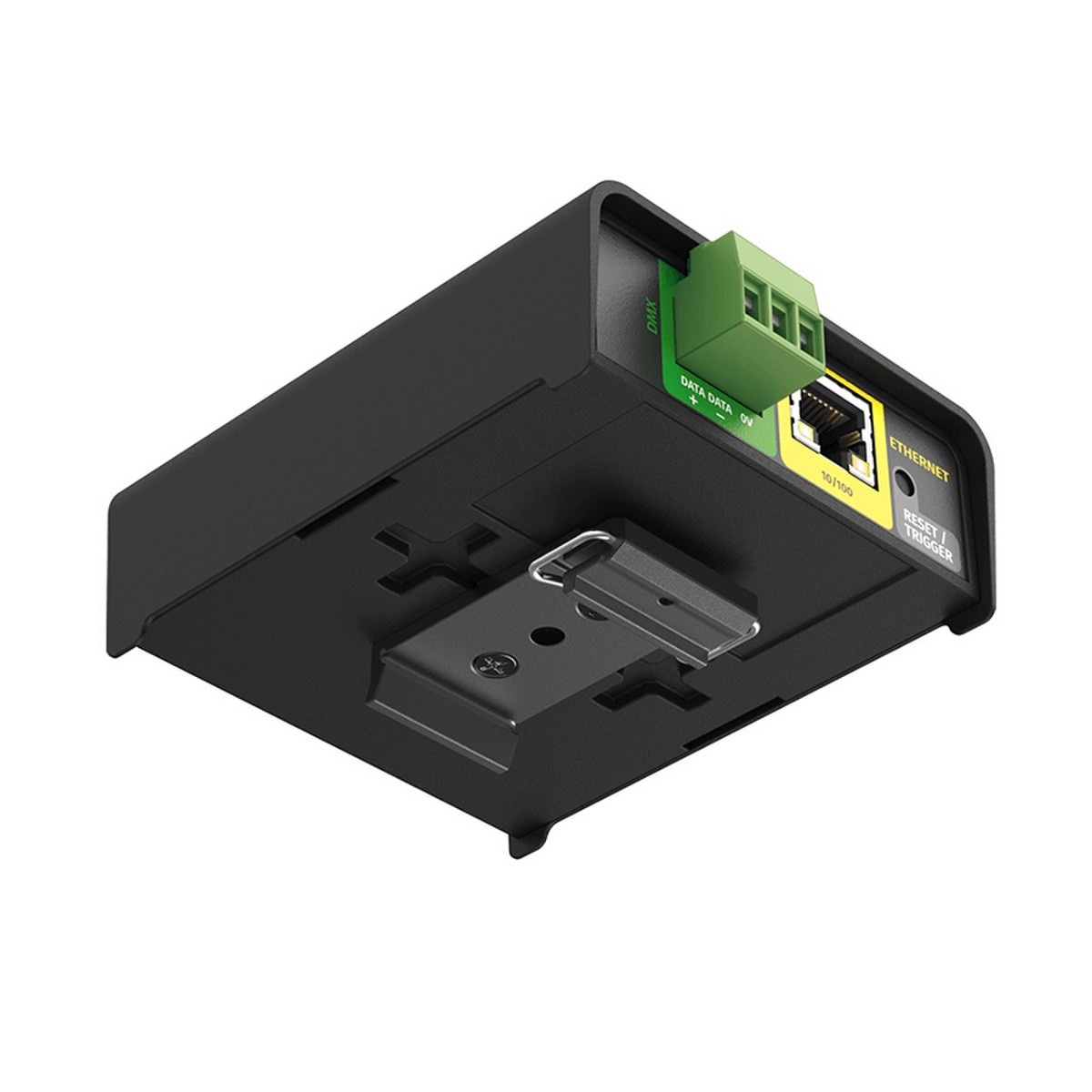

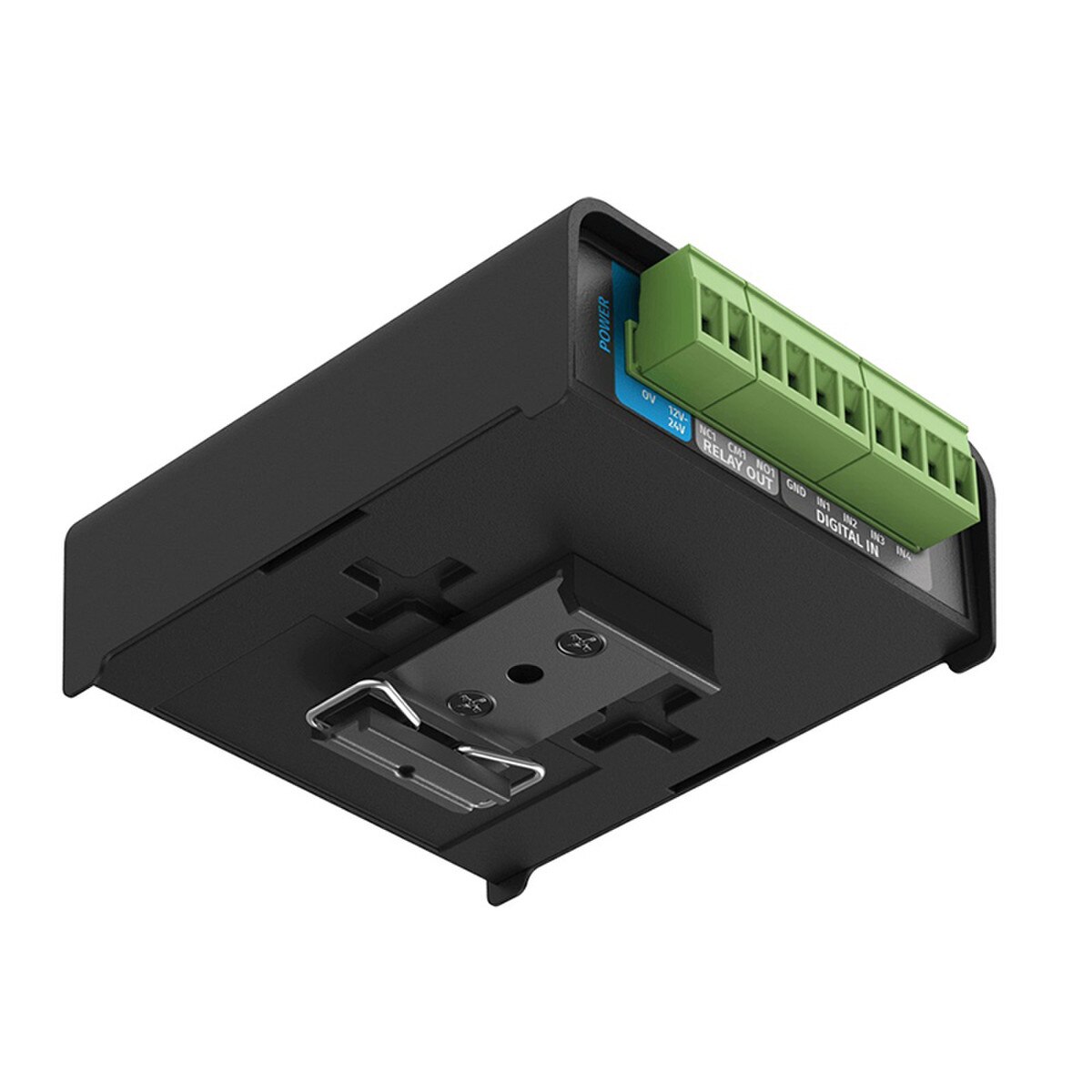

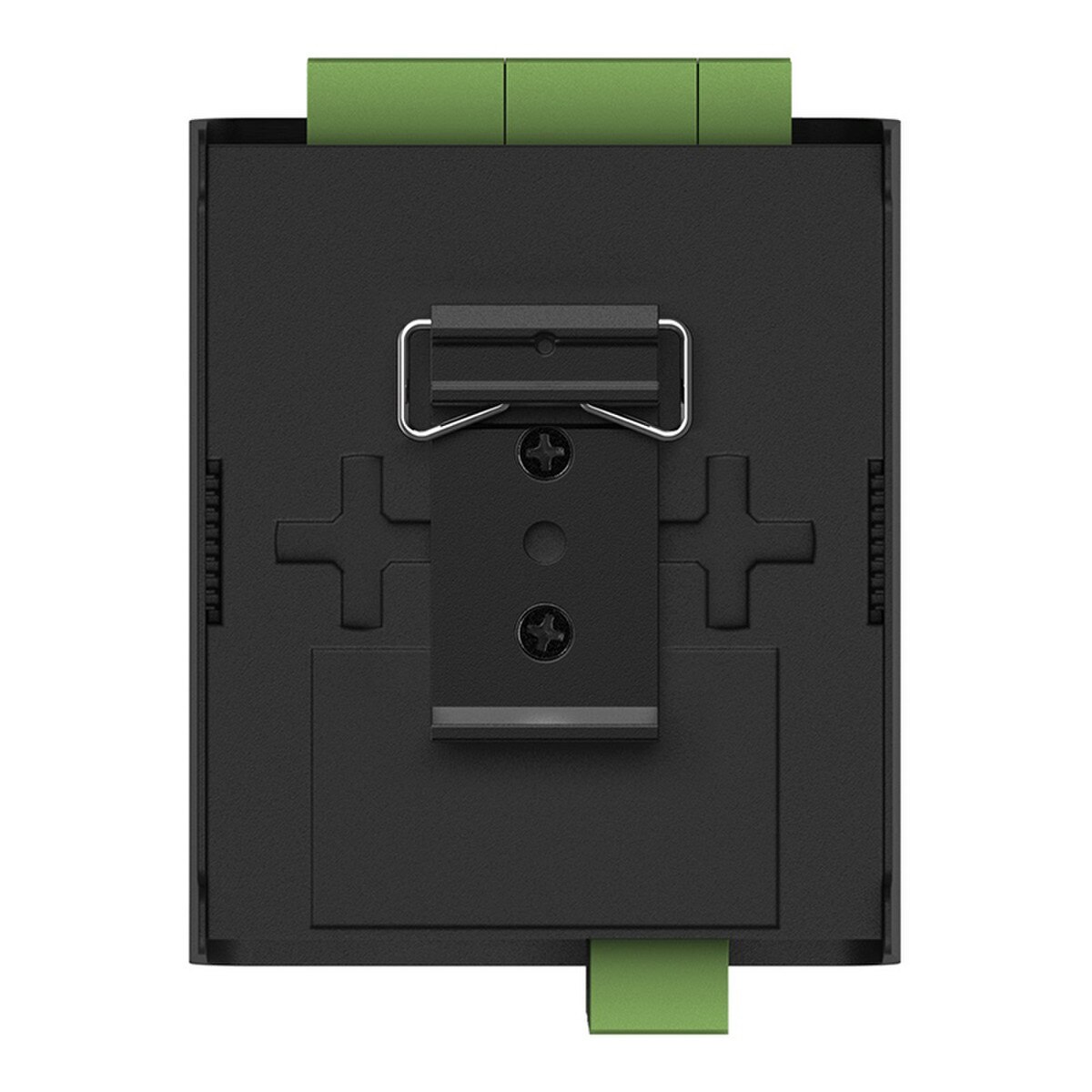

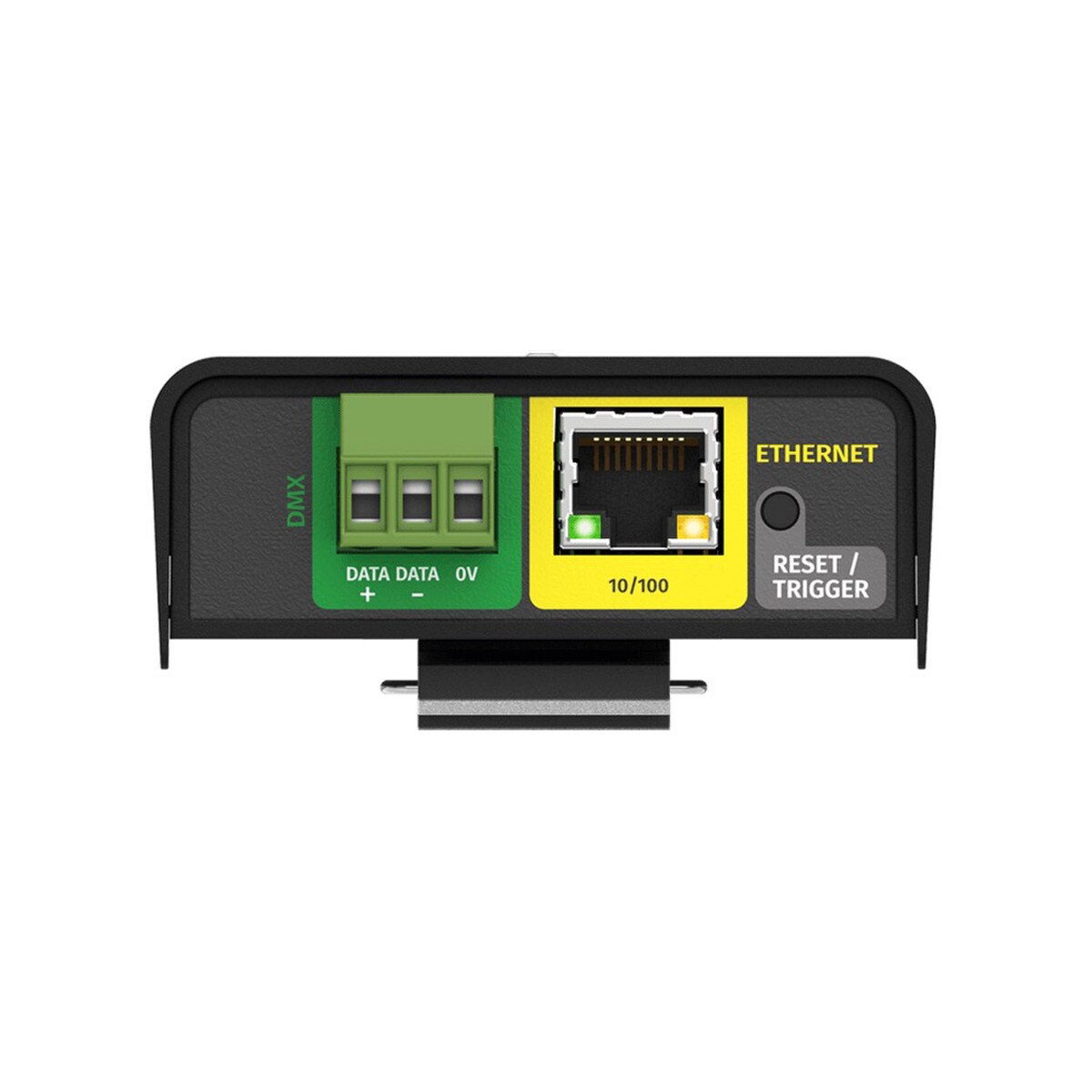

Mounting Options:

• Surface & TS35 DIN Rail mount

Unit Dimensions:

• 100.5 x 72.25 x 34 mm

Unit Weight:

• 0.83kg / 0.18lbs

Shipping Dimensions:

• 160 x 140 x 40 mm

Shipping Weight:

• 0.16kg / 0.35lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• S-PLAY MINI
• 1 x Din mounting clip & screws

Safety:

• Do not expose this device to rain or moisture, doing so will void the warranty.
• Make all the connections before you connect power.
• Do not remove the cover, there are no user serviceable components inside.
• Never plug this unit in to a dimmer pack.
• Ensure proper shield connections.
• Mount this unit in an area that will allow air flow - allow 150mm (6”) space.
• Never connect 0V to electrical Earth.
