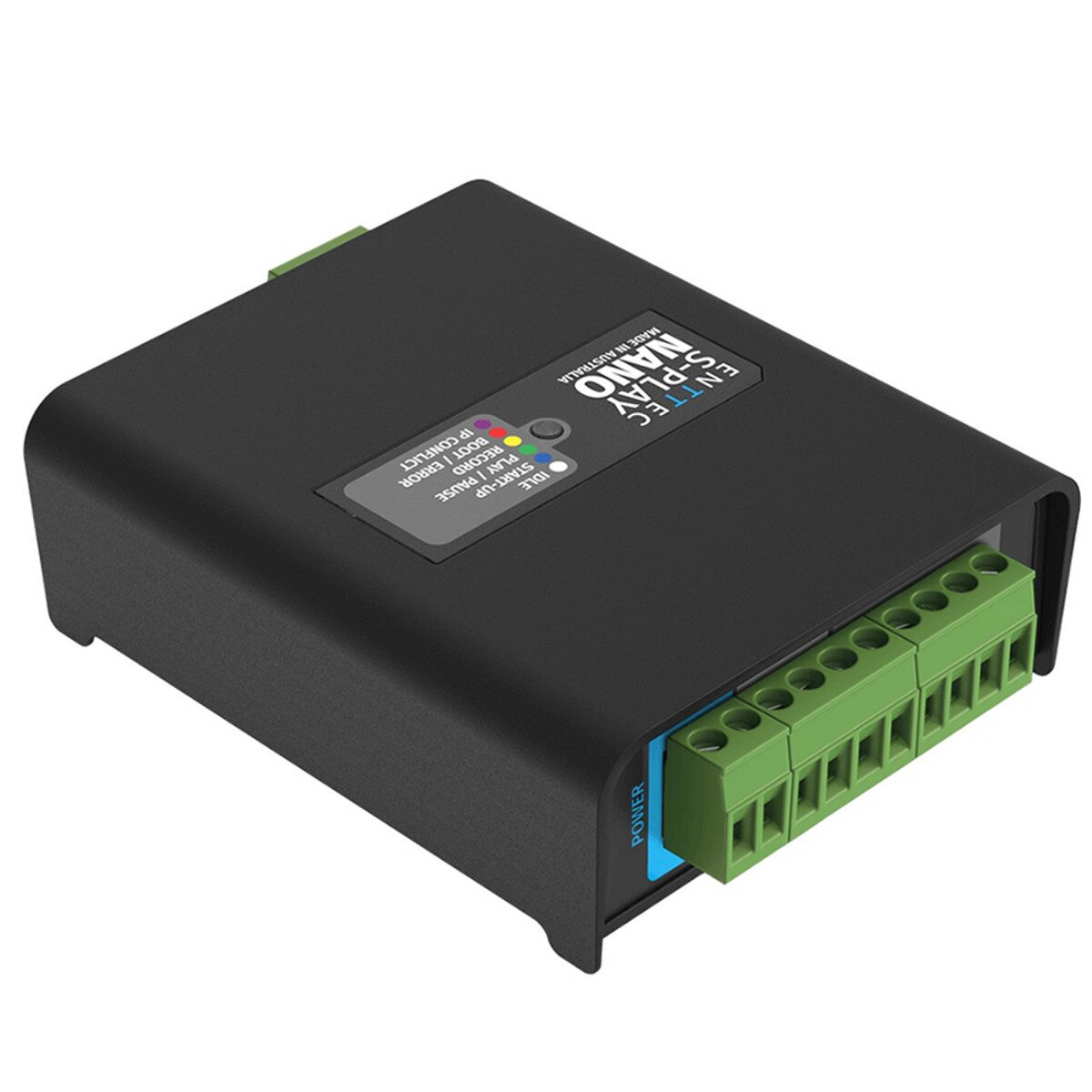

Enttec S-PLAY NANO

At A Glance:

• 1-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.
• Create, Record, Edit and Play up to 1 DMX Universes light shows integrating with 3rd party hardware and system in a compact 4 module DIN rail mount form factor.

ENTTEC’s S-PLAY NANO is a robust and compact DMX show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve smart lighting control with ease.

S-PLAY NANO generates a maximum of 4 light Static/Dynamic/Effect Cues. Users can record 1 full DMX Universe (512 channels) manually for Static Cues, via live DMX port recording for Dynamic Cues, or use the built-in pixel effect generator alternatively creating gradient Effect Cues in minutes.

The S-PLAY NANO allows flexible integration of external devices into the installation, supporting Triggers or automating Events through contact closures, UDP, or OSC.

With a drag-and-drop interface within S-PLAY NANO’s timelines editor, users can intuitively design up to 4 Playlists using created Cues, Events, and Triggers as building blocks. Playlists can run simultaneously with configuration options for playback triggers, preferred loop times, priority, fade times, and master intensities, allowing precise customisation.

Maximize your S-PLAY NANO experience! Upgrade to S-PLAY MINI for enhanced features using the same hardware. Visit the ENTTEC website for more information.

Features:

• Supports DMX port live recording and playback for 1 full DMX universe of 512 channels.
• Records cues from DMX sources with the added convenience of a DMX value monitor.
• Creates gradient Effect Cues using the in-built effect generator.
• Features user-friendly web interface providing easy configuration options for recording Cues and editing Events/Triggers.
• Allows users to create up to 4 Playlists, that comprising a maximum of 4 Cues, including Static, Dynamic, and Effect Cues.
• Sends up to 4 automated Events from options: Relays, UDP & OSC.
• Supports up to 8 Triggers from options: Digital Inputs, UDP, OSC and a Trigger button on the device.
• Offers upgradable firmware to S-PLAY MINI for enhanced capabilities.

Specification:

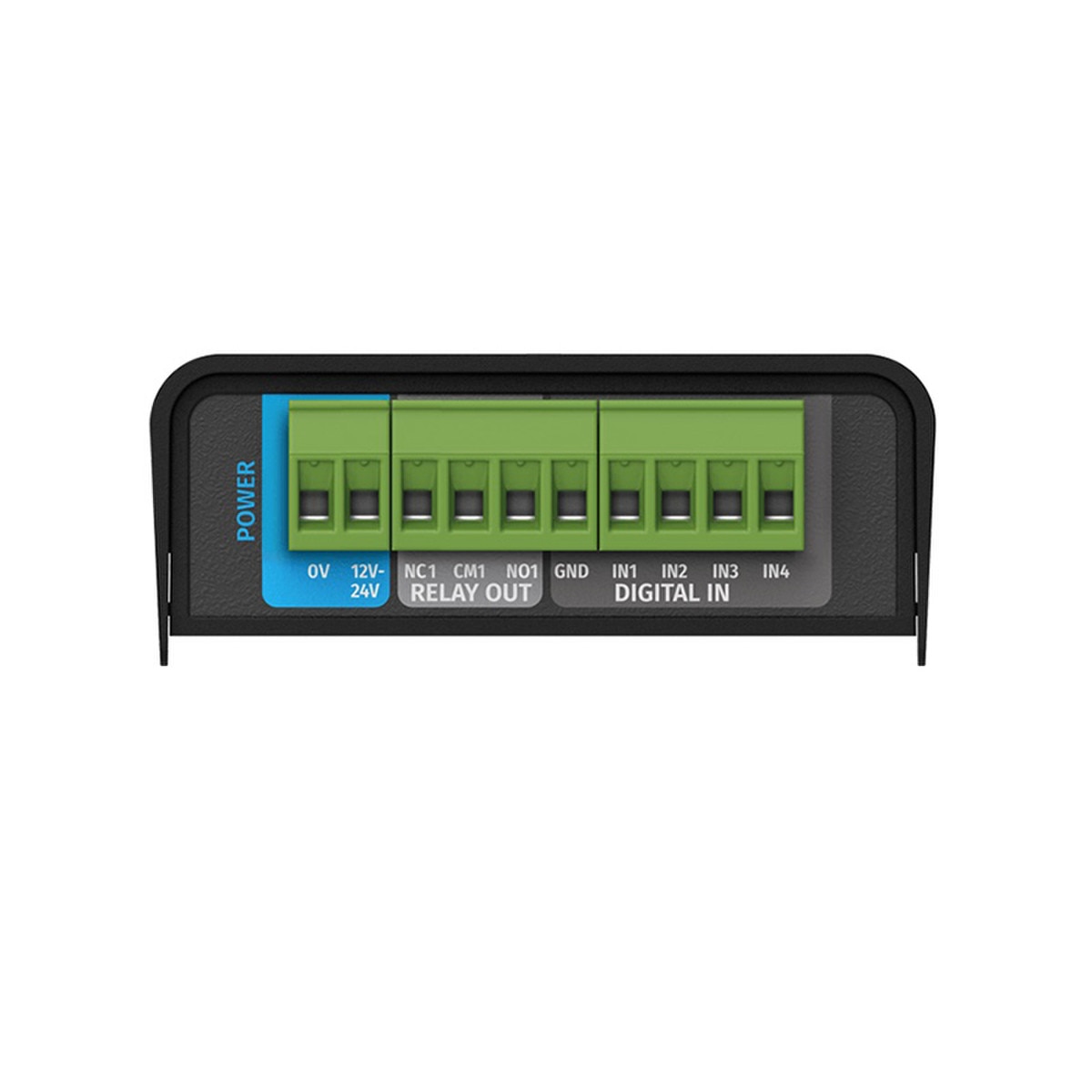

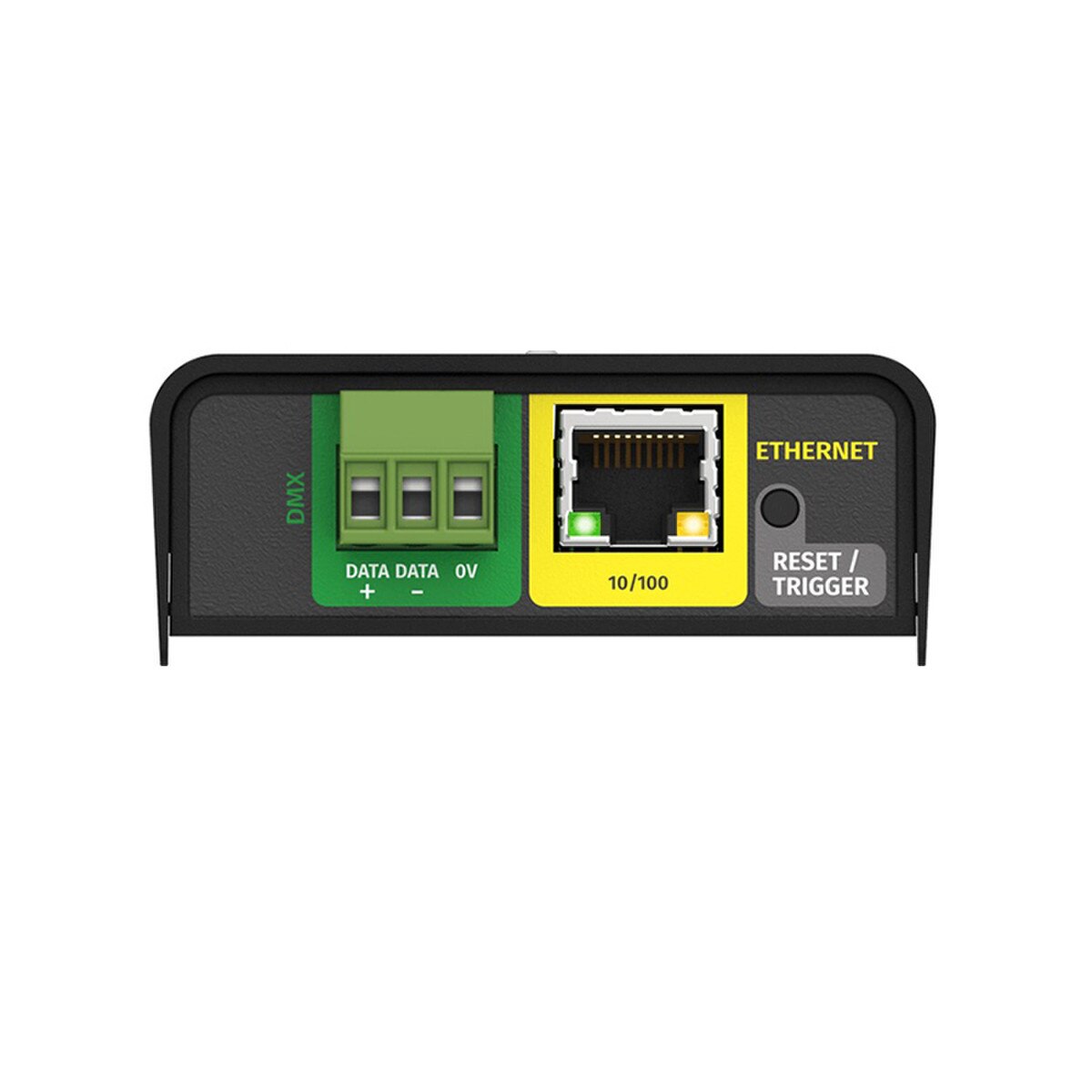

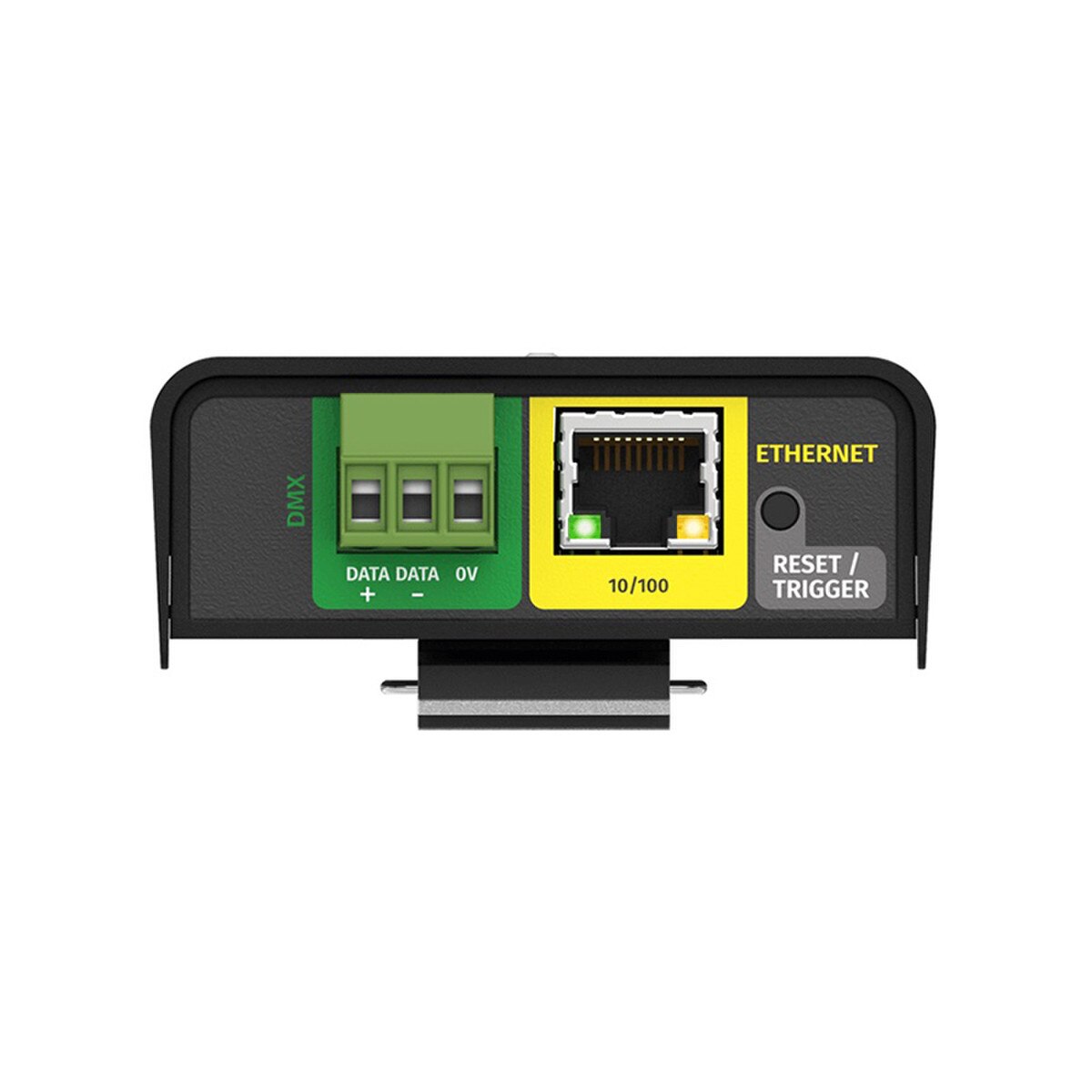

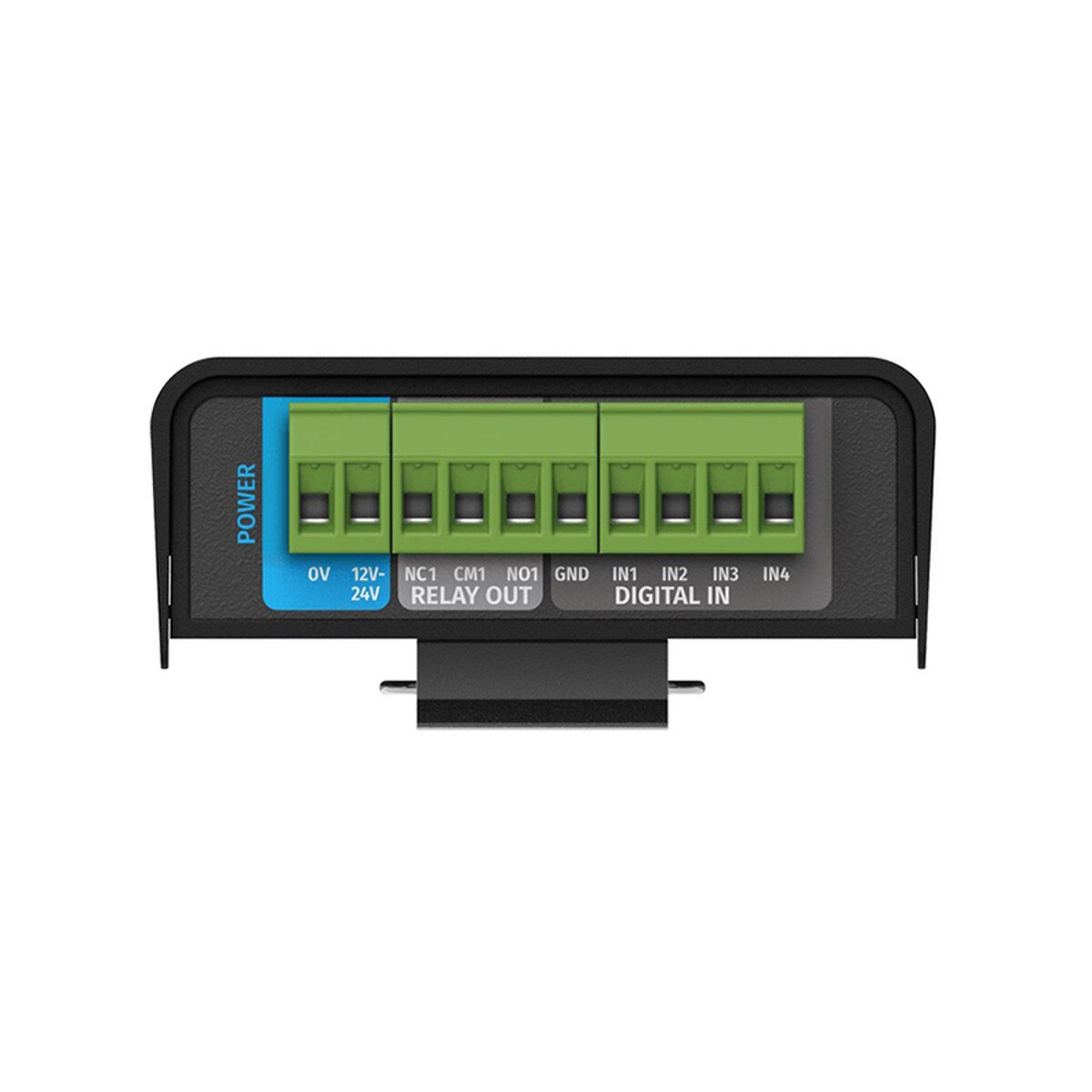

Connectors:

• 1 x Power Input (2-Pin Phoenix)
• 1 x Ethernet (RJ45)
• 1 x Relay (3-Pin Phoenix)
• 4 x Digital Input (5-Pin Phoenix)
• 1 x Bi-directional DMX Port (3-Pin Phoenix)

IP Rating:

• IP20

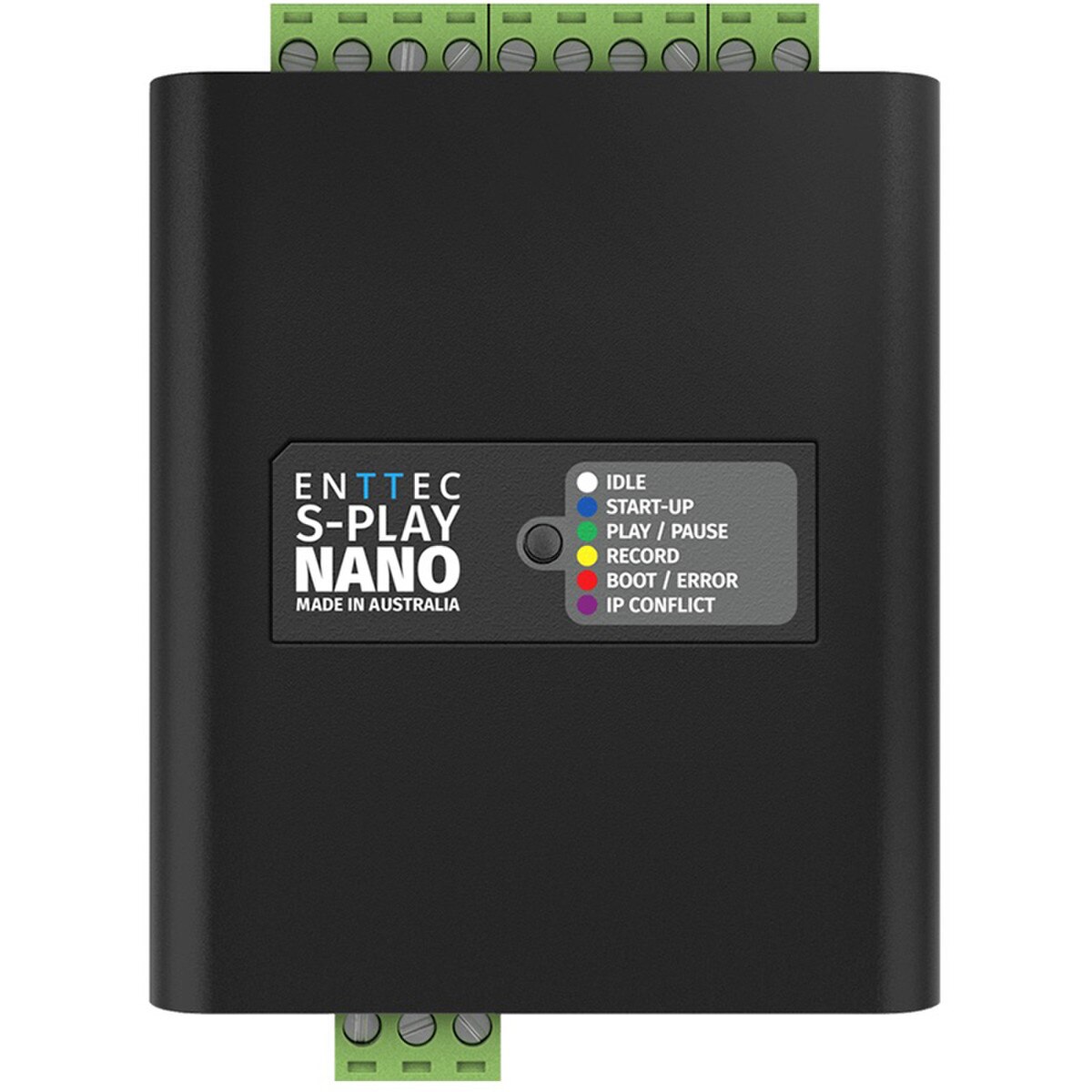

LED Indicators:

• Forward facing LED indicator
• Network link / activity (integrated into RJ45 ports)

Max Universe:

• 1 Universe (512 Channels)

Input / Output Protocol:

• USITT DMX512-A

Max Refresh Rate (FPS):

• 40 FPS

Input Voltage:

• 12-24V DC

Max. Power Draw :

• 3W

Internal Storage:

• 1GB

External Storage:

• No

Cooling Method:

• Convection

Environmental Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 0 to 95% (non-condensing)

Body Material:

• ABS Plastic

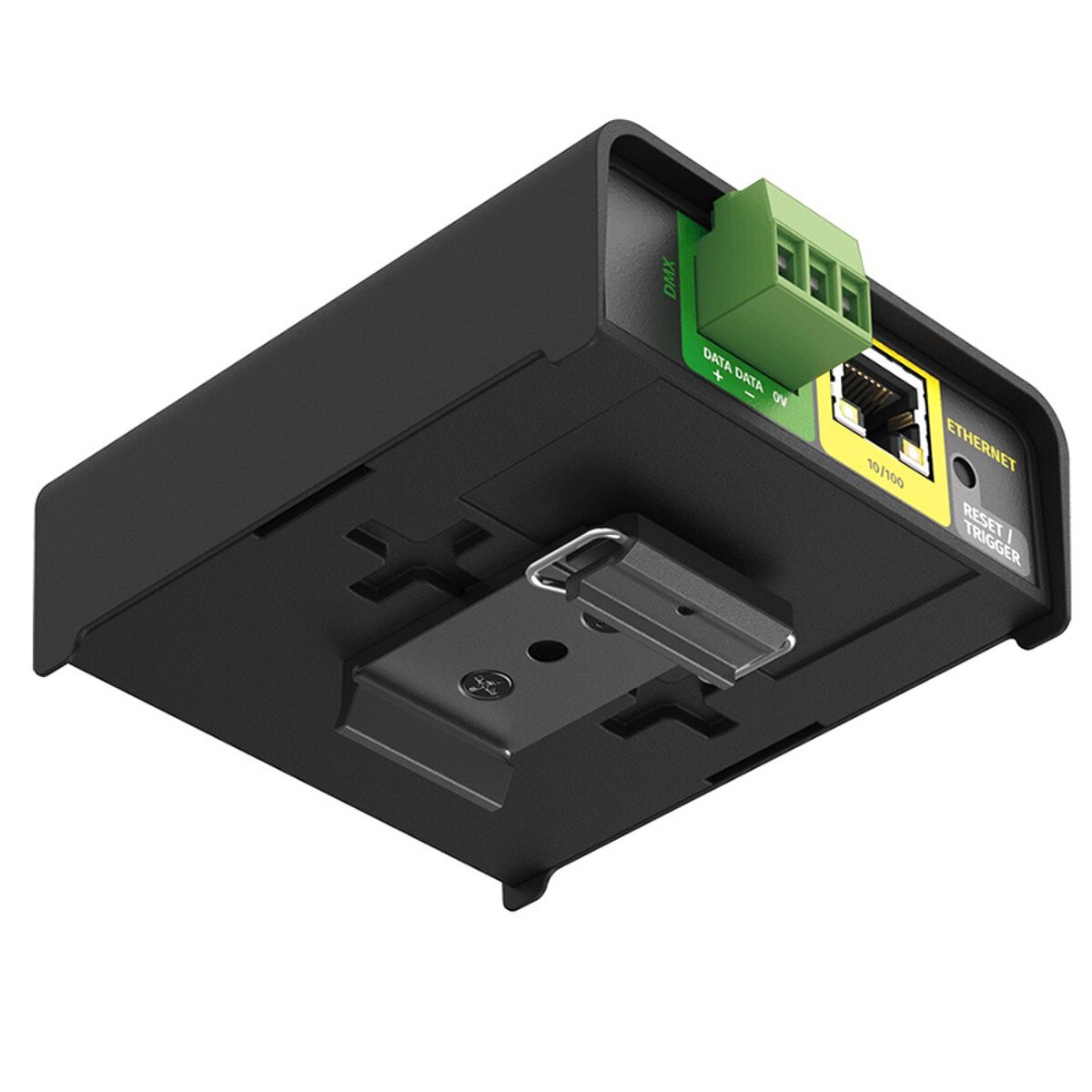

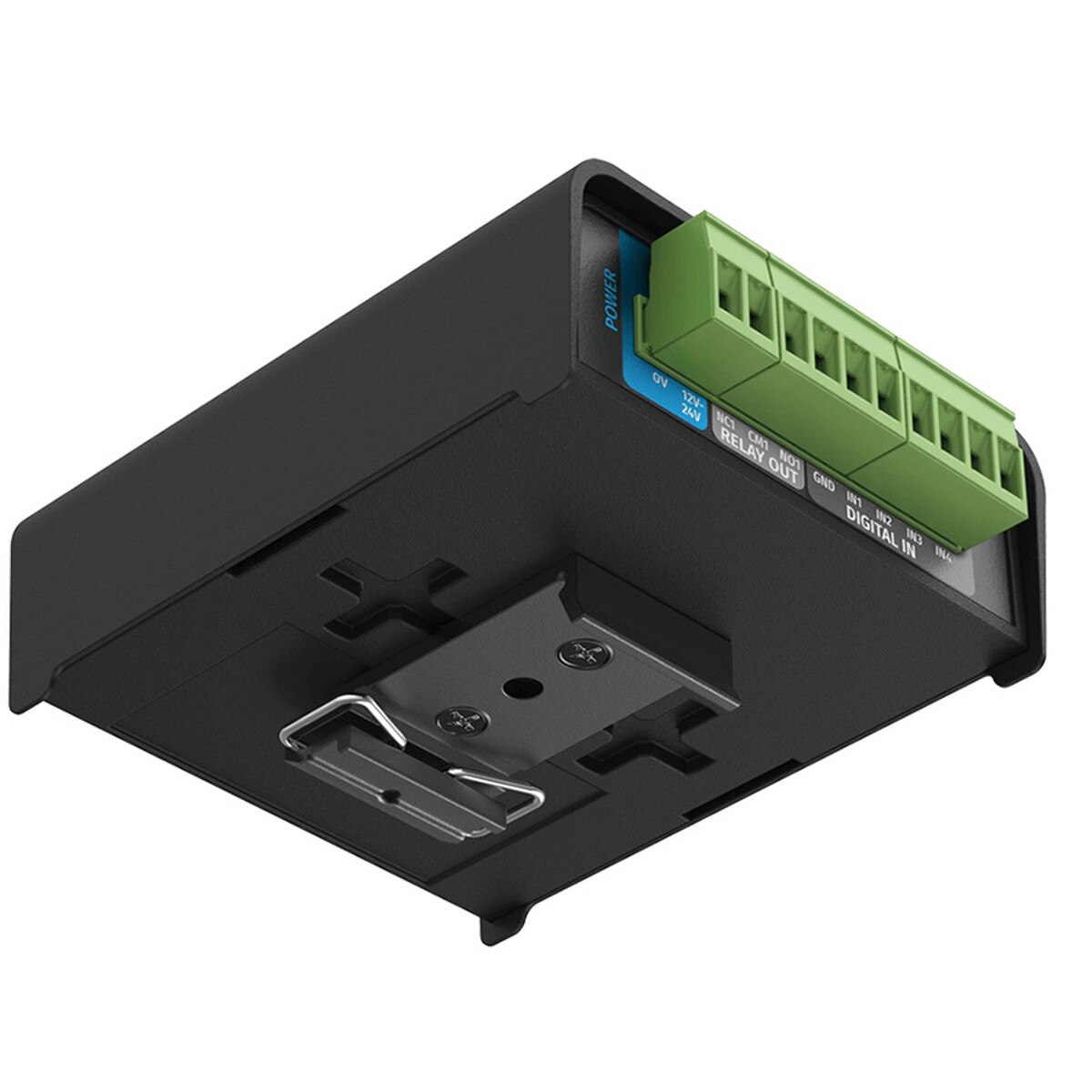

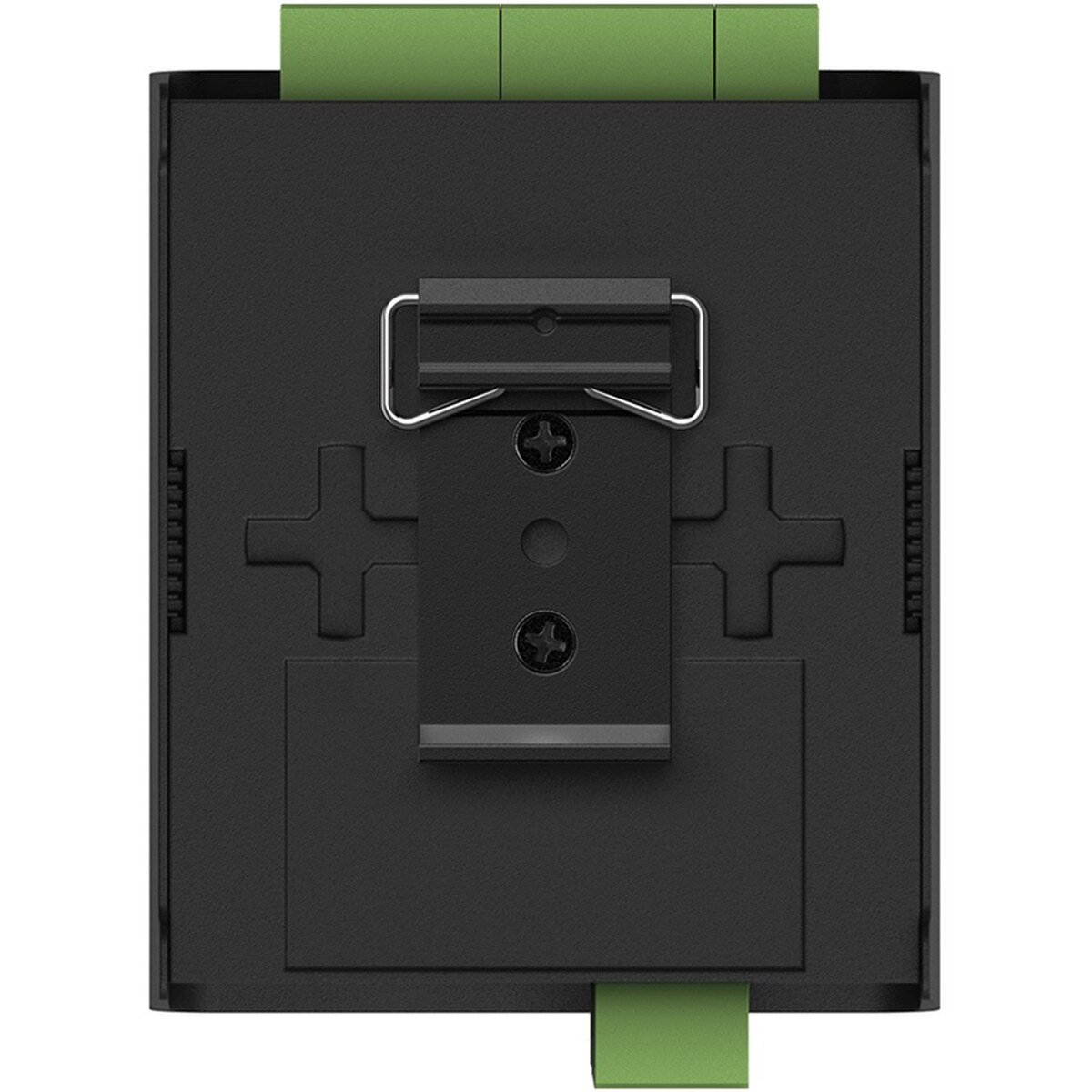

Mounting Options:

• Surface & TS35 DIN Rail mount

Unit Dimensions:

• 100.5 x 72.25 x 34 mm

Unit Weight:

• 0.83kg / 0.18lbs

Shipping Dimensions:

• 160 x 140 x 40 mm

Shipping Weight:

• 0.16kg / 0.35lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• S-PLAY NANO
• 1 x Din mounting clip & screws

Safety:

• Do not expose this device to rain or moisture, doing so will void the warranty.
• Make all the connections before you connect power.
• Do not remove the cover, there are no user serviceable components inside.
• Never plug this unit in to a dimmer pack.
• Ensure proper shield connections.
• Mount this unit in an area that will allow air flow - allow 150mm (6”) space.
• Never connect 0V to electrical Earth.
