Enttec Storm10 - 10-Universe Ethernet to DMX Adapter
Details
At A Glance:
- Compact and powerful 10-universe, multi-protocol Ethernet to DMX/RDM converter

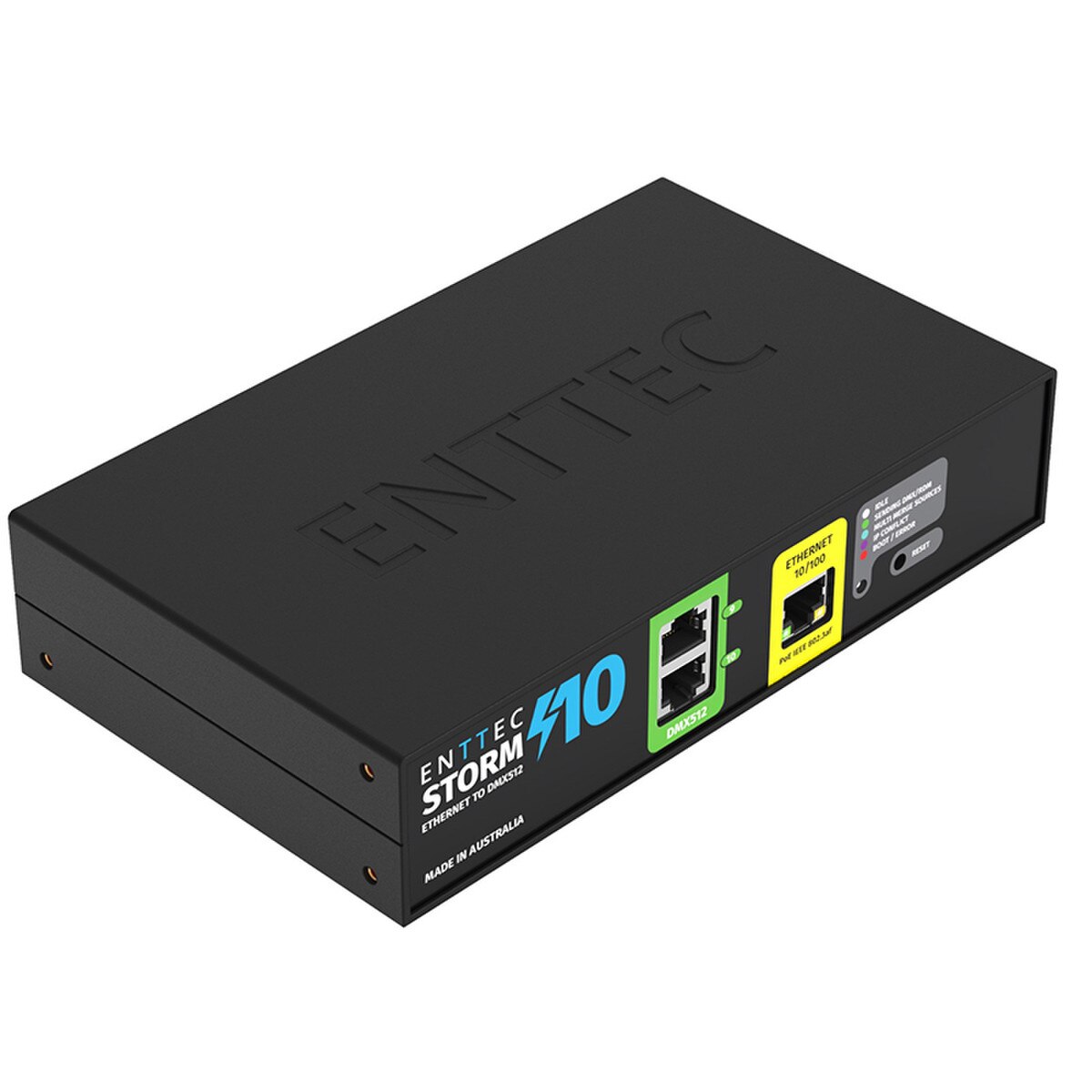

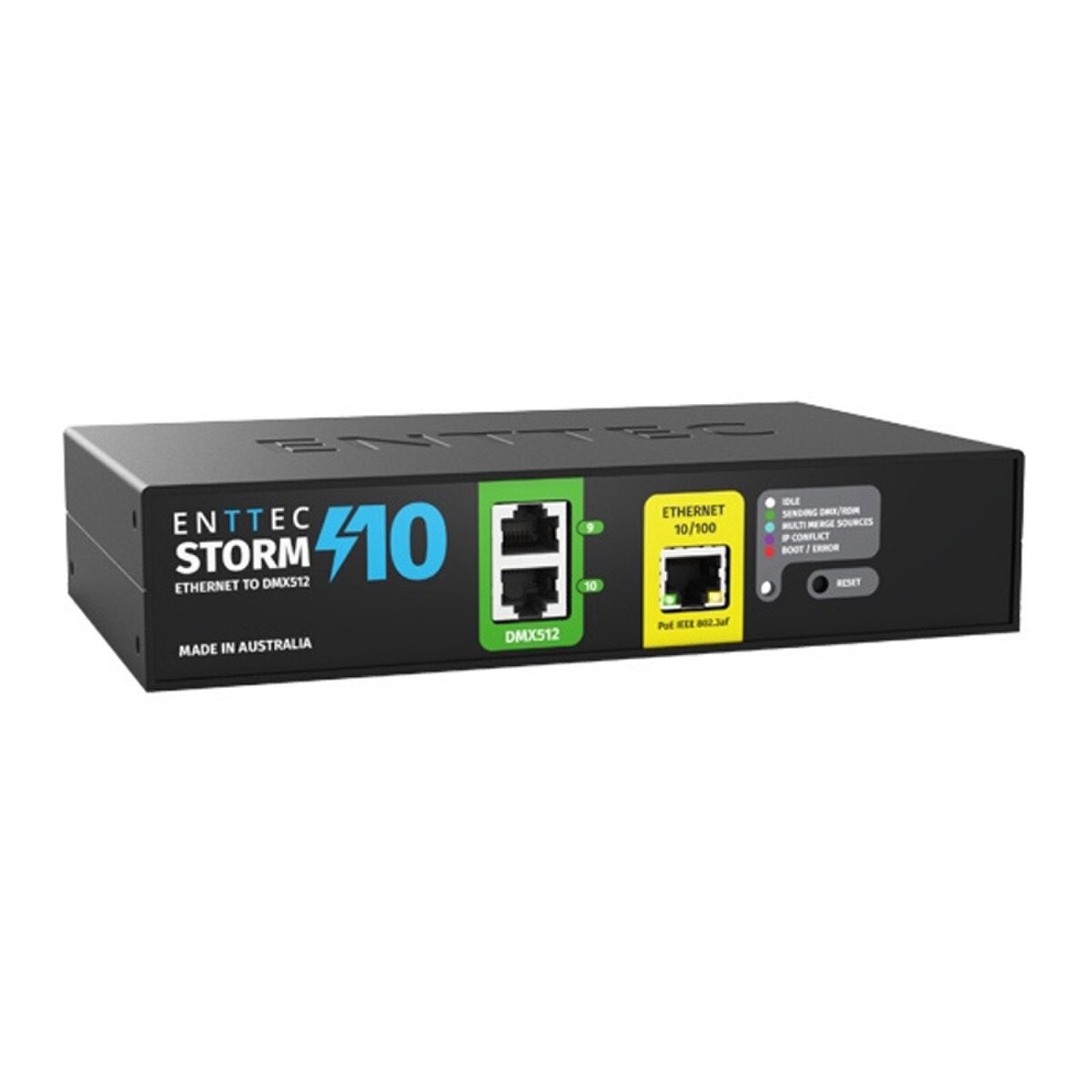

ENTTEC’s STORM10 is a compact installer-grade Ethernet-DMX to DMX/RDM gateway designed to make controlling DMX lights over Ethernet simple.
The STORM10 converts Art-Net, sACN & ESP eDMX protocols into up to 10 Universes of DMX/RDM to your lighting fixtures. In combination with 1 ethernet input, STORM10 is packed with 10 rear DMX/RDM output ports alongside installer-friendly two forward-facing service ports duplicating Port 9&10 offering as many outputs as possible within a 1U half-width rack device.
The STORM10 converts fully compliant DMX using RJ45 outputs, Cat5e/Cat6 cable can be wired to a standard DMX plug either locally to the STORM10 or at the first fixture. Using RJ45 cables instead of DMX cable proves cheaper and more efficient especially on long term installations.
The STORM10 can be powered by either PoE or a 12-24V DC jack input. Its front LED indicators showing the status and connectivity of each unit. All intuitive configuration management including firmware updates are conveniently accessible through its localhost web interface making installations both simple and fast.
The STORM10 allows merging of up to two EthernetDMX sources via HTP or LTP methods, providing additional flexibility without the need for other hardware.
Features:
- 10 Universe Ethernet-DMX to DMX/RDM Node.
- Supports Art-Net, sACN & ESP Ethernet protocols.
- 1 x RJ45 Ethernet input port (10/100 Mbps) with built-in LED network status indicator.

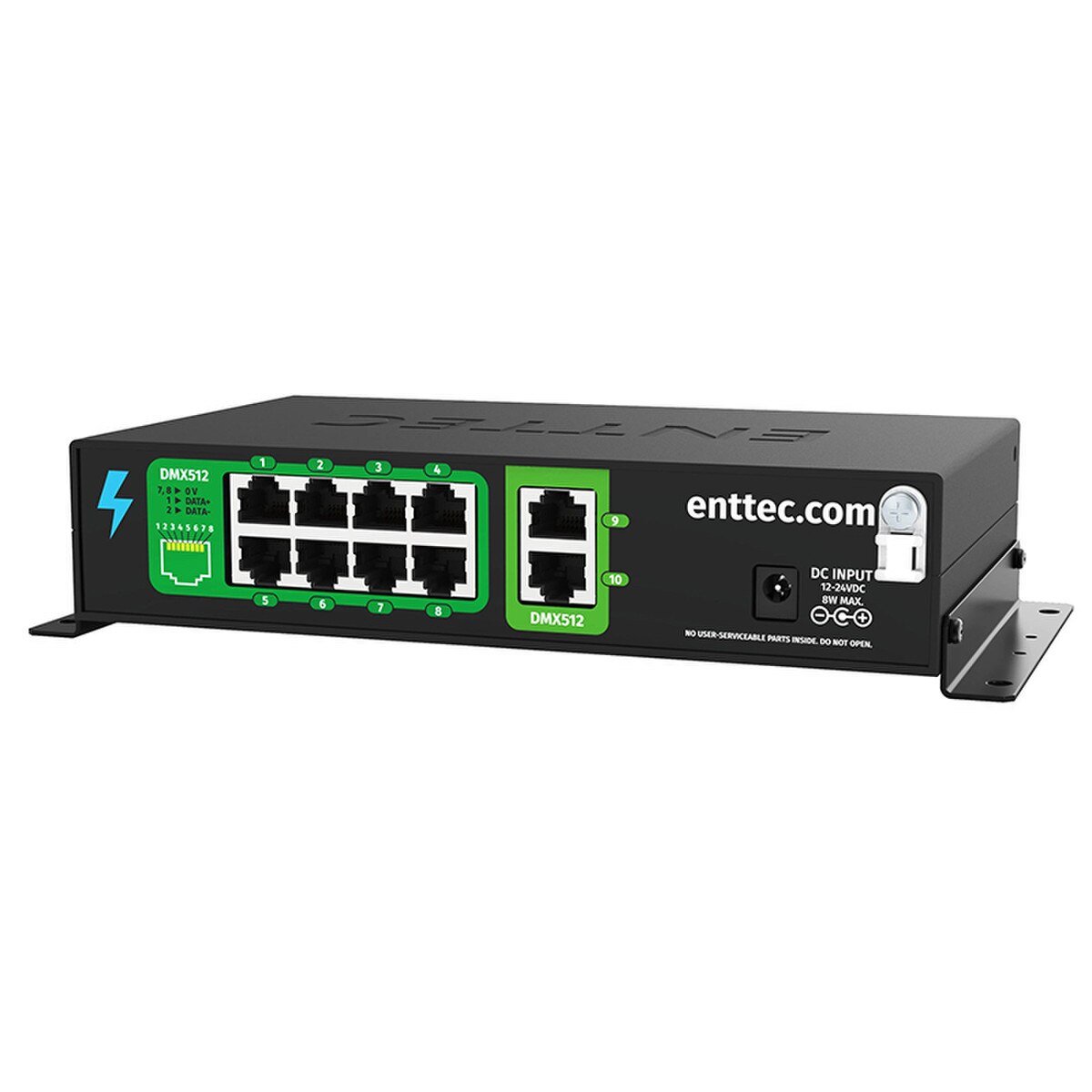

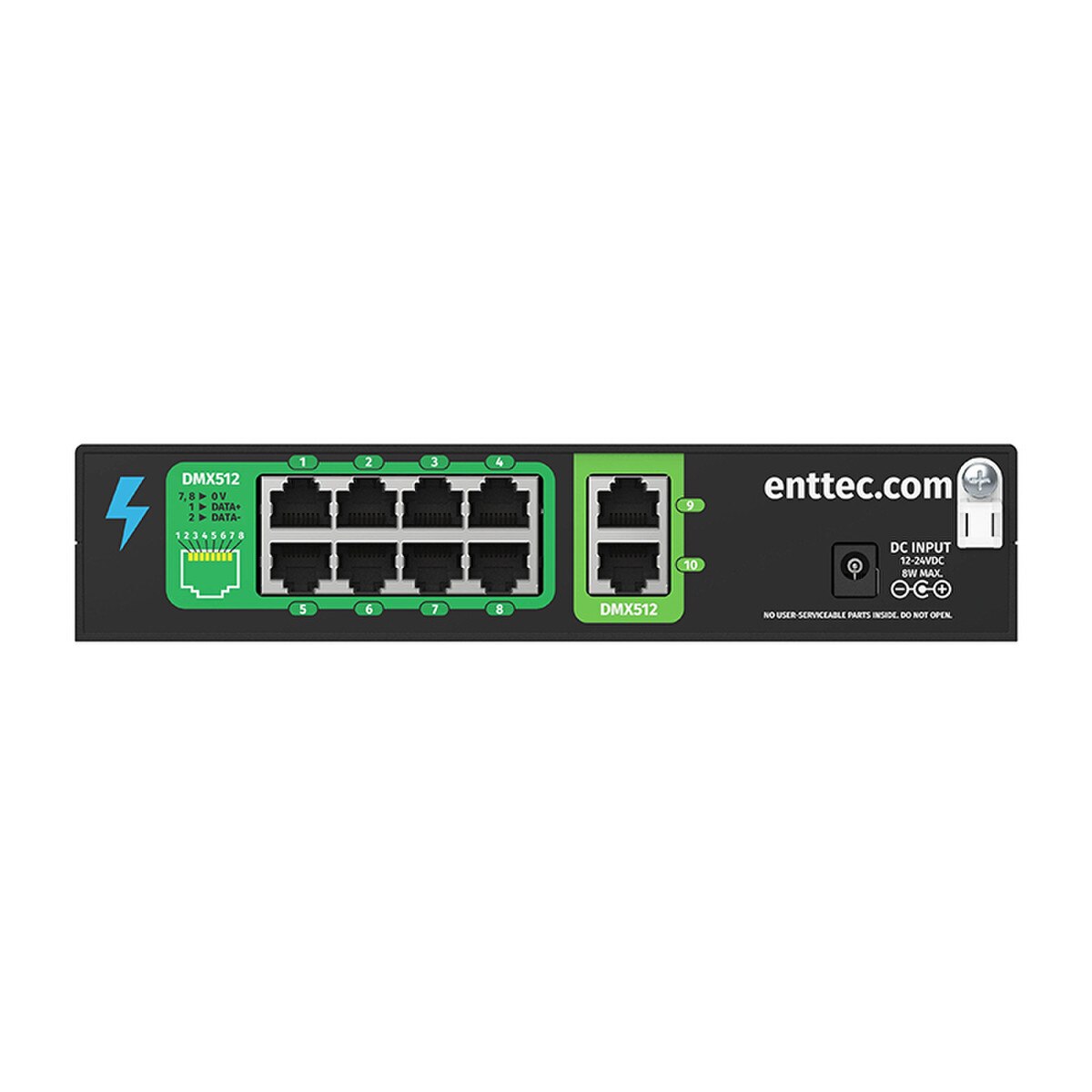

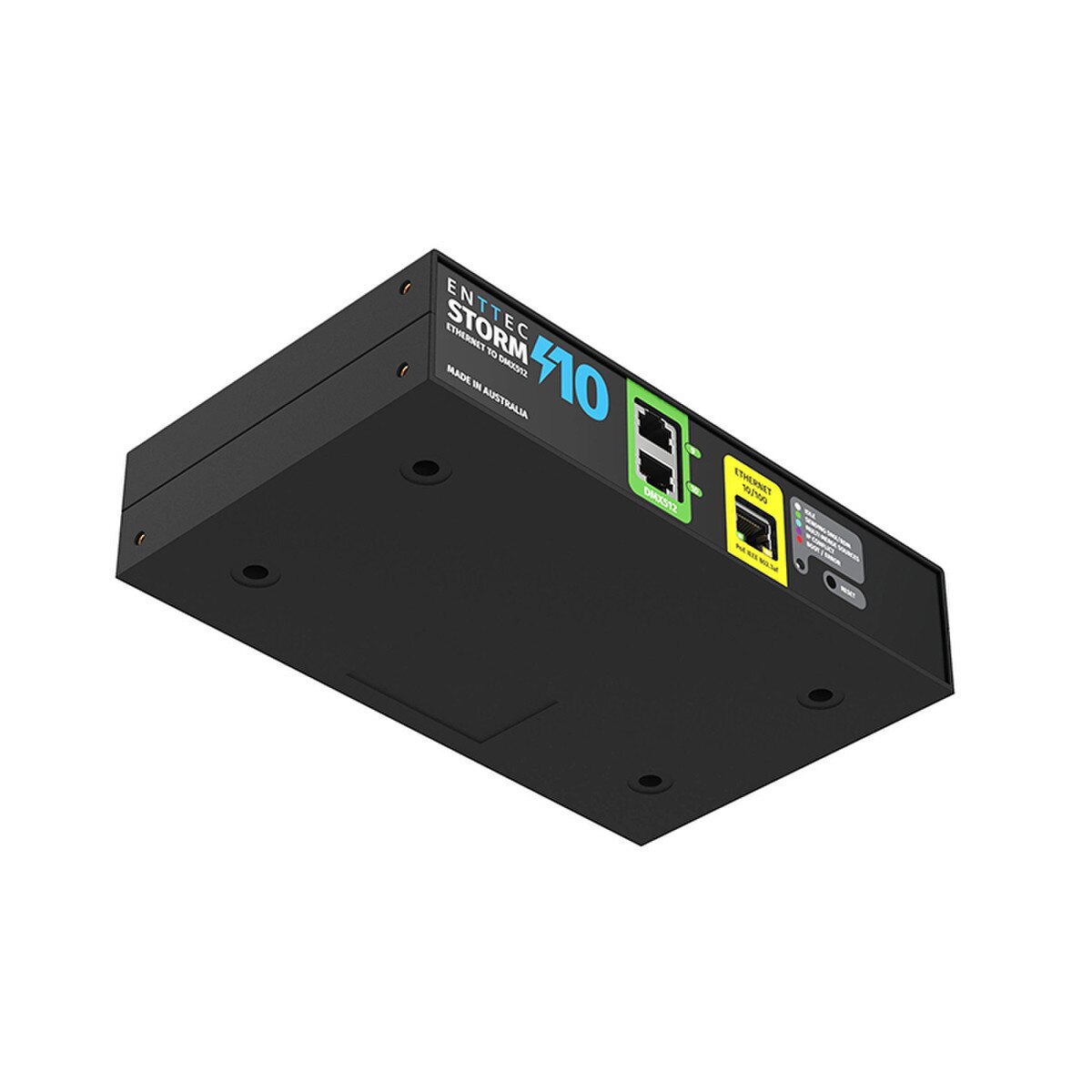

- Total 12 x DMX/RDM output ports: 10 x rear DMX/RDM ports & 2 x forward-facing service ports duplicating Port 9&10.
- PoE or DC jack power input.
- Reverse polarity protection.
- Integrated protection against surge.
- 10 DMX output settings are independently configurable, including Input Protocol, Output type, refresh rate, HTP/LTP Merge.
- DHCP or Static IP address support.
- Intuitive device configuration and updates through the inbuilt web interface.
- Mounting accessories included allowing surface mount, din mount or rack mount in half or full width rack spaces.
Connectors:
- 1 x Ethernet Input (RJ45)
- 1 x Power Input (DC)
- 10+2 (Duplicated Port 9&10) * DMX/RDM Output (RJ45)
IP Rating:
- IP20
LED Status Indicator:

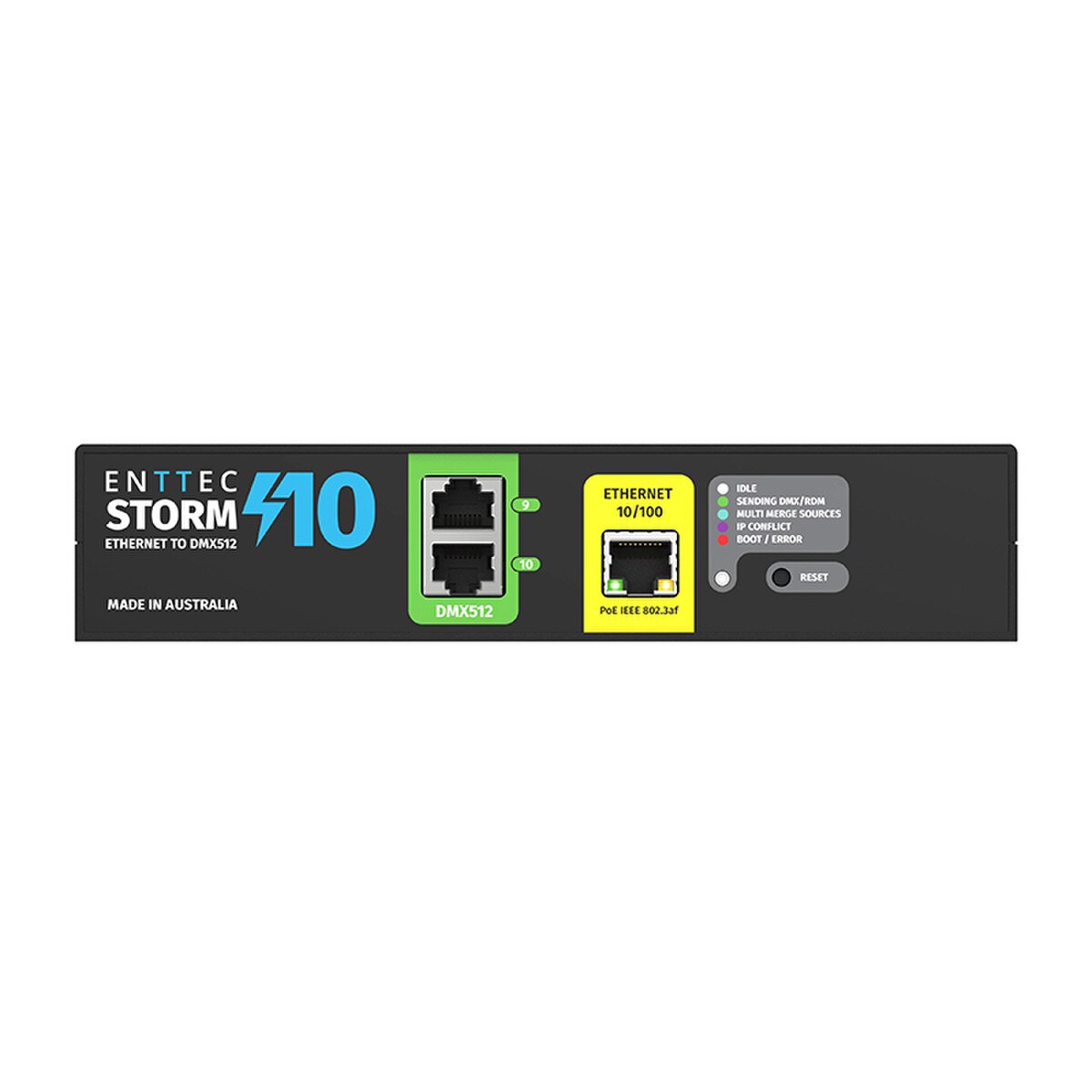

- Forward facing LED indicator
- Network link/Activity (integrated into RJ45 port)
Input Protocols:
- Art-Net
- sACN
- ESP
Output Protocol:
- USITT
- DMX512/1990
Max. Output Channels:
- 5120ch (10 Universes)
Network Speed:
- 10/100Base-T
Network Configuration:
- DHCP / Static (Default 192.168.0.10)
RDM:
- Yes
Max. Merging Sources:
- 2 Sources
Firmware Updates:
- Web browser
Input Voltage:
- 12-24V DC / PoE IEEE802.3AF
Max. Power Draw:
- 8 Watts
Cooling Method:
- Convection
Environmental Operating Temperature:
- -20°C to 50°C
- 32°F to 122°F
Environmental Operating Humidity:
- 5- 95% (non-condensing)
Body Material:
- ABS + Anodized aluminium
Rack Ear Material:
- Powder coated aluminium.
Unit Dimensions:
- 200 x 120 x 42 mm
Unit Weight:
- 0.46kg /1.01lbs
Warranty:
- 3-year return to base manufacturer warranty
Cat5/6 Pin for DMX Output RJ45 Connectors:
- Pin 1: Data +
- Pin 2: Data –
- Pin 7/8: Ground
Safety:
- This unit is intended for indoor use only. Do not expose to rain or moisture, doing this will void the warranty.
- Make all the connections before you plug in the mains power.
- Do not remove the cover, there are no serviceable parts inside.
- Never plug this unit into a dimmer.
- Always be sure to mount this unit in an area that will allow 6” (20cm) of ventilation.
- Power-supply cords should be routed so they cannot be damaged, damaged or force applied to the device’s ports.
- Label any Cat5/6 DMX connector and DO NOT connect to non-DMX port (eg Ethernet Switch).
- Connecting unlike systems could result in serious damage to STORM10 and equipment.
Multi-Protocol Support:
- Art-Net
- sACN
- DMX512
Input/Output:
- 1 x 10/100Mbps Ethernet port (With PoE)
- 10 x DMX outputs on RJ45 (ANSI 1.27-2) (outputs 9 + 10 can be accessed from either the front or rear of the unit)
Box Contents:
- STORM10
- Ethernet cable
- Power supply with AU/EU/UK/US adapters
- Rack, Surface/Din mount ears + Din Clips + Screws
