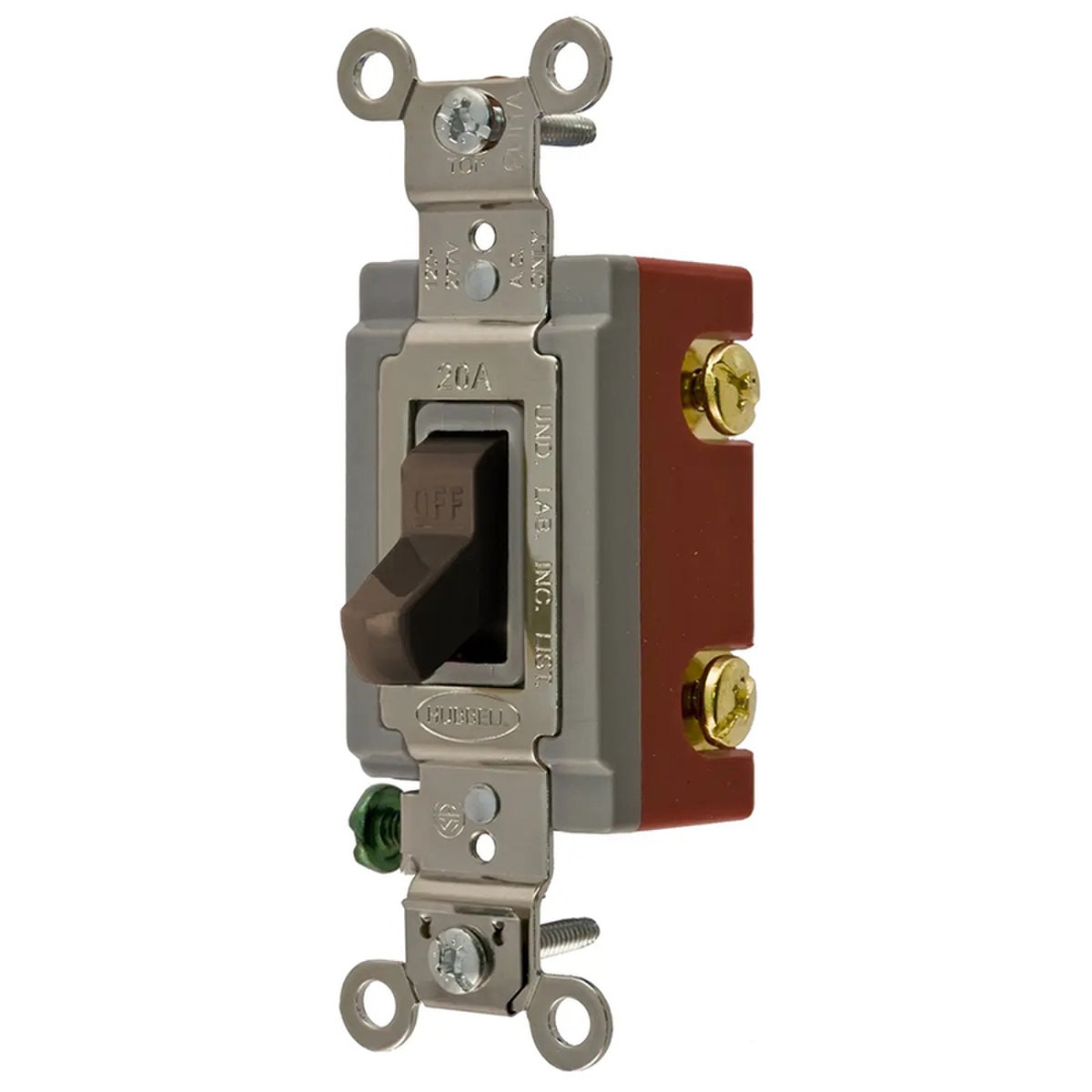

Extra Heavy Duty Industrial Grade Back and Side Wired Single Pole Toggle Switch 20A 120/277V AC - Brown (Hubbell HBL1221)

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Brown Toggle

• Large brass binding head screws with deep slots
• Abuse resistant nylon toggle
• Strip gauge for accurate wiring

General:

• Application: Back and Side Wired
• Color: Brown
• Number Of Poles: Single Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Extra Heavy Duty
• Style: Single Pole
• Type: Toggle
• UPC: 783585431321

Performance:

• Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
• Electrical - Max. Continuous Current - 20A
• Electrical - Max. Working Voltage - 277V AC
• Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
• Electrical - Temperature Rise - 30°C maximum at rated current
• Environmental - Flammability - UL 94V-2
• Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
• Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Dimensions:

• Dimensions: 4.06 in x 1.31 in x 1.87 in
• Height: 1.87 in
• Length: 4.06 in
• Weight: 0.2 lb
• Width: 1.31 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 1500V AC minimum for 1 minute
• Temperature Rise - Max: 30°C maximum at rated current
• Voltage Rating: 120-277 VAC
• Voltage Rating Description: 120-277 VAC

Conductor Related:

• Wire Size: #14 AWG to #10 AWG

Certifications and Compliance:

• Industry Standard(s): UL Listed

Logistics:

• Carton Quantity: 10
