FUZE PROFILE CW

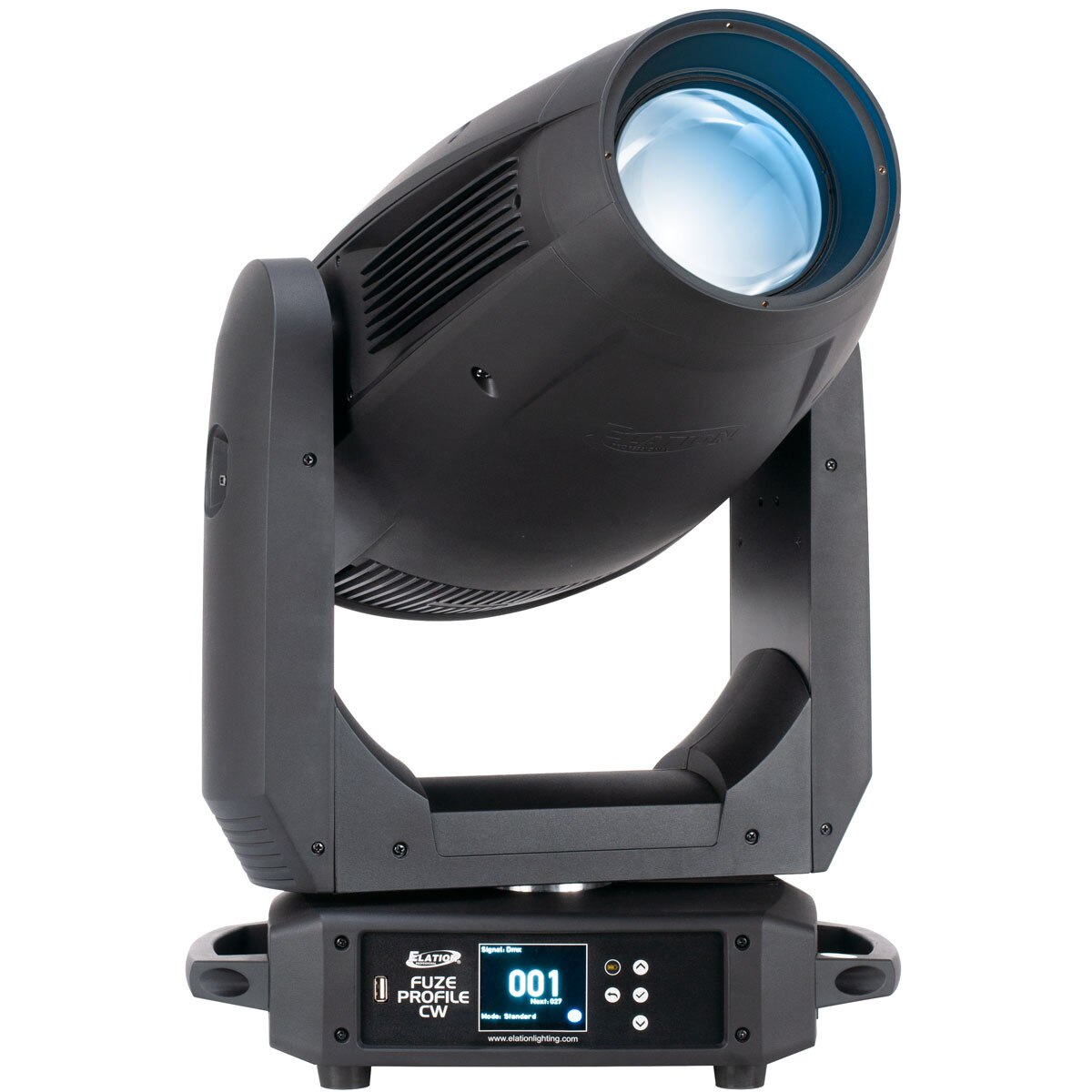

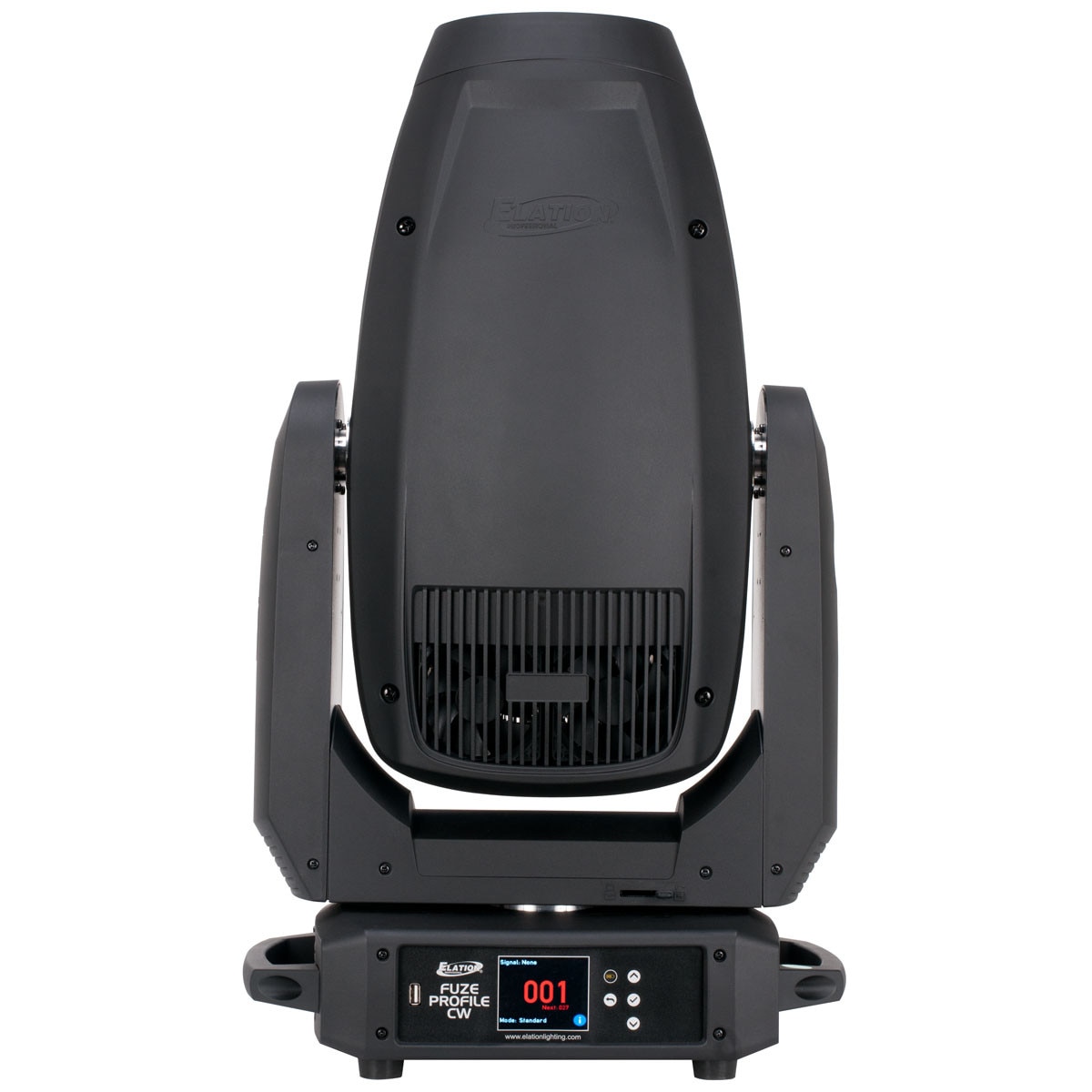

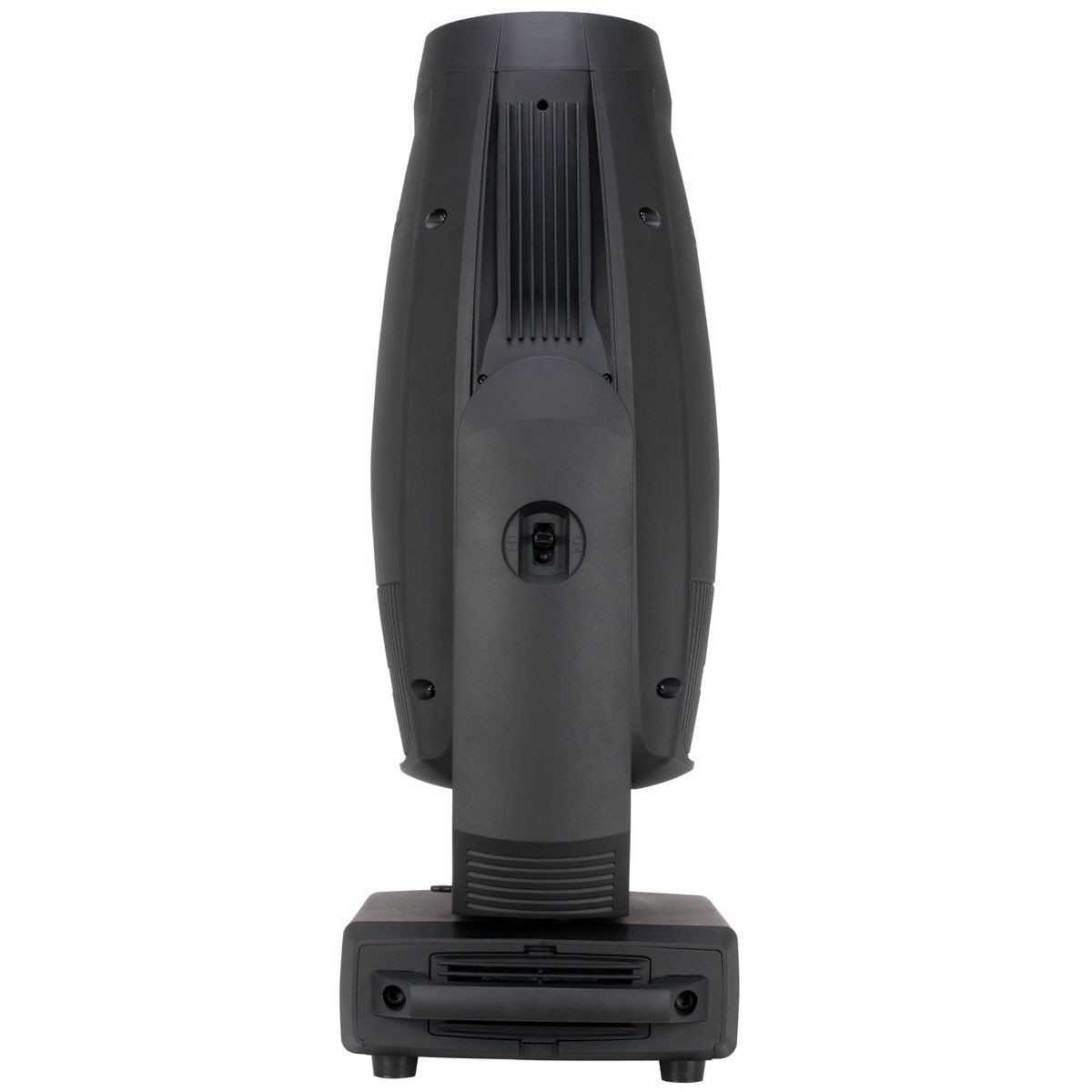

The FUZE PROFILE CW™ is an automated LED framing fixture designed for trade show, stages, television and a wide array of AV event applications. The 91CRI 380W White LED engine ensures accurate color reproduction while delivering a powerful output of 11,000 lumens. Designed to illuminate objects like exhibits and banners, texture areas and key light persons with its flat field and accurate framing it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups,two color wheels featuring solid colors and correction filters plus and Iris round out its comprehensive feature set.

Specifications:

Size / Weight:

• Length: 15.9" (408mm)
• Width: 9.9" (252mm)
• Vertical Height: 27.4" (698mm)
• Weight: 51.4 lbs. (23.3kg)

Electrical / Thermal:

• AC 100-240V - 50/60Hz
• 590W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%) 2011.9

Effects:

• Motorized Zoom
• 4 Rotating Full Blackout Framing Blades, +/- 45 Index
• Variable Frost Filter
• Motorized Iris
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• Adjustable LED Refresh Rate Frequency

Control / Connections:

• 2 DMX Channel Modes (26 / 40)
• 16-bit Pan, Tilt, and Dimming Control
• Motorized Focus
• DMX, RDM Protocol Support
• 4 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 16 Bit Resolution Adjustable Movement
• Hibernation Mode (Power Save)

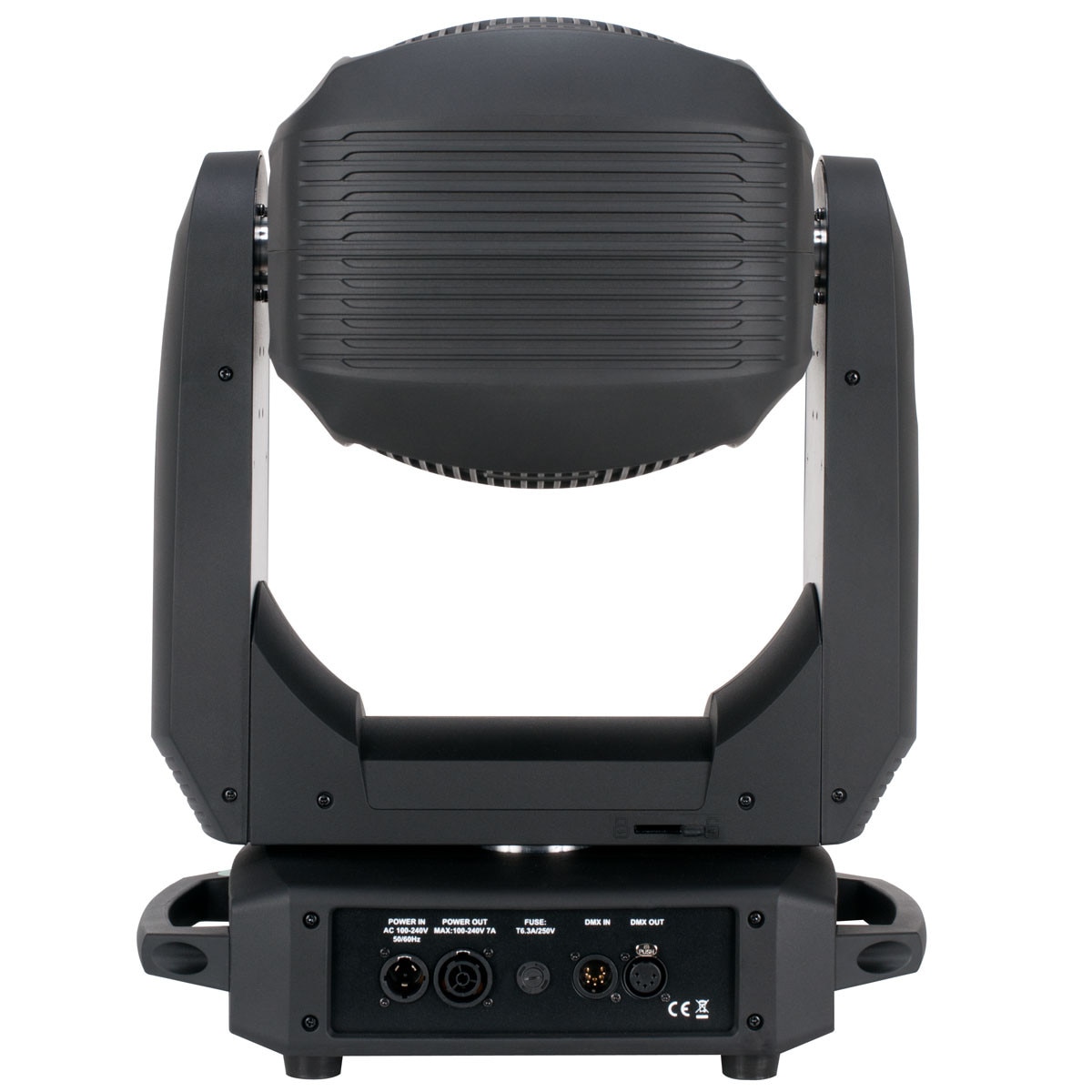

• 5pin DMX In/Out
• IP65 Locking Power Cable In/Out
• With Wired Digital Communication Network

Gobos:

• 1 Gobo Wheel
• 7 Rotating / Indexing Interchangeable Glass Gobos

Color:

• 2 Color Wheels
• 7x Solid Colors
• 7x Color Correction and UV

Source:

• 380W 6,000K White LED Engine
• 30,000 Hour Average LED Life

Features:

• High Efficiency 380W White LED Engine, 91CRI
• Dual Color Wheel (Solids and Color Corrections)
• Rotating Gobo Wheel
• Full Blackout Framing System
• Iris and Frost
• Wide Zoom Range from 9° to 43°
