SKU: Elation FUZ406

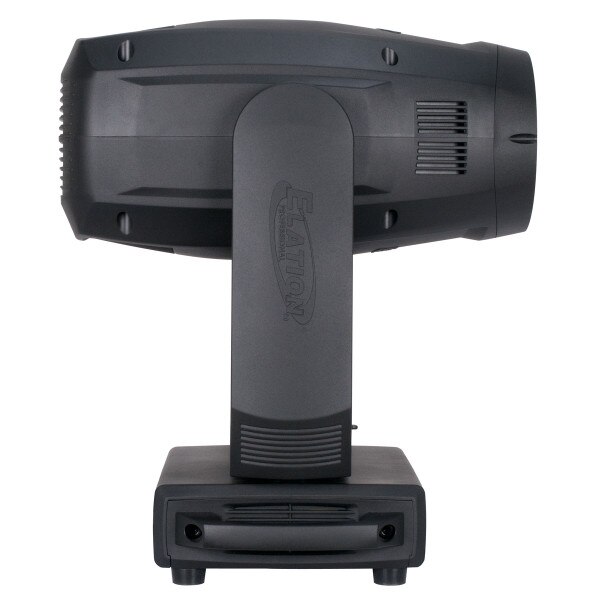

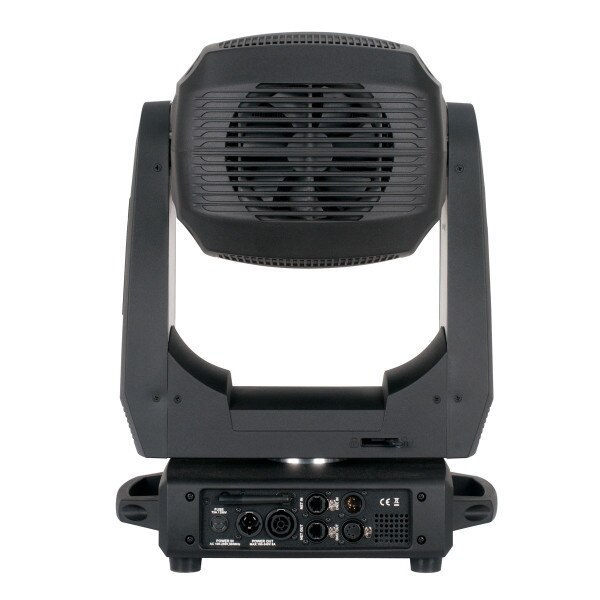

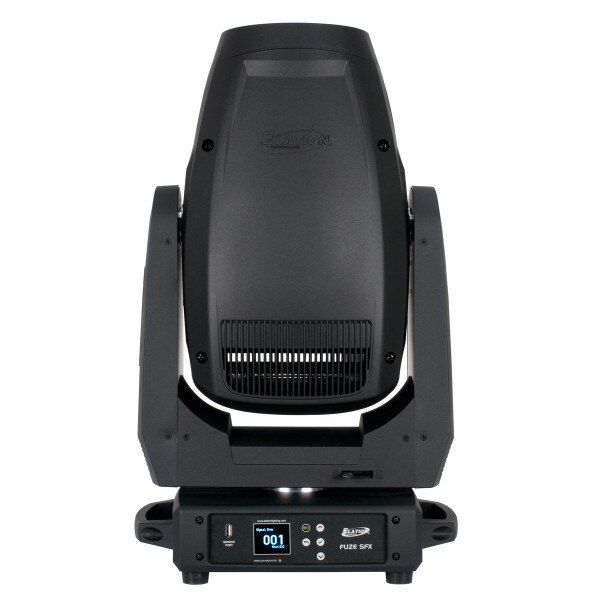

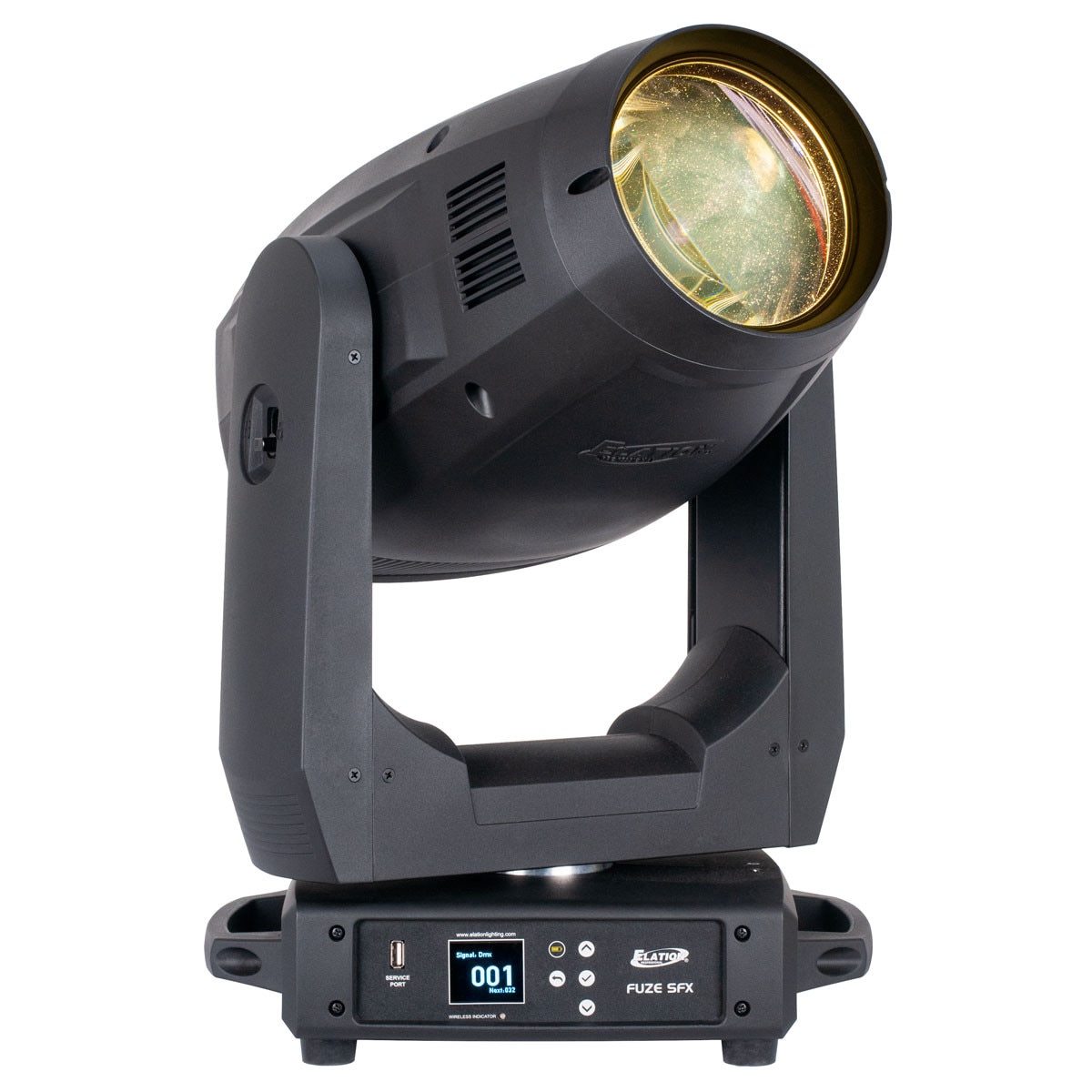

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.


Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.


A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.


  • Size / Weight:
  • Length: 14.3” (362mm)
  • Width: 9.2" (233mm)
  • Vertical Height: 23.4" (595mm)
  • Weight: 46.3 lbs. (19.3kg)

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 432W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 1473.12


  • Motorized Zoom
  • Remote Focus
  • Variable Frost Filter
  • Dual Independent Prisms (6 Facet linear & 6 Facet round)
  • Motorized Iris
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe

Control / Connections:

  • 31 DMX Channels
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
  • 4 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • Locking 5pin XLR Connector In/Out
  • Locking RJ45 Ethernet Connector In/Out
  • IP65 Locking Power Connector In/Out
  • USB Connection (Firmware Updates)
  • With Wired Digital Communication Network


  • 2 Gobo Wheels
  • Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
  • Wheel #2 with 10 Static Gobos


  • CMY Variable Color Mix
  • 7 Position Color Wheel
  • High CRI Filter, CRI 84
  • CTO Filter, 3200K, CRI 77


  • 300W 6,600K Bright White LED Engine
  • 20,000 Hour Average LED Life


  • 300W LED 6,600K White LED Engine
  • 12,000 Total Lumen Fixture Output
  • Spot and Effects Fixture
  • Zoom Range from 4.5° to 38°
  • Variable CMY and 7-Position Color Wheel
  • High CRI and CTO Filter
  • 8 Rotating and 10 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Variable Wash Frost Filter

Fuze SFX - User Manual.pdf
Fuze SFX - Spec Sheet.pdf
