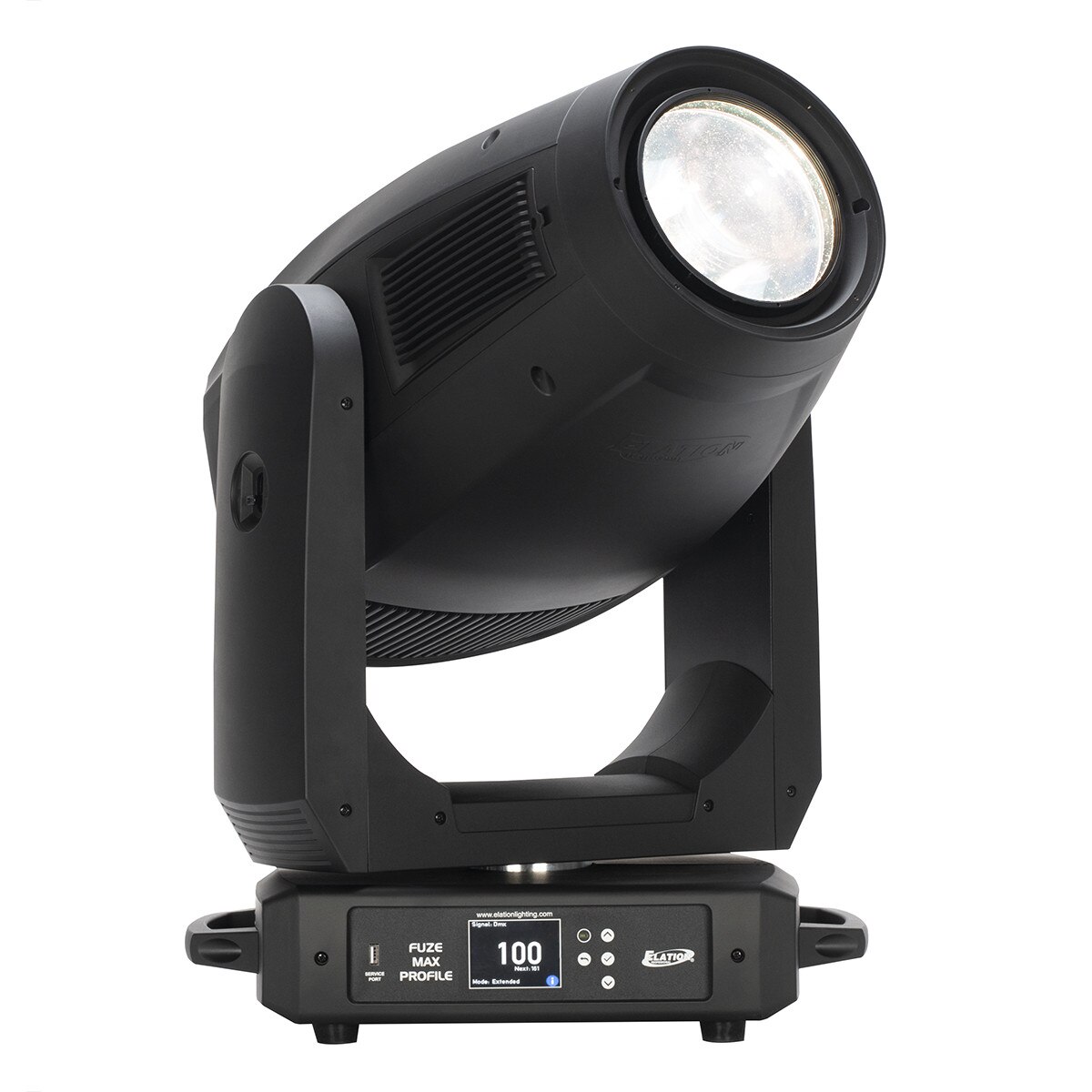

Fuze Max Profile

The FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

Specifications:

Size / Weight:

• Length: 18.19” (462mm)
• Width: 21.26" (540mm)
• Width with Snoot: 23.2" (590mm)
• Vertical Height: 28.3" (719mm)
• Vertical Height with Snoot: 30.4" (771mm)
• Weight: 76.3 lbs. (34.6kg)

Electrical / Thermal:

• AC 100-240V - 50/60Hz
• 1126W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)

Effects:

• Motorized Zoom
• 4 Rotating Full Blackout Framing Blades, +/- 60° Index
• Dual Variable Frost Filter (Medium/ Wash)
• 4 Facet Round, 4 Facet Linear Prism
• Motorized Iris
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe

Control / Connections:

• 4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
• 16-bit Pan, Tilt, and Dimming Control
• DMX Adjustable LED Frequency
• DMX, RDM, Art-NET, sACN Protocol Support
• 4 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 16 Bit Resolution Adjustable Movement

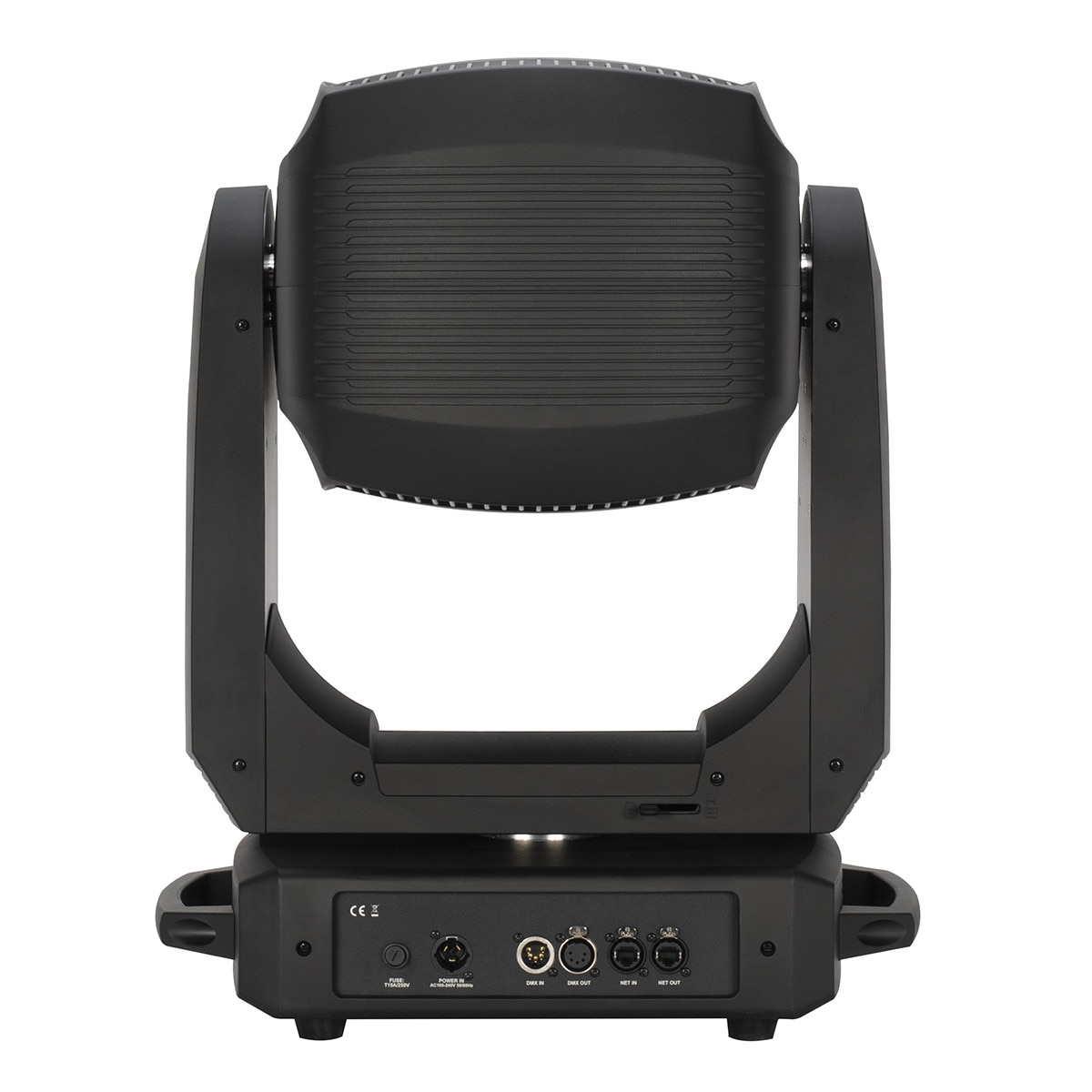

• 5pin DMX In/Out
• Locking Ethernet In/Out
• IP65 Locking Power In
• With Wired Digital Communication Network

Gobos:

• 1x 6 Rotating / Indexing Interchangeable Glass Gobos
• 1x 7 Fixed Interchangeable Glass Gobos
• Animation Wheel

Color:

• RGBMA Color Array
• CMY Emulation
• Virtual Color Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book

Source:

• 800W 6,500K RGBMA LED Engine
• 30,000 Hour Average LED Life

Features:

• Full Spectrum 800W RGBMA LED Engine
• Precise dynamic whites from 2400 - 8500K
• Instant color changes, Natural color transitions
• Rich and intense primary colors
• Rotating and Fixed Gobos plus Animation Wheel
• Full Blackout Framing System
• Iris, Prism, and Dual Frost
• Wide Zoom Range from 7° to 53°
• Large 140mm front aperture
