Fuze Profile

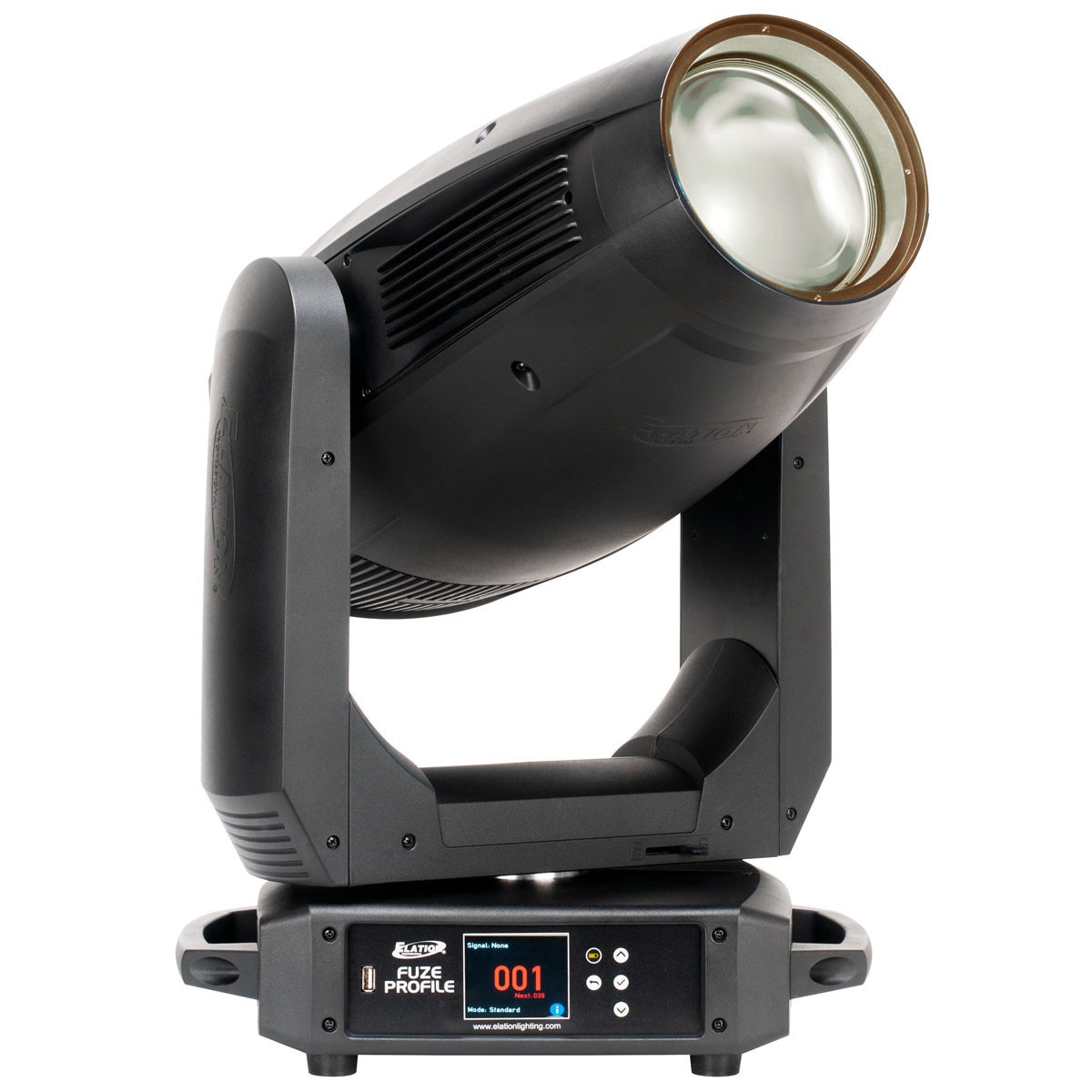

The FUZE PROFILE™ is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

Specifications:

Size / Weight:

• Length: 16.0” (407mm)
• Width: 10.1" (256mm)
• Vertical Height: 27.4" (698mm)
• Weight: 55.1 lbs. (25kg)

Electrical / Thermal:

• AC 100-240V - 50/60Hz
• 540W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%) 1841

Effects:

• Motorized Zoom
• 4 Rotating Full Blackout Framing Blades, +/- 60 Index
• Variable Frost Filter
• 4 Facet Prism
• Motorized Iris
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe

Control / Connections:

• 4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
• 16-bit Pan, Tilt, and Dimming Control
• DMX Adjustable LED Frequency
• DMX, RDM Protocol Support
• 4 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 16 Bit Resolution Adjustable Movement

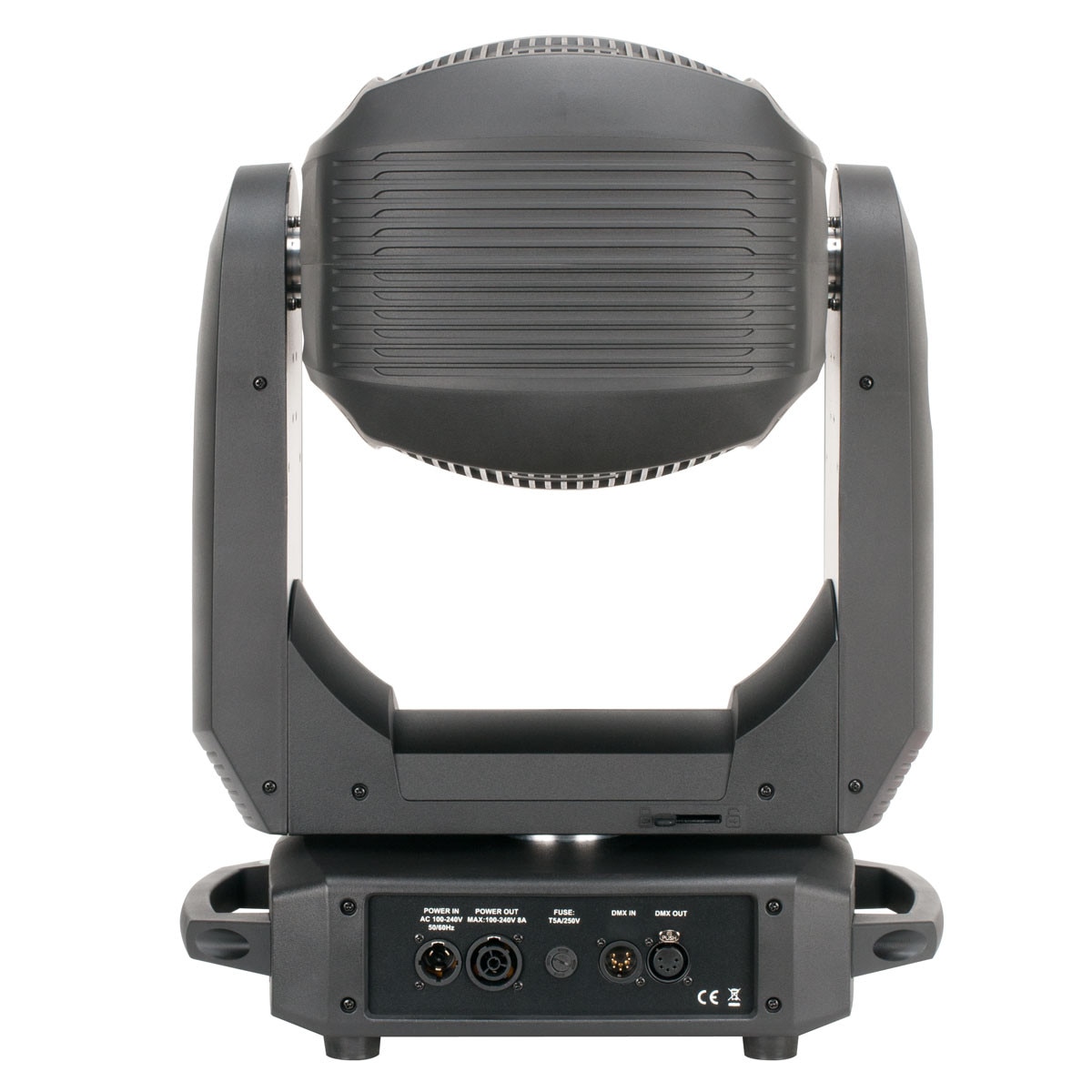

• 5pin DMX In/Out
• IP65 Locking Power Cable In/Out
• With Wired Digital Communication Network

Gobos:

• 1x 6 Rotating / Indexing Interchangeable Glass Gobos
• 1x 7 Fixed Glass Gobo
• Animation Wheel

Color:

• RGBMA Color Array
• CMY Emulation
• Virtual Color Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book

Source:

• 305W 6,500K RGBMA LED Engine
• 30,000 Hour Average LED Life

Features:

• Extended color RGBMA LED Engine, 92 CRI
• Rotating and Fixed Gobos plus Animation Wheel
• Full Blackout Framing System
• Iris, Prism, and Frost
• Wide Zoom Range from 7° to 42°
