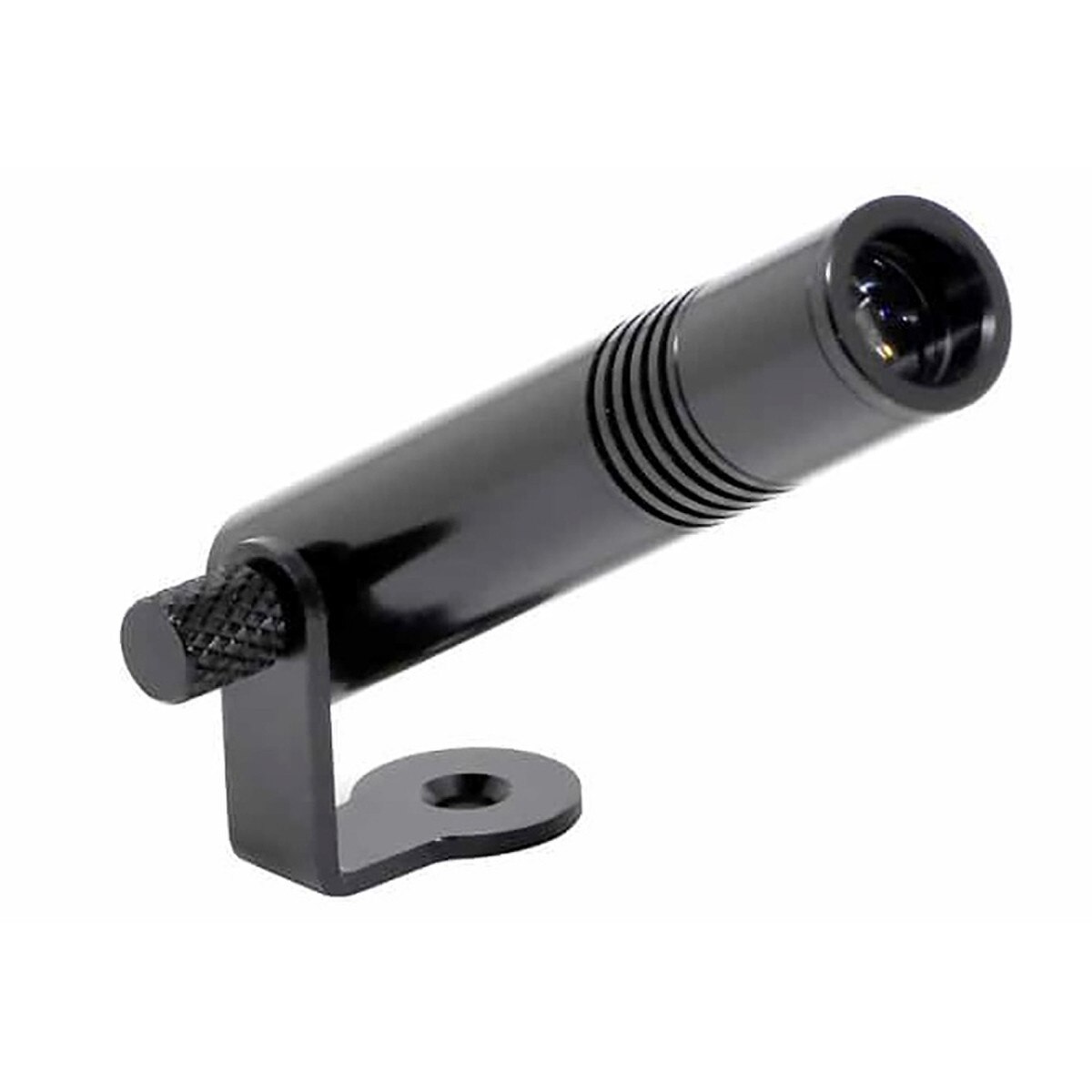

Gantom PR32 Precision Alpha 1W Pinspot - Warm White - 15°

“Bye Bye Birdie” is the slogan for the Precision Alpha, a compact pinspot with comparable output to PAR16 “Birdies” at a fraction of the size and power consumption. The Precision Alpha is an ultra-compact LED pinspot designed for space constrained applications. This point source luminaire gives the user an endless selection of colors and beam angles using theatrical filters. Softer and more natural colors are achievable from filters compared to light emitted from a pure colored LED.

As with all other Gantom luminaires, the Precision Alpha is ruggedly designed to last in both indoor and outdoor environments. Internal driver circuitry ensures constant output even when input voltages fluctuates and extends the fixture life beyond 50,000 hours.

Features:

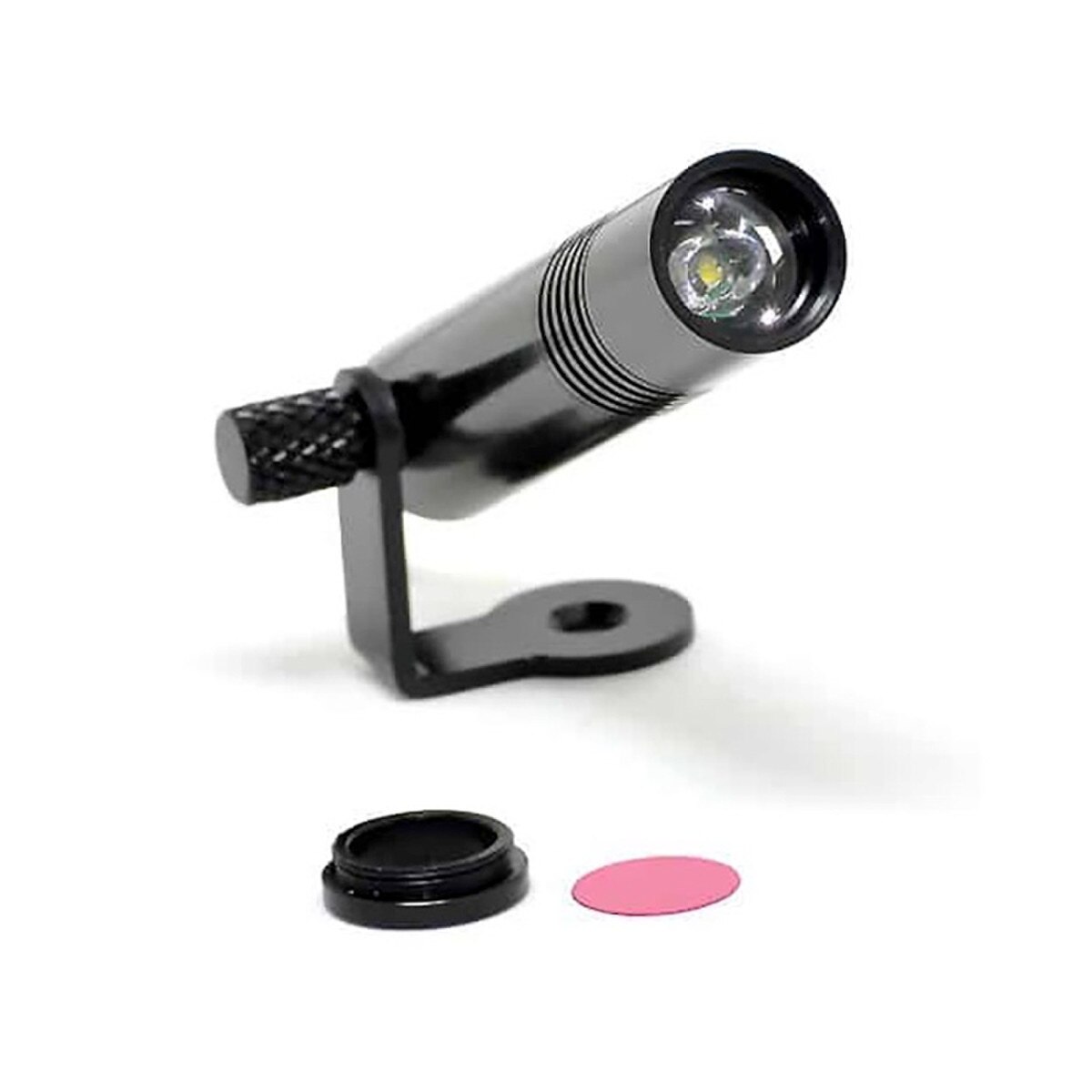

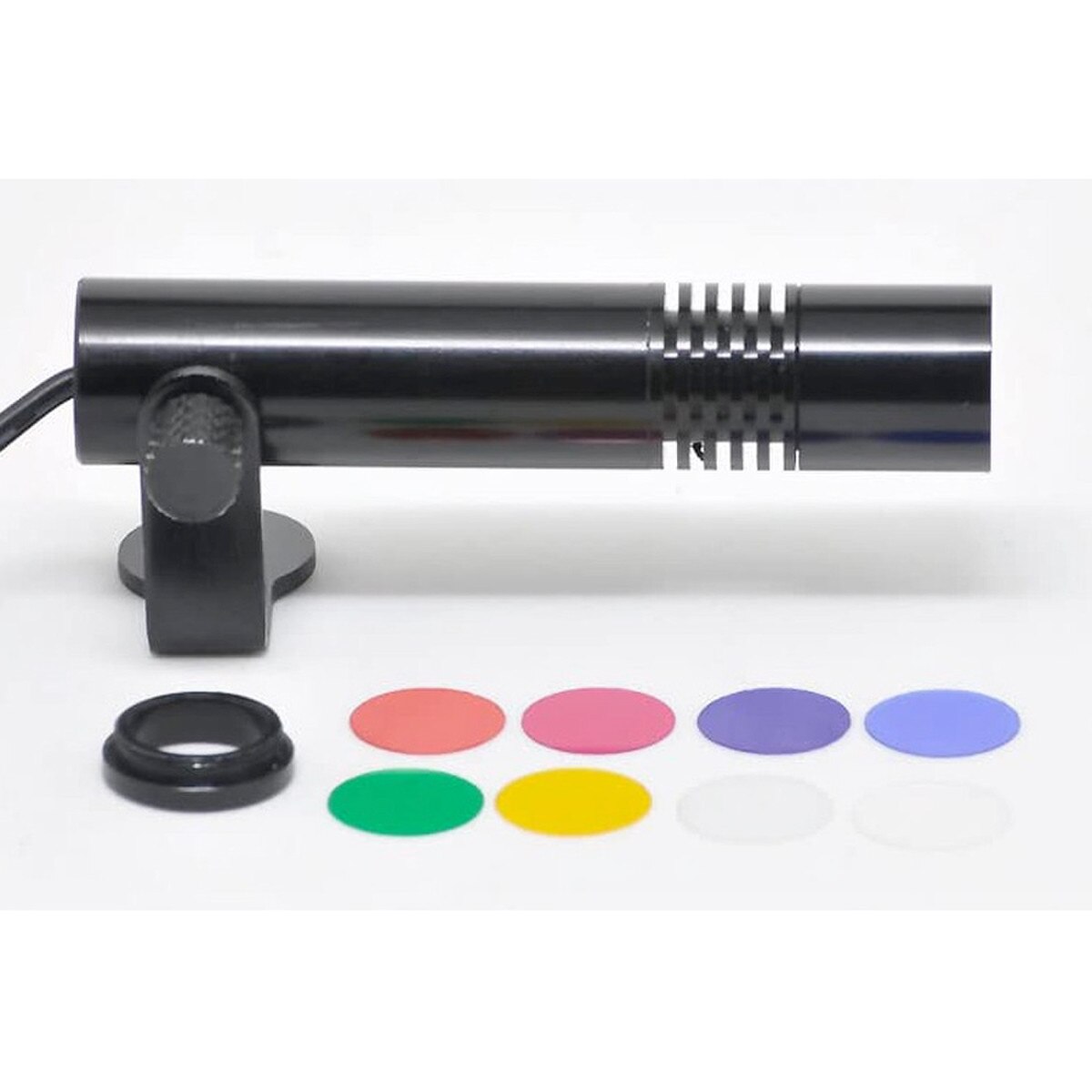

• Reconfigurable with gel filters (included)

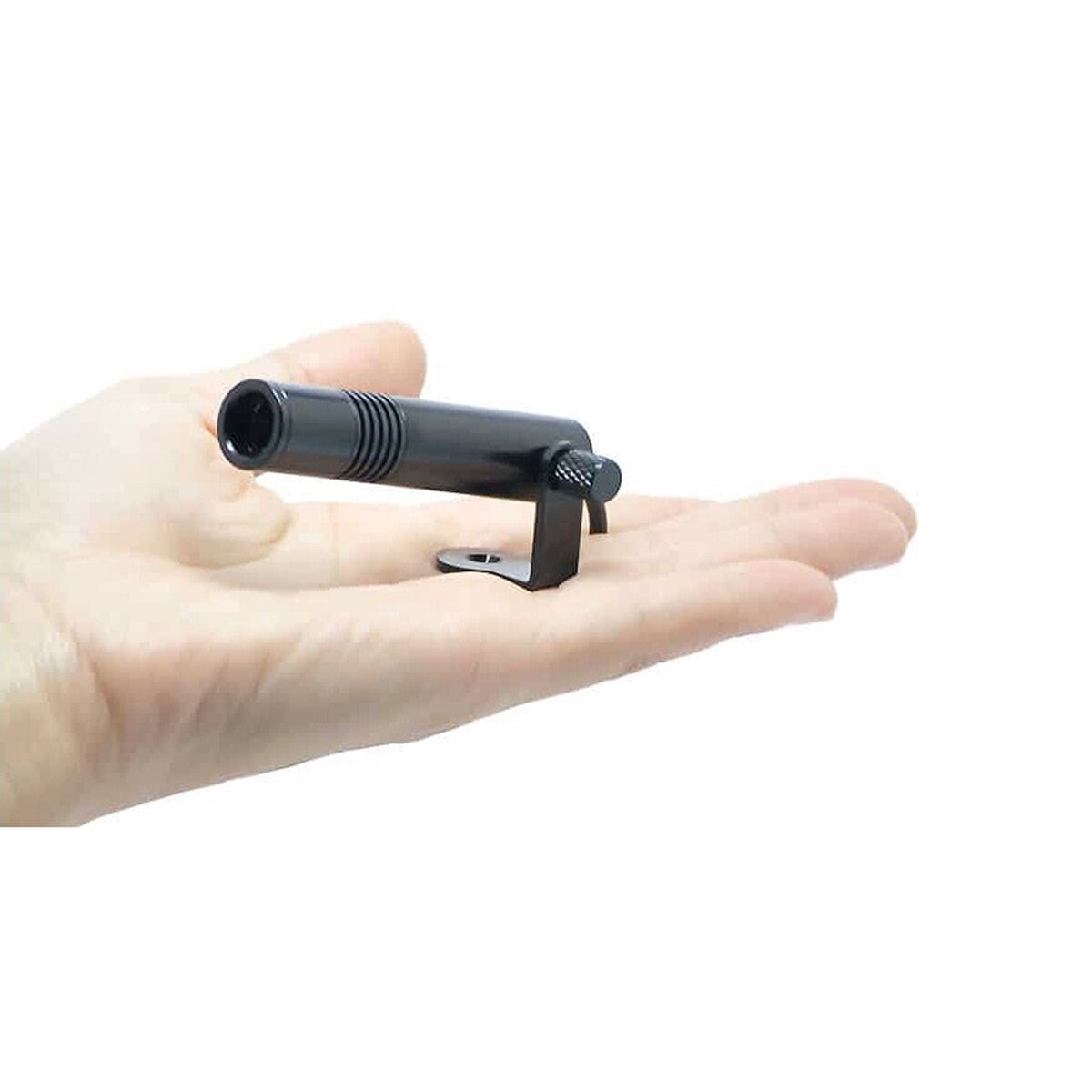

• Perfect for space constrained applications
• 1W LED with 95% energy savings compared to 20W halogen lamp
• Low voltage and minimal heat for improved safety over incandescent sources
• Internal constant current driver gives highly efficient and consistent output
• Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
• Easy installation and reconfiguration
• Dual polarity input
• Minimal maintenance required with over 50,000 hour lamp life
• IP65 rated for indoor and outdoor use with occasional liquid exposure

Applications:

• Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
• Museums displays (wall mounted artwork and display cases)
• Theater and stage accent lighting
• Mobile displays
• Retail spaces
• Architectural accent lighting

Specifications:

• Color Temperature: 3000K
• CRI: 80 typical
• Max wattage: 1.5W
• Input voltage: 9-24VDC (12VDC nominal)
• Current draw: 125mA @ 12VDC
• Power supply: For use with class 2 regulated switching power supply
• Beam angle: 13 degrees
• Field angle: 28 degrees
• Ingress Protection: IP65
• Material: Anodized aluminum
• LED: Cree XLamp XP-E2
• Certifications: UL and CE
• Power connector: 2.1mm DC jack with screw terminal adapter standard*

Warm White Output:

• Total Lumen Output: 61.9 Lumens
• Correlated Color Temperature (CCT): 2962 K
• Color Rendering Index (CRI): 79.7
• Distance: 1.0m (3.3ft) / Center Beam: 621lx (48.0fc) / Beam Width: 0.2m (0.7ft)
• Distance: 2.0m (6.6ft) / Center Beam: 621lx (12.3fc) / Beam Width: 0.5m (1.6ft)
• Distance: 3.0m (9.9ft) / Center Beam: 70lx (6.5fc) / Beam Width: 0.7m (2.3ft)

Gantom Precision Alpha Datasheet.pdf
