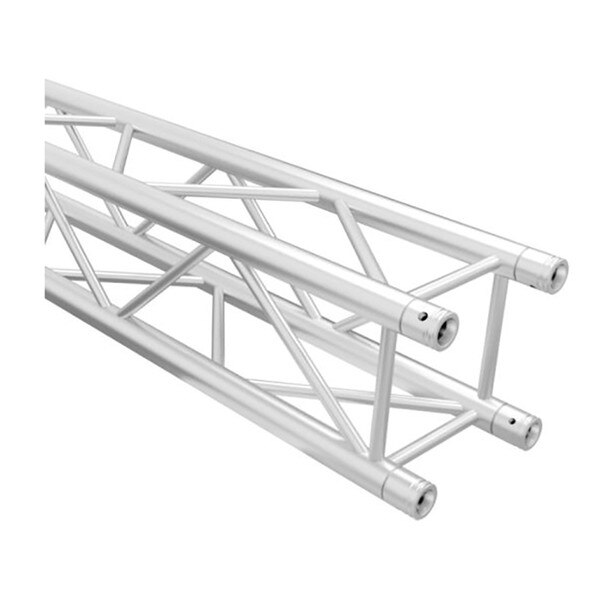

Global Truss F34 Square Truss Square Segment (2.5M)

(0)No Reviews yet
$467.00
SKU: Global Truss SQ-4113

Details

Specifications:

  • 8.20ft / 2.5m Overall Length
  • 11 7/16" (290mm) Overall Width
  • 2" (50mm) Outer Diameter Tubing
  • 3/4" (20mm) Diagonal Bracing
  • 0.08" (2mm) Wall Thickness
  • 15.44 kgs / 34 Lbs

F34 Truss Load Span Tables Global Truss California Stamp.pdf
SQ-4113 DIMENSIONAL DRAWING.pdf
