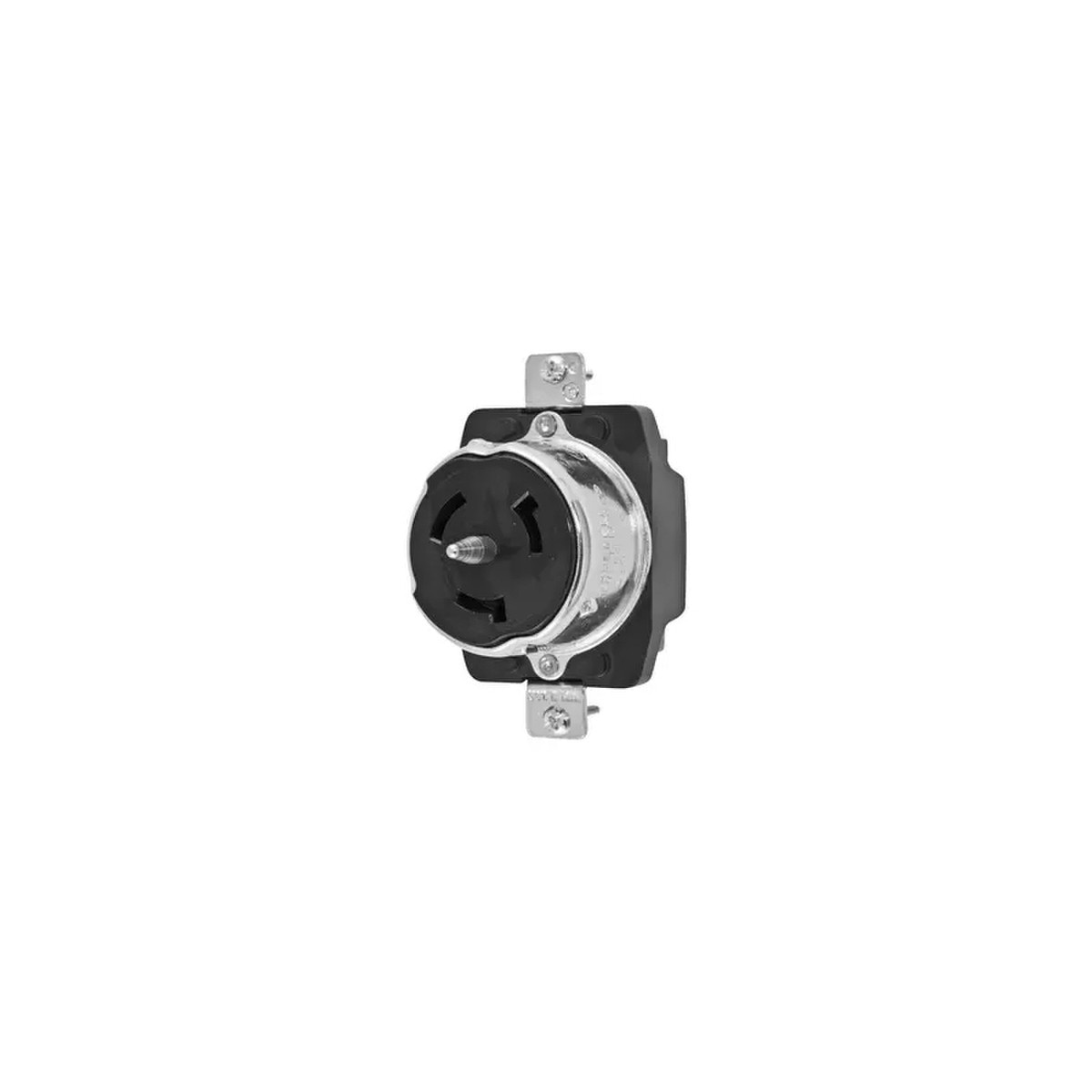

HUBBELL 50 AMP, 3 PHASE RECEPTACLE
Details
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
WIRING_CS8169_spec.pdf
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Features:
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
- Standard Product
General:
- Application: Heavy Duty Industrial
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Item Type: Receptacles
- Material: Phenolic
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V0
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Type: Receptacle
- UPC: 783585828503
Dimensions:
- 2.69 in x 2.11 in x 2.36 in
- Display Size: Standard Sized Product
- Height: 2.36 in
- Length: 2.69 in
- Weight: 0.75 lb
- Width: 2.11 in
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Screw Terminals
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Three Phase
- Voltage Rating: 3-Phase Delta 480 VAC
- Voltage Rating Description: 3-Phase Delta 480 VAC
Conductor Related:
- Number Of Wires: 4-Wire
- Wire Size: #10 AWG to #6 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
Logistics:
- Carton Quantity: 10
