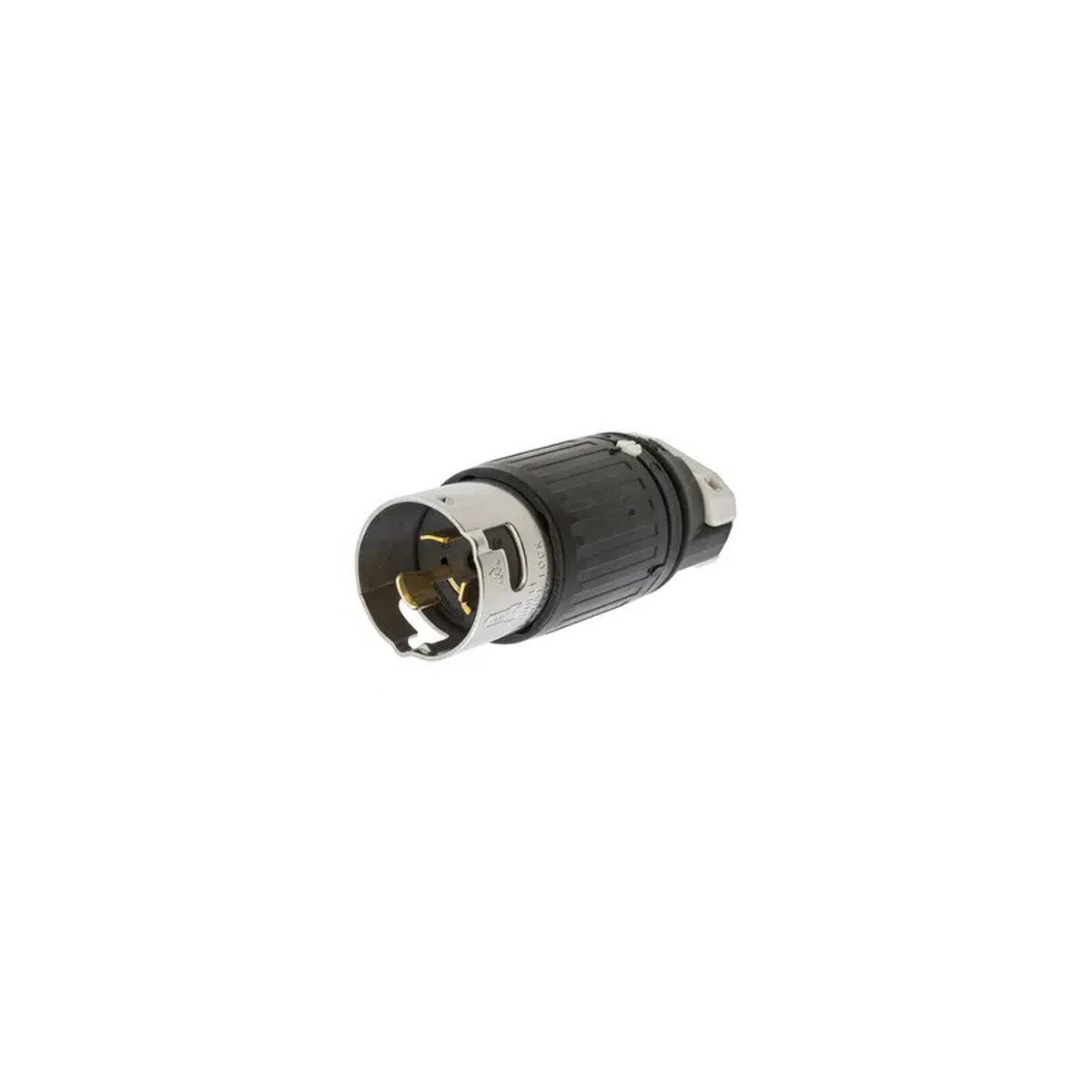

HUBBELL 50A, 250V MALE PLUG

Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A, 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.


Features:

• Super tough nylon housing offers better impact qualities
• Stainless steel shroud protects contacts and prevents mismating
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Standard Product

General:

• Application: Extra Heavy Duty Industrial
• Color: Black, White
• Cord Range: .830"-1.250"(21.08-31.75)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Insulgrip Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
• Type: Plugs
• UPC: 783585828480

Dimensions:

• 6.37 in x 2.56 in x 2.56 in
• Display Size: Standard Sized
• Height: 2.56 in
• Length: 6.37 in
• Weight: 1.25 lb
• Width: 2.56 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V

Conductor Related:

• Cable Range: 0.830 - 1.250 in
• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Listed to UL 498

Logistics:

• Carton Quantity: 10

WIRING_CS8265C_spec.pdf
