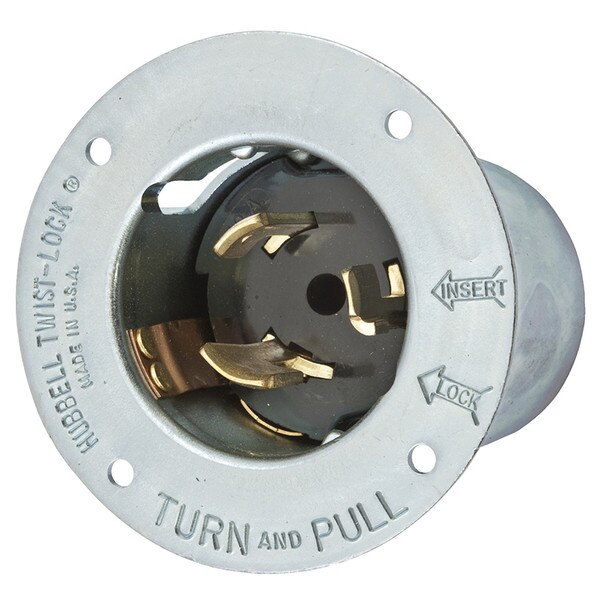

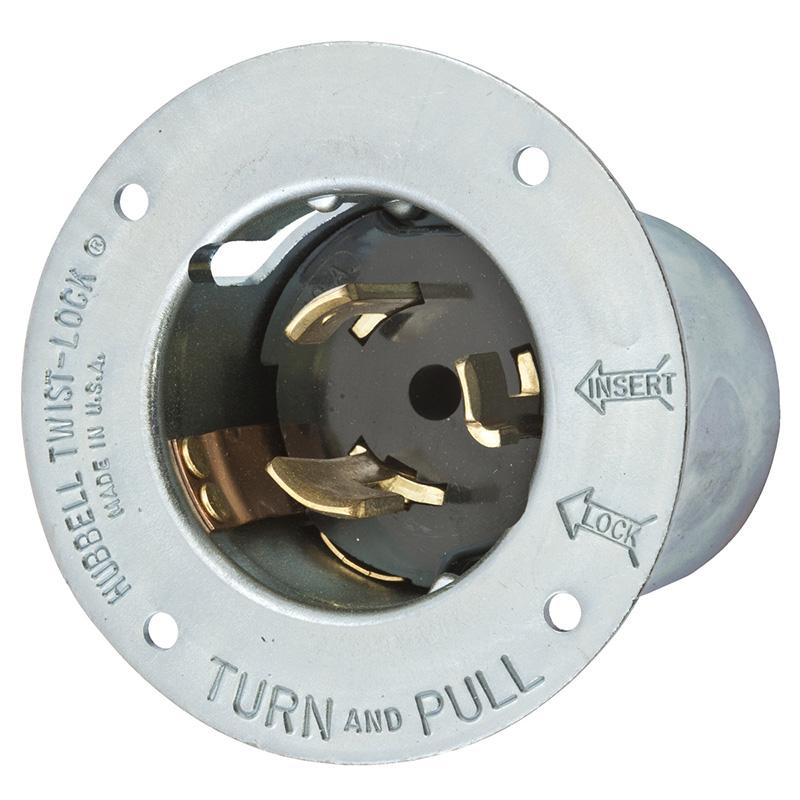

HUBBELL CS6377 50A 125V FLANGED INLET
Details
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A, 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
WIRING_CS6377_spec.pdf
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Features:
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
General:
- Application: Extra Heavy Duty Industrial
- Color: Metallic
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Item Type: Single Flanged Inlet
- Material: Steel, Zinc Plated
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V0
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Type: Flanged Inlet
- UPC: 783585871356
Dimensions:
- 3.50 in x 2.62 in x 2.17 in
- Display Size: Standard Sized Product
- Height: 2.17 in
- Length: 3.50 in
- Weight: 0.80 lb
- Width: 2.62 in
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125 V
- Voltage Rating Description: 125 V
Conductor Related:
- Number Of Wires: 3-Wire
- Wire Size: #10 AWG to #6 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
Logistics:
- Carton Quantity: 10
