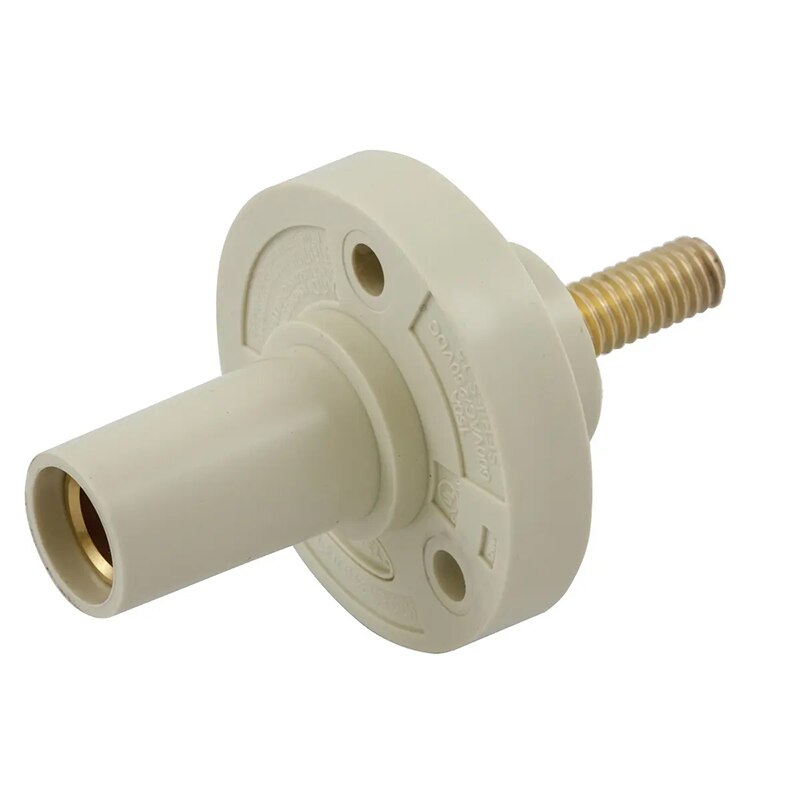

HUBBELL HBL15FRSW 150 AMP FEMALE PANEL-STUD TYPE-WHITE

Single Pole Products, Female Receptacle, Threaded Stud Termination, 150 Amp Series, White
Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.


General:

• Application: Extra Heavy Duty Industrial
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Female Receptacle
• Material: Brass/Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems

Performance:

• Electrical - Amperage Rating - 150A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum
• 250V DC Maximum
• Mechanical - Product Identification - Ratings are a permanent part of device
• Mechanical - Terminal Accommodation - #8 to #2 AWG
• Series: Series 15
• Style: Female
• Type: Receptacle Stud Type
• UPC: 783585458274

Dimensions:

• Display Size: Standard Sized Product

Electrical Ratings:

• Amperage Rating: 150 A
• Connectivity: Threaded Stud
• Current / Amperage Rating: 150 A
• Current Rating: 150 A
• Phase: Single Phase
• Voltage Rating Description: 600V AC/DC
• Wattage: 90000

Conductor Related:

• Number Of Wires: None
• Wire Size: #4 AWG Type SC/PPC Wire

Certifications and Compliance:

• Industry Standard(s)
• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12
• Nema Rating: Non-NEMA

Logistics:

• Carton Quantity: 25
