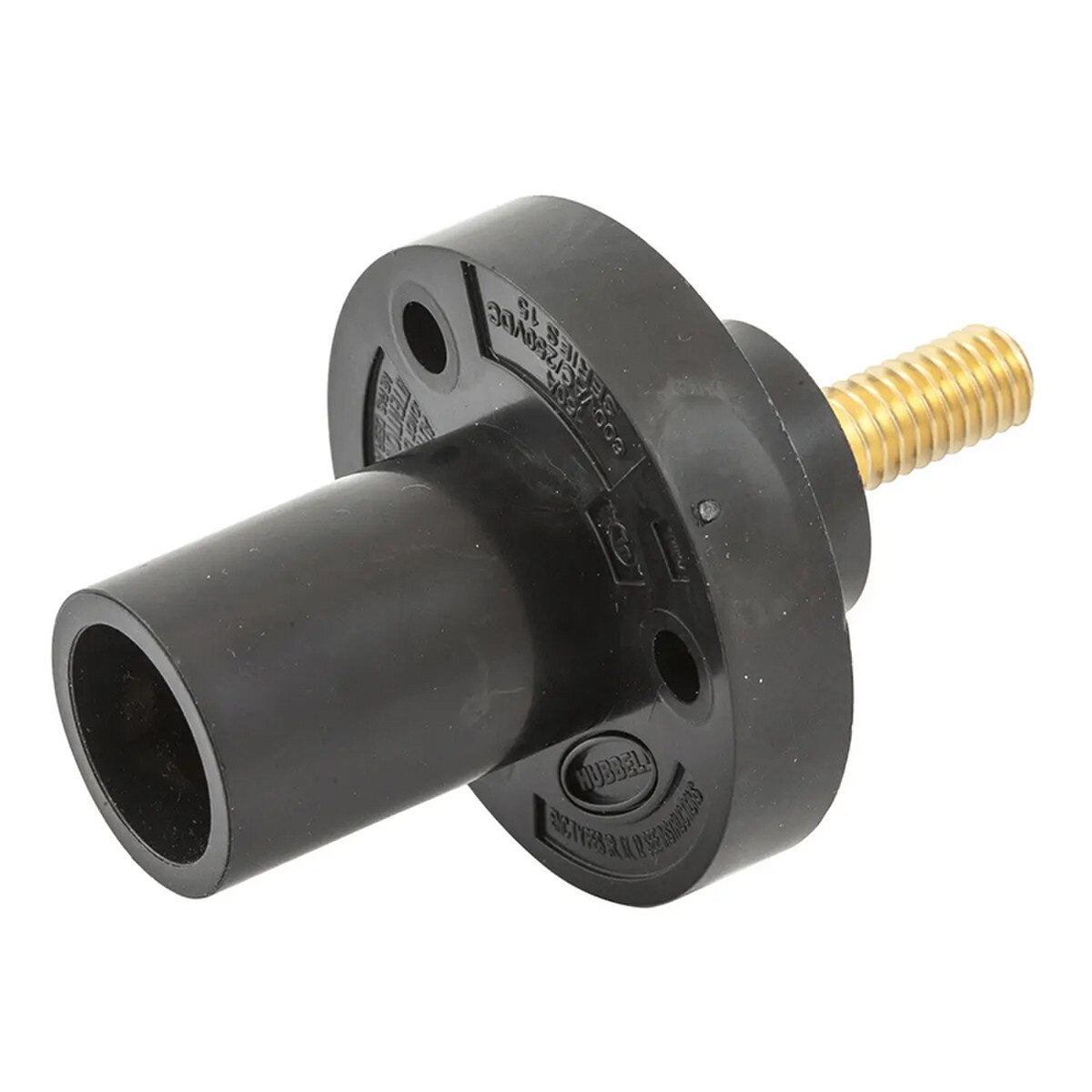

HUBBELL HBL15MRSBK 150 AMP MALE PANEL-STUD TYPE-BLACK
Details
Single Pole Products, Male Inlet, Threaded Stud Termination, 150 Amp Series, Black
Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
WIRING_HBL15MRSBK_spec.pdf
Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
General:
- Application: Extra Heavy Duty Industrial
- Color: Black
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Item Type: Male Inlet
- Material: Brass/Thermoplastic
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 1-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
Performance:
- Electrical - Amperage Rating - 150A Maximum
- Electrical - Voltage Ratings - 600V AC Maximum
- 250V DC Maximum
- Mechanical - Product Identification - Ratings are a permanent part of device
- Mechanical - Terminal Accommodation - #8 to #2 AWG
- Series: Series 15
- Style: Male
- Type: Receptacle, Stud Type
- UPC: 783585458229
Dimensions:
- Display Size: Standard Sized Product
Electrical Ratings:
- Amperage Rating: 150 A
- Connectivity: Threaded Stud
- Current / Amperage Rating: 150 A
- Current Rating: 150 A
- Phase: Single Phase
- Voltage Rating Description: 600V AC/DC
- Wattage: 9000
Conductor Related:
- Number Of Wires: None
- Wire Size: #4 AWG Type SC/PPC Wire
Certifications and Compliance:
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70
- UL and cUL Listed
- UL Enclosure Types 3R, 4X, 12
- Nema Rating: Non-NEMA
Logistics:
- Carton Quantity: 25
