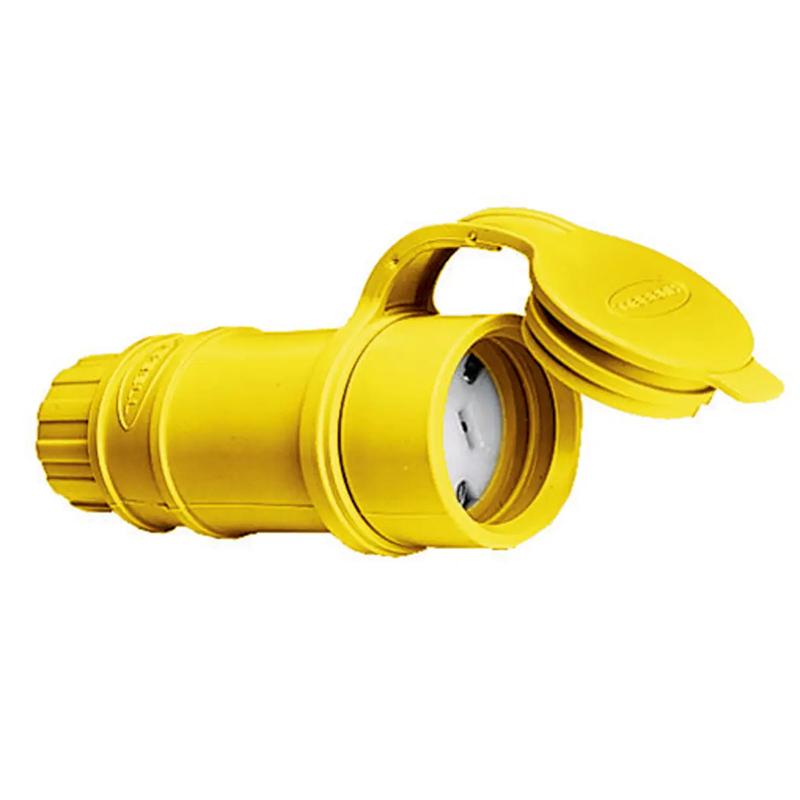

HUBBELL HBL15W47 ELASTOGRIP 15A 125V FEMALE

(0)No Reviews yet
$44.78
SKU: Hubbell HBL15W47

Details

Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack.


Features:

  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
  • Watertight

General:

  • Application: Industrial/Commercial
  • Cord Range: 0.250"-0.655" (6.4-16.6)
  • Environmental Conditions: Watertight
  • Horsepower - Maximum: 0.50
  • Insulation: Insulated Body
  • Item Type: Elastogrip
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Preformance:

  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum
  • Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability UL 94 HB or better
  • IP Suitability: IP55
  • Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
  • Series: Elastogrip
  • Style: Standard
  • Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Type: Connector Body
  • UPC: 783585013022

Dimensions:

  • 4.03 in x 1.76 in x 4.03 in
  • Display Size: Standard
  • Height: 4.03 in
  • Length: 4.03 in
  • Weight: 0.35 lb
  • Width: 1.76 in

Electrical Ratings:

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related:

  • Conductor Range:  #18 AWG to #12 AWG
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance:

  • Industry Standard(s)
  • CSA Certified to C22.2 No. 42 File 280C
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File E1706
  • Nema Rating: 5-15R

Logistics:

  • Carton Quantity: 10


WIRING_HBL15W47_spec.pdf
