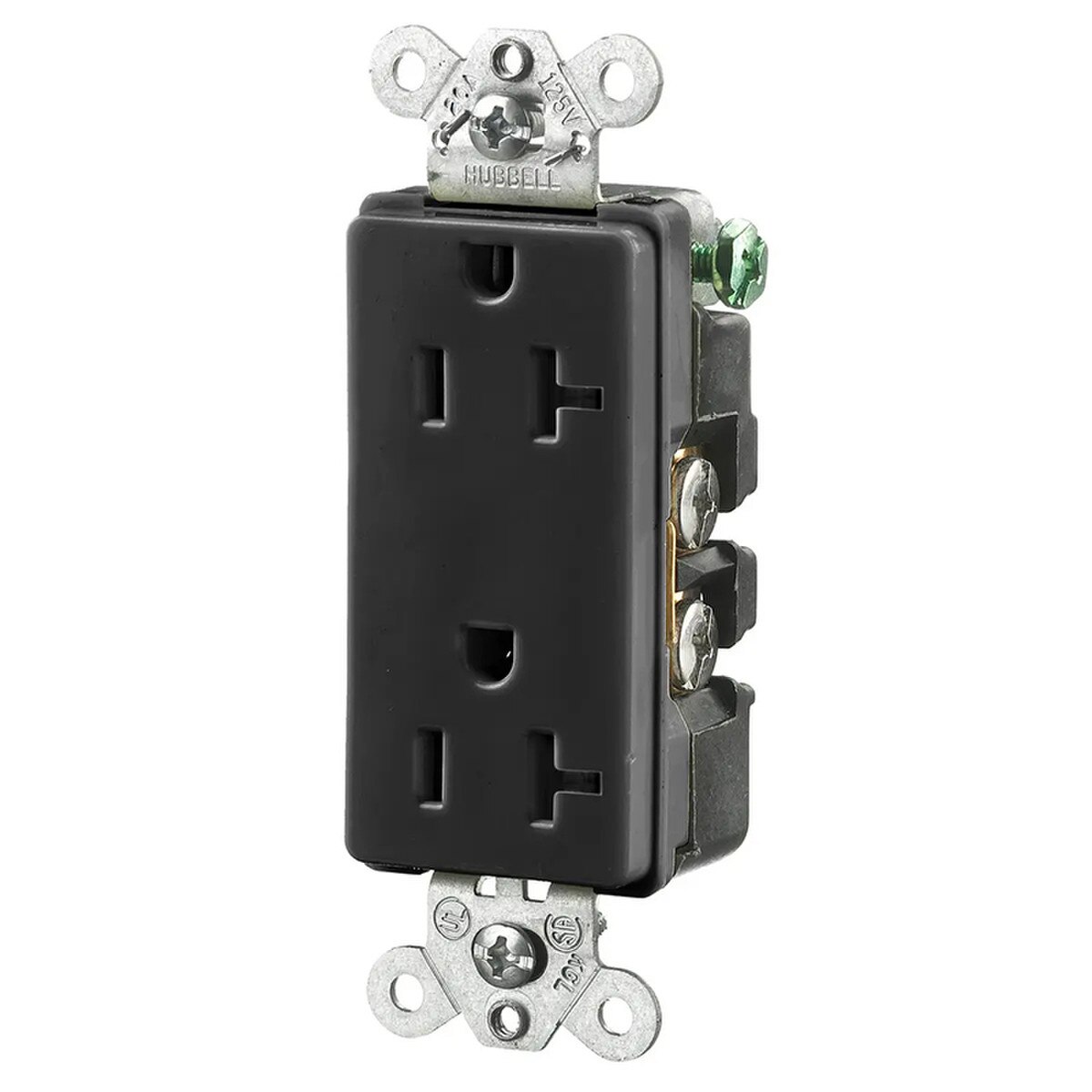

HUBBELL HBL2162BK 20AMP DUPLEX RECEPTACLE-BLACK

(0)No Reviews yet
$31.10
SKU: Hubbell HBL2162BK

Details

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black, Single Pack.


Features:

  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
  • Standard, Self Grounding

General:

  • Application: Heavy Duty Style Line Decorator Duplex
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Style Line Decorator Duplex
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Series: Heavy Duty
  • Style: Style Line Decorator
  • Type: Standard Duplex
  • UPC: 783585060446

Dimensions:

  • Dimensions: 3.28 in x 1.36 in x 1.03 in
  • Display Size: Standard Sized Product
  • Height: 1.03 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.36 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity : Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

  • Industry Standard(s)
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics:

  • Carton Quantity: 10


WIRING_HBL2162BK_spec.pdf
