HelixNet 2-Wire Module

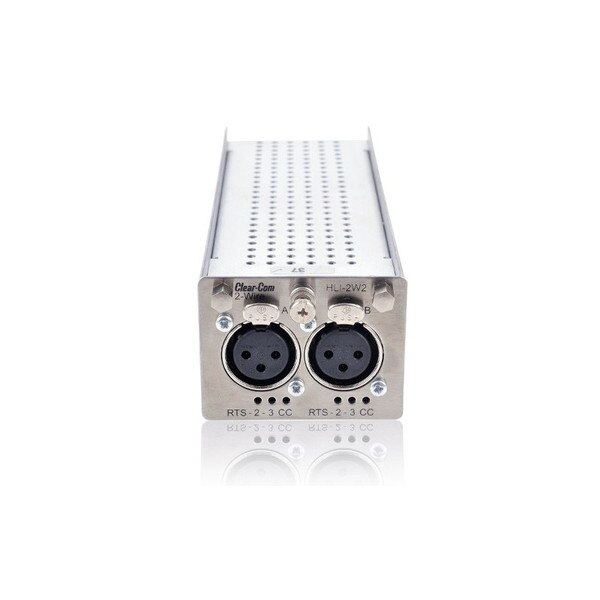

The HLI-2W2 Interface Module enables two-channels of Clear-Com or RTS intercom to transparently interface with digital HelixNet intercom channels. This two-wire module preserves the wideband two-wire frequency response, is conveniently packaged in a rugged, pluggable module, and is easily assignable to any of the HelixNet Main Station intercom channels. Requires external partyline power source.


Specifications:

•
Dimensions

  • 7.36" x 2.24" x 1.54" (187mm x 57mm x 39mm)

• Weight

  • 16oz (.454kg)

• Connectors

  • Intercom Line: (2) 3-pin XLR–F

• Partyline

  • Maximum Level Before Clipping: 6dBu

  • Nominal Input Level: -18dBu (C-C), -12dBu (RTS)

  • Input Impedance: >= 10KΩ bridging

•
The following specified for a route to four-wire input at 0dBu in:
  •
Frequency Response: 100 Hz - 10 kHz ±3dB

  • Distortion: <0.2% THD @ 1kHz
  •
Noise: <-55dBu


• The following specified for a route from a four-wire output at 0dBu out:
  •
Frequency Response: 40 Hz - 10 kHz ±3dB
  •
Distortion: <0.2% THD @ 1 kHz

  • Noise: <-75dBu


• Auto-nulling and Echo Cancellation
•
RTS/Clear-Com Selectable

• Termination: External
•
Power: 30V max external
• Power Requirements

  • 0.025mA/channel

  • DC Voltage Range: 20-30 volts
