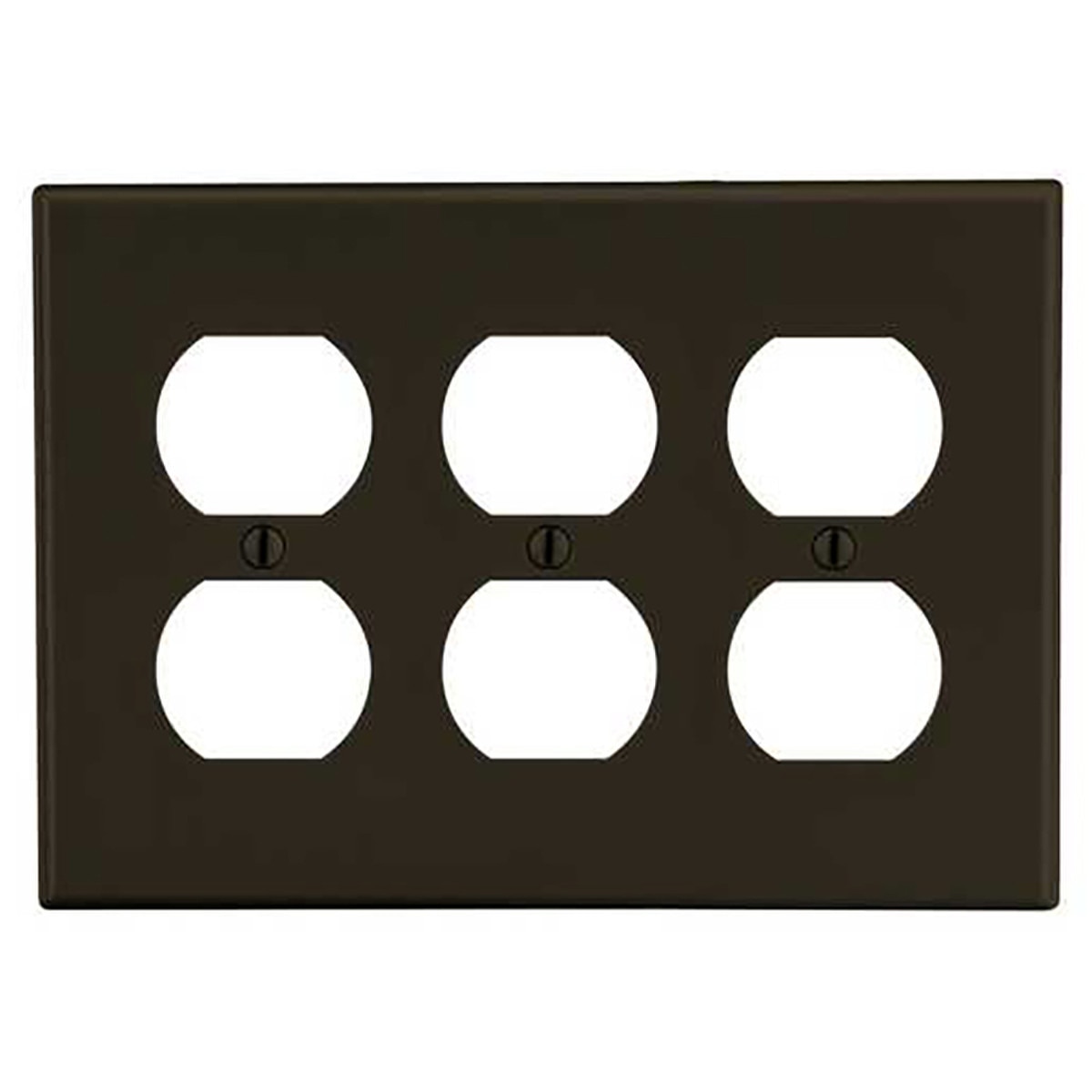

Hubbell 3 Gang, 3-Duplex Receptacle Wall Plate - Brown

Wallplate, 3-Gang, 3) Duplex, Brown

Hubbell's line of polycarbonate wallplates features larger standard sized wallplates to provide extra coverage to hide rough box opening, improved aesthetics, greater strength, impact resistance, along with easy to clean finish in all different types of environments. Hubbell’s standard sized wallplates are 1/8 inch larger to provide you that extra coverage to hide rough box openings. The depth is ¼ inch so that it will comfortably fit over the device even on imperfect installations or on retrofit work.

• Smooth Satin Finish

General:

• Color: Brown
• Cutout: Duplex
• Material: Polycarbonate thermoplastic
• Mounting Method: Screw
• Mounting Type: Painted Steel
• Number of Gang(s): 3-Gang
• Orientation: Vertical
• Size: Standard
• Style: 3-Duplex
• Type: Duplex
• UPC: 883778313165

Dimensions:

• Dimensions: 4.63 in x 6.50 in x 0.25 in
• Height: 0.25 in
• Length: 4.63 in
• Width: 6.5 in

Conductor Related:

• Nema Color : Brown

Certifications And Compliance:

• Certification - cULus: Yes
• UL File Number: UL 94 V2

Logistics:

• Carton Quantity: 10

Hubbell P83 Specifications.pdf
Hubbell P83 Dimensional Drawing.pdf
Hubbell P83 Warranty.pdf
