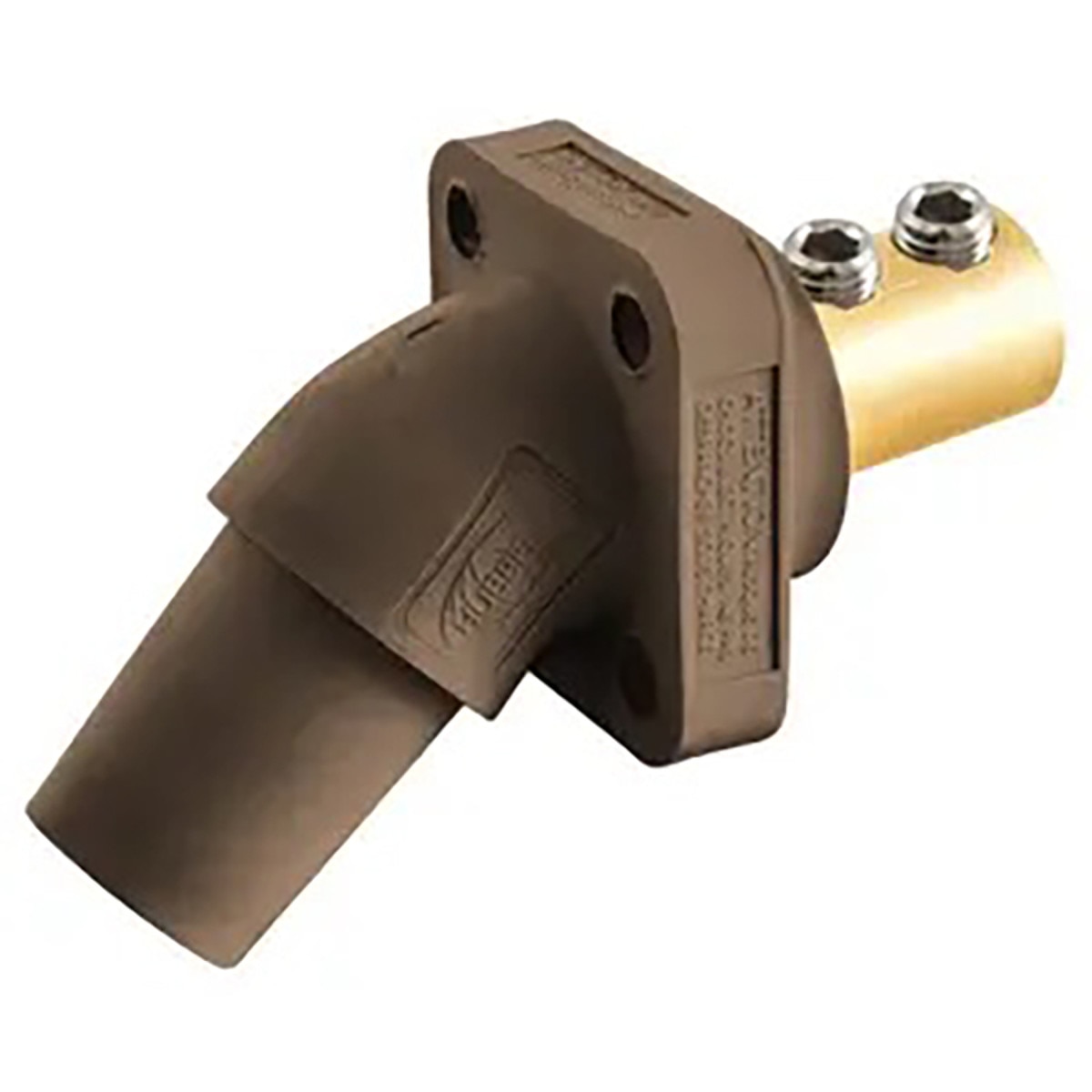

Hubbell 300/400A Single Pole Receptacle, Angled, Double Set Screw - Brown
Details
Single Pole Products, 300/400A Series,Receptacle, Angled, Double Set Screw, Brown
Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
General:
Catalog Number:
- HBLFRABN
Color:
- Brown
EU RoHS Indicator:
- Contact Manufacturer
Series:
- Series 16
Style:
- Double Set Screw Female
Type:
- Angled Receptacle
UPC:
- 783585511443
Electrical Ratings:
Amperage Rating:
- 400 A
Current / Amperage Rating:
- 400 A
Voltage Rating Description:
- 600V AC/DC
Logistics:
Carton Quantity:
- 25
Pallet Quantity:
- 1575
Hubbell HBLFRABN Specifications.pdf
Hubbell HBLFRABN Dimensional Drawing.pdf
EHubbell HBLFRABN Installation Instructions.pdf
Hubbell HBLFRABN Warranty.pdf
