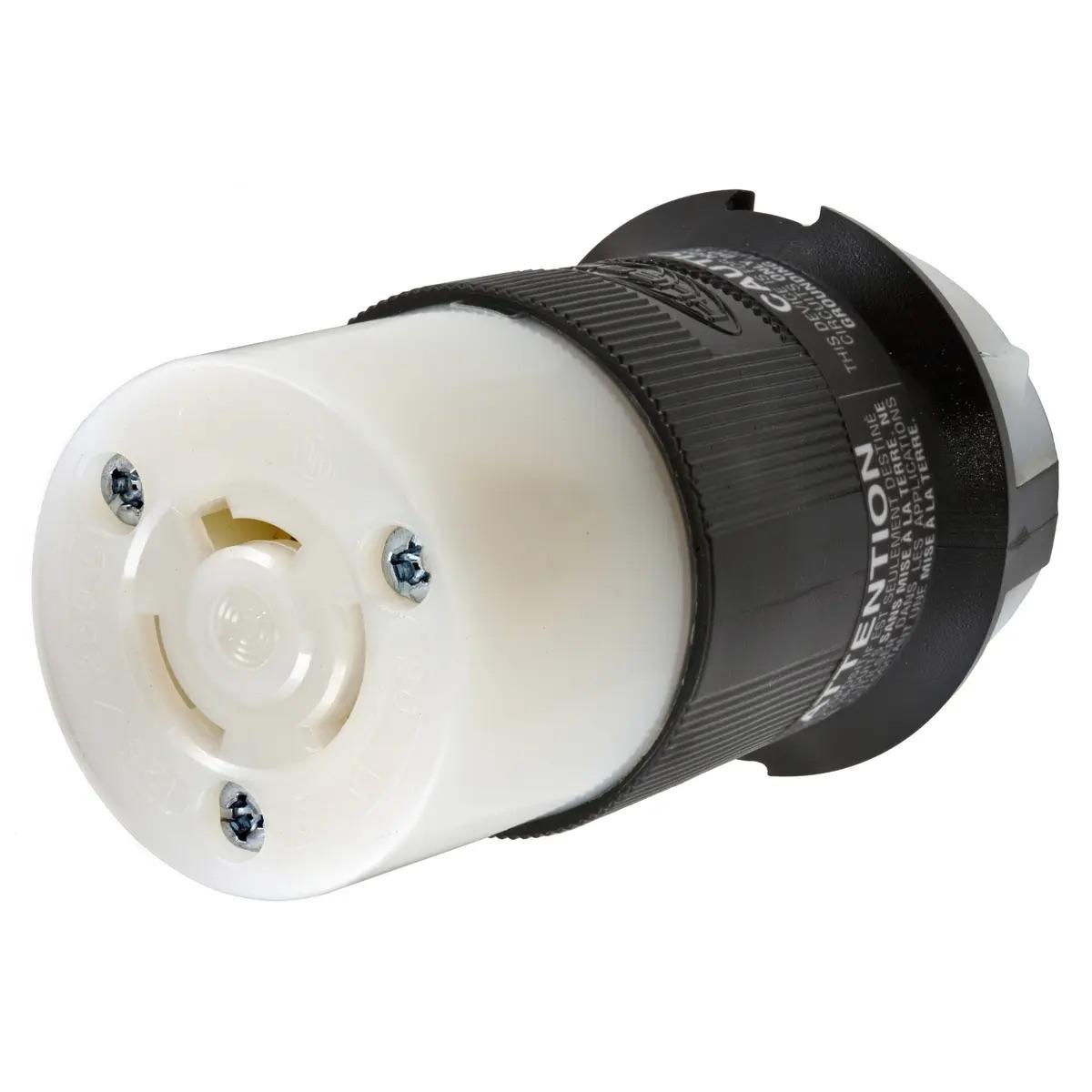

Hubbell 7314C Non Nema ILF 20A 3POL3W Nub Out Female

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.

Specifications:

• Application: Heavy Duty Industrial
• Color: Black, White
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 20A Insulgrip® Connector
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 783585037509

Dimensions:

• Dimensions: 2.26 in x 2.26 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.26 in
• Weight: 0.3 lb
• Width: 2.26 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250 V

Conductor Related:

• Cable Range: 0.360 - 0.930 in
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Logistics:

• Carton Quantity: 30
