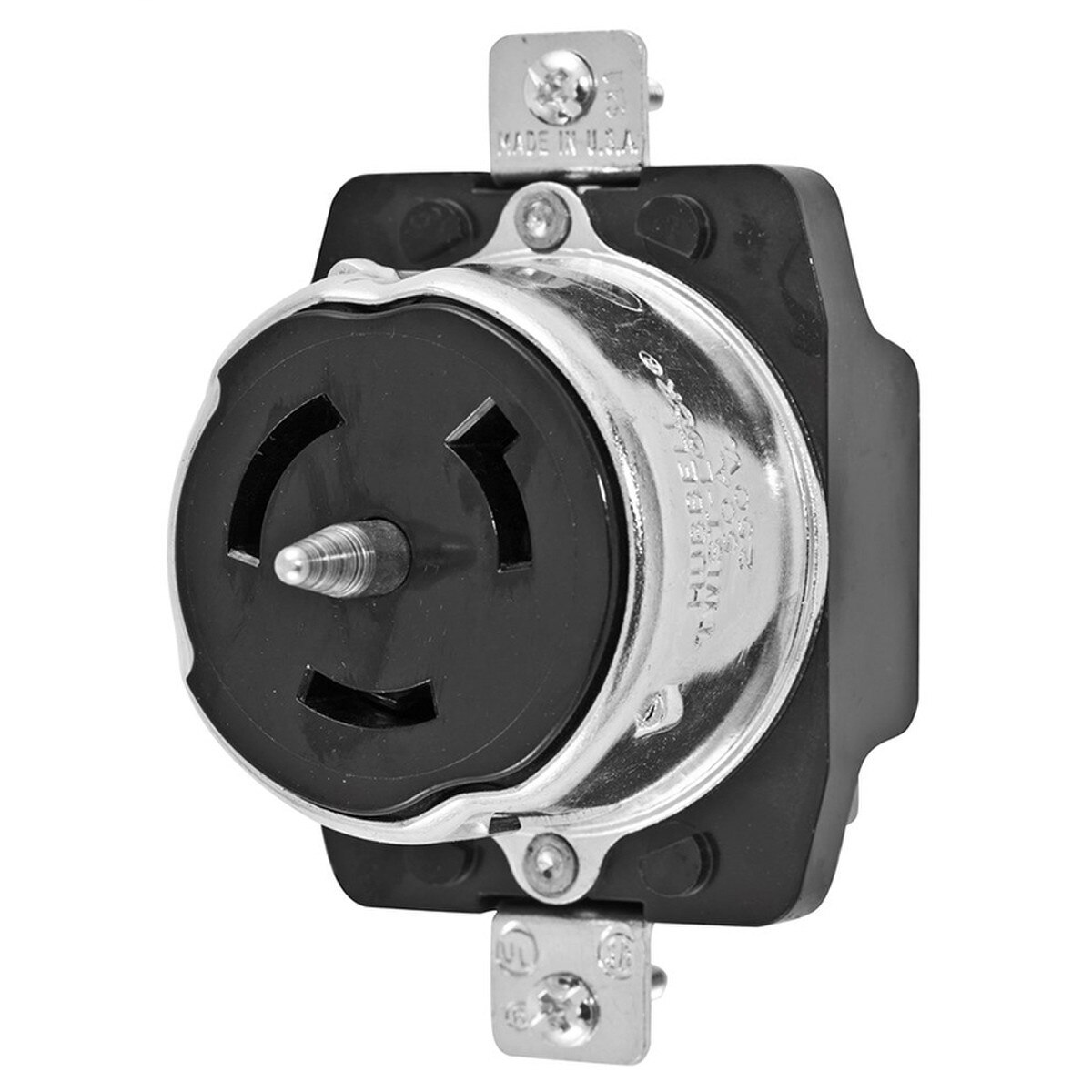

Hubbell CS8269 50A, 250V RECEPTACLE
Details
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A, 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
WIRING_CS8269_spec.pdf
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Features:
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
- Standard Product
General:
- Application: Heavy Duty Industrial
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Item Type: Receptacles
- Material: Phenolic
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V0
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Type: Receptacle
- UPC: 783585828909
Dimensions:
- 2.69 in x 2.12 in x 2.36 in
- Display Size: Standard Sized Product
- Height: 2.36 in
- Length: 2.69 in
- Weight: 0.70 lb
- Width: 2.12 in
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Screw Terminals
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 250 V
- Voltage Rating Description 250 V
Conductor Related:
- Number Of Wires: 3-Wire
- Wire Size: #10 AWG to #6 AWG
Logistics:
- Carton Quantity: 10
