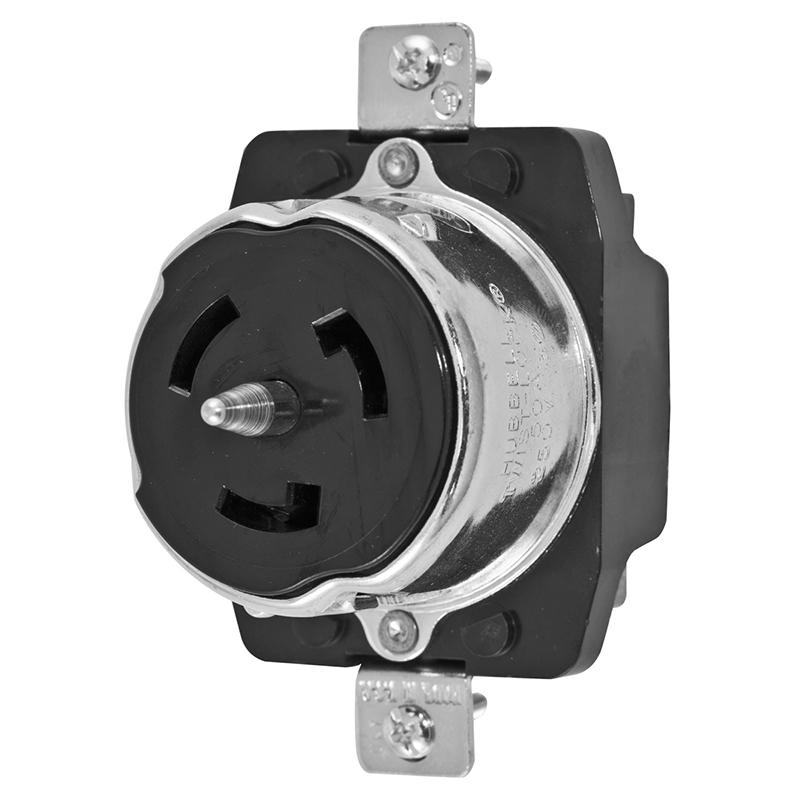

Hubbell CS8369 50A - 3POLE/4WIRE Receptacle

Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black.
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.


Features:

• Thermoset construction offers high heat resistance
• Armored housing provides superior impact resistance
• One piece contacts provide low operating temperatures
• Standard Product

General:

• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Receptacles
• Material: Phenolic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V0
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
• Type: Receptacle
• UPC: 783585829074

Dimensions:

• 2.69 in x 2.12 in x 2.36 in
• Display Size    Standard Sized Product
• Height: 2.36 in
• Length: 2.69 in
• Weight: 0.75 lb
• Width: 2.12 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Three Phase
• Voltage Rating: 3-Phase Delta 250 VAC
• Voltage Rating Description: 3-Phase Delta 250 VAC

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Listed to UL 498

Logistics:

• Carton Quantity: 10
