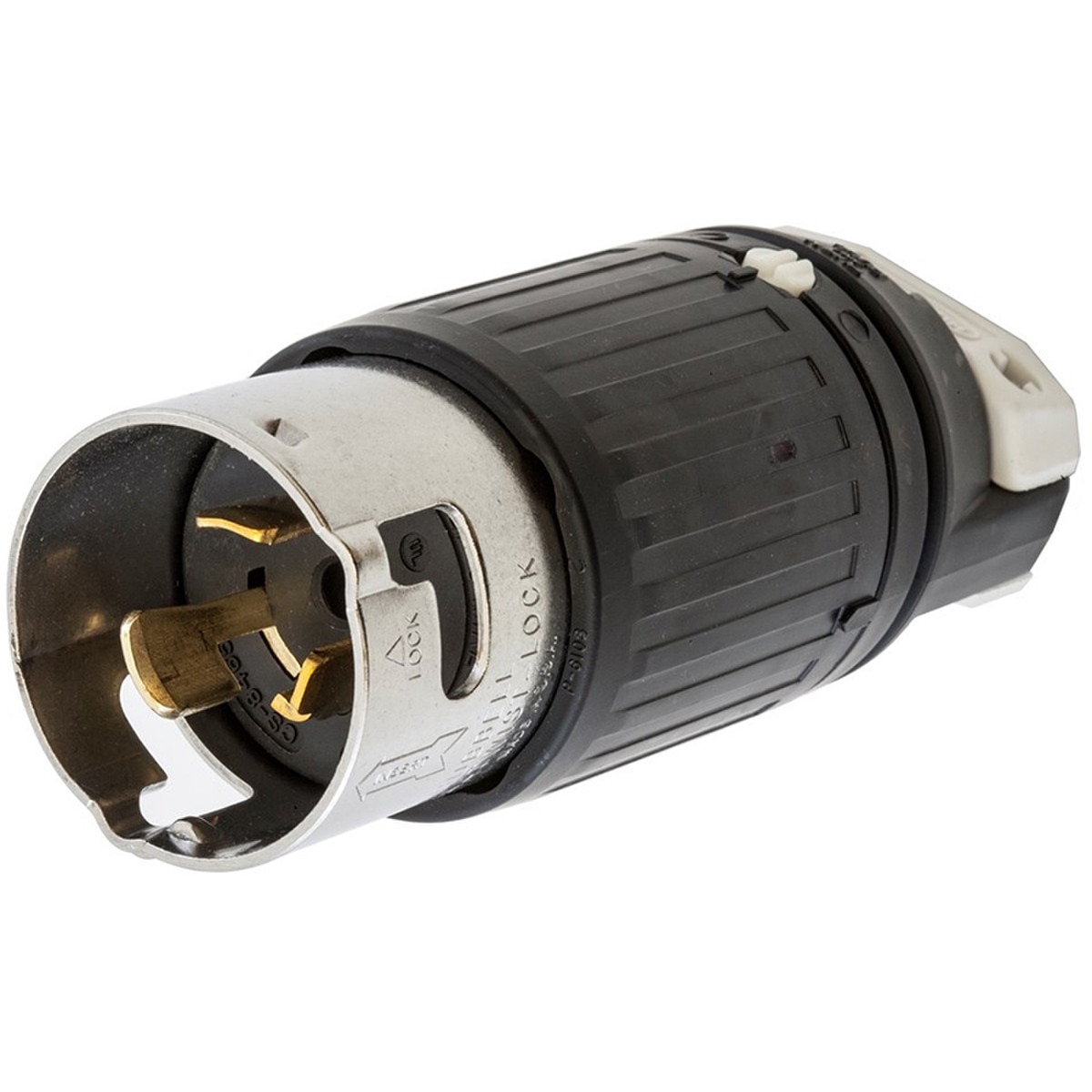

Hubbell CS8465C 50A, 3 PHASE, 480V MALE PLUG
Details
Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
WIRING_CS8465C_spec.pdf
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Features:
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- Standard Product
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
- Type: Plugs
- UPC: 783585829166
Dimensions:
- 6.37 in x 2.56 in x 2.56 in
- Display Size: Standard Sized
- Height: 2.56 in
- Length: 6.37 in
- Weight: 1.25 lb
- Width: 2.56 in
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 480 VAC
- Voltage Rating Description: 480 VAC
Conductor Related:
- Cable Range: 0.830 - 1.250 in
- Cord Type: All Listed Portables
- Number Of Wires: 3-Wire
- Wire Size: #10 AWG to #6 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
Logistics:
- Carton Quantity: 10
