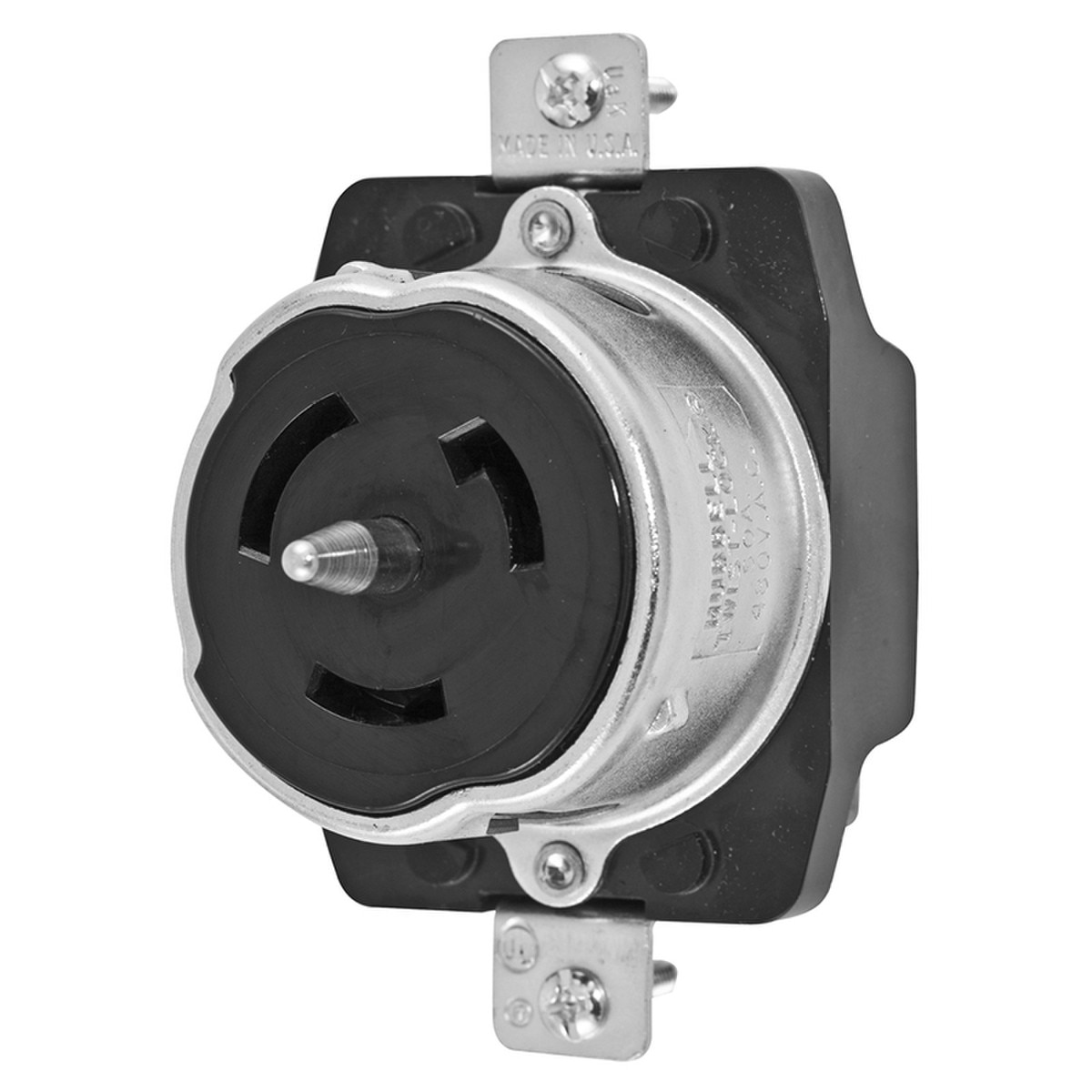

Hubbell CS8469 50A, 3PH, 480V RECEPTACLE

Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.


Features:

• Thermoset construction offers high heat resistance
• Armored housing provides superior impact resistance
• One piece contacts provide low operating temperatures
• Standard Product

General:

• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Receptacles
• Material: Phenolic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V0
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
• Type: Receptacle
• UPC: 783585876757

Dimensions:

• 2.69 in x 2.12 in x 2.36 in
• Display Size: Standard Sized Product
• Height: 2.36 in
• Length: 2.69 in
• Weight: 0.70 lb
• Width: 2.12 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 480 VAC
• Voltage Rating Description    480 VAC

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Listed to UL 498

Logistics:

• Carton Quantity: 10

WIRING_CS8469_spec.pdf
