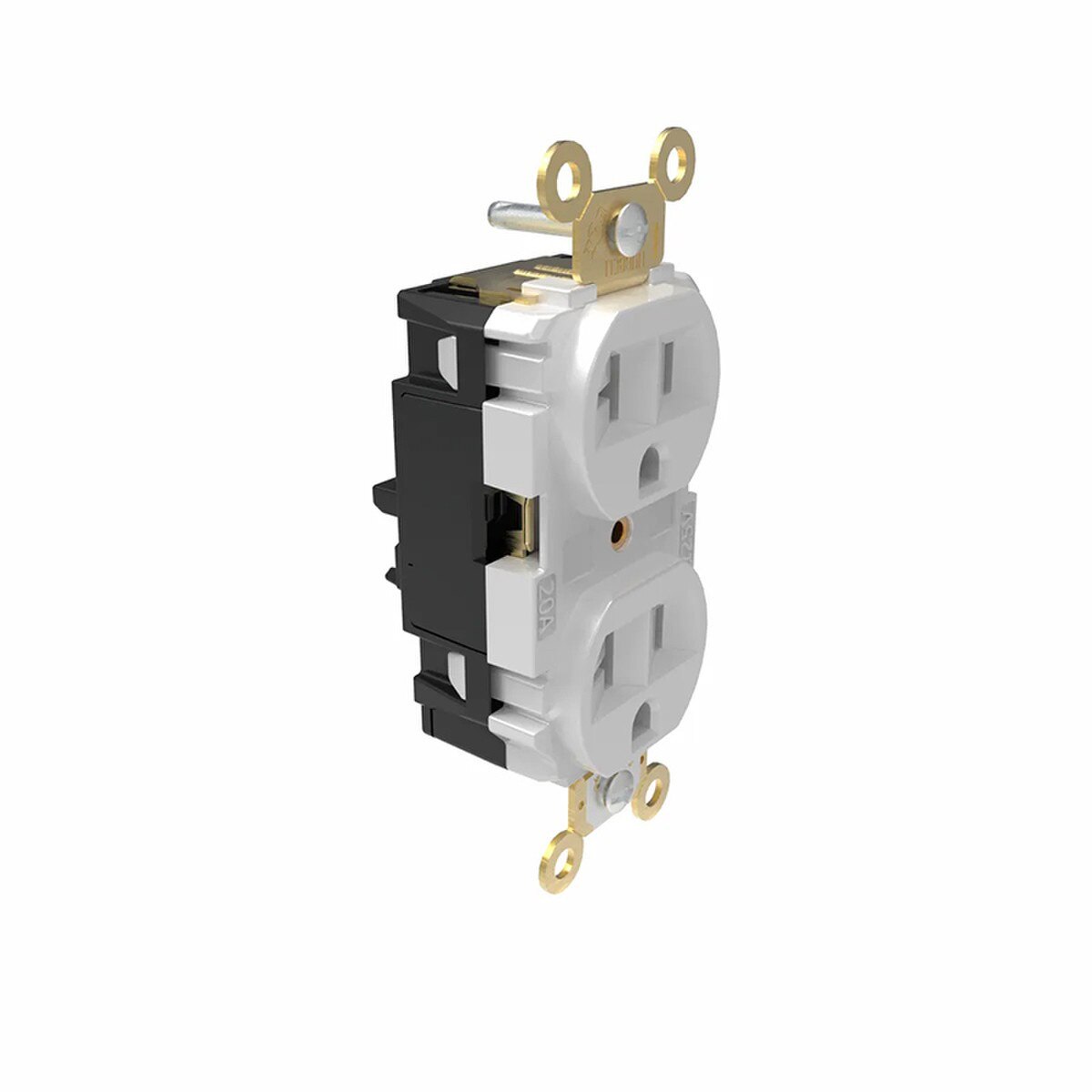

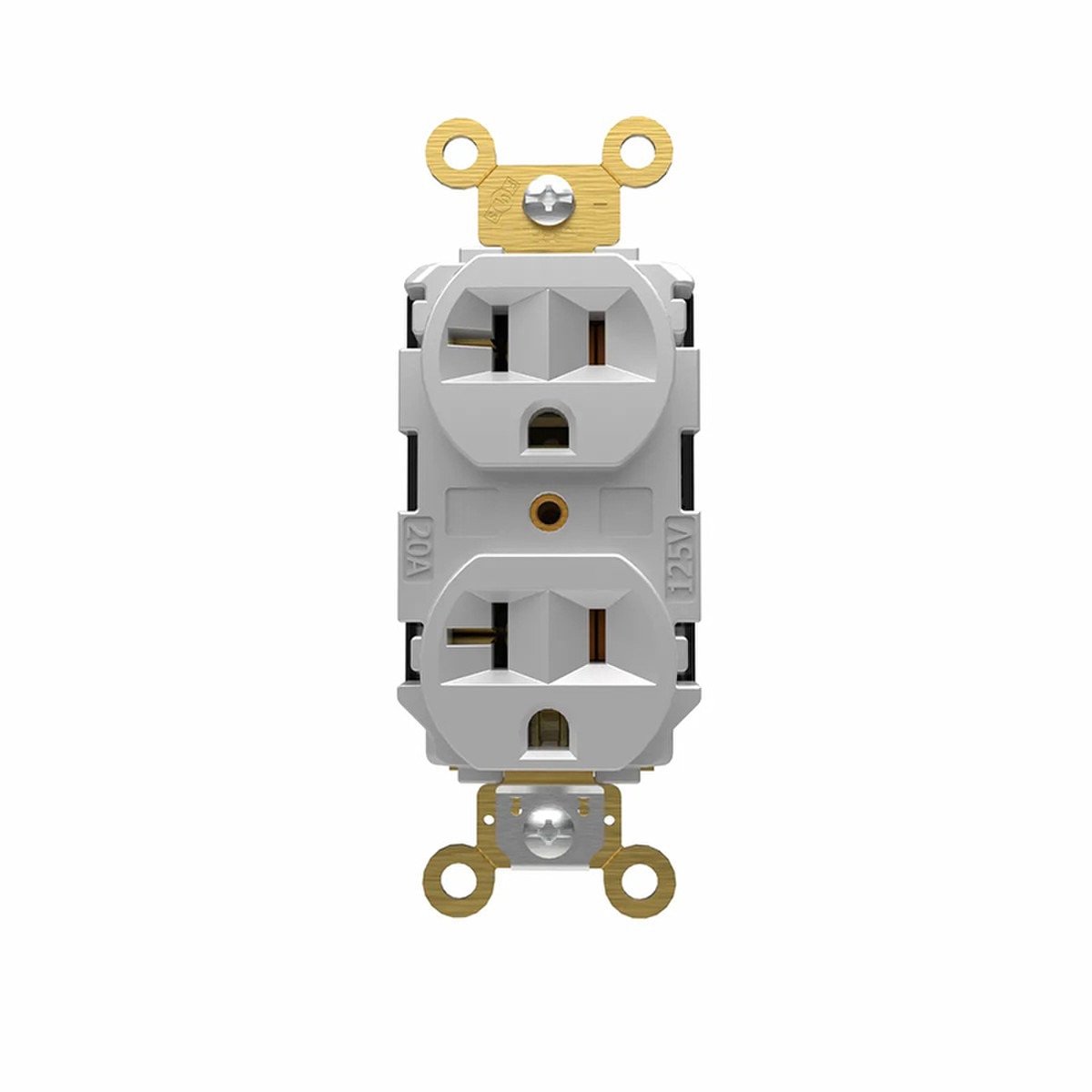

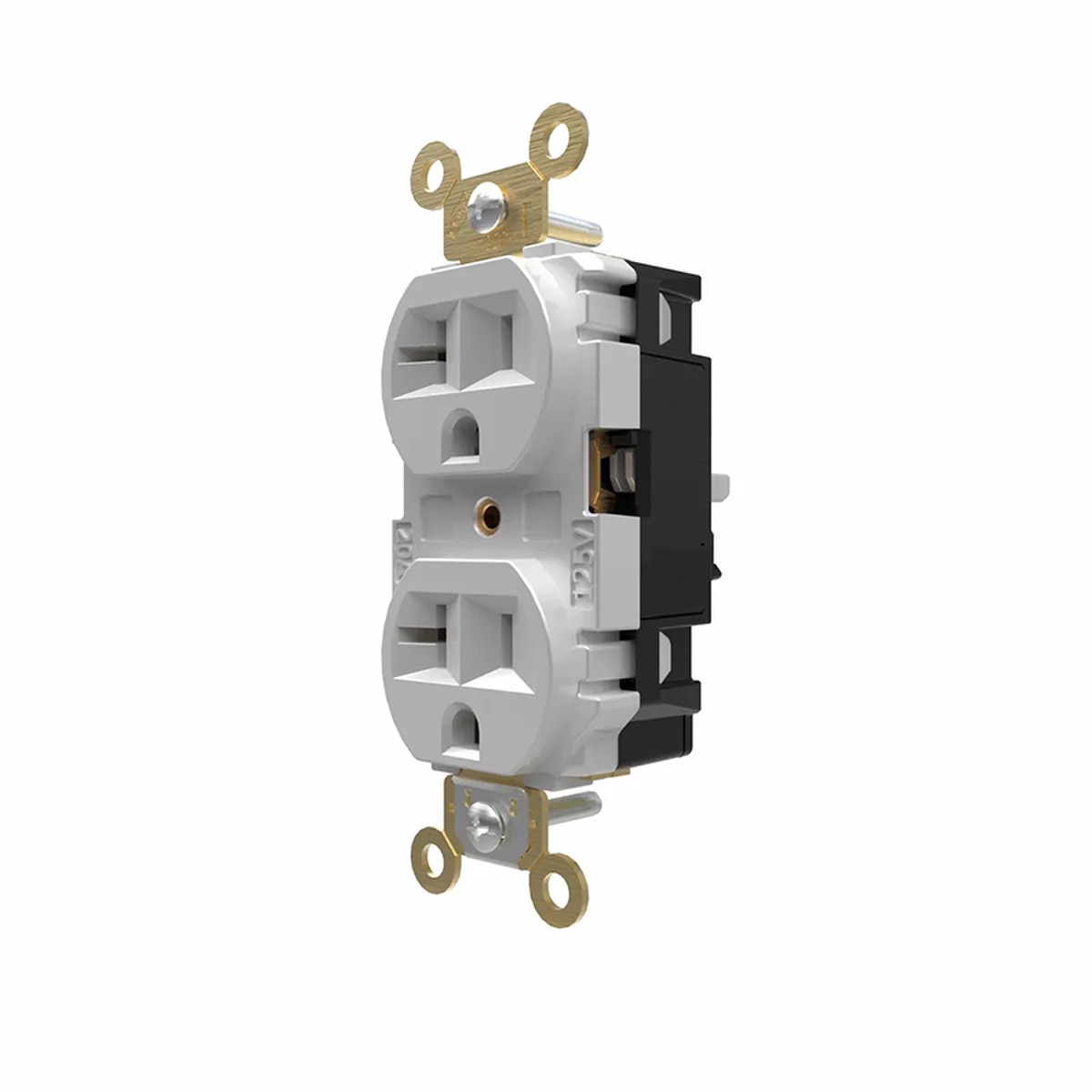

Hubbell EdgeConnect Duplex Receptacle, 20A 125V, 5-20R, Screwless Terminal - White

Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Industrial Grade, 2-Pole 3-Wire, 20A 125V, 5-20R, Screw-less Terminal, White

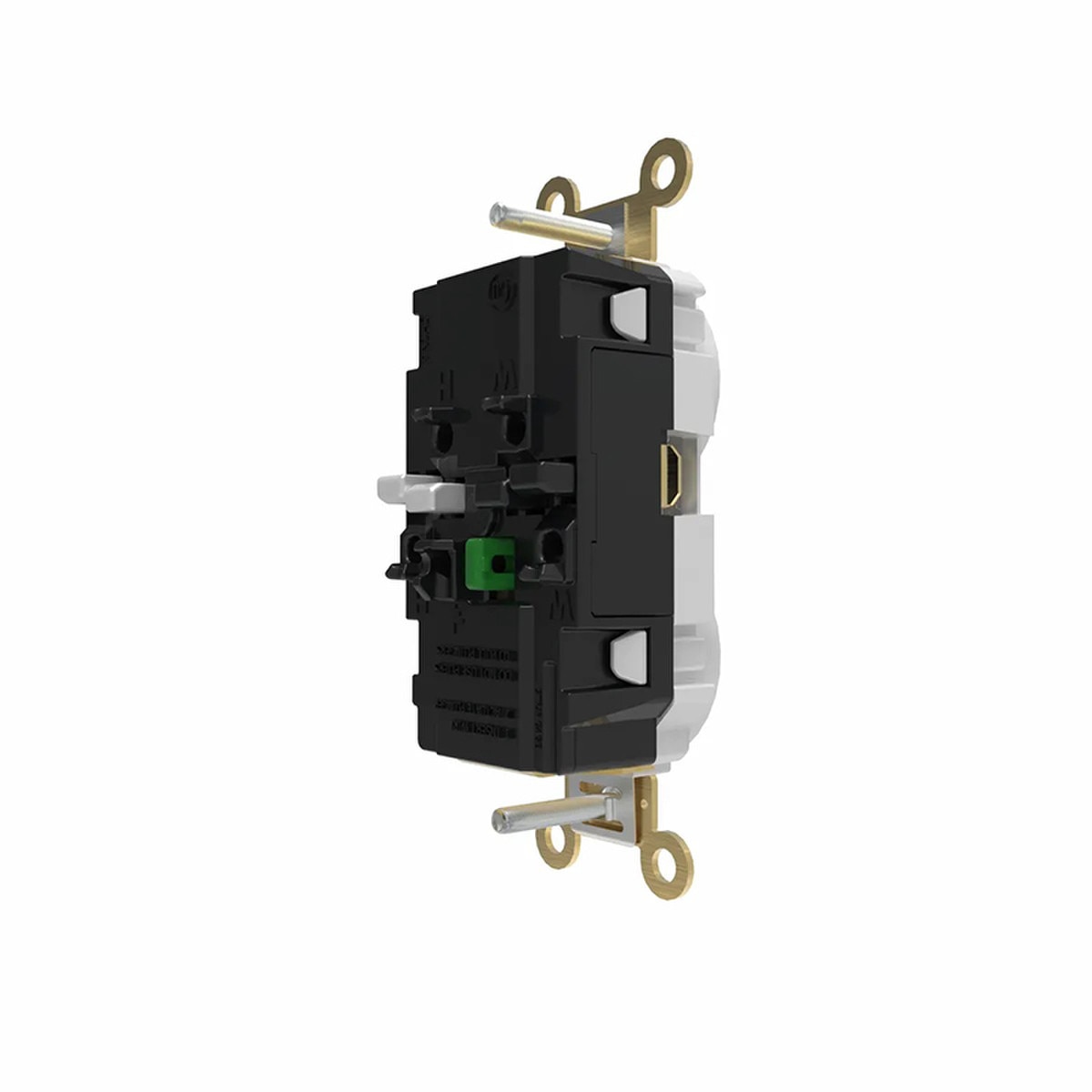

EdgeConnect™ Screw-less Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result. Elapsed time? About 11 seconds!

• Back wired screw-less termination for faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Triple and Double Wipe Contacts
• Easy access split circuit tab
• EdgeConnect™ Technology, Screw-less Termination

General:

• Application: Heavy Duty
• Catalog Number: HBL5362STW
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Receptacle
• Material: Thermoplastic/C
• Mounting Type: Screw Mount
• Number Of Poles: 2-Pole
• Series: EdgeConnect™ Series
• Size: Standard Sized Product
• Style: Finder Groove Face
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• UPC: 783585687759

Dimensions:

• Size: Standard Sized Product

Electrical Ratings:

• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single
• Voltage Rating: 125 V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications And Compliance:

• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Nema Rating: 5-20R

Industry Standard(s):

• UL Listed to UL498 File No. E2186
• Certified to CSA 22.2, No. 42 File 285
• Fed. Spec. W-C-596,NEMA® WD-6 Compliant

Operational:

• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)

Configuration:

• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
