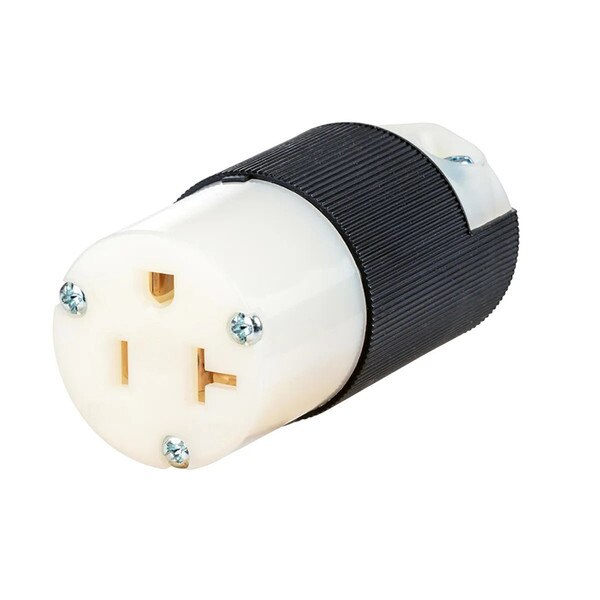

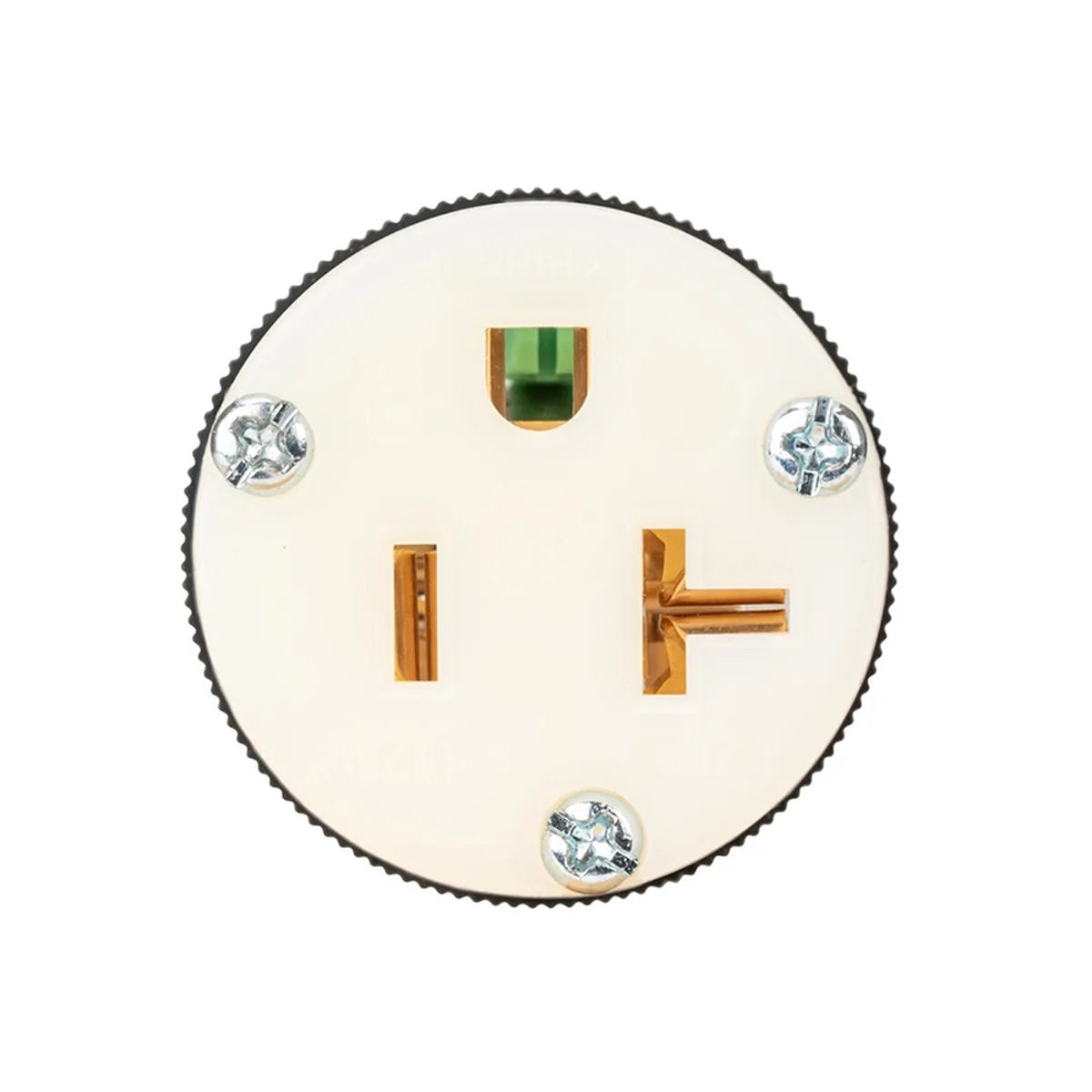

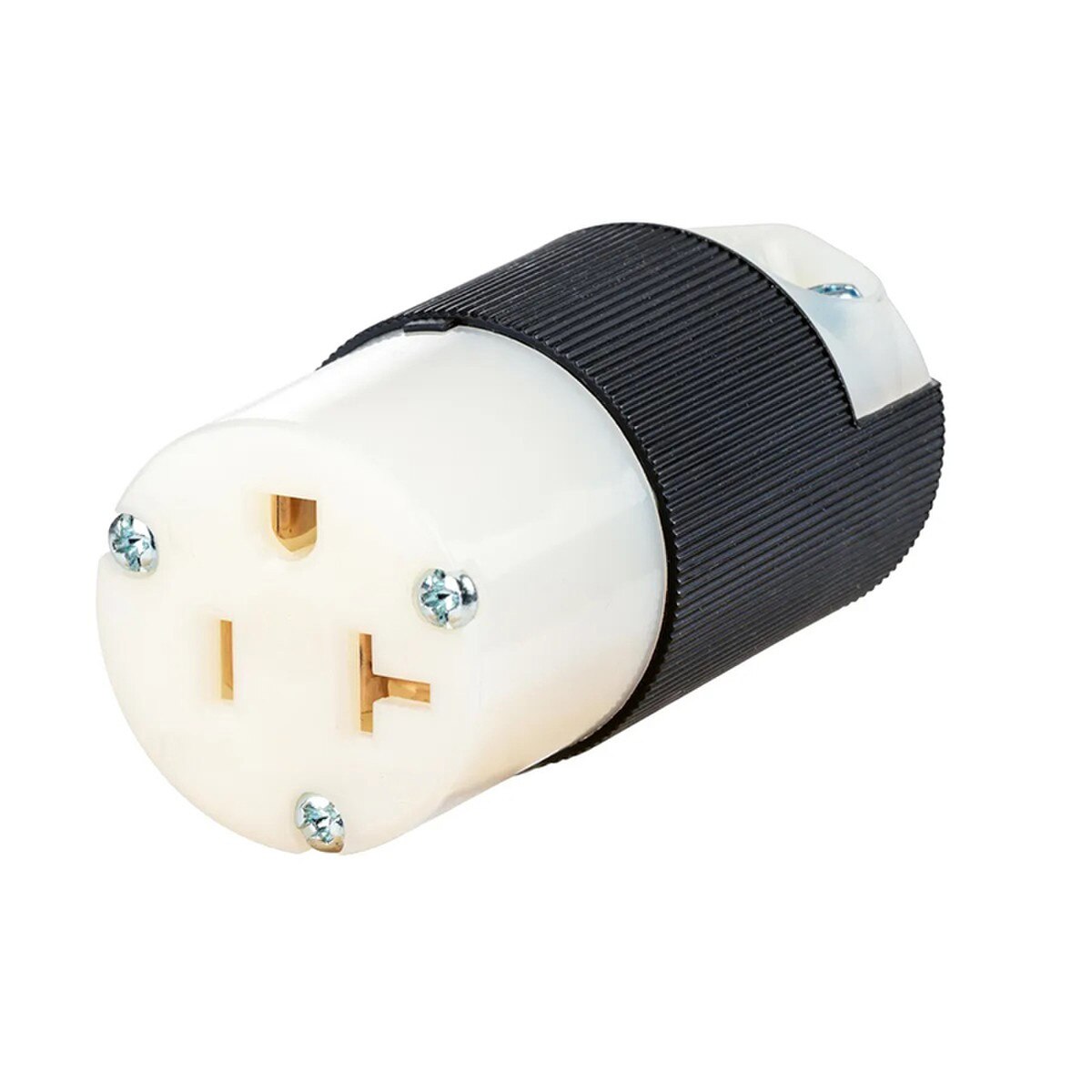

Hubbell EdgeConnect Straight Blade Connector, Industrial/Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - Black and White

EdgeConnect™, Straight Blade Devices, Connector, Industrial/Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White

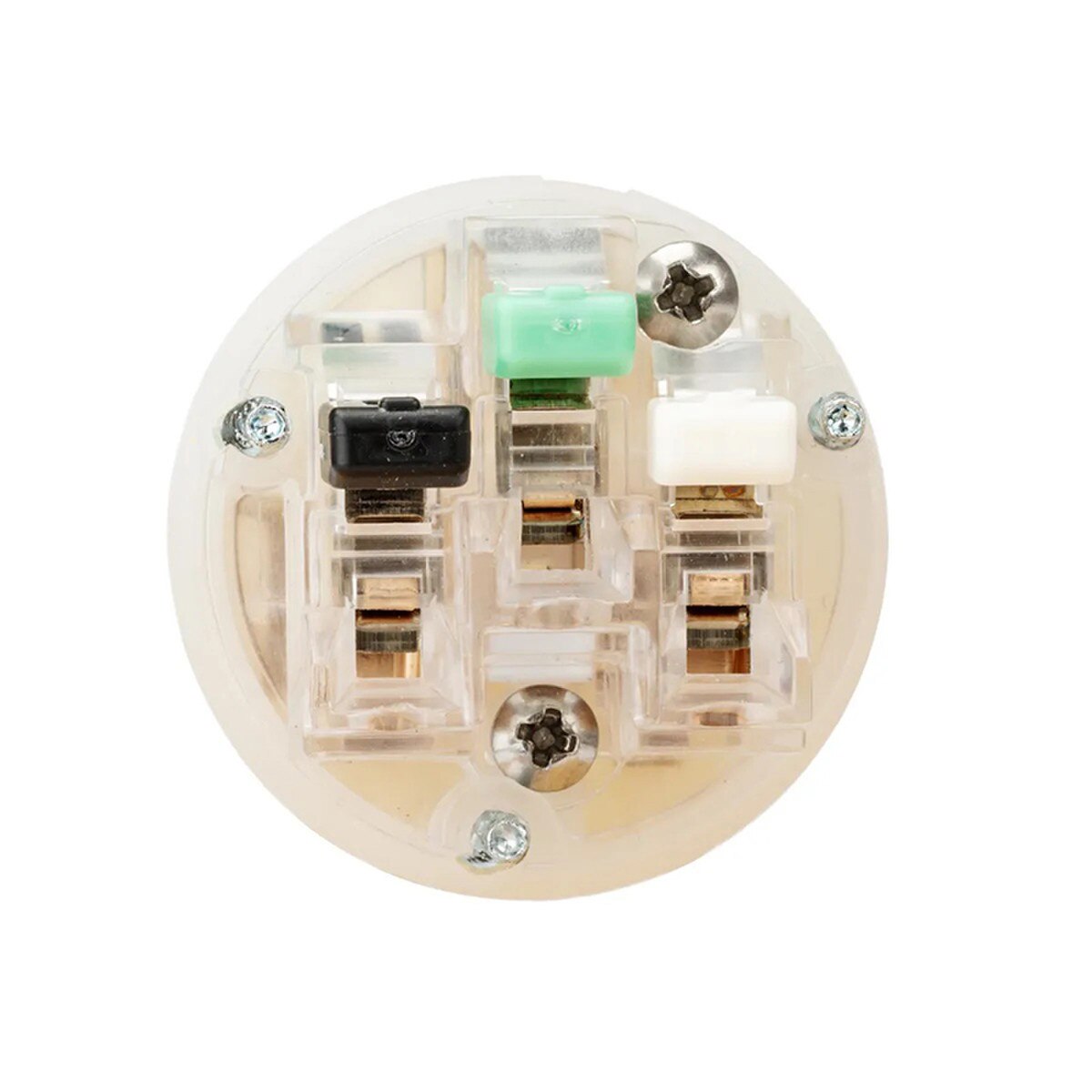

• Spring termination for a faster and more secure terminal connection
• Ribbed housing is impact and chemical resistant
• Superior cord grip design protects terminations from excess strain
• Accepts #14 - #10AWG, solid or stranded
• Standard Product

General:

• Application: Extra Heavy Duty Industrial/Commercial Grade
• Catalog Number: HBL5369CST
• Color: Black and White
• Cord Range: 0.230"-0.720"(5.8-18.3)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Contact Manufacturer
• Horsepower - Maximum: 1
• Insulation: Insulated Body
• Item Type: Insulgrip® Connector
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: EdgeConnect™ Series
• Size: 3.28 in x 1.41 in x 1.09 in
• Style: Standard
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Connectors
• UPC: 783585965383

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Specifications:

• Body - Nylon
• Retainer - Polycarbonate
• Cover - Nylon
• Cord Clamp - Nylon
• Contact - Copper Alloy
• Spring - Stainless Steel
• Plunger - Nylon
• Drive/Assembly/Cord Clamp Screws - Steel

Dimensions:

• Display Size: Standard Sized Product
• Size: 3.28 in x 1.41 in x 1.09 in
• Weight: 0.2 lb

Electrical Ratings:

• Connectivity: Spring Termination
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V

Conductor Related:

• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications And Compliance:

• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: 5-20P

Industry Standard(s):

• CSA Certified to C22.2 No. 42 File 280
• Fed. Spec. W-C596G
• NEMA® WD-6 Compliant
• UL Listed to UL498 File E1706

Operational:

• Horsepower - Maximum: 1
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Configuration:

• Cord Type: All Listed Portables
• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
