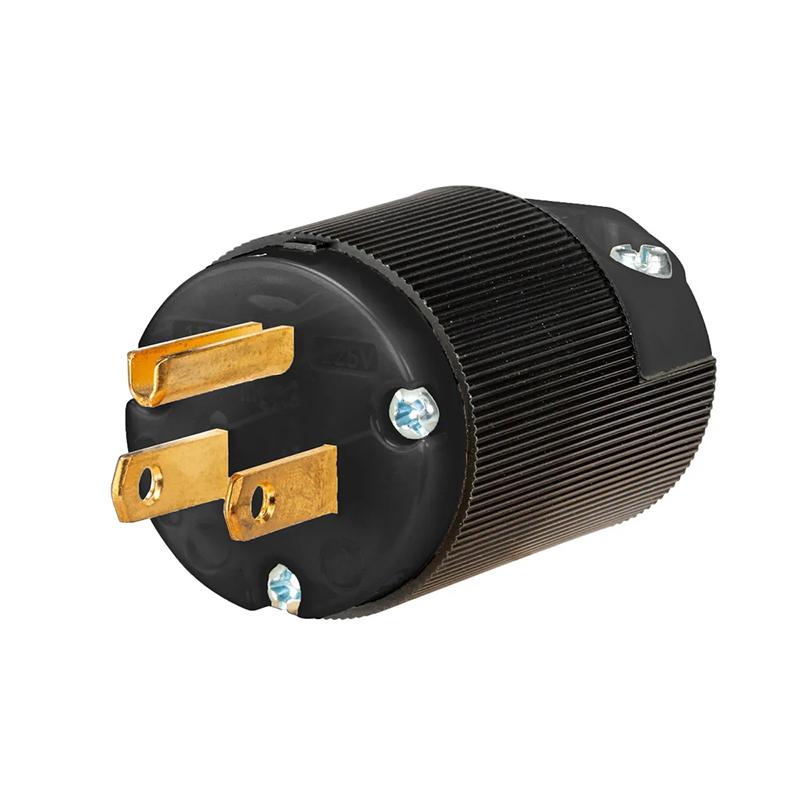

Hubbell EdgeConnect Straight Blade Plug, Industrial/Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P - Black

EdgeConnect™, Straight Blade Devices, Plug, Industrial/Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black

• Spring termination for a faster and more secure terminal connection
• Ribbed housing is impact and chemical resistant
• Superior cord grip design protects terminations from excess strain
• Accepts #14 - #10AWG, solid or stranded
• Standard Product

General:

• Application: Extra Heavy Duty Industrial/Commercial Grade
• Catalog Number: HBL5266CBKST
• Color: Black
• Cord Range: 0.230"-0.720"(5.8-18.3)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Contact Manufacturer
• Horsepower - Maximum: 0.5
• Insulation: Insulated Body
• Item Type: Insulgrip® Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• Operating Temperature: Maximum continuous 75°C and minimum without Impact -40 °C
• Series: EdgeConnect™ Series
• Size: 3.28 in x 1.41 in x 1.09 in
• Style: Standard
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Plugs
• UPC: 783585964782

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Specifications:

• Blade Holder - Nylon, Retainer - Polycarbonate
• Cover - Nylon, Cord Clamp - Nylon
• Contact Blades - Copper Alloy, Spring - Stainless Steel
• Plunger - Nylon
• Drive/Assembly/Cord Clamp Screws - Steel

Dimensions:

• Display Size: Standard Sized Product
• Size: 3.28 in x 1.41 in x 1.09 in
• Weight: 0.2 lb

Electrical Ratings:

• Connectivity: Spring Termination
• Current / Amperage Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V

Conductor Related:

• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications And Compliance:

• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: 5-15P

Industry Standard(s):

• CSA Certified to C22.2 No. 42 File 280
• Fed. Spec. W-C596G
• NEMA® WD-6 Compliant

Operational:

• Horsepower - Maximum: 0.5
• Operating Temperature: Maximum continuous 75°C and minimum without Impact -40 °C
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Configuration:

• Cord Type: All Listed Portables
• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
