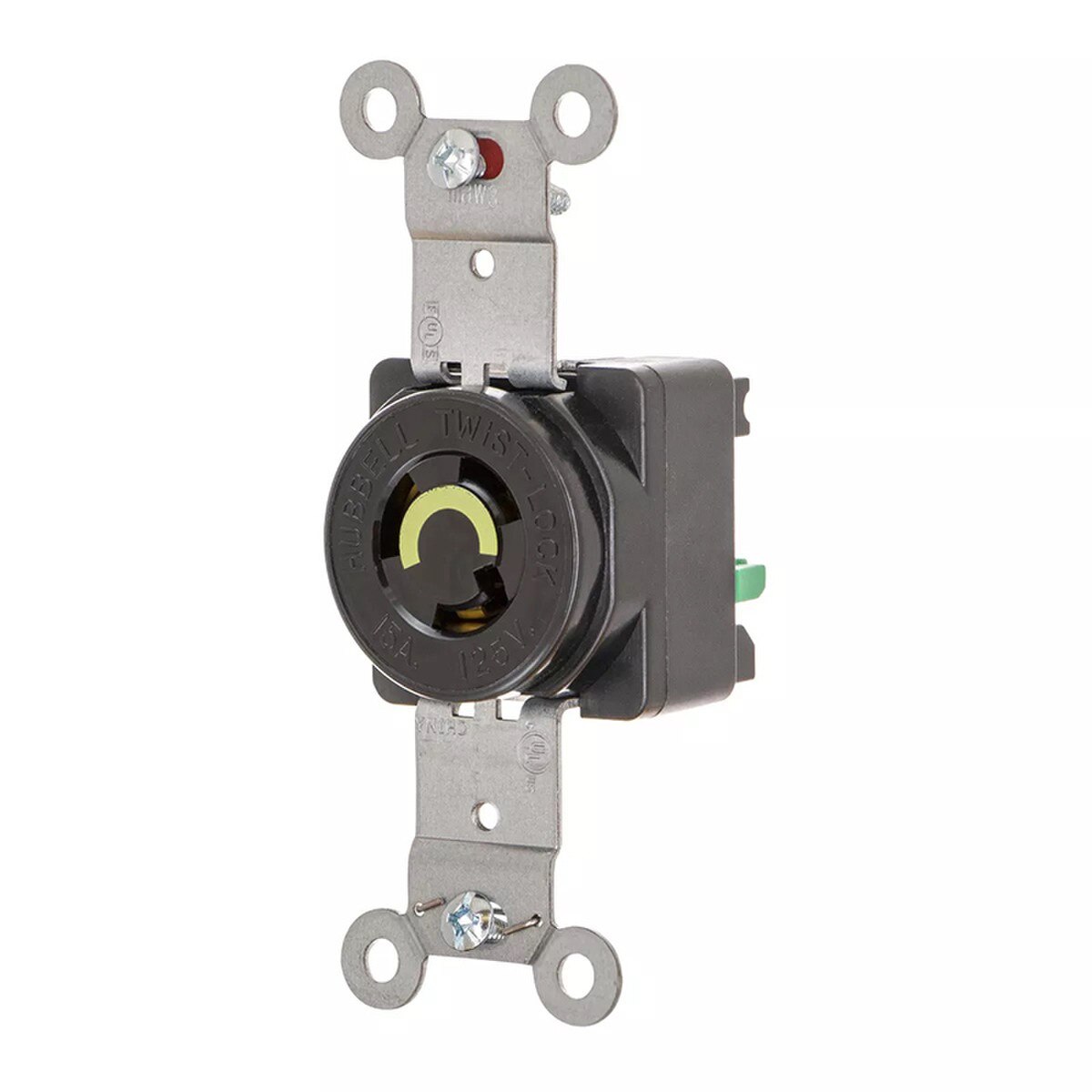

Hubbell EdgeConnect Twist-Lock Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding

Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw-less Terminal, Black

EdgeConnect™ Screw-less Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• EdgeConnect™ Technology, Screw-less Termination

General:

• Application: Industrial
• Catalog Number: HBL4710ST
• Color: Black
• Environmental Conditions: IP20 Suitability
• Material: Nylon
• Mounting Type: Screw Mount
• Number Of Poles: 2
• Series: EdgeConnect™ Twist-Lock® Series
• Size: Standard Sized Product
• Style: Locking Devices
• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Type: Receptacle
• UPC: 783585719634

Dimensions:

• Size: Standard Sized Product

Electrical Ratings:

• Current / Amperage Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 15 VAC

Conductor Related:

• Number Of Wires: 3

Certifications And Compliance:

• Environmental Conditions: IP20 Suitability
• Nema Rating: L5-15R

Industry Standard(s):

• Listed to UL 498
• Fed.Spec. W-C-596
• Certified to CSA C22.2 No.42
• WR Rating

Operational:

• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)

Configuration:

• Number Of Poles: 2

Logistics:

• Carton Quantity: 10
