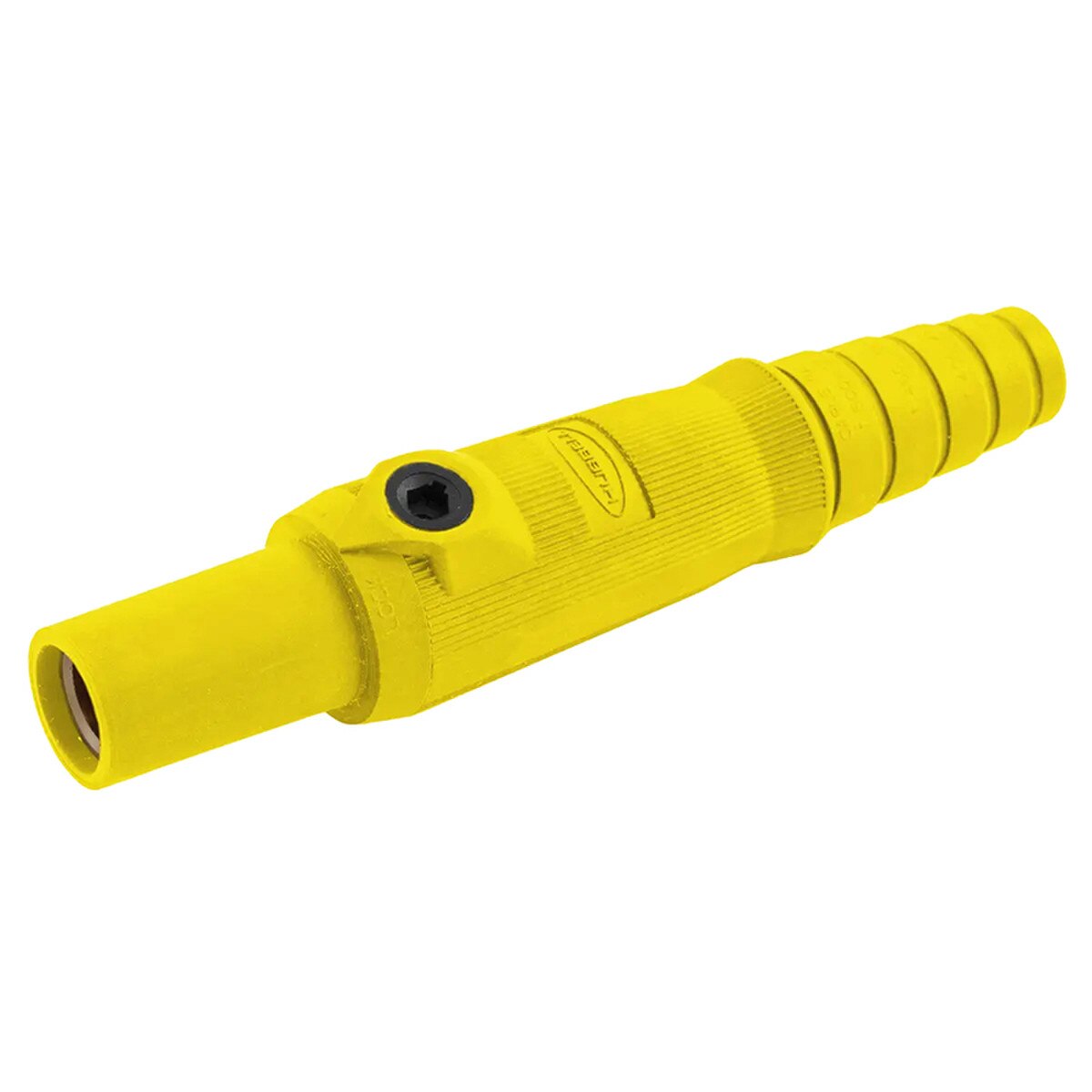

Hubbell HBL15FY 150 AMP FEMALE CABLE MOUNT - YELLOW

Single Pole Products, Female Plug, 150 Amp Series, Yellow

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Features:

• Extra Long non-conductive inner sleeve
• Turn and Lock Symbol aids in the mating of devices
• Easily Identifiable Cable with cut off points for secure fit

General:

• Application: Temporary Electrical Power
• Color: Yellow
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: Female Plug
• Material: Brass and Non-Metallic
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems

Performance:

• Electrical - Amperage Rating - 150A Maximum
• Electrical - Voltage Ratings - 600V AC Maximum
• 250V DC Maximum
• Mechanical - Product Identification - Ratings are a permanent part of device
• Mechanical - Terminal Accommodation - #8 to #2 AWG
• Series: Series 15
• Style: Female
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Plugs
• UPC: 783585458380

Dimensions:

• Display Size: Standard

Electrical Ratings:

• Amperage Rating: 150 A
• Connectivity: Set Screw
• Current / Amperage Rating: 150 A
• Current Rating: 150 A
• Voltage Rating Description: 600V AC/DC

Conductor Related:

• Conductor Range: #8 AWG to #2 AWG SC/PPC Wire
• Number Of Conductors: 1 Conductor

Certifications and Compliance:

• Industry Standard(s)
• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types: 3R, 4X, 12
• Nema Rating: Non-NEMA

Logistics:

• Carton Quantity 25
