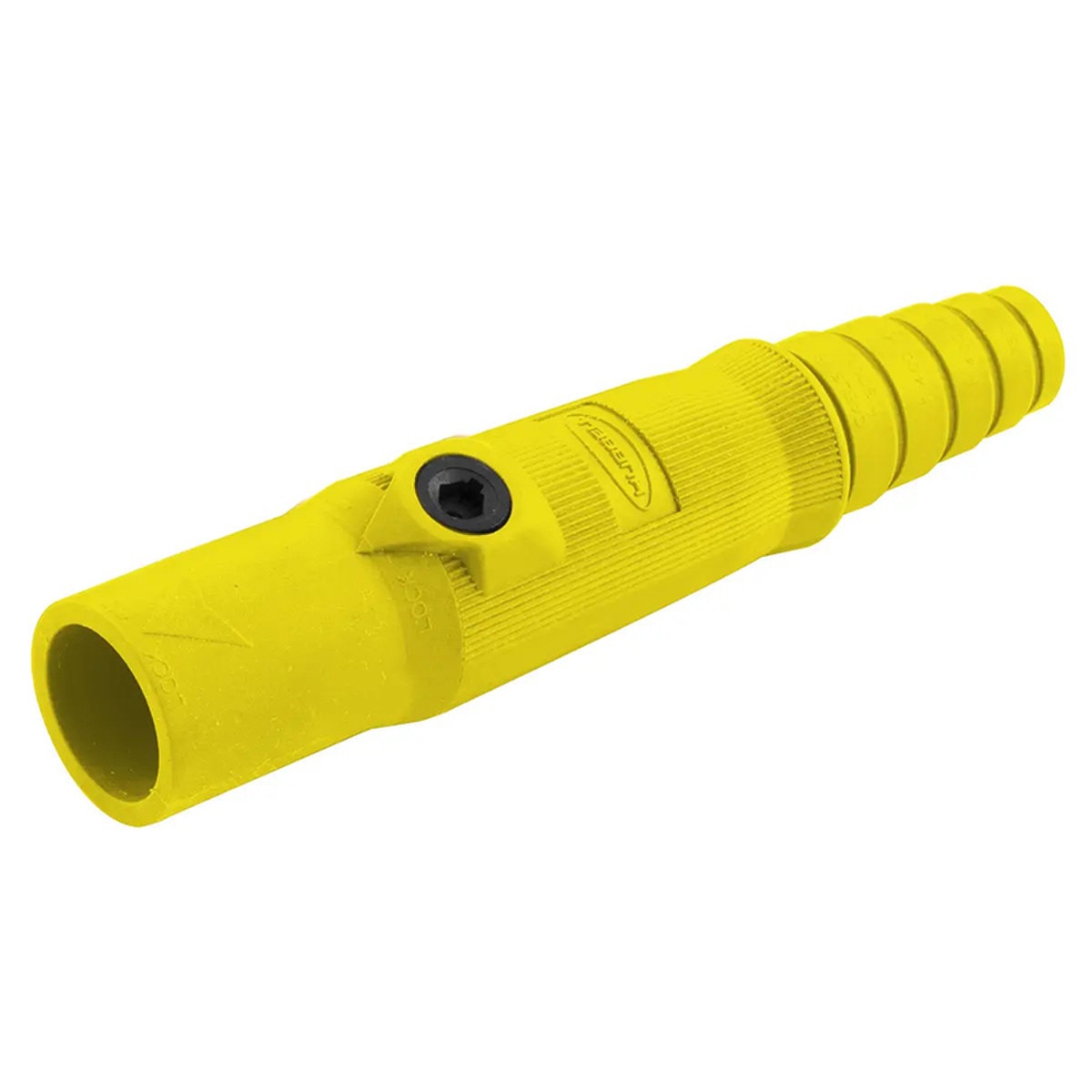

Hubbell HBL15MY 150 AMP MALE CABLE MOUNT - YELLOW

(0)No Reviews yet
$22.13
SKU: Hubbell HBL15MY

Details

Single Pole Products, Male Plug, 150 Amp Series, Yellow


Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Features:

  • Insulgrip® Style Housing for Superior Gripping
  • Non-Conductive Retaining Screw locks contacts in place
  • Large Raised Alignment Arrow aids in the mating of devices

Specifications:
General:

  • Color: Yellow
  • Performance: Electrical - Amperage Rating - 150A Maximum
  • Electrical - Voltage Ratings - 600V AC Maximum
  • 250V DC Maximum
  • Mechanical - Product Identification - Ratings are a permanent part of device
  • Mechanical - Terminal Accommodation - #8 to #2 AWG
  • Series: Series 15
  • Style: Male
  • Type: Plugs

Electrical Ratings:

  • Amperage Rating: 150 A
  • Current / Amperage Rating: 150 A
  • Voltage Rating Description: 600V AC/DC

Certifications and Compliance:

  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70
  • UL and cUL Listed
  • UL Enclosure Types 3R, 4X, 12


Wiring HBL15MBK Specification Sheet.pdf
WDK_HBL15M_DRAWING.pdf
