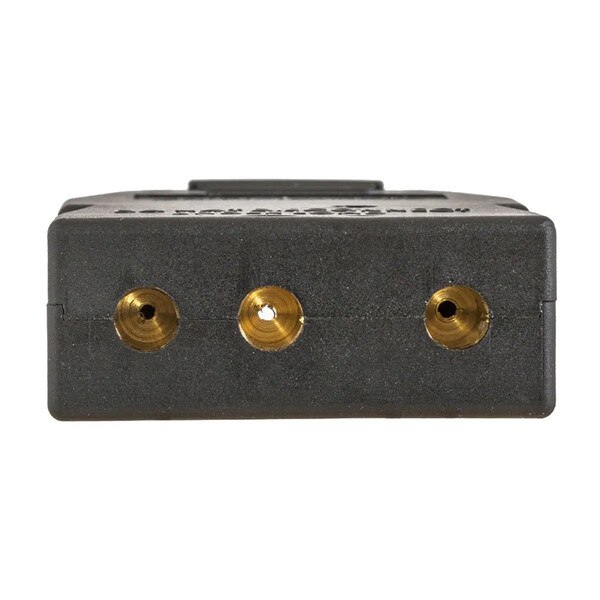

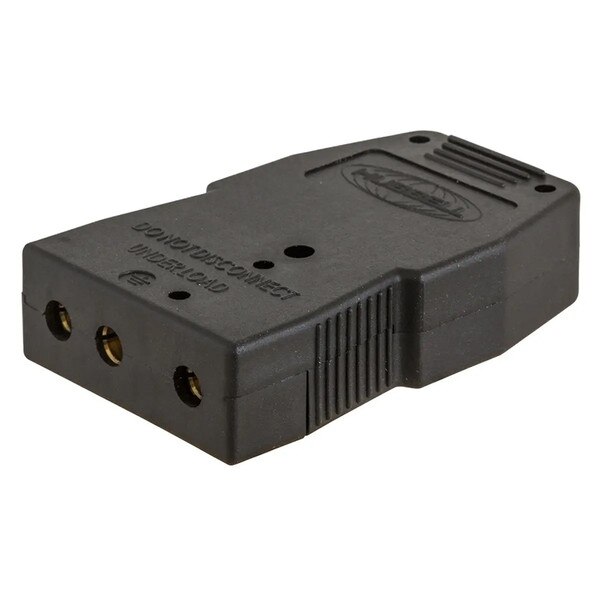

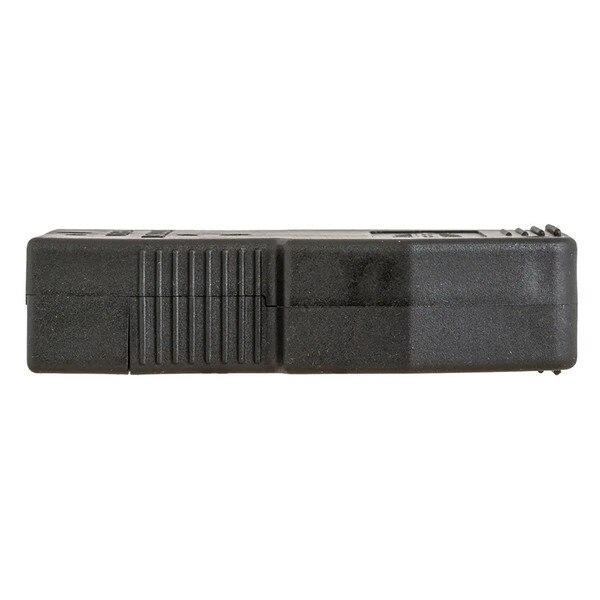

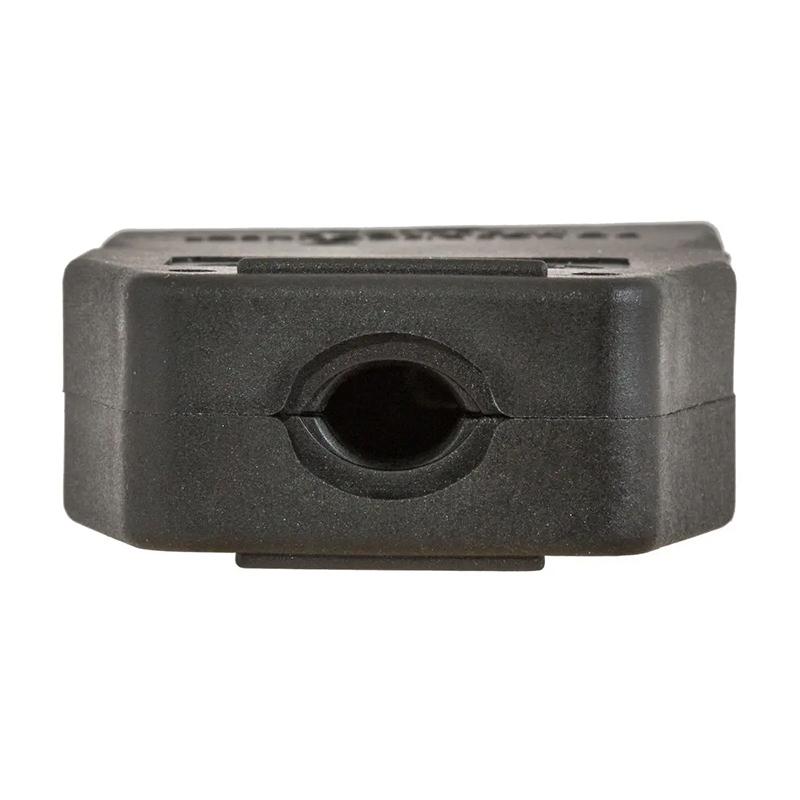

Hubbell HBL20SPFC 20AMP FEMALE INLINE STAGE PIN CLEAR

20 Amp 125V Clear, Female Inline, Double Set Screw Stage Pin Device
Hubbell Stage Pin devices were designed in collaboration with industry experts, resulting in the most user friendly, highest performing devices in the industry. Stage Pin devices exemplify Hubbell's commitment to always improve our products. Hubbell stage pin devices feature a removable sleeve that is highly heat stable and heat resistant. It does not allow the heat generated at the connection to negatively impact the device. Like phenolic devices of the past, this modern innovation will provide for a cool running device that is simple and convenient to wire.


Features:

• Comaptible with installed base, Impact Resistant

General:

• Application: Stage and Studio Lighting and Power Distribution
• Color: Clear
• Contact: Brass
• EU RoHS Indicator: Contact Manufacturer
• Material - Body: Thermoplastic
• Mounting Type: Female Inline
• Style: Double Set Screw
• Termination Type: Double Set Screw
• Type: Inline
• UPC: 783585539850

Electrical Ratings:

• Amperage Rating: 20 A
• Current / Amperage Rating: 20 A
• Voltage Rating Description: 125 V

Certifications and Compliance:

• Industry Standard(s)
• UL Listed
• CSA
• ESTA

Logistics:

• Carton Quantity: 100

WIRING_HBL20SPFC_spec.pdf
