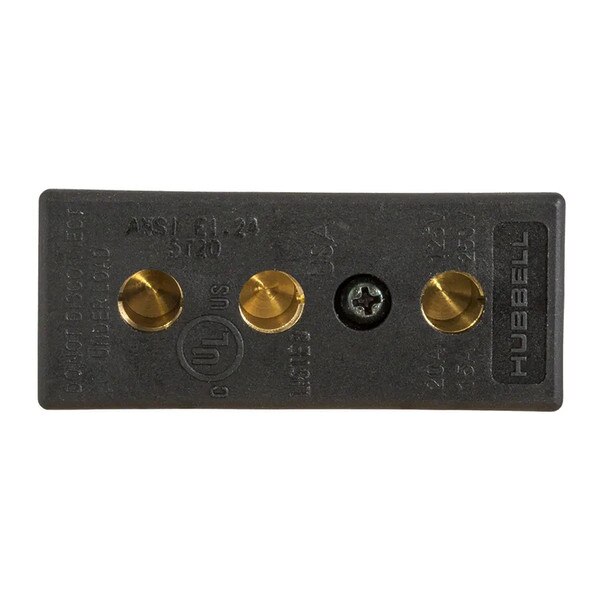

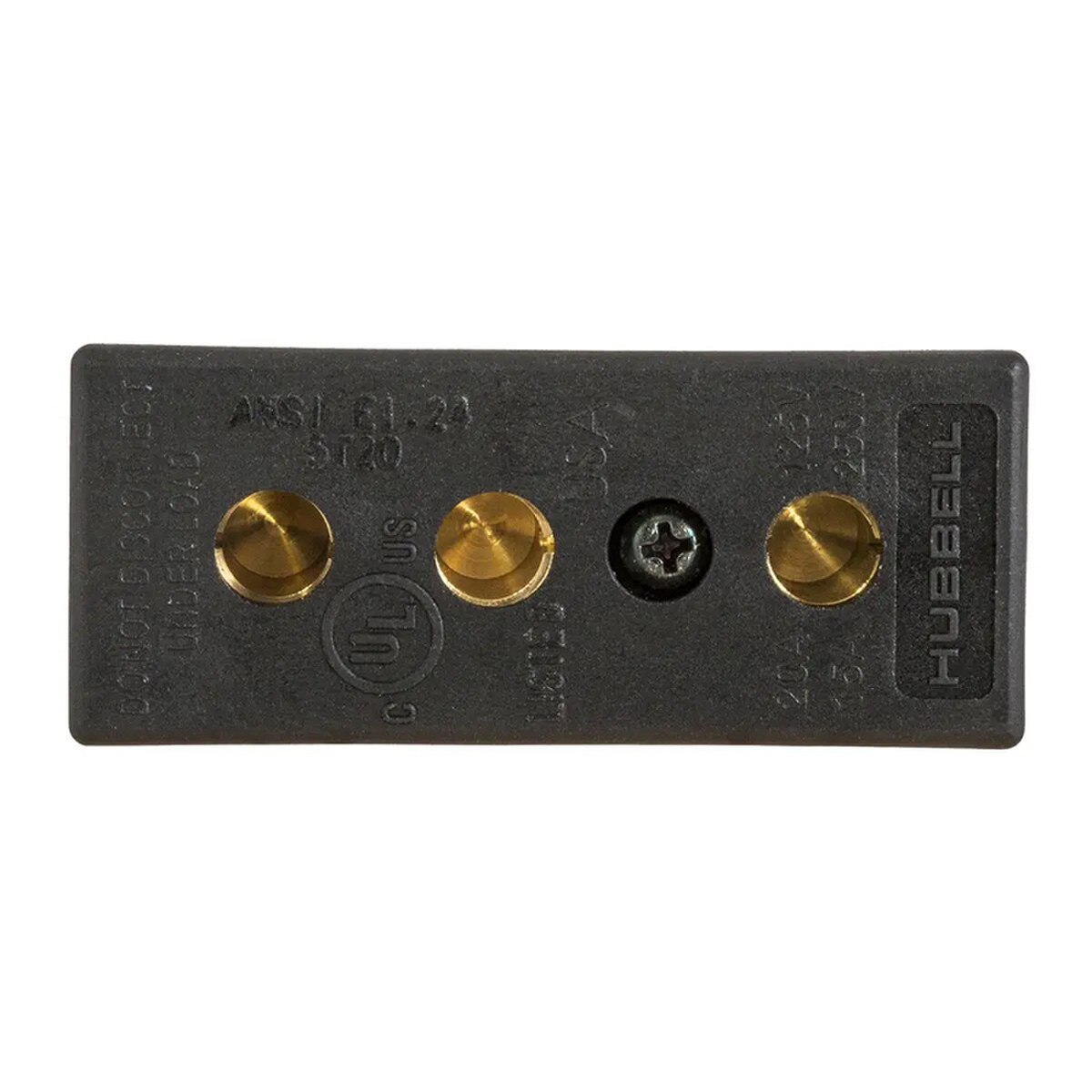

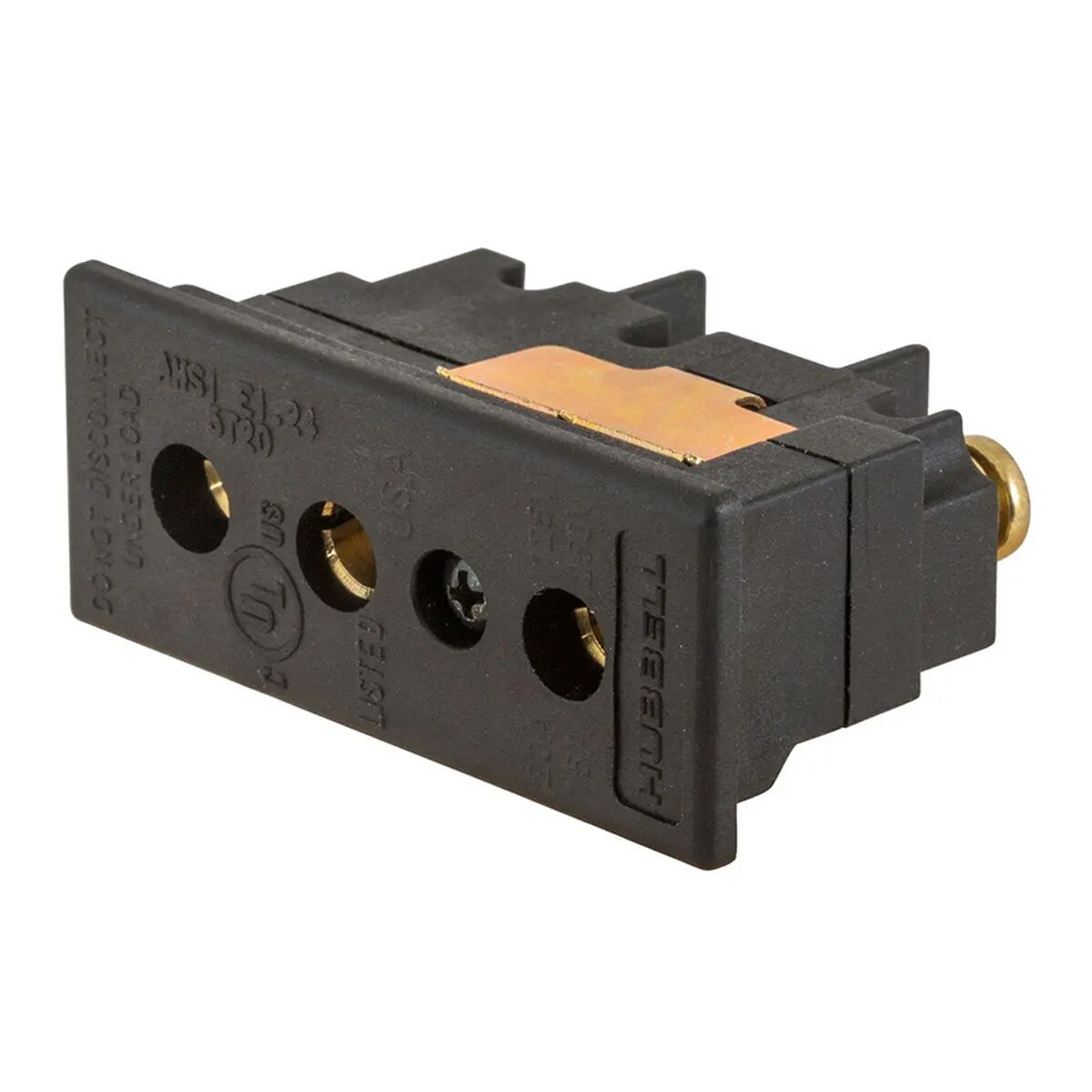

Hubbell HBL20SPFR 20AMP FEMALE PANEL MOUNT STAGE PIN
Details
20 Amp 125V Black, Female Panel Mount, Double Set Screw Stage Pin Device
Hubbell Stage Pin devices were designed in collaboration with industry experts, resulting in the most user friendly, highest performing devices in the industry. Stage Pin devices exemplify Hubbell's commitment to always improve our products. Hubbell stage pin devices feature a removable sleeve that is highly heat stable and heat resistant. It does not allow the heat generated at the connection to negatively impact the device. Like phenolic devices of the past, this modern innovation will provide for a cool running device that is simple and convenient to wire.
Features:
- Comaptible with installed base, Impact Resistant
General:
- Application: Stage and Studio Lighting and Power Distribution
- Color: Black
- Contact: Brass
- EU RoHS Indicator: Contact Manufacturer
- Material - Body: Thermoplastic
- Mounting Type: Female Panel Mount

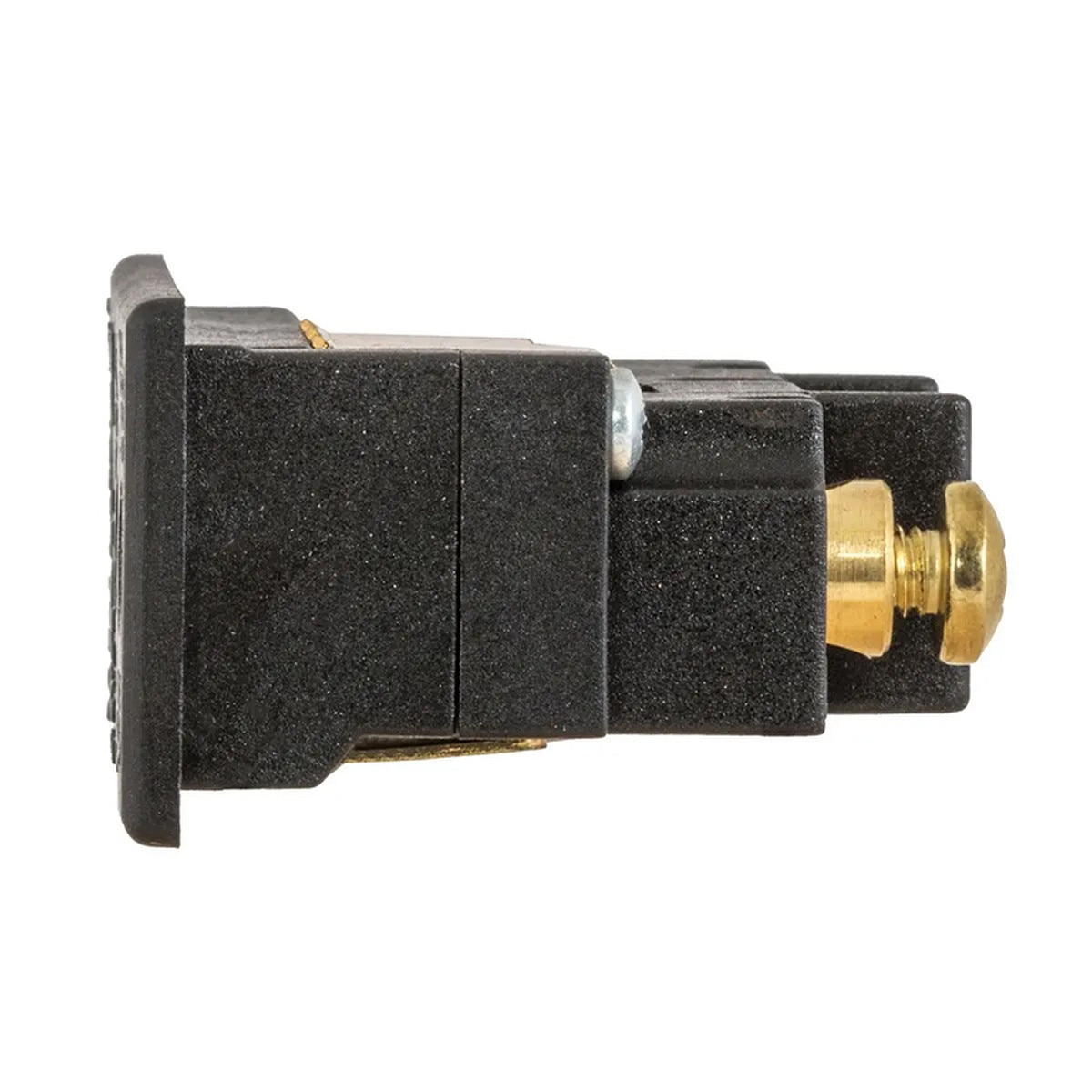

- Style: Double Set Screw

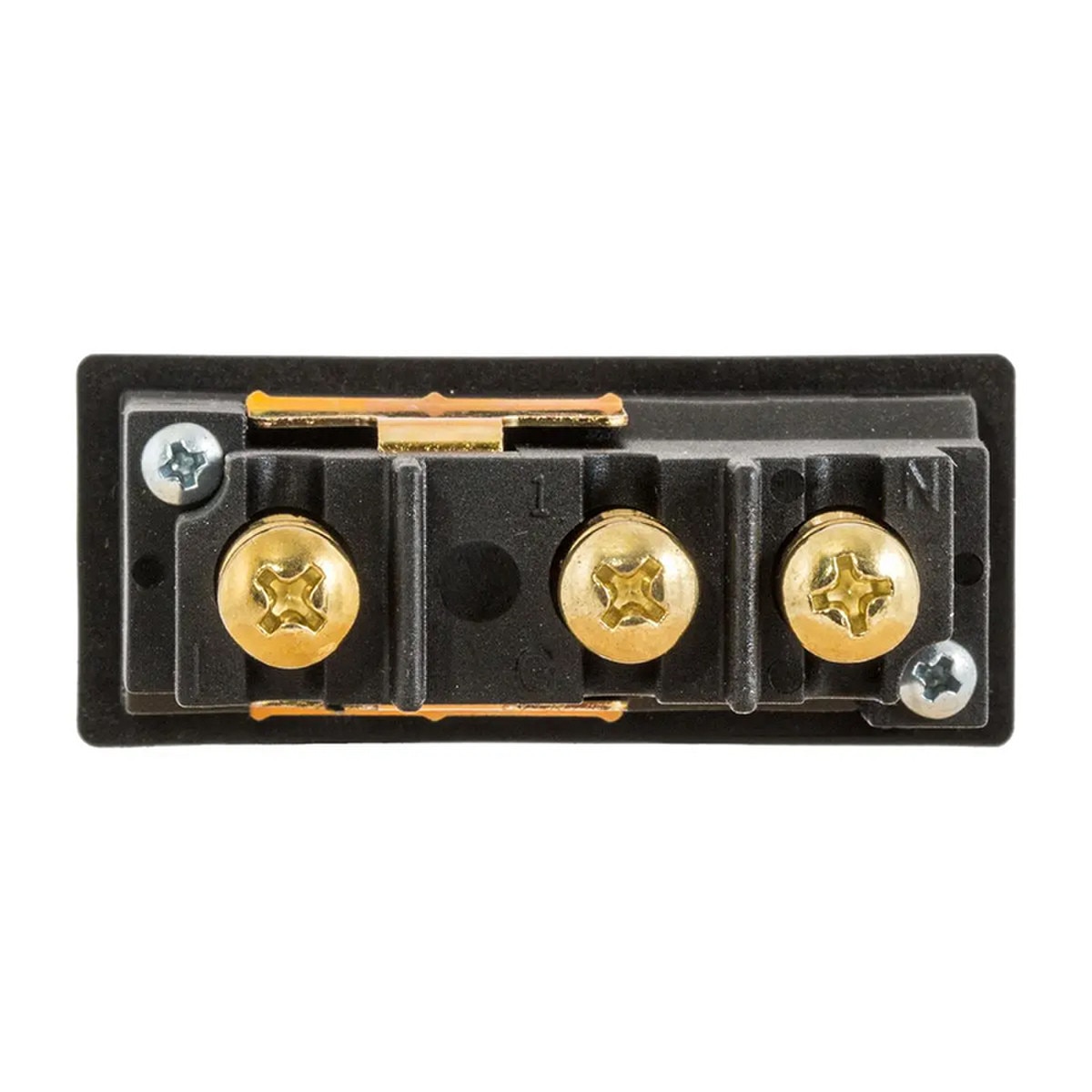

- Termination Type: Double Set Screw
- Type: Panel Mount
- UPC: 783585539867
Electrical Ratings:
- Amperage Rating: 20 A
- Current / Amperage Rating: 20 A
- Voltage Rating Description: 125 V
Certifications and Compliance:
- Industry Standard(s)
- UL Listed
- CSA
- ESTA
Logistics:
- Carton Quantity: 100
