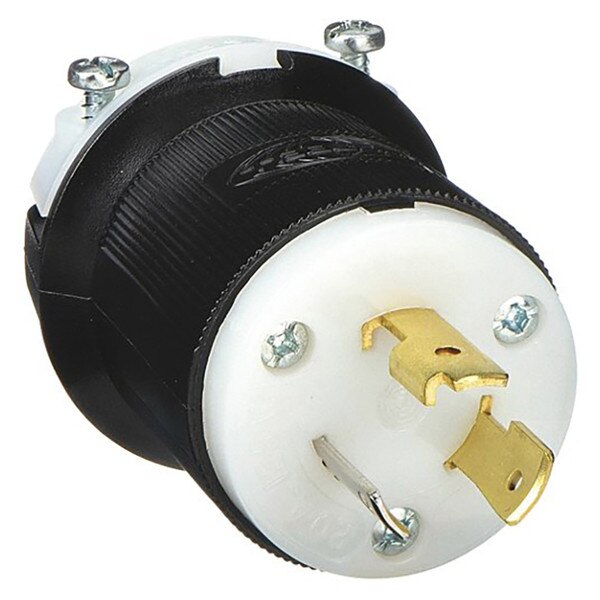

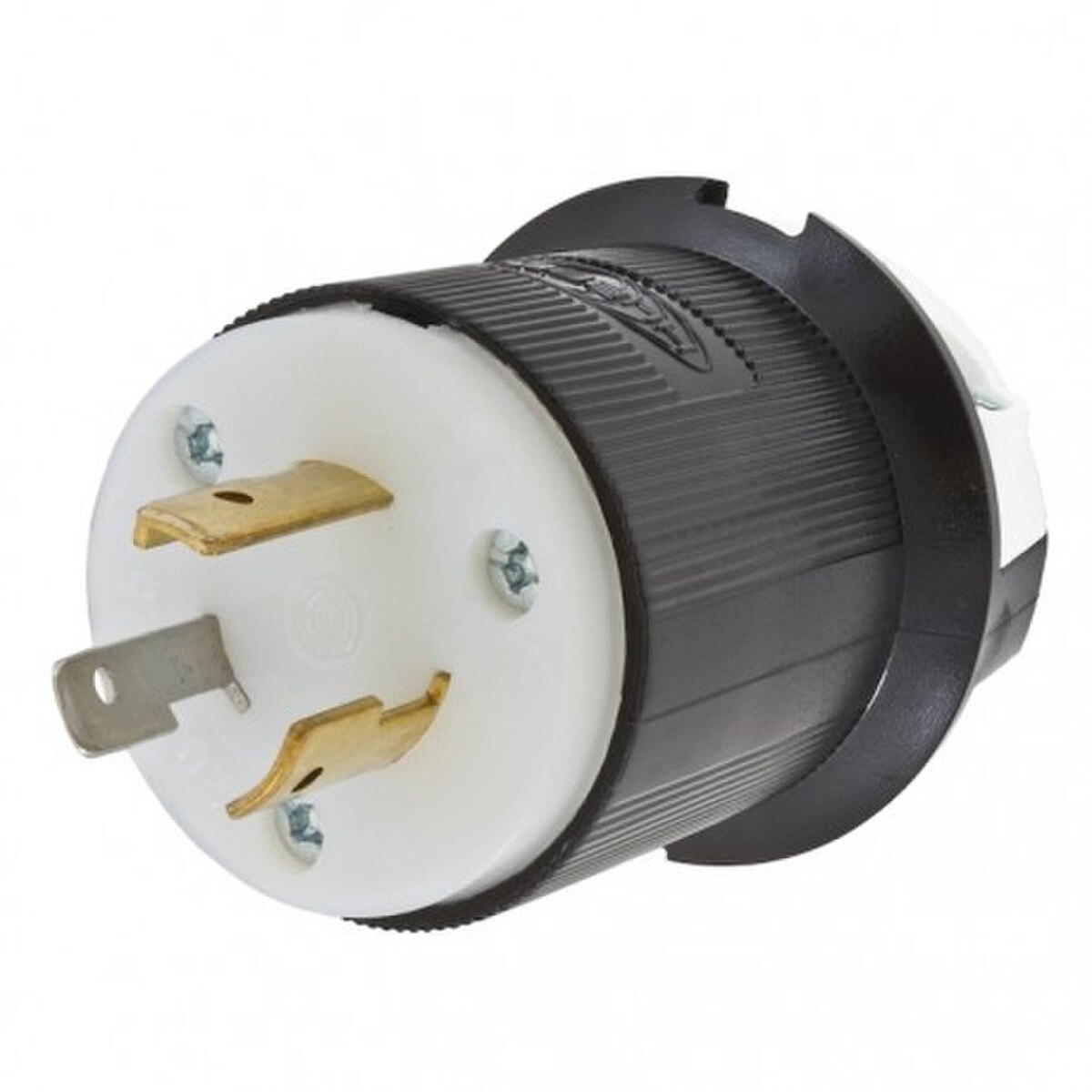

Hubbell HBL2311 L5-20 Male Plug - Black & White
Details
NEMA Twist-Lock® Devices
Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Technical Specs:
- Item: Locking Plug
- Wiring Style: Standard
- Shrouded / Non-Shrouded: Non-Shrouded
- Grade - Plugs and Receptacles: Industrial
- Voltage - Plugs and Receptacles: 125V AC
- Number of Poles: 2
- Number of Wires: 3
- NEMA Plug Configuration - Plugs and Receptacles: L5-20P
- Color - Plugs and Receptacles: Black/White
- Amps - Plugs and Receptacles: 20
- Corrosion Resistant: No
- Antimicrobial: No
- Item - Plugs and Receptacles: Locking Plug
- Cord Size: 0.360 in to 0.930 in
- IP Rating: 20
- Phase: 1
- HP: 1.0
- Material: Nylon
- Boot Code: B
- Standards: FED SPEC UL/CSA
Hubbell HBL2311 Spec Sheet.pdf
Hubbell HBL2311 Installation Guide.pdf
Hubbell HBL2311 Dimensional Drawing.pdf
