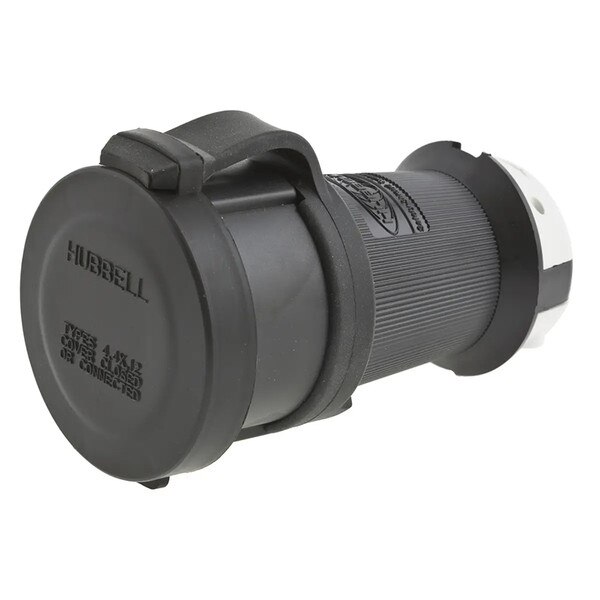

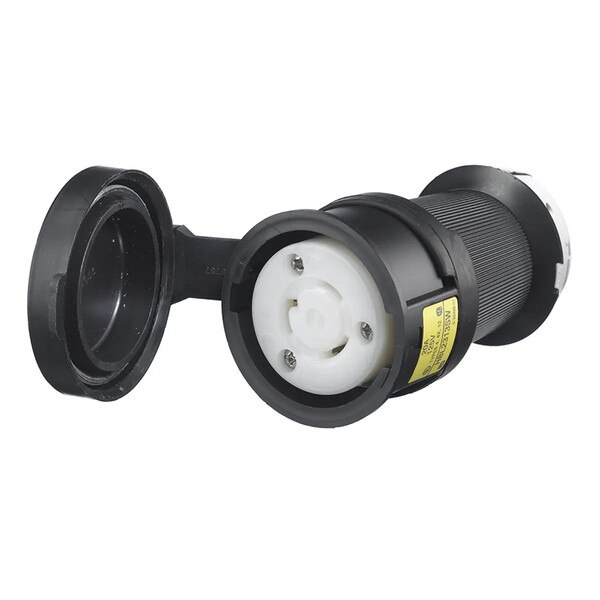

Hubbell HBL2313SW L5-20 CONNECTOR WITH WATERTIGHT SAFETY SHROUD

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black PBT housing, White PBT clamps.


Features:

• UL Type 4X Environmental seal protects connection while in use.
• One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
• Closure cap is included for environmental seal when device is not in use
• Superior cord grip design protects terminations from excess strain.

General:

• Application: Heavy Duty Industrial
• Color: Black, White
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions: Watertight
• Horsepower - Maximum: 1
• Insulation: Insulated Body
• Item Type: 20A Watertight Safety-Shroud® Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
• Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Temperature Rating    Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 783585231044

Dimensions:

• 2.57 in x 2.57 in x 4.40 in
• Display Size: Standard
• Height: 4.40 in
• Length: 2.57 in
• Weight: 0.60 lb
• Width: 2.57 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Cable Range: 0.360 - 0.930 in
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
•  UL Listed, CSA Certified To Type 4, 4X And Type 12
• Nema Rating: L5-20R

Logistics:

• Carton Quantity: 10
