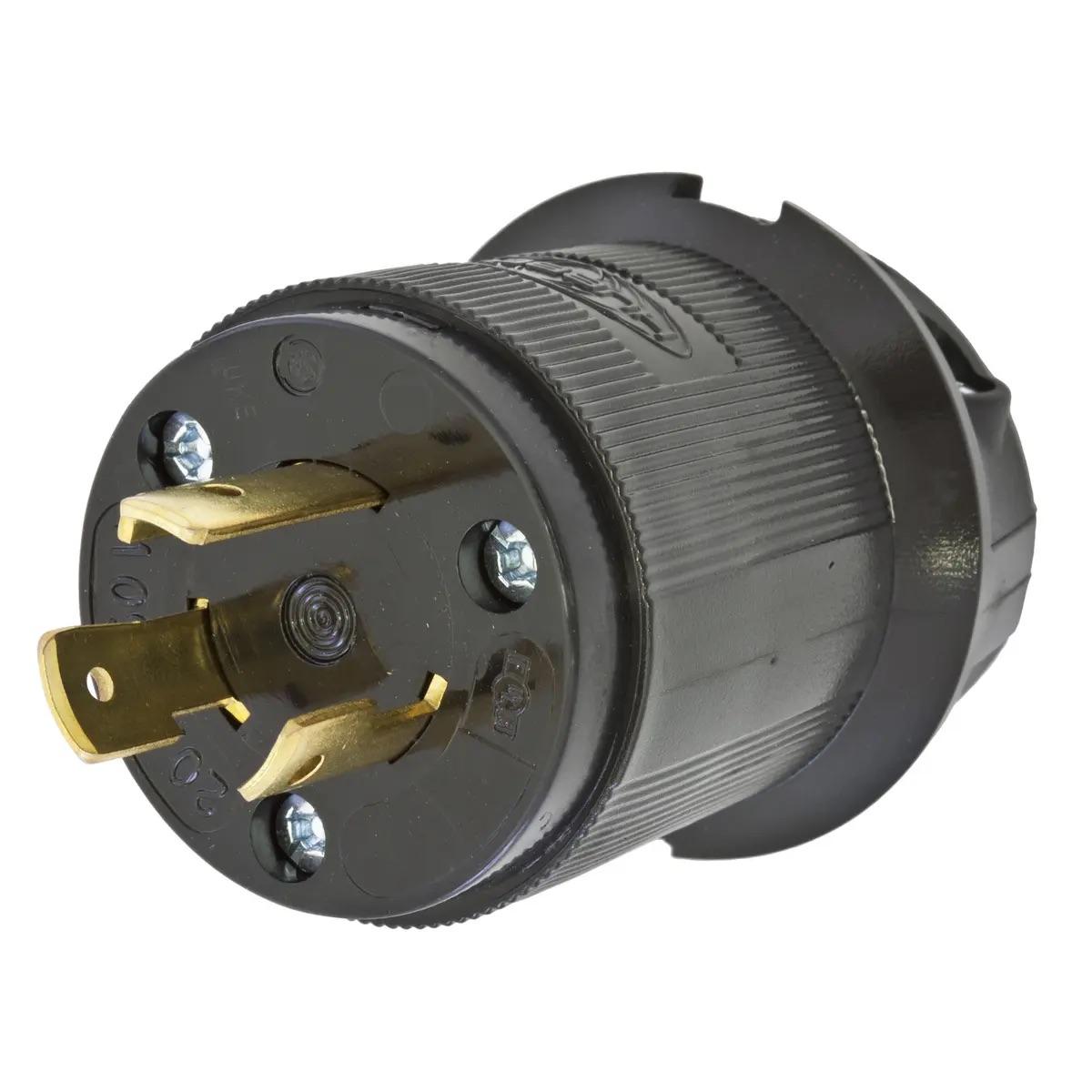

Hubbell HBL2321BK Insulgrip L6-20 Twistlock - Male Plug - Black

• All black ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants

General:

• Application: Extra Heavy Duty Industrial
• Color: Black
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 2
• Item Type: 20A Insulgrip® Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles2-Pole
• OEM Brand NameHubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• UPC: 783585172224

Dimensions

• Dimensions: 2.26 in x 2.26 in x 2.75 in
• Display Size: Standard Sized
• Height: 2.75 in
• Length: 2.26 in
• Weight: 0.40 lb
• Width: 2.26 in

Electrical Ratings

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 250 VAC
• Voltage Rating Description: 250 VAC

Conductor Related:

• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire Grounding
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:
Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating: L6-20P

Logistics:

• Carton Quantity    30
