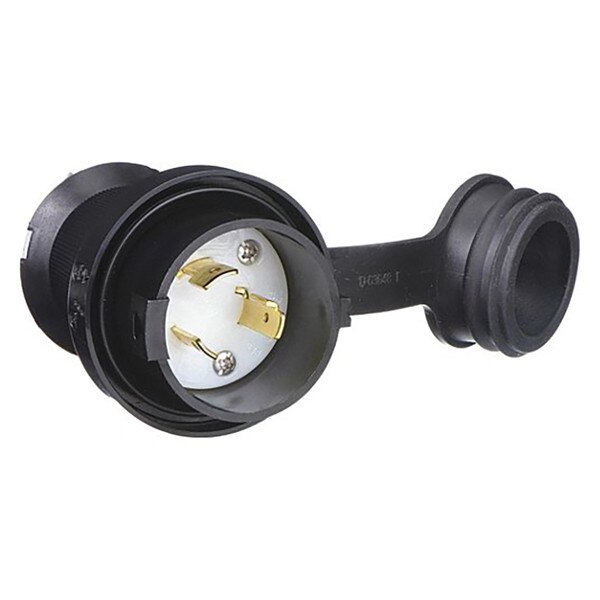

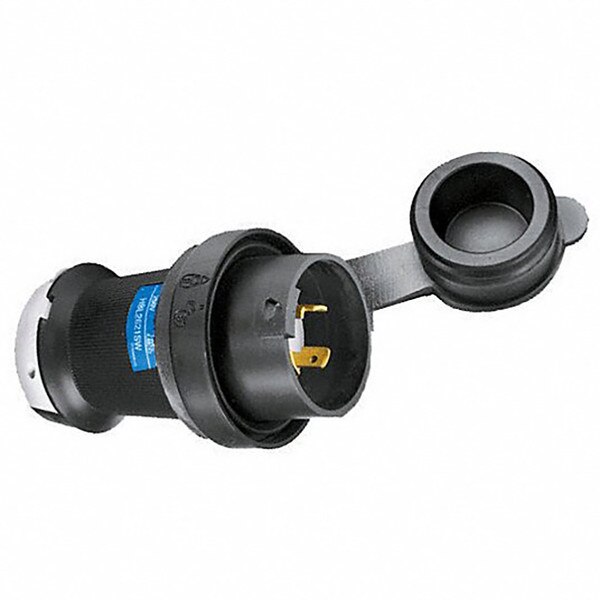

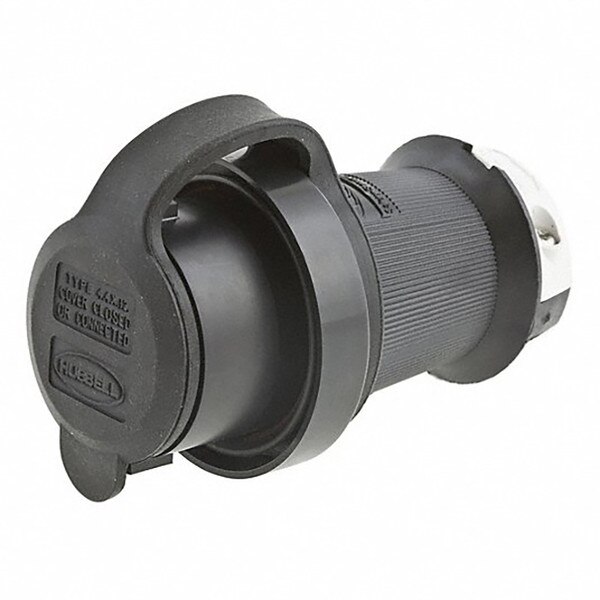

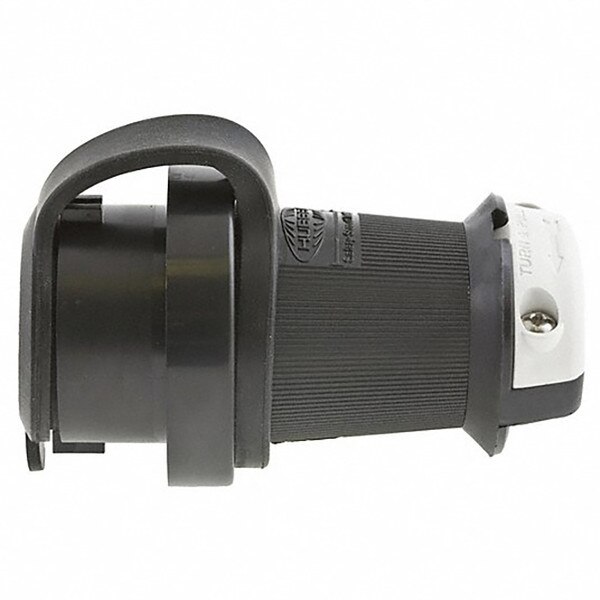

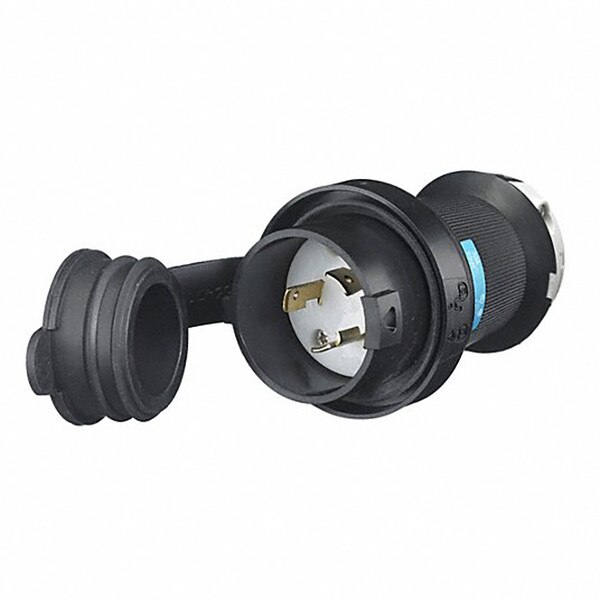

Hubbell HBL2321SW L6-20 Plug with Watertight Safety Shroud
Details
Help prevent water ingress in electrical connections under hose-down conditions with a watertight, safety-shroud twist-lock. It features stainless steel hardware, a closure cap, 1-pc. thermoplastic housing, and lockout-tagout hole.
Technical Specs
- Item: Watertight Locking Plug
- Wiring Style: Standard
- Shrouded / Non-Shrouded: Shrouded
- Grade - Plugs and Receptacles: Industrial
- Voltage - Plugs and Receptacles: 250V AC
- Number of Poles: 2
- Number of Wires: 3
- NEMA Plug Configuration - Plugs and Receptacles: L6-20P
- Color - Plugs and Receptacles: Black/White
- Amps - Plugs and Receptacles: 20
- Corrosion Resistant: No
- Antimicrobial: No
- Item - Plugs and Receptacles: Watertight Locking Plug
- Cord Size: 0.360 in to 0.930 in
- IP Rating: 66
- Phase: 1
- HP: 2.0
- Material: Impact Modified PBT
- Standards: FED SPEC UL/CSA
- Special Features: Dust and Weather Resistant, Moisture
Hubbell HBL2321SW Specs.pdf
Hubbell HBL2321SW Manual.pdf
Hubbell HBL2321SW Dimensional Drawing.pdf
