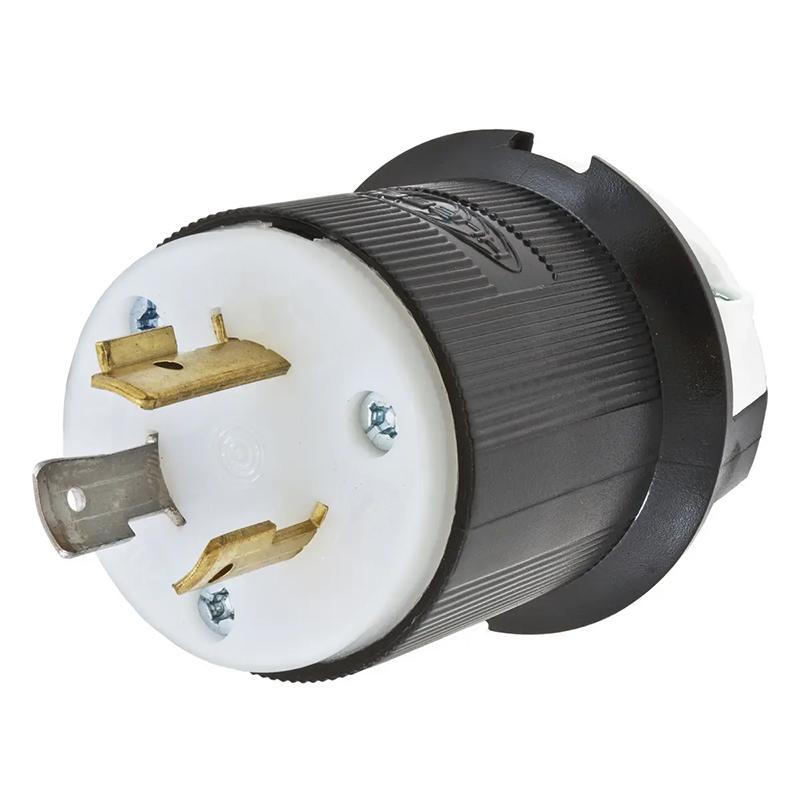

Hubbell HBL2331 L7-20 MALE PLUG-BLACK & WHITE
Details
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20P, Screw Terminal, Black and White Nylon.
WIRING_HBL2331_spec.pdf
Features:
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
General:
- Application: Extra Heavy Duty Industrial
- Color: Black, White
- Cord Range: 0.360"-0.930" (9-24)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum: 2
- Item Type: 20A Male Insulgrip® Plug
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 495
- Type: Plugs
- UPC: 783585037899
Dimensions:
- 2.26 in x 2.26 in x 2.75 in
- Display Size: Standard Sized
- Height: 2.75 in
- Length: 2.26 in
- Weight: 0.30 lb
- Width: 2.26 in
Electrical Ratings:
- Amperage Rating: 20 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 20 A
- Current Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 277 VAC
- Voltage Rating Description: 277 VAC
Conductor Related:
- Cable Range: 0.360 - 0.930 in
- Cord Type: All Listed Portables
- Number Of Wires: 3-Wire
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L7-20P
Logistics:
- Carton Quantity: 30
