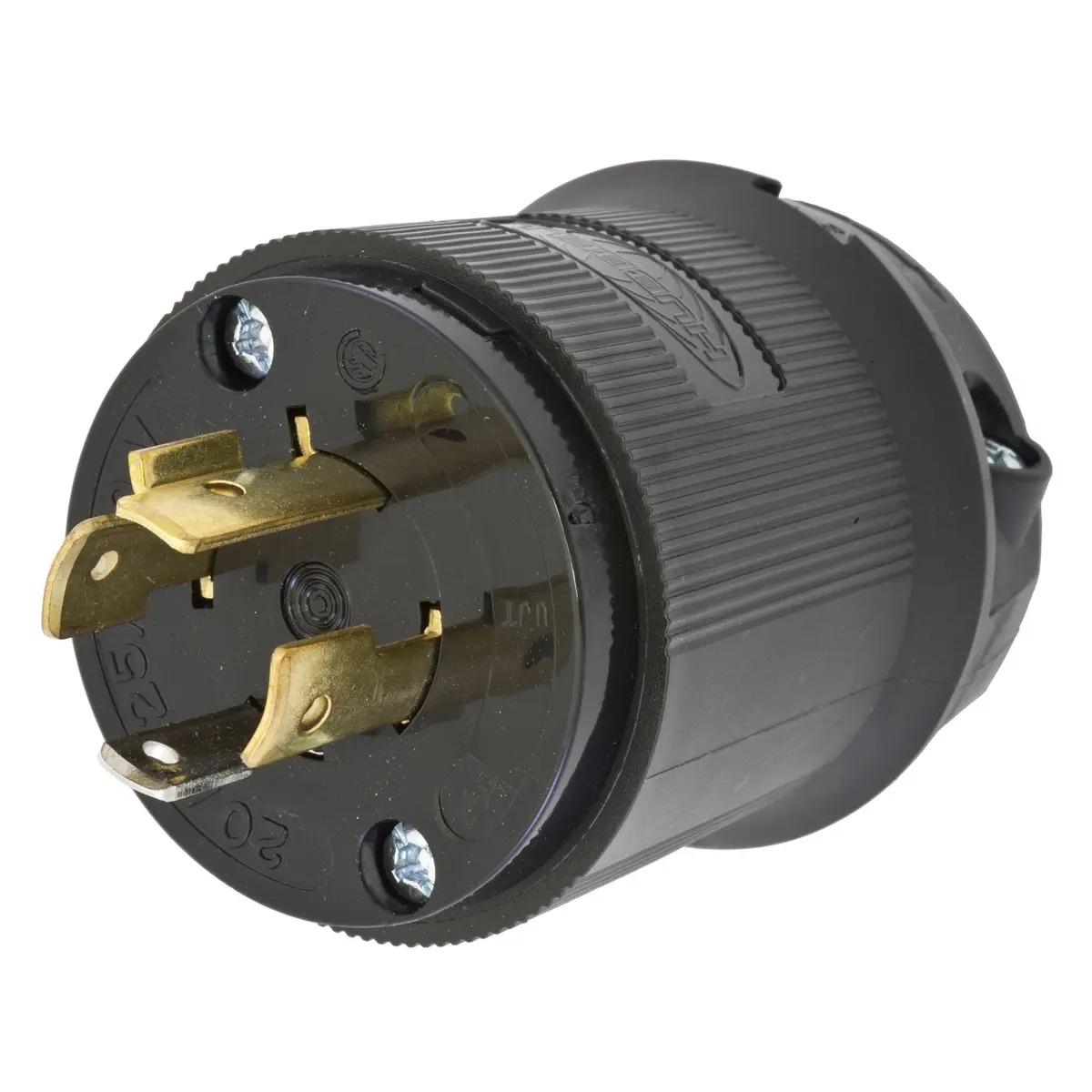

Hubbell HBL2411BK Twist-Lock Insulgrip Connector - 125/250 AC Male
Details
Locking Devices, Twist-Lock®, Insulgrip® Plug, 20A, 125/250V AC, 3-Pole, 4-Wire Grounding, Black
Certifications and Compliance:
WIRING_PD1730_INSTALLINST.pdf
WIRING_HBL2411BK_spec.pdf
Wiring_Catalog_B22_CatPage.pdf
WDK_HBL2411_DRAWINGS_PDF.pdf
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
General:
- Application: Extra Heavy Duty Industrial
- Color: Black, Noir
- Cord Range: 0.350"-1.150" (9-29)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum: 2 (1)
- Item Type: 20A Insulgrip® Plug
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- UPC: 783585172309
Dimensions:
- Dimensions: 2.75 in x 2.33 in x 2.33 in
- Display Size: Standard Sized
- Height: 2.33 in
- Length: 2.75 in
- Weight: 0.30 lb
- Width: 2.33 in
Electrical Ratings:
- Amperage Rating: 20 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 20 A
- Current Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125/250 VAC
- Voltage Rating Description: 125/250 VAC
Conductor Related:
- Cord Type: All Listed Portables
- Number Of Wires: 4-Wire Grounding
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
Industry Standard(s):
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L14-20P
Logistics:
- Carton Quantity: 30
