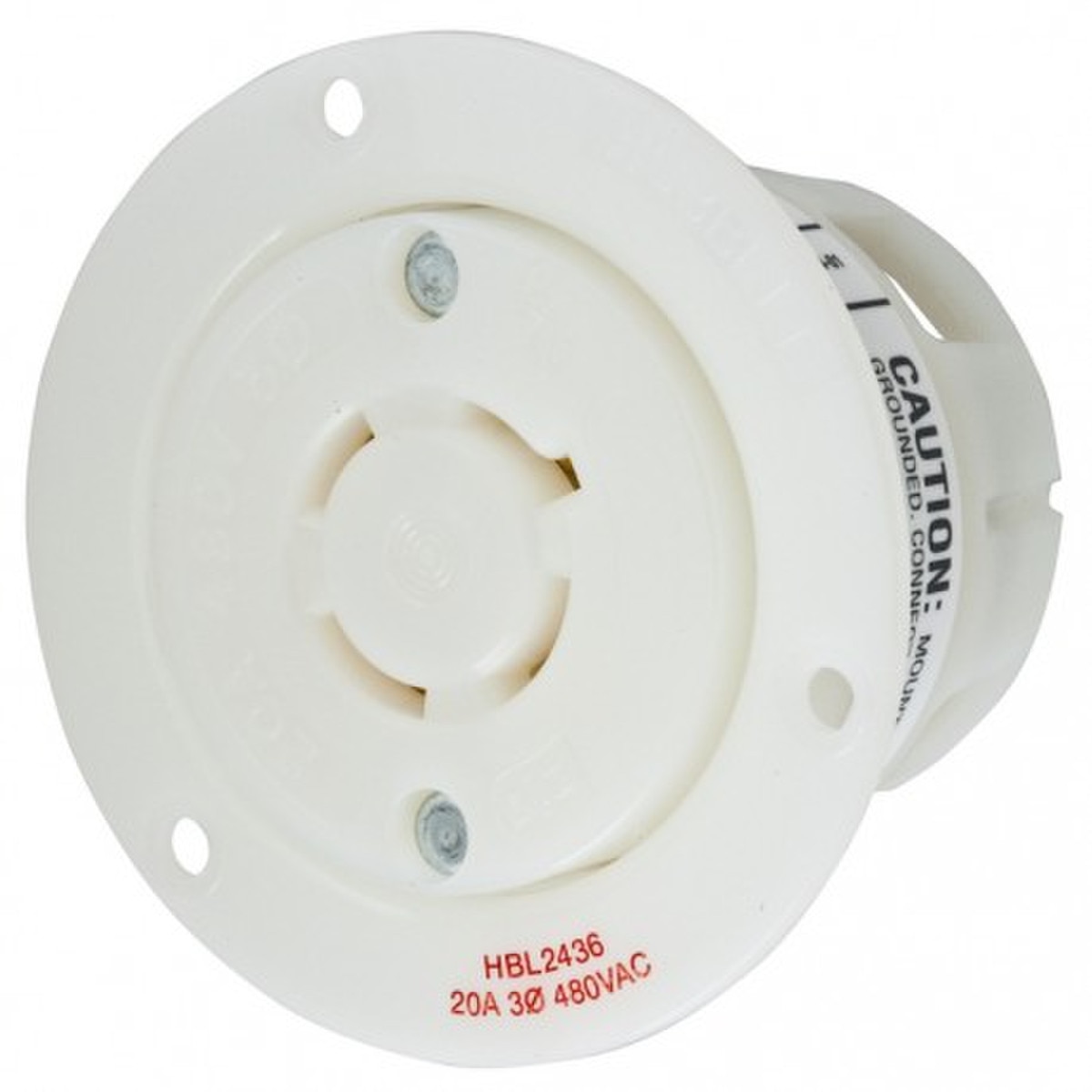

Hubbell HBL2436 L16-20 Flanged Receptacle
Details
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 3 Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Nylon casing, Back wired, White.
WIRING_HBL2436_spec.pdf
Features:
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
General:
- Application: Insulgrip
- Environmental Conditions Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum: 5
- Item Type: 20A Insulgrip® Flanged Receptacle
- Material: Nylon
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Type: Flanged Receptacle
- UPC: 783585038346
Dimensions:
- 3.06 in x 3.06 in x 2.27 in
- Display Size: Standard Sized Product
- Height: 2.27 in
- Length: 3.06 in
- Weight: 0.35 lb
- Width: 3.06 in
Electrical Ratings:
- Amperage Rating: 20 A
- Connectivity: Back Wired Screw Terminals
- Current / Amperage Rating: 20 A
- Current Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Three Phase
- Voltage Rating: 3 Phase 480 VAC
- Voltage Rating Description: 3 Phase 480 VAC
Conductor Related:
- Number Of Wires: 4-Wire
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating L16-20R
Logistics:
- Carton Quantity: 10
