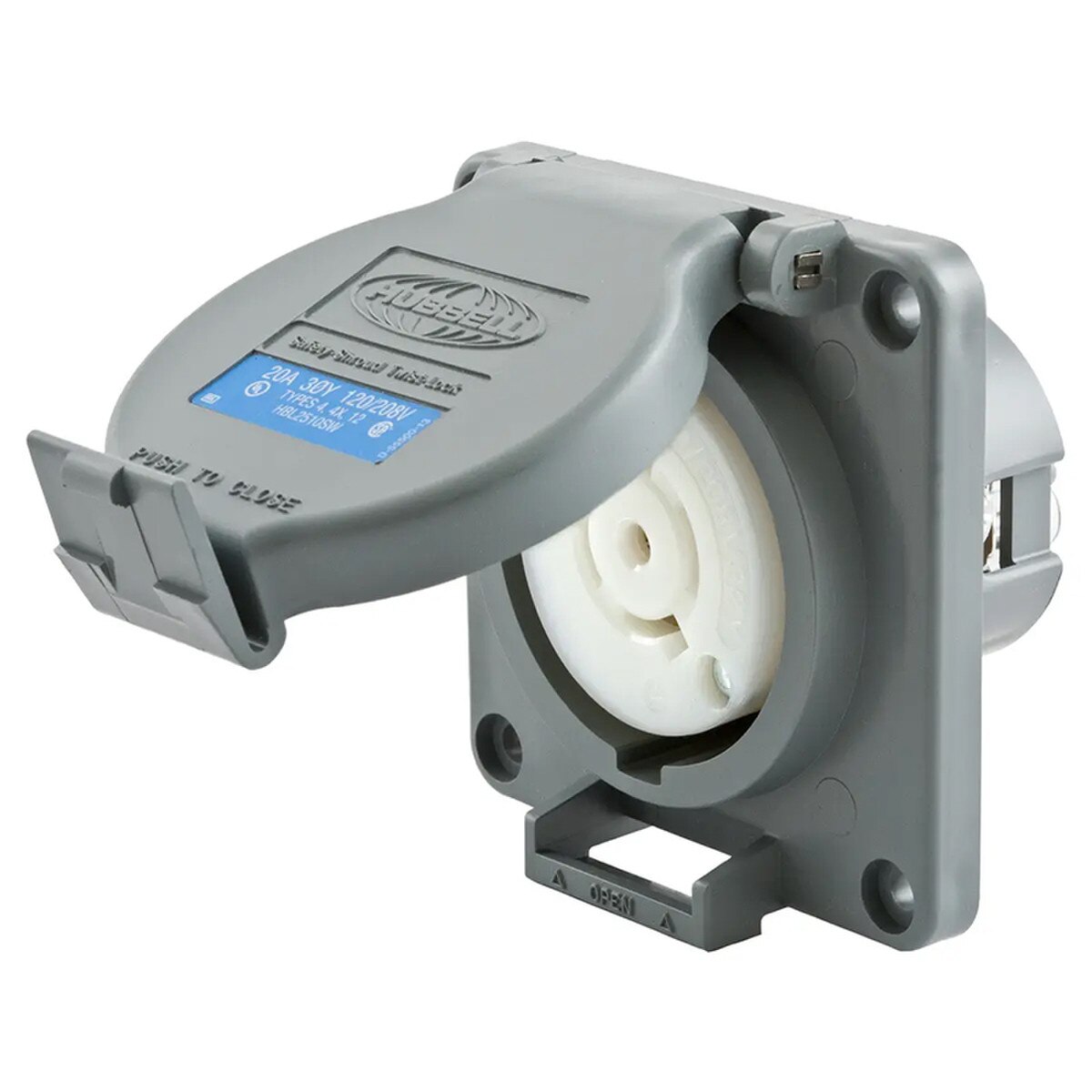

Hubbell HBL2510SW L21-20 WATERTIGHT SAFETY SHROUD SINGLE RECEPTACLE
Details
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, PBT housing and flange, Gray.
WIRING_HBL2510SW_spec.pdf
Features:
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded Watertight Construction
General:
- Application: Heavy Duty Industrial Shrouded Watertight
- Environmental Conditions: Watertight
- Horsepower - Maximum: 2
- Item Type: 20A Watertight Safety-Shroud® Receptacle
- Material: Thermoplastic
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 4-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Type: Receptacle
- UPC: 783585231501
Dimensions:
- 3.75 in x 3.75 in x 2.9 in
- Display Size Standard Sized Product
- Height: 2.9 in
- Length: 3.75 in
- Weight: 0.65 lb
- Width: 3.75 in
Electrical Ratings:
- Amperage Rating: 20 A
- Connectivity: Back Wired Screw Terminals
- Current / Amperage Rating: 20 A
- Current Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: 3 Phase WYE
- Voltage Rating: 3 Phase WYE 120/208 VAC
- Voltage Rating Description: 3-Phase Y 120/208 VAC
Conductor Related:
- Number Of Wires: 5-Wire
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Nema Rating: L21-20R
Logistics:
- Carton Quantity: 5
