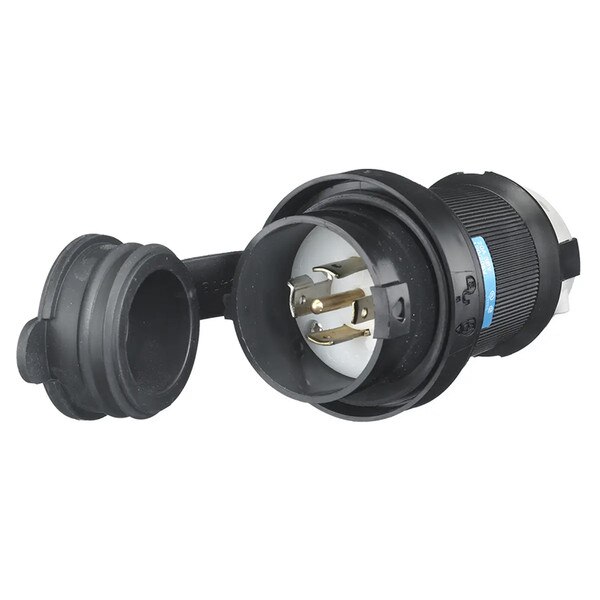

Hubbell HBL2511SW L21-20 MALE PLUG WITH WATERTIGHT SAFETY SHROUD

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Black PBT housing, White PBT clamps.
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools.


Features:

• Impact resistant shroud protects blades against bending and breaking.
• Reduces exposure to arcing when connecting or disconnecting under load.
• Superior cord grip design protects terminations from excess strain.
• Standard Product, Shrouded Watertight Construction

General:

• Application: Straight Male- Form 5 Extra Heavy Duty Industrial
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. Watertight
• Item Type: Deluxe Cord Grips 20A Watertight Safety-Shroud® Plug
• Material: Aluminum Fittings, Stainless Steel Mesh Composite
• Material - Mounting Hardware: Locknut or Tapped Opening Cord Mounted
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting)
• Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C
• Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C)
• Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
• Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Series: PG and Metric Threaded
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
• Type: Straight Metric Male Thread Plugs
• UPC: 783585327907

Dimensions:

• 2.94 in x 2.94 in x 4.40 in
• Display Size: 32mm Standard Sized
• Height: 4.40 in
• Hub Size: M32
• Length: 2.94 in
• Weight: 0.75 lb
• Width: 2.94 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 120/208 VAC
• Voltage Rating Description: 3-Phase Y 120/208 VAC

Conductor Related:

• Cable Diameter Range: 1.000 in-1.125 in
• Cable Range: 0.350 - 1.150 in
• Cable Size: 1.000"-1.125" (2.54-2.86)
• Conductor Range: 1-1.125 in (2.54-2.86 mm)
• Cord Type: All Listed Portables
• Number Of Conductors: Single
• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s): UL Listed UL Listed, CSA Certified To Type 4, 4X And Type 12
• Nema Rating: L21-20P

Logistics:

• Carton Quantity: 5
