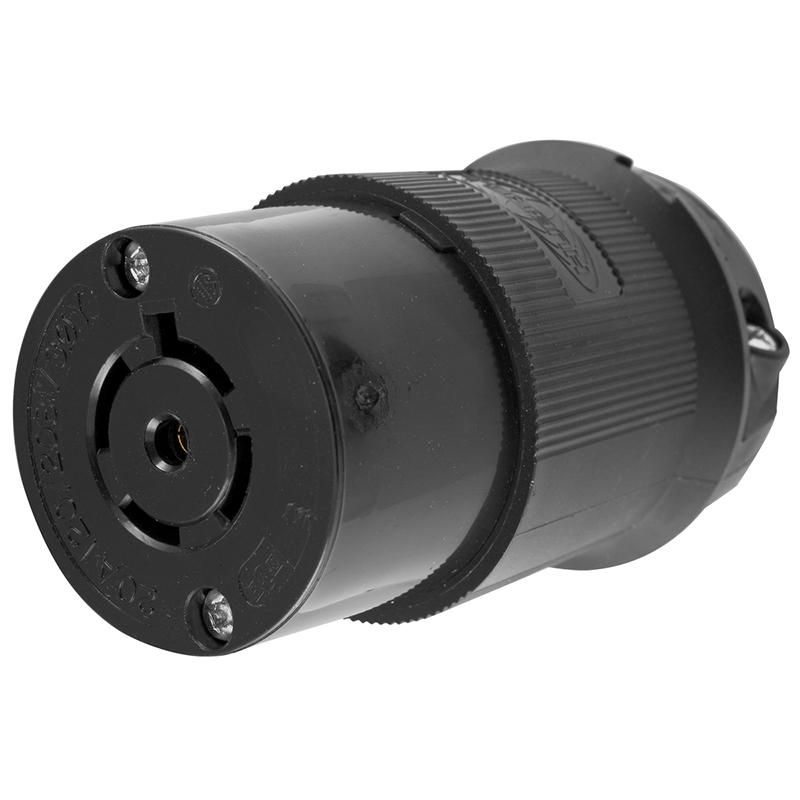

Hubbell HBL2513BK Insulgrip Connector
Details
Locking Devices, Twist-Lock®, Insulgrip® Connector, 20A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-20R, All black nylon.
WIRING_HBL2513BK_spec.pdf
General:
- Application: Heavy Duty Industrial
- Color: Black, Noir
- Cord Range: 0.350"-1.150" (9-29)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Insulation: Insulated Body
- Item Type: 20A Insulgrip® Connector
- UL 498
- Fed.Spec. W-C-596
- CSA C22.2 No.42
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 4-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstand 2,000V minimum
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C
- Minimum -40°C (w/o impact)
- UPC: 783585172279
Dimensions:
- 3.86 in x 2.33 in x 2.33 in
- Display Size: Standard
- Height: 2.33 in
- Length: 3.86 in
- Weight: 0.35 lb
- Width: 2.33 in
Electrical Ratings:
- Amperage Rating: 20 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 20 A
- Current Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: 3 Phase WYE
- Voltage Rating: 120/208 VAC
- Voltage Rating Description: 120/208 VAC
Conductor Related:
- Number Of Wires: 5-Wire Grounding
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L21-20R
Logistics:
- Carton Quantity: 30
