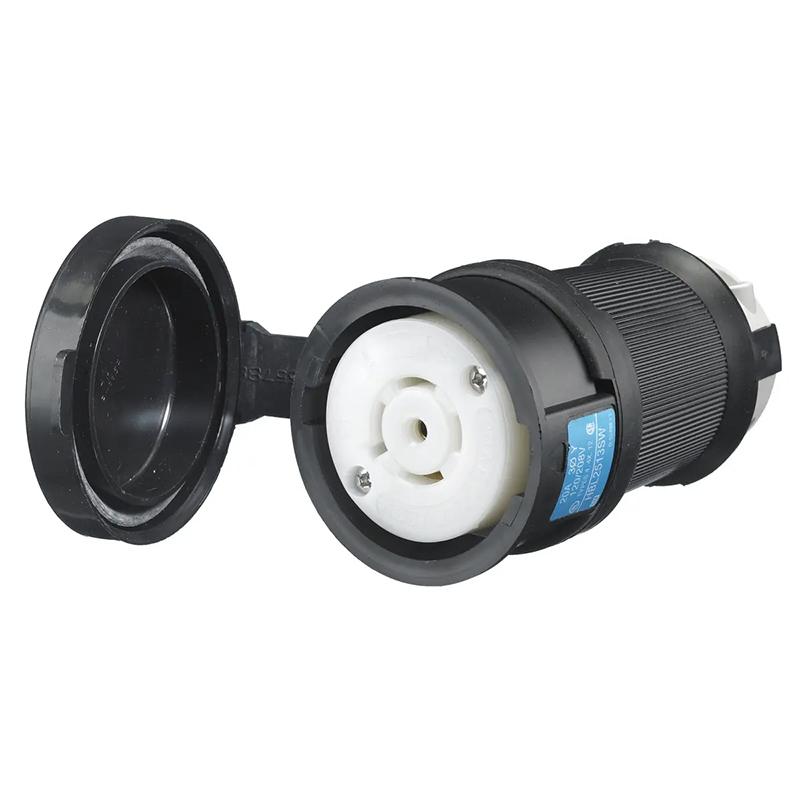

Hubbell HBL2513SW L21-20 FEMALE CONNECTOR WITH WATERTIGHT SAFETY SHROUD

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Black PBT housing, White PBT clamps.


Features:

• UL Type 4X Environmental seal protects connection while in use.
• One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
• Closure cap is included for environmental seal when device is not in use
• Superior cord grip design protects terminations from excess strain.
• Shrouded Watertight Construction

General:

• Application: Heavy Duty Industrial
• Color: Black, White
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions: Watertight
• Insulation: Insulated Body
• Item Type: 20A Watertight Safety-Shroud® Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
• Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Connector Body
• UPC: 783585231549

Dimensions:

• 2.75 in x 2.94 in x 4.40 in
• Display Size: Standard
• Height: 4.40 in
• Length: 2.75 in
• Weight: 0.65 lb
• Width : 2.94 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 120/208 VAC
• Voltage Rating Description: 3 Phase WYE 120/208 VAC

Conductor Related:

• Cable Range: 0.350 - 1.150 in
• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• UL Listed, CSA Certified To Type 4, 4X And Type 12
• Nema Rating: L21-20R

Logistics:

• Carton Quantity: 10
